BRAKE TUBE AND HOSEPFP:46210

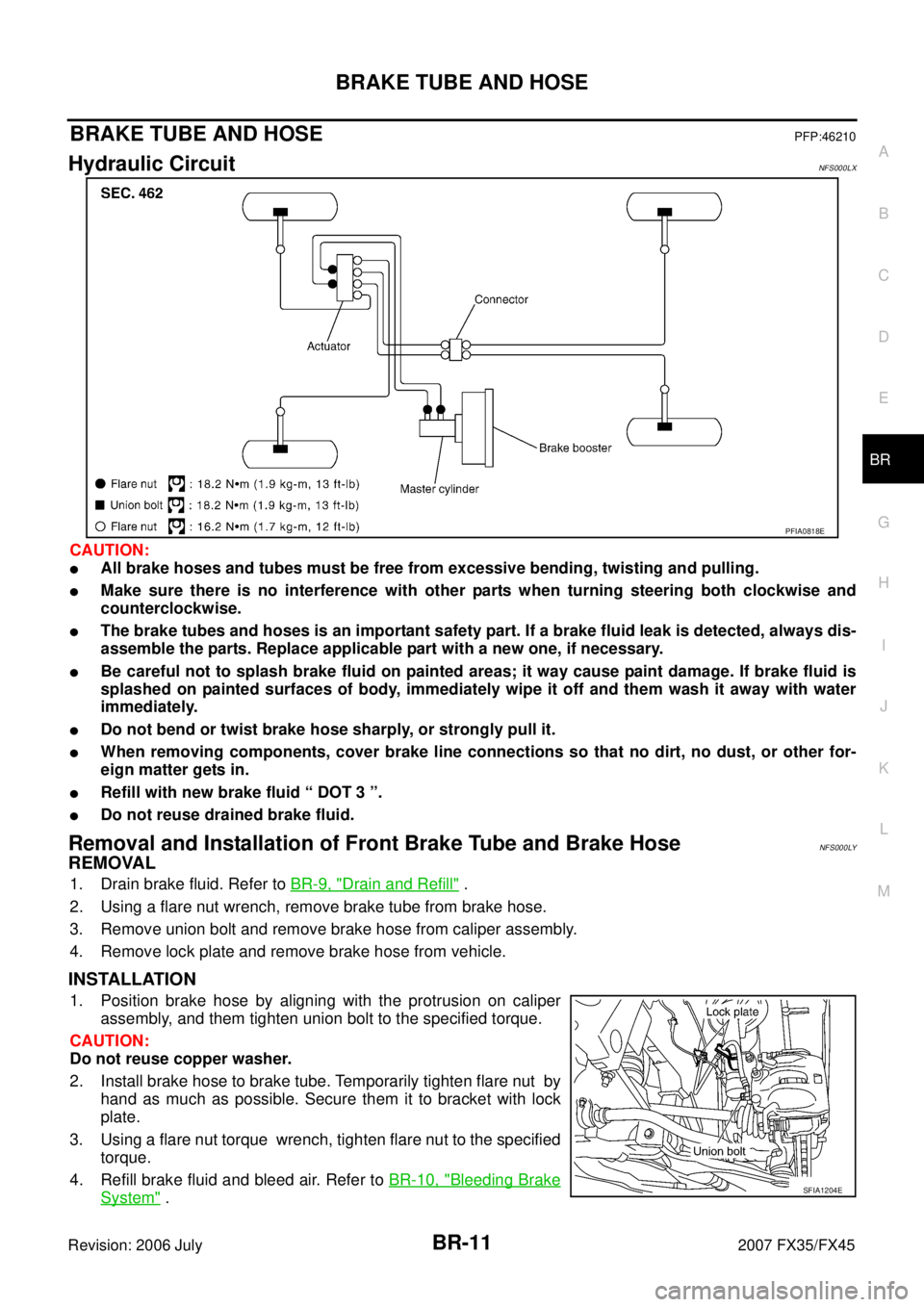

Hydraulic CircuitNFS000LX
CAUTION:

All brake hoses and tubes must be free from excessive bending, twisting and pulling.

Make sure there is no interference with other parts when turning steering both clockwise and
counterclockwise.

The brake tubes and hoses is an important safety part. If a brake fluid leak is detected, always dis-
assemble the parts. Replace applicable part with a new one, if necessary.

Be careful not to splash brake fluid on painted areas; it way cause paint damage. If brake fluid is
splashed on painted surfaces of body, immediately wipe it off and them wash it away with water
immediately.

Do not bend or twist brake hose sharply, or strongly pull it.

When removing components, cover brake line connections so that no dirt, no dust, or other for-
eign matter gets in.

Refill with new brake fluid “ DOT 3 ”.

Do not reuse drained brake fluid.
Removal and Installation of Front Brake Tube and Brake Hose NFS000LY
REMOVAL
1. Drain brake fluid. Refer to BR-9, "Drain and Refill" .
2. Using a flare nut wrench, remove brake tube from brake hose.
3. Remove union bolt and remove brake hose from caliper assembly.
4. Remove lock plate and remove brake hose from vehicle.
INSTALLATION
1. Position brake hose by aligning with the protrusion on caliper assembly, and them tighten union bolt to the specified torque.
CAUTION:
Do not reuse copper washer.
2. Install brake hose to brake tube. Temporarily tighten flare nut by hand as much as possible. Secure them it to bracket with lock
plate.
3. Using a flare nut torque wrench, tighten flare nut to the specified torque.
4. Refill brake fluid and bleed air. Refer to BR-10, "
Bleeding Brake
System" .
PFIA0818E
SFIA1204E

WATER PUMP CO-23
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
CO
Revision: 2006 July 2007 FX35/FX45
7. Remove timing chain tensioner (primary) as follows:
a. Remove lower mounting bolt. CAUTION:
Be careful not to drop mounting bolt inside timing chain
case.
b. Loosen upper mounting bolt slowly, and then turn chain ten- sioner (primary) on the mounting bolt so that plunger is fully
expanded.
NOTE:
Even if plunger is fully expanded, it is not dropped from the body
of timing chain tensioner (primary).
c. Turn crankshaft pulley clockwise so that timing chain on the tim- ing chain tensioner (primary) side is loose.
d. Remove upper mounting bolt, and then remove timing chain ten- sioner (primary).
CAUTION:
Be careful not to drop mounting bolt inside timing chain
case.
8. Remove water pump as follows:
a. Remove three water pump mounting bolts. Secure a gap between water pump gear and timing chain, by turning crank-
shaft pulley counterclockwise until timing chain looseness on
water pump sprocket becomes maximum.

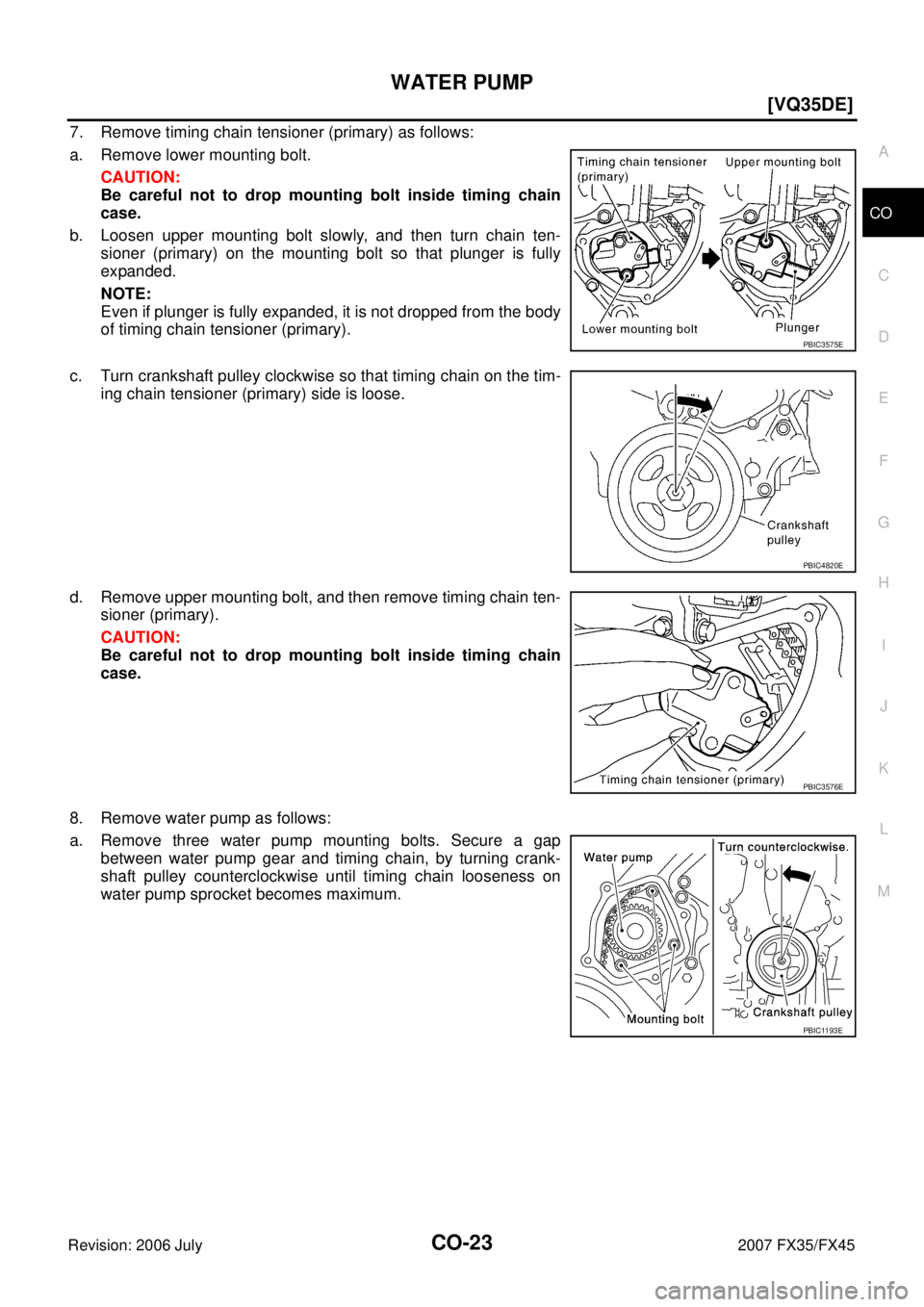

PBIC3575E
PBIC4820E
PBIC3576E
PBIC1193E

WATER PUMP CO-25
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
CO
Revision: 2006 July 2007 FX35/FX45
a. Turn crankshaft pulley clockwise so that timing chain on the tim-
ing chain tensioner (primary) side is loose.
b. Pull plunger stopper tab up (or turn lever downward) so as to remove plunger stopper tab from the ratchet of plunger.
NOTE:
Plunger stopper tab and lever are synchronized.
c. Push plunger into the inside of tensioner body.
d. Hold plunger in the fully compressed position by engaging plunger stopper tab with the tip of ratchet.
e. To secure lever, insert stopper pin through hole of lever into ten- sioner body hole.

The lever parts and the tab are synchronized. Therefore, the
plunger will be secured under this condition.
NOTE:
Figure shows the example of 1.2 mm (0.047 in) diameter thin screwdriver being used as the stopper pin.
f. Install timing chain tensioner (primary).

Remove dust and foreign material completely from backside of timing chain tensioner (primary) and
from installation area of rear timing chain case.
g. Remove stopper pin.
h. Make sure again that timing chain and water pump sprocket are engaged.
4. Install chain tensioner cover and water pump cover as follows:
a. Before installing, remove all traces of old liquid gasket from mat- ing surface of water pump cover and chain tensioner cover
using a scraper. Also remove traces of old liquid gasket from the
mating surface of front timing chain case.
PBIC4820E
PBIC3568E
PBIC3577E
SLC446B

DI-2Revision: 2006 July 2007 FX35/FX45
Oil Pressure Warning Lamp Does Not Turn Off (Oil
Pressure Is Normal) ............................................. ... 49
Component Inspection ......................................... ... 51
OIL PRESSURE SWITCH ................................ ... 51
A/T INDICATOR ..................................................... ... 52
System Description .............................................. ... 52
MANUAL MODE ............................................... ... 52
NOT MANUAL MODE ...................................... ... 52
Wiring Diagram — AT/IND — .............................. ... 53
A/T Indicator Is Malfunction ................................. ... 55
WARNING CHIME .................................................. ... 56
System Description .............................................. ... 56
POWER SUPPLY AND CIRCUIT ..................... ... 56
IGNITION KEY WARNING CHIME (WITHOUT
INTELLIGENT KEY) ......................................... ... 57
IGNITION KEY WARNING CHIME (WITH INTEL-
LIGENT KEY) ................................................... ... 57
LIGHT WARNING CHIME ................................ ... 58
SEAT BELT WARNING CHIME ........................ ... 58
Component Parts and Harness Connector Location ... 59
Schematic ............................................................ ... 60
Wiring Diagram — CHIME — .............................. ... 61
Terminals and Reference Value for BCM ............. ... 64
Terminals and Reference Value for Unified Meter
and A/C Amp. ...................................................... ... 65
Terminals and Reference Value for Combination
Meter ................................................................... ... 66
CONSULT-II Function (METER A/C AMP) .......... ... 66
CONSULT-II Function (BCM) ............................... ... 66
DIAGNOSIS ITEMS DESCRIPTION ................ ... 66
CONSULT-II BASIC OPERATION .................... ... 66
DATA MONITOR ............................................... ... 66
ACTIVE TEST .................................................. ... 67
SELF-DIAG RESULTS ..................................... ... 67
Trouble Diagnosis ................................................ ... 67
HOW TO PERFORM TROUBLE DIAGNOSIS . ... 67
PRELIMINARY INSPECTION .......................... ... 68
Symptom Chart .................................................... ... 68
Power Supply and Ground Circuit Inspection ...... ... 68
Combination Meter Buzzer Circuit Inspection ...... ... 69
Front Door Switch (Driver Side) Signal Inspection ... 71
Key Switch Signal Inspection (Without Intelligent
Key) ..................................................................... ... 72
Key Switch and Ignition Knob Switch Signal Inspec-
tion (With Intelligent Key, When Mechanical Key Is
Used) ................................................................... ... 73
Lighting Switch Signal Inspection ........................ ... 74
Seat Belt Buckle Switch (Driver Side) Signal Inspec-
tion ....................................................................... ... 75
Component Inspection ......................................... ... 76
FRONT DOOR SWITCH (DRIVER SIDE) ........ ... 76
KEY SWITCH ................................................... ... 76
KEY SWITCH AND IGNITION KNOB SWITCH ... 76
SEAT BELT BUCKLE SWITCH (DRIVER SIDE) ... 76
LANE DEPARTURE WARNING SYSTEM ............. ... 77
Precautions for Lane Departure Warning (LDW)
system ................................................................. ... 77
System Description .............................................. ... 77 LDW SYSTEM OPERATION ............................
... 77
POWER SUPPLY AND GROUND CIRCUIT .... ... 79
Action Test ........................................................... ... 80
LDW SYSTEM RUNNING TEST ...................... ... 80
Camera Aiming Adjustment ................................. ... 80
OUTLINE .......................................................... ... 80
PREPARATION ................................................. ... 80
TARGET SETTING ........................................... ... 80
VEHICLE HEIGHT CHECK .............................. ... 83
AIMING ADJUSTMENT .................................... ... 83
Component Parts and Harness Connector Location ... 87
Schematic ............................................................ ... 88
Wiring Diagram — LDW — .................................. ... 89
Terminals and Reference Value for LDW Camera
Unit ....................................................................... ... 92
CONSULT-II Function (LDW) ............................... ... 92
DESCRIPTION ................................................. ... 92
CONSULT-II BASIC OPERATION .................... ... 92
WORK SUPPORT ............................................ ... 92
SELF-DIAG RESULTS ...................................... ... 92
DATA MONITOR ............................................... ... 93
ACTIVE TEST ................................................... ... 94
Trouble Diagnosis ................................................ ... 95
HOW TO PERFORM TROUBLE DIAGNOSIS . ... 95
SYMPTOM CHART ........................................... ... 95
Preliminary Inspection .......................................... ... 95
Power Supply and Ground Circuit Inspection ...... ... 96
DTC [C1B00] CAMERA UNIT MALF ................... ... 97
DTC [C1B01] CAM AIMING INCMP .................... ... 97
DTC [C1B02] VHCL SPD DATA MALF ................ ... 97
DTC [C1B03] ABNRML TEMP DETECT ............. ... 98
DTC [U1000] CAN COMM CIRCUIT ................... ... 98
DTC [U1010] CONTROL UNIT (CAN) ................. ... 98
LDW Chime Circuit Inspection ............................. ... 98
LDW Switch Circuit Inspection ............................. ... 99
LDW Indicator Lamp Circuit Inspection ................ .102
Turn Signal Input Inspection ................................ .103
Electrical Component Inspection ......................... .103
LDW SWITCH ................................................... .103
Removal and Installation for LDW Camera Unit .. .104
REMOVAL ......................................................... .104
INSTALLATION ................................................. .104
Removal and Installation for LDW Chime ............ .104
REMOVAL ......................................................... .104
INSTALLATION ................................................. .104
Removal and Installation for LDW Switch ............ .104
CAN COMMUNICATION ........................................ .105
System Description .............................................. .105
CAN Communication Unit .................................... .105
COMPASS .............................................................. .106
Precautions for Compass ..................................... .106
System Description .............................................. .106
Troubleshooting ................................................... .107
Zone Variation Setting Procedure ........................ .108
Calibration Procedure .......................................... .108
Wiring Diagram — COMPAS — ........................... .109
Removal and Installation of Compass .................. .110
CLOCK ................................................................... . 111

DI-3
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2006 July 2007 FX35/FX45
Wiring Diagram — CLOCK — .............................
. . 111
Removal and Installation of Clock ....................... .. 112
REMOVAL ........................................................ .. 112
INSTALLATION ................................................ .. 112
REAR VIEW MONITOR ......................................... ..113
System Description ............................................. .. 113
POWER SUPPLY AND GROUND ................... .. 113
AV COMMUNICATION LINE ............................ .. 113
REAR VIEW CAMERA OPERATION ............... .. 113
Component Parts and Harness Connector Location .. 114
Schematic ........................................................... .. 115
Wiring Diagram — R/VIEW — ............................ .. 116
Terminals and Reference Value for Rear View Cam-
era Control Unit ................................................... .. 119
CONSULT-II Function (REARVIEW CAMERA) ... . 120
CONSULT-II BASIC OPERATION .................... . 120 WORK SUPPORT ............................................
.120
DATA MONITOR .............................................. .120
Side Distance Guideline Correction ..................... .121
SIDE DISTANCE GUIDELINE CORRECTION
PROCEDURE .................................................. .121
Power Supply and Ground Circuit Inspection ...... .123
Rear View Is Not Displayed With The A/T Selector
Lever In R-Position .............................................. .124
The Rear View Image Is Distorted ....................... .128
Removal and Installation of Rear View Camera Con-
trol Unit ................................................................ .129
REMOVAL ........................................................ .129
INSTALLATION ................................................ .129
Removal and Installation of Rear View Camera .. .130
REMOVAL ........................................................ .130
INSTALLATION ................................................ .130

CLOCK DI-111
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2006 July 2007 FX35/FX45
CLOCKPFP:25820

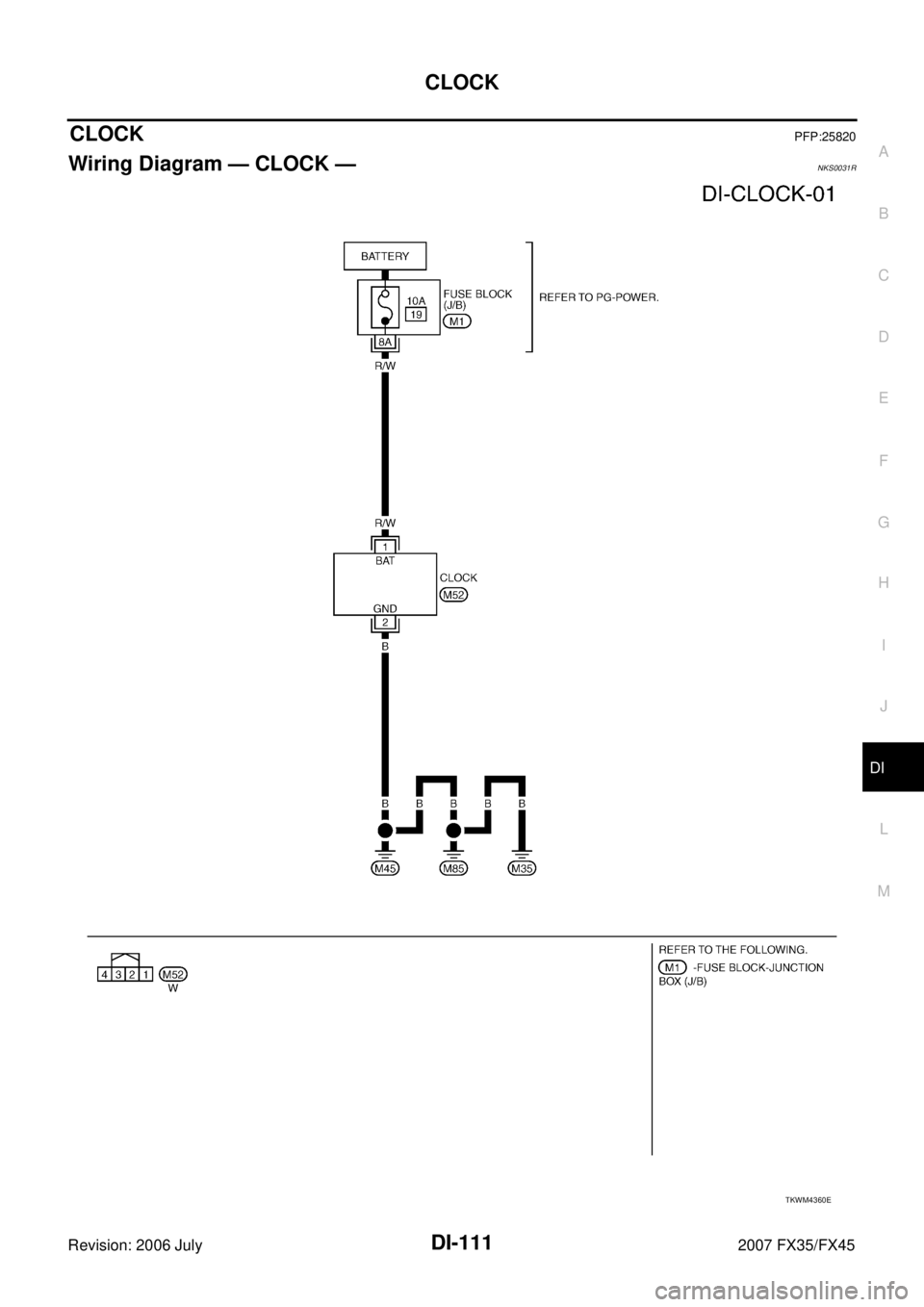

Wiring Diagram — CLOCK —NKS0031R
TKWM4360E

DI-112
CLOCK
Revision: 2006 July 2007 FX35/FX45
Removal and Installation of ClockNKS0031S
REMOVAL
1. Remove A/T selecter lever knob. Refer to IP-12, "(D) A/T Select Lever Knob" .
2. Remove A/T console finisher. Refer to IP-12, "
(F) A/T Console Finisher" .
3. Remove instrument clock finisher. Refer to IP-12, "
(E) Instrument Clock Finisher" .

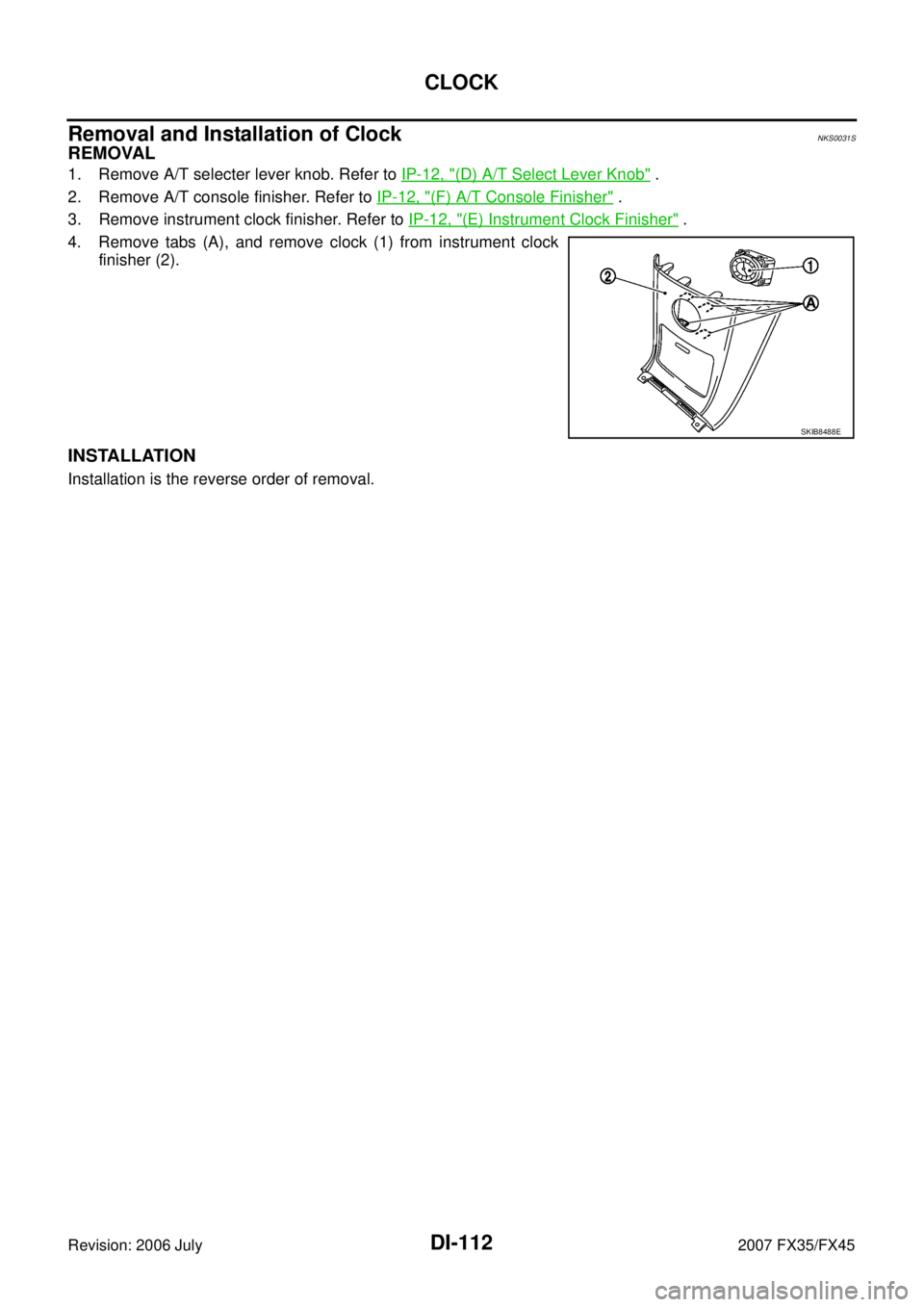

4. Remove tabs (A), and remove clock (1) from instrument clock finisher (2).
INSTALLATION
Installation is the reverse order of removal.
SKIB8488E

REAR VIEW MONITOR DI-129
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2006 July 2007 FX35/FX45
2. CHECK COMPOSITE SIGNAL GROUND CIRCUIT
1. Check continuity between rear view camera control unit harness connector M48 terminal 11 and display harness connector M63
terminal 4.
2. Check continuity between rear view camera control unit harness connector M48 terminal 11 and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair harness or connector.
3. CHECK REAR VIEW CONTROL UNIT SYNCHRO SIGNAL
1. Connect rear view camera control unit connector and display connector.
2. Turn ignition switch ON.
3. Shift A/T selector lever to R position.
4. Check voltage signal between rear view camera control unit har- ness connector M48 terminal 14 and ground.
OK or NG
OK >> Replace rear view camera control unit.
NG >> Replace display.
Removal and Installation of Rear View Camera Control UnitNKS00323
REMOVAL
1. Remove instrument clock finisher and A/T console finisher. Refer to IP-10, "
INSTRUMENT PANEL ASSEMBLY" .
2. Remove screws (2), and remove rear view camera control unit.
INSTALLATION
Installation is the reverse order of removal. 11 – 4 : Continuity should exist.
11 – Ground : Continuity should not exist.
SKIA5102E
14 – Ground:
PKIB3584E
SKIA5896E
SKIA5797E
