BL-194
VEHICLE SECURITY (THEFT WARNING) SYSTEM
Revision: 2006 July 2007 FX35/FX45
Trouble DiagnosisNIS001PB
WORK FLOW

“POWER DOOR LOCK SYSTEM” Diagnosis; refer to BL-37, "Work Flow" .

“REMOTE CONTROL SYSTEM” Diagnosis; refer to BL-66, "Work Flow" .

“INTELLIGENT KEY SYSTEM” Diagnosis; refer to BL-115, "WORK FLOW" .
PIIA6909E

BL-196
VEHICLE SECURITY (THEFT WARNING) SYSTEM
Revision: 2006 July 2007 FX35/FX45
Trouble Diagnosis Symptom ChartNIS001PD
*1: Make sure the system is in the armed phase. Procedure
Diagnostic procedure Refer to page
Symptom
1 Vehicle security
system cannot be
set by ···· Door switch Diagnostic Procedure 1 (Check door, hood and back door switch)
BL-197
Lock / unlock switch Diagnostic Procedure 6 (Check door lock / unlock switch)BL-204
Door outside key Diagnostic Procedure 3 (Check door key cylinder switch)BL-204
Key fob Check remote keyless entry. BL-54
Intelligent Key Check Intelligent Key.BL-86
— If the above systems are “OK”, replace BCM.BCS-14
Security indicator does not turn “ON”. Diagnostic Procedure 2 (Check security indicator lamp)
BL-203If the above systems are “OK”, replace BCM.BCS-14
2 *1 Vehicle secu-
rity system does
not alarm when
···· Any door is opened. Diagnostic Procedure 1 (Check door, hood and back door switch)
BL-197If the above systems are “OK”, replace BCM.BCS-14
3 Vehicle security
alarm does not
activate. Horn alarm
Diagnostic Procedure 4 (Check vehicle security horn alarm)
BL-204
Check horn function. BL-80
If the above systems are “OK”, replace BCM.BCS-14
Head lamp alarm Diagnostic Procedure 5 (Check head lamp alarm)
BL-204If the above systems are “OK”, replace BCM.BCS-14
4 Vehicle security
system cannot be
canceled by ···· Door outside key
Diagnostic Procedure 3 (Check door key cylinder switch)
BL-204
If the above systems are “OK”, check power window main switch. EI-36
Key fob Check remote keyless entry function.
BL-55If the above systems are “OK”, replace BCM.BCS-14
Intelligent Key Check Intelligent Key
BL-88If the above systems are “OK”, replace BCM.BCS-14

BL-204
VEHICLE SECURITY (THEFT WARNING) SYSTEM
Revision: 2006 July 2007 FX35/FX45
Diagnostic Procedure 3NIS001PG
FRONT DOOR KEY CYLINDER SWITCH CHECK
1. CHECK KEY CYLINDER SWITCH OPERATION
Check door key cylinder switch using key.
Do doors lock / unlock when using the key?
YES >> Front door key cylinder switch operation is OK.
NO >> Check door key cylinder switch circuit. Refer to GW-51, "
Check Front Door Key Cylinder Switch" .
Diagnostic Procedure 4NIS001PH
VEHICLE SECURITY HORN ALARM CHECK
1. CHECK HORN OPERATION
Check if horn sounds with horn switch.
Does horn operate?
YES >> Check harness for open or short between IPDM E/R and horn relay.
NO >> Check horn circuit. Refer to WW-58, "
HORN" .
Diagnostic Procedure 5NIS001PI
VEHICLE SECURITY HEADLAMP ALARM CHECK
1. CHECK HEADLAMP OPERATION
Check if headlamp operates by lighting switch.
Does headlamp come on when turning switch
“ON”?
YES >> Headlamp alarm circuit is OK.
NO >> Check headlamp system. Refer to LT- 6 , "
HEADLAMP - XENON TYPE -" or LT- 3 8 , "DAYTIME
LIGHT SYSTEM" .
Diagnostic Procedure 6NIS001PJ
DOOR LOCK AND UNLOCK SWITCH CHECK
1. CHECK DOOR LOCK AND UNLOCK SWITCH INPUT SIGNAL
Check if power door lock operated by door lock and unlock switch.
Do doors lock / unlock when using each door lock and unlock switches?
YES >> Door lock and unlock switch is OK.
NO >> Check door lock and unlock switch. Refer to BL-46, "
Check Door Lock and Unlock Switch" .

IVIS (INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS) BL-205
C
D E
F
G H
J
K L
M A
B
BL
Revision: 2006 July 2007 FX35/FX45
IVIS (INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS)PFP:28591

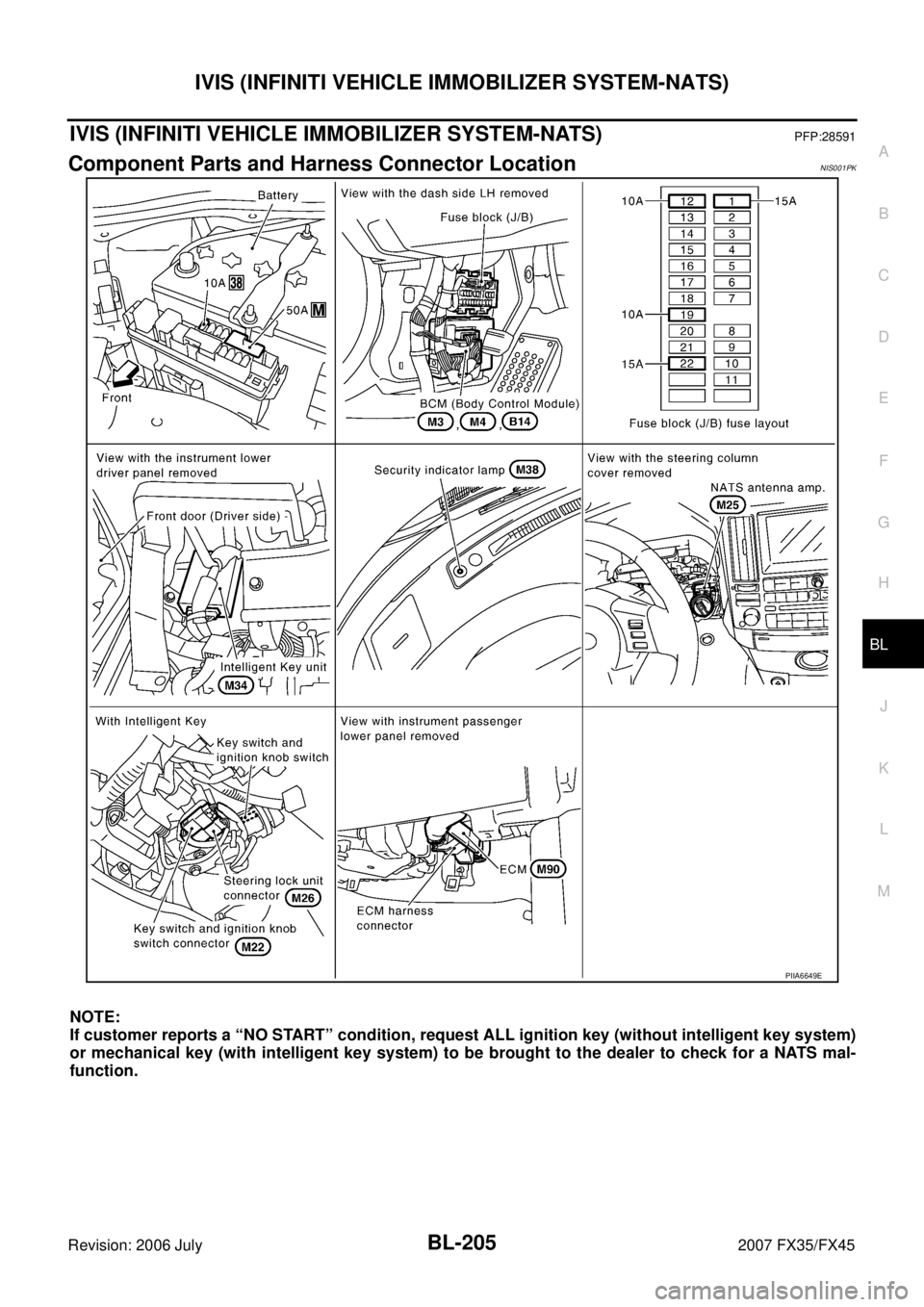

Component Parts and Harness Connector LocationNIS001PK
NOTE:
If customer reports a “NO START” condition, request ALL ignition key (without intelligent key system)
or mechanical key (with intelligent key system) to be brought to the dealer to check for a NATS mal-
function.
PIIA6649E

BL-206
IVIS (INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS)
Revision: 2006 July 2007 FX35/FX45
System DescriptionNIS001PL
DESCRIPTION
IVIS (Infiniti Vehicle Immobilizer System – NATS) has the following immobilizer functions:

Engine immobilizer shows high anti-theft performance to prevent engine start by other than the owner
(registered key: ignition key, mechanical key and Intelligent Key).

Only a key with key ID registered in BCM and ECM can start engine, and shows high anti-theft perfor-
mance to prevent key from being copied or stolen.

In the vehicle without Intelligent Key system, security indicator always flashes with other than ignition
switch ON or START position.

In the vehicle with Intelligent Key system, security indicator always flashes with mechanical key removed
condition (key switch OFF) and ignition knob released condition on LOCK position (ignition knob switch
OFF).

Therefore, IVIS (NATS) warns outsiders that the vehicle is equipped with the anti-theft system.

If system detects malfunction, it turns on security indicator in ignition switch ON position.

If the owner requires, mechanical key ID can be registered for up to 5 keys.

During trouble diagnosis or when the following parts have been replaced, and if ignition key or mechanical
key is added, registration* is required.
*: All keys kept by the owner of the vehicle should be registered with ignition key or mechanical key.
–ECM
–BCM
–Ignition key (models without Intelligent Key system)
–Mechanical key (models with Intelligent Key system)

IVIS (NATS) trouble diagnoses, system initialization and additional registration of other IVIS (NATS) igni-
tion key or mechanical key IDs must be carried out using CONSULT-II hardware and CONSULT-II IVIS
(NATS) software. When IVIS (NATS) initialization has been completed, the ID of the inserted ignition key
or mechanical key or mechanical key IDs can be carried out.
Regarding the procedures of IVIS (NATS) initialization and ignition key or mechanical key ID registration,
refer to CONSULT-II operation manual, NATS-IVIS/NVIS.
SECURITY INDICATOR

Warns that the vehicle has IVIS (NATS).

In the vehicle without Intelligent Key system, security indicator always flashes with other than ignition
switch ON or START position. In the vehicle with Intelligent Key system, security indicator always flashes
with mechanical key removed condition (key switch OFF) and ignition knob released condition on LOCK
position (ignition knob switch OFF).
NOTE:
Because security indicator is highly efficient, the battery is barely affected.
Condition of Security Indicator
WITHOUT INTELLIGENT KEY SYSTEM
WITH INTELLIGENT KEY SYSTEM

In ignition knob operation with Intelligent Key, it always turns on with pushing ignition knob, and always
flashes with ignition knob released (ignition knob switch OFF) condition on ignition knob “LOCK” position.

In ignition knob operation with mechanical key, it turns off on the condition that mechanical key is inserted
in key cylinder, and always flashes with ignition knob released (ignition knob switch OFF) condition on
mechanical key removed condition.
Security indicator
condition Ignition key
Operation or condition of ignition key
Ignition switch: ON position Ignition switch:
ACC position Ignition switch:
OFF position
(Key is inserted.) Ignition switch:
OFF position
(Remove key.)
Register key OFF Flashing Flashing Flashing
Ignition key not
registered ON Flashing Flashing Flashing

IVIS (INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS) BL-207
C
D E
F
G H
J
K L
M A
B
BL
Revision: 2006 July 2007 FX35/FX45
System CompositionNIS001PM
The immobilizer function of the IVIS (NATS) consists of the following:

Ignition key (models without Intelligent Key system)

Mechanical key (models with Intelligent Key system)

NATS antenna amp.

Steering lock unit. (models with Intelligent Key system)

BCM

Intelligent Key unit (models with Intelligent Key system)

Engine control module (ECM)

Security indicator
NOTE:
The communication between ECM, BCM and/or Intelligent Key unit uses the CAN communication sys-
tem.
ECM Re-Communicating FunctionNIS001PN
Performing following procedure can automatically perform re-communication of ECM and BCM or Intelligent
Key unit, but only when the ECM has been replaced with a new one (*1).
*1: New one means a virgin ECM which has never been energized on-board.
(In this step, initialization procedure by CONSULT-II is not necessary)
NOTE:

When registering new Key IDs or replacing the ECM other than brand new, refer to CONSULT-II
Operation Manual NATS-IVIS/NVIS.

If multiple keys are attached to the key holder, separate them before work.

Distinguish keys with unregistered key ID from those with registered ID.
1. Install ECM.
2. Using a registered key (*2), turn ignition switch to “ON”. *2: To perform this step, use the key that has been used before performing ECM replacement.
3. Maintain ignition switch in “ON” position for at least 5 seconds.
4. Turn ignition switch to “OFF”.
5. Start engine. If engine can be started, procedure is completed.
If engine cannot be started, refer to CONSULT-II Operation Manual NATS-IVIS/NVIS and initialize control
unit.
PIIA6948E

BL-208
IVIS (INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS)
Revision: 2006 July 2007 FX35/FX45

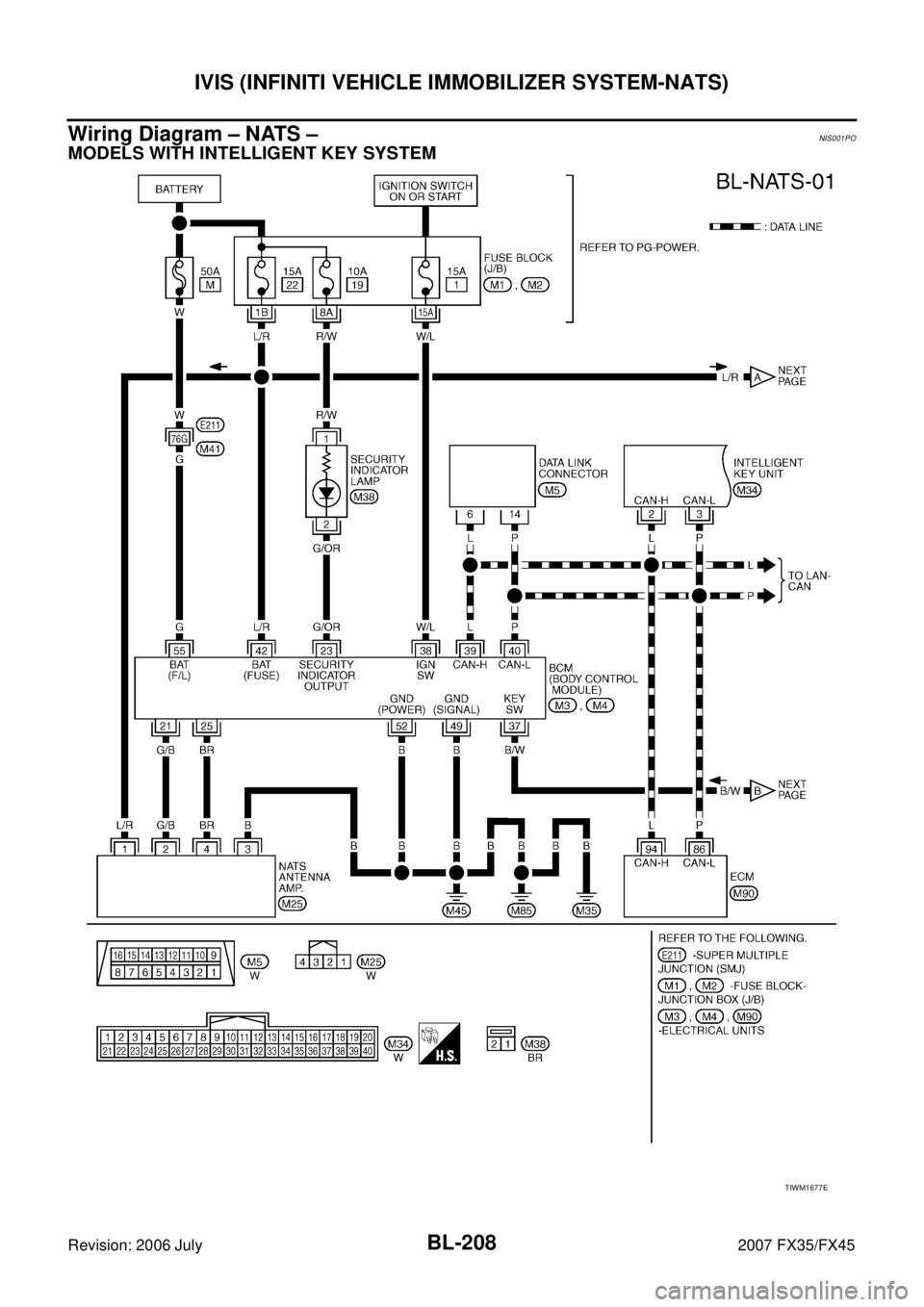

Wiring Diagram – NATS –NIS001PO
MODELS WITH INTELLIGENT KEY SYSTEM
TIWM1677E

BL-210
IVIS (INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS)
Revision: 2006 July 2007 FX35/FX45

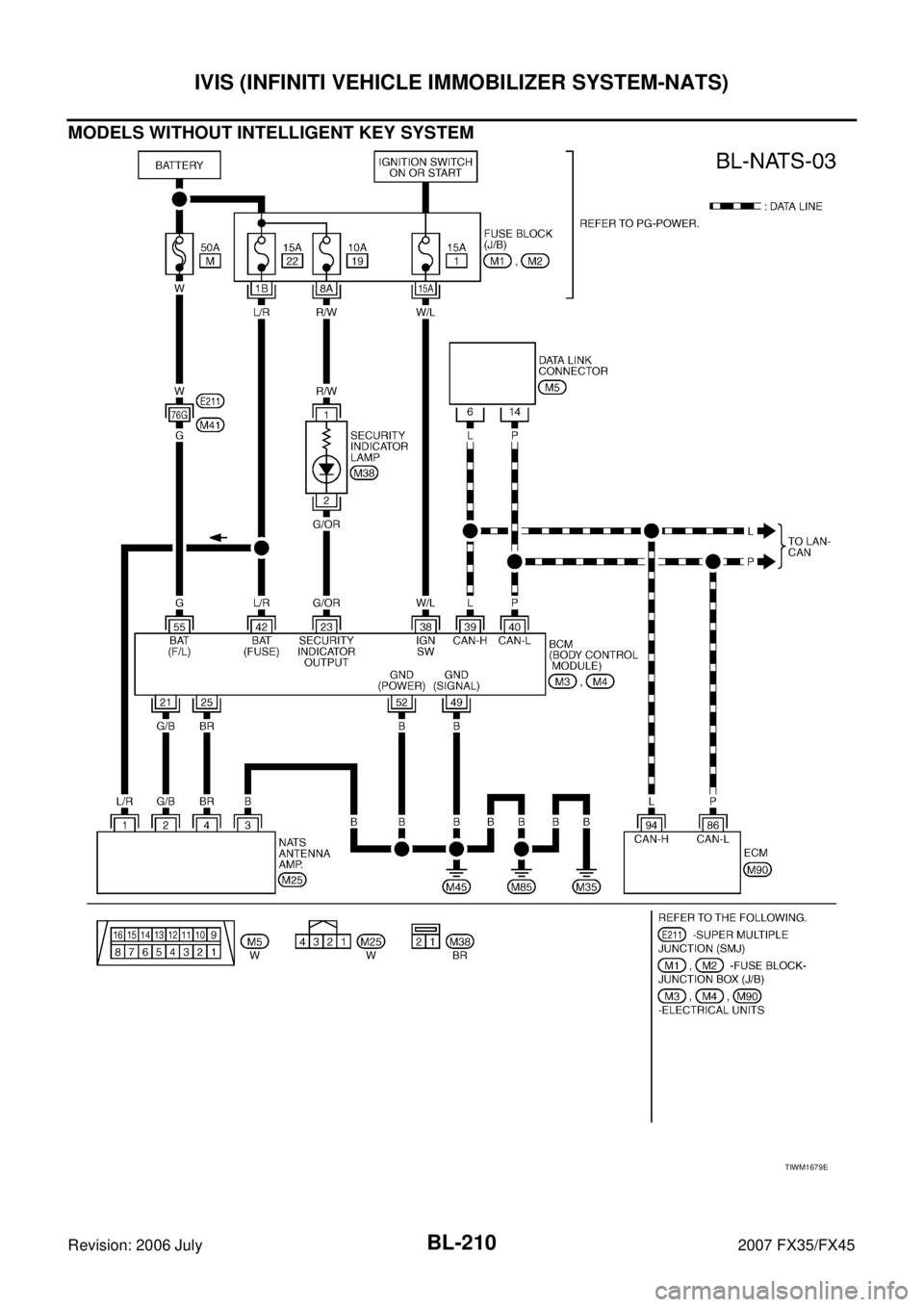

MODELS WITHOUT INTELLIGENT KEY SYSTEM
TIWM1679E
