6 OWNER MAINTENANCE
36
!WARNING
The halogen bulb contains gas un-
der pressure and if impacted could shatter, resulting in flying fragments. Always wear eye protection whenservicing the bulb. Protect the bulb against abrasions or scratches and against liquids when lighted. Turnon the bulb only when installed in a headlight. Replace the headlight if damaged or cracked. Keep the bulbout of the reach of children and dispose of the used bulb with care.
G270A02A-GAT

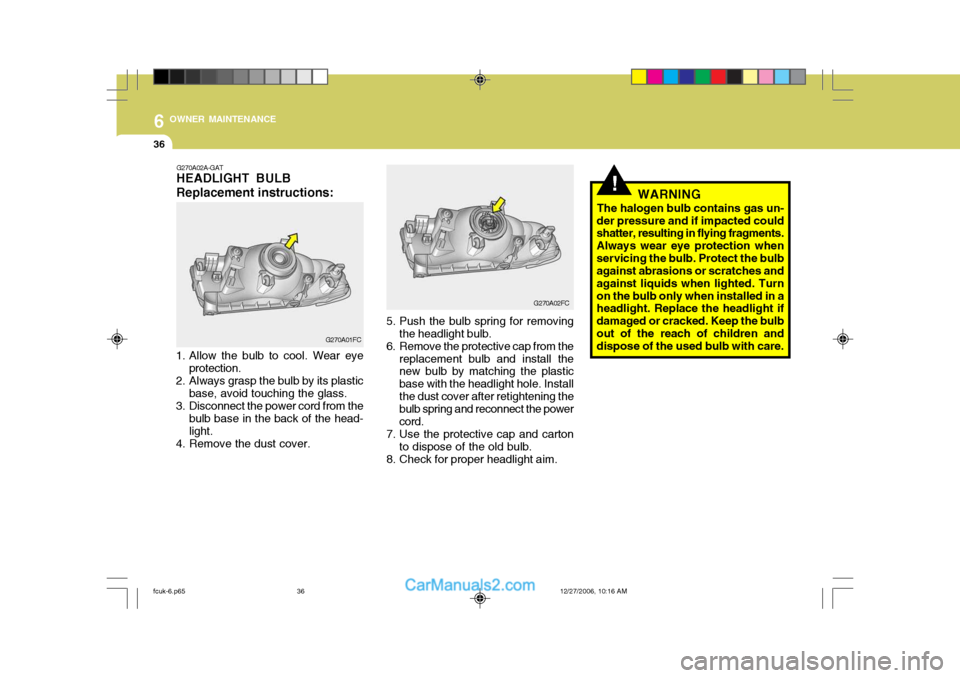

HEADLIGHT BULB Replacement instructions:
1. Allow the bulb to cool. Wear eye protection.
2. Always grasp the bulb by its plastic
base, avoid touching the glass.
3. Disconnect the power cord from the bulb base in the back of the head- light.
4. Remove the dust cover. G270A01FC
5. Push the bulb spring for removing
the headlight bulb.
6. Remove the protective cap from the replacement bulb and install the new bulb by matching the plastic base with the headlight hole. Installthe dust cover after retightening the bulb spring and reconnect the power cord.
7. Use the protective cap and carton
to dispose of the old bulb.
8. Check for proper headlight aim. G270A02FC
fcuk-6.p65
12/27/2006, 10:16 AM
36
10
INDEX
3
F FOLDING REAR SEATBACK AND SEAT CUSHION ....1-16
FOLD-UP TRAY ........................................................ 1-70
FRONT FOG LI GHT SWITCH ................................... 1-58
FUEL ECONOMY ........................................................ 2-7
FUEL GAUGE ........................................................... 1-49
FUEL RECOMMENDATIONS ...................................... 1-2
FUSE PANEL D ESCRIPTION................................... 6-38
FUSIBLE LINKS ........................................................ 6-28
GGLOVE BOX ............................................................. 1-67
H HATCHBACK DOOR ................................................. 1-72
HAZARD WARNING SYST EM ..................................1-57
HEADLIGHT AIMING ADJUSTEMENT ..................... 6-34
HEADLIGHT BULB ................................................... 6-36
HEADLIGHT LEVELING DEVICE SYSTEM ............. 1-59
HEAD RESTRAINT ADJUSTMENT .................1-13, 1-16
HEATED REAR WINDOW ......................................... 1-57
HEATING CONTROL ................................................. 1-80
HEIGHT ADJUSTABLE FRONT SEAT SHOULDER BELT
........................................................................... 1-20
HORN ........................................................................ 1-75I
IF THE ENGINE CANNOT BE CRANKED
.................. 3-2
IF THE ENGINE WILL NOT START ........................... 3-2
IF THE EVENT OF A PUNCTURE ............................. 3-7
IF YOUR VEHICLE MUST BE TOWED ....................3-12
IMMOBILISER SYSTEM ............................................. 1-4
INDIVIDUAL CIRCUIT FUSES .................................. 6-29
INSTRUMENT CLUSTER AND INDICATORS.......... 1-40
INTERIOR LIGHT ...................................................... 1-65
INTERIOR REAR VIEW MIRROR ............................. 1-69
J JUMP STAR TING ....................................................... 3-3
K KEY POSITIONS ........................................................ 2-4
L LIGHTING SWITCH ................................................... 1-54
LUGGAGE NET ......................................................... 1-73
LUMBAR SUPPORT ADJUSTMENT .........................1-14
