2007 Hyundai Getz window

1. FEATURES OF YOUR HYUNDAI
Fuel Recommendations ................................................................... 1-2
Breaking in Your New Hyundai ........................................................ 1-4
key (Immobilizer system) ................................................................. 1-5
Door locks (Theft-alarm system) ..................................................... 1-9Power windows.............................................................................. 1-13
Seat ................................................................................................ 1-13
Seat Belt ......................................................................................... 1-21
Child restraint system .................................................................... 1-28
Supplemental restraint (AIRBAG) system .....................................1-36
Instrument cluster and indicator lights ............................................1-44
Warning Light and Indicator ............................................................ 1-48
Trip computer ................................................................................. 1-57
Multi-Function Light Switch............................................................ 1-59
Windshield wiper/Washer Switch ...................................................1-61
Sunroof ........................................................................................... 1-69
Mirror ......... ..................................................................................... 1-73
Hood R elease ................................................................................ 1-77
How to use luggage Room ............................................................. 1-80
Heating and cooling control ............................................................ 1-86
Stereo sound system ..................................................................... 1-95
Audio system ................................................................................. 1-97
Antenna ........................................................................................ 1-128
1

1- 8 FEATURES OF YOUR HYUNDAI

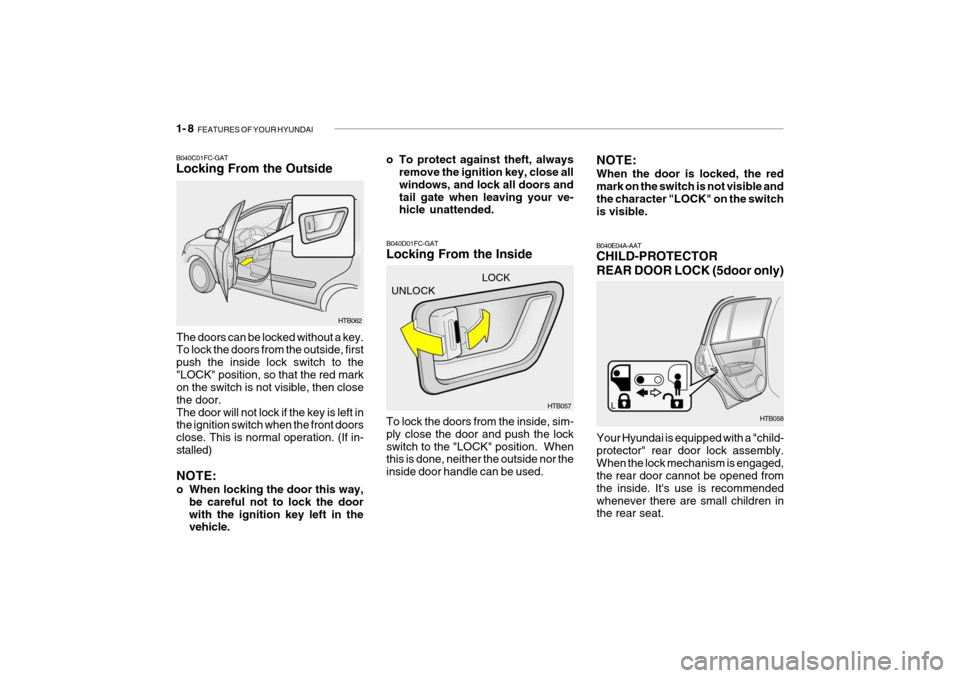

HTB057
UNLOCK
LOCK
B040D01FC-GAT Locking From the Inside To lock the doors from the inside, sim- ply close the door and push the lockswitch to the "LOCK" position. When this is done, neither the outside nor the inside door handle can be used. B040E04A-AAT CHILD-PROTECTOR REAR DOOR LOCK (5door only)
Your Hyundai is equipped with a "child- protector" rear door lock assembly.When the lock mechanism is engaged, the rear door cannot be opened from the inside. It's use is recommendedwhenever there are small children in the rear seat.
o To protect against theft, always
remove the ignition key, close all windows, and lock all doors andtail gate when leaving your ve- hicle unattended. NOTE: When the door is locked, the red mark on the switch is not visible and the character "LOCK" on the switchis visible.
HTB058
B040C01FC-GAT Locking From the OutsideThe doors can be locked without a key. To lock the doors from the outside, first push the inside lock switch to the"LOCK" position, so that the red mark on the switch is not visible, then close the door.The door will not lock if the key is left in the ignition switch when the front doors close. This is normal operation. (If in-stalled) NOTE:
o When locking the door this way, be careful not to lock the door with the ignition key left in the vehicle. HTB062

1- 12 FEATURES OF YOUR HYUNDAI
HTB257
B050A01A-AAT WINDOW GLASS
To raise or lower the window, turn the window regulator handle clockwise or counterclockwise. WARNING:
When opening or closing the win-dows, make sure your passenger's arms, hands and body are safely out of the way.
!
3. Remove four screws back side of the built-in circuit. HTB054
HTB055
Battery
4. Remove the old battery from the case and note the polarity. Make sure the polarity of the new battery is the same (+side facing up), then insert it in the transmitter.
HTB053
B070E01TB-GAT Replacing the battery When the transmitter's battery begins to get weak, it may take several pushes on the button to lock or unlock thedoors, and the LED will not light. Re- place the battery as soon as possible. Battery type : CR1220 Replacement instructions:
1. Remove the screw with a phillips
screwdriver.
2. Carefully separate the case with a flat-head screwdriver as shown in the illustration.

FEATURES OF YOUR HYUNDAI 1- 13
HTB064
(1)
B060A01E-AAT POWER WINDOWS (If Installed)
The power windows operate when the ignition key is in the "ON" position. The main switches are located on thedriver's armrest and control the front and rear windows on both sides of the vehicle. The windows may be openedby depressing the appropriate window switch and closed by pulling up the switch. To open the window on thedriver's side, press the switch(1) down. The window moves as long as the switch is operated.
HTB066
In order to prevent operation of the passenger front and rear windows, a window lock switch is provided on thearmrest of the driver's door. To disable the power windows, press the window lock switch.To revert to normal operation, press the window lock switch a second time. Auto-Down Window (Driver's Side) The Auto-Down window is moved to its fully open position by pushing the switch. To stop at the desired positionpush the switch again. B080A01A-GAT ADJUSTABLE FRONT SEATSWARNING:
1) Be careful that someone's head, hands and body are not trapped by a closing window.
2) Never try to operate the main switch on the driver's door andthe individual door window switch in opposing directions atthe same time. If this is done, the window will stop and cannot be opened or closed.
3) Do not leave children alone in the car. Always remove the ignitionkey for their safety.
!
!WARNING:
Never attempt to adjust the seat while the vehicle is moving. This could result in loss of control, or an accident which may cause death,serious injury, or property damage.

FEATURES OF YOUR HYUNDAI 1- 61

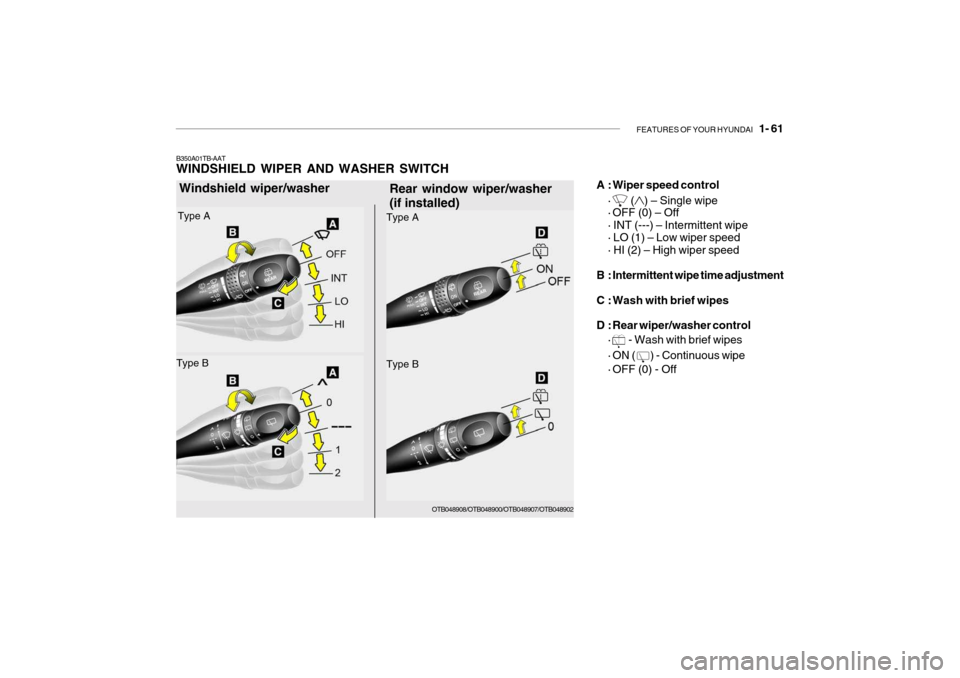

OTB048908/OTB048900/OTB048907/OTB048902
Rear window wiper/washer (if installed) A : Wiper speed control
·
() – Single wipe
· OFF (0) – Off · INT (---) – Intermittent wipe · LO (1) – Low wiper speed · HI (2) – High wiper speed
B : Intermittent wipe time adjustment
C : Wash with brief wipes
D : Rear wiper/washer control ·
- Wash with brief wipes
· ON (
) - Continuous wipe
· OFF (0) - Off
Windshield wiper/washer
B350A01TB-AAT WINDSHIELD WIPER AND WASHER SWITCH
Type A
Type B
Type A
Type B

1- 64 FEATURES OF YOUR HYUNDAI
B370A01A-AAT HAZARD WARNING SYSTEM The hazard warning system should be used whenever you find it necessary to stop the car in a hazardous location.When you must make such an emer- gency stop, always pull off the road as far as possible.The hazard warning lights are turned on by pushing in on the hazard switch. This causes all turn signal lights toblink. The hazard warning lights will operate even though the key is not in the ignition.To turn the hazard warning lights off, push in on the switch a second time.
HTB2031
B350A01TB-AAT Tail Gate Wiper And Washer Switch (If installed)
HTB023A1.
: The washer fluid will be sprayed
onto the rear window and the wiper operates while the rear win-dow wiper barrel is placed in this position.
2. ON (
) : When the point indicates "ON", the rear window wiper operates continu- ously.
3. OFF (0)
With the switch in this position, theinterval between wipes can be varied from approximately 1 to 18 seconds byturning the interval adjuster barrel.
Type A
OTB048905
Type B

FEATURES OF YOUR HYUNDAI 1- 65

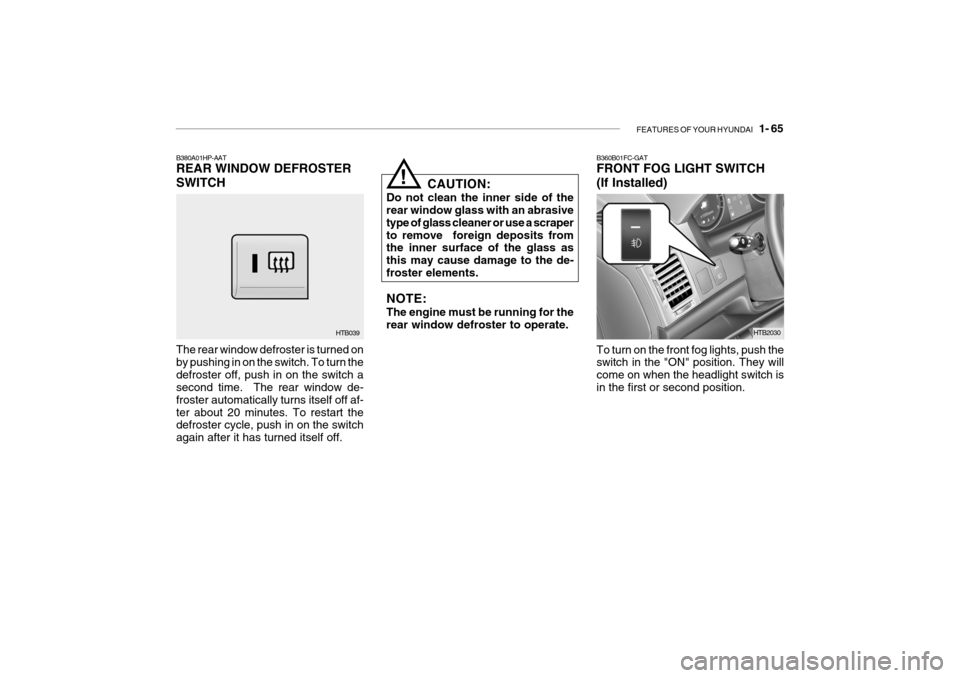

B380A01HP-AAT REAR WINDOW DEFROSTER SWITCH The rear window defroster is turned on by pushing in on the switch. To turn thedefroster off, push in on the switch a second time. The rear window de- froster automatically turns itself off af-ter about 20 minutes. To restart the defroster cycle, push in on the switch again after it has turned itself off. HTB039CAUTION:
Do not clean the inner side of the rear window glass with an abrasive type of glass cleaner or use a scraperto remove foreign deposits from the inner surface of the glass as this may cause damage to the de-froster elements. NOTE: The engine must be running for the rear window defroster to operate.
!
HTB2030
B360B01FC-GAT FRONT FOG LIGHT SWITCH (If Installed) To turn on the front fog lights, push the switch in the "ON" position. They will come on when the headlight switch isin the first or second position.

FEATURES OF YOUR HYUNDAI 1- 73
WARNING:
To avoid the possibility of injury in case of an accident or a sudden stop, the glove box door should be kept closed when the car is in mo-tion.
o To open the glove box, pull on the glove box release lever.!
B500B01O-AAT Illuminated Glove Box Opening the glove box will automati- cally turn on the light when the multi- function switch is turned to the first/second position.
B510A01A-AAT OUTSIDE REAR VIEW MIRROR Manual Type (If installed) The outside rearview mirrors are equipped with a remote control for your convenience. It is operated by thecontrol lever in the bottom front corner of the window. Before driving away, always checkthat your mirrors are positioned so you can see behind you, both to the left and right sides, as well as directly behindyour vehicle. When using the mirror, always exercise caution when attempt- ing to judge the distance of vehiclesbehind or along side of you. HTB306
CAUTION:
If the mirror control is jammed withice, do not attempt to break it freeusing the control handle or by ma- nipulating the face of the mirror. Use an approved spray de-icer (notradiator antifreeze) to release the frozen mechanism or move the ve- hicle to a warm place and allow theice to melt.
!
