2007 HONDA RIDGELINE service reset

This indicator normally comes on for
a few seconds when you turn the
ignition switch to the ON (II)
position. This
indicator reminds you that it is
time to take your vehicle in for
scheduled maintenance. The
maintenance main items and sub
items will be displayed in the
information display. See page for
more information on the
maintenance minder.
This indicator goes off when your
dealer resets it after completing the
required maintenance service.
Ifitcomesonandstaysonatany
other
time, or if it does not come on
wh en you turn the ignition switch to
the ON (II) position, there is a
problem with the VSA system. Take
your vehicle to a dealer to have it
checked. Without VSA, your vehicle
still has normal driving ability, but
will not have VSA traction and
stability enhancement. See page
for more information on the
VSA system. It
comes on along with the VSA
system indicator if there is a
problem with the VSA system.
It
flashes when VSA is active (see
page ).
Itcomesonasareminderthatyou
have
turned off the vehicle
stability assist (VSA) system.
This
indicator has three functions:
This
indicator normally comes on for
a few seconds when you turn the
ignition switch to the ON (II)
position. For more information, see
page .
1.
2.
3.
210 210
210 235
Vehicle Stability Assist
(VSA ) System Indicator
VSA A ctivation Indicator Maintenance Minder
Indicator
Instrument Panel Indicators
Inst rument s and Cont rols
67

To switch the information display
between the odometer, trip meter
and outside temperature (if
equipped), and engine oil lif e and
maintenance service items, press the
SELECT button repeatedly.
This shows the total distance your
vehicle has been driven. It measures
miles in U.S. models and kilometers
in Canadian models.
It is illegal under U.S. f ederal law and
Canadian provincial regulations to
disconnect, reset, or alter the
odometer with the intent to change
the number of miles or kilometers
indicated. Odometer
Gauges
70
SPEEDOMETER
TACHOMETER TEMPERATURE GAUGE FUEL GAUGE
SELECT
BUTTON
TRIP METER RESET
BUTTON
OUTSIDE
TEMPERATURE
INDICATOR
U.S. model is shown. INFORMATION
DISPLAY
ODOMETER/
TIGHTEN FUEL
CAP MESSAGE

Maintenance Minder
Maintena nce
237
When you see this message, have
the indicated maintenance
performed by your dealer as soon as
possible.

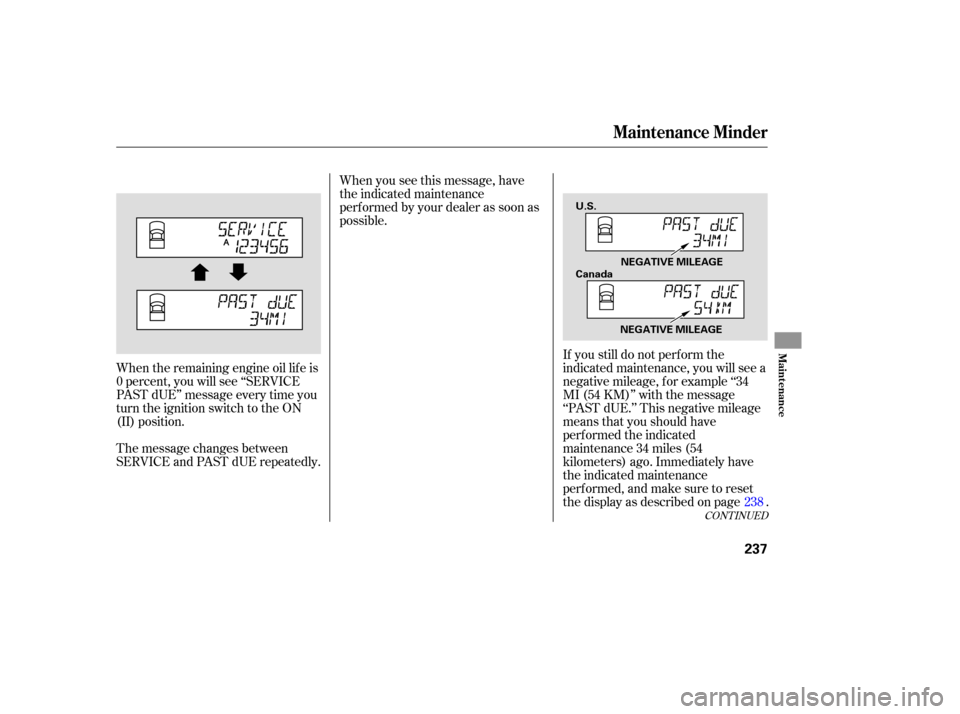

When the remaining engine oil life is
0 percent, you will see ‘‘SERVICE
PAST dUE’’ message every time you
turn the ignition switch to the ON
(II) position.
The message changes between
SERVICE and PAST dUE repeatedly. If
you still do not perform the
indicated maintenance, you will see a
negative mileage, for example ‘‘34
MI (54 KM)’’ with the message
‘‘PAST dUE.’’ This negative mileage
means that you should have
performed the indicated
maintenance 34 miles (54
kilometers) ago. Immediately have
the indicated maintenance
perf ormed, and make sure to reset
the display as described on page . 238
CONT INUED
NEGATIVE MILEAGE
U.S.
Canada
NEGATIVE MILEAGE

You can change the display to the
engine oil life display, or the
odometer and trip meter by pushing
the SELECT button on the
instrument panel.
All maintenance items displayed in
the trip meter are in code. For an
explanation of these maintenance
codes, see page . Your dealer will reset the display
af ter completing the required
maintenance service. You will see
‘‘OIL LIFE 100 %’’ on the inf ormation
display the next time you turn the
ignition switch to the ON (II)
position.
If maintenance service is done by
someone other than your dealer,
reset the maintenance minder as
f ollows:
Press the SELECT button
repeatedly until the engine oil lif e
display or the service message is
displayed. Turn the ignition switch to the ON
(II) position.
1.
2.
242
Maintenance Main Items and Sub
Items
Resetting the Engine Oil Lif e
Display
Maintenance Minder
238

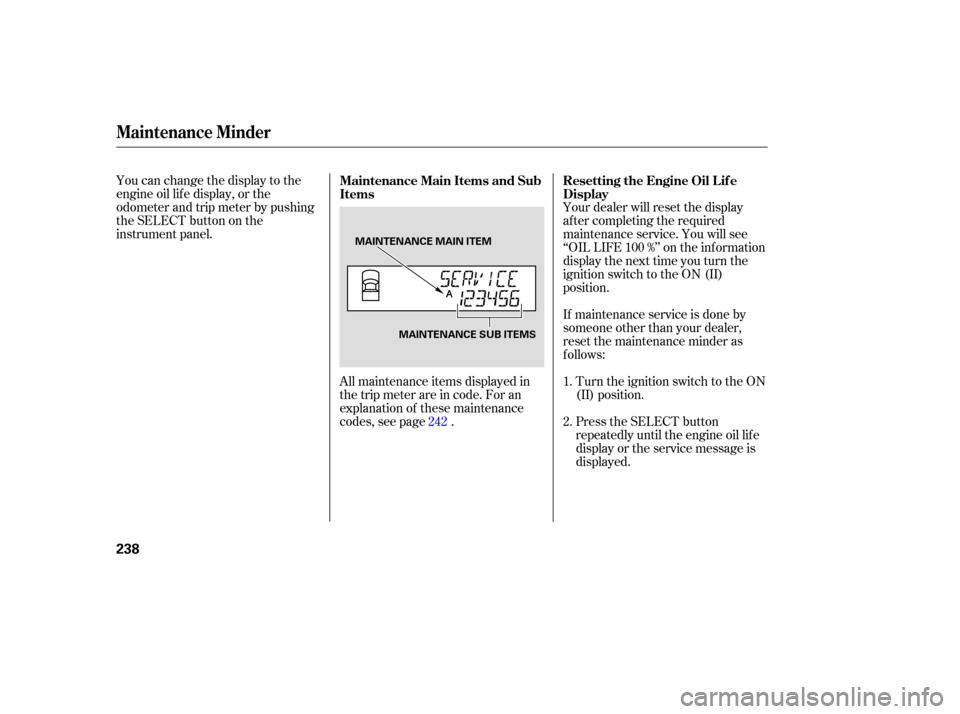

MAINTENANCE MAIN ITEM
MAINTENANCE SUB ITEMS

Ì
If you have the required service
done but do not reset the display, or
reset the display without doing the
service, the system will not show the
proper maintenance intervals. This
canleadtoseriousmechanical
problems because you will no longer
have an accurate record of when
maintenance is needed.
Your authorized Honda dealer
knows your vehicle best and can
provide competent, ef f icient service. However, service at a dealer is not
mandatory to keep your warranties
in effect. Maintenance may be done
by any qualif ied service f acility or
person who is skilled in this type of
automotive service. Make sure to
have the service f acility or person
reset the display as previously
described. Keep all receipts as proof
of completion, and have the person
who does the work fill out the
maintenance record. Check your
warranty booklet f or more
inf ormation.
We recommend the use of Honda
parts and f luids whenever you have
maintenance done. These are
manuf actured to the same high-
quality standards as the original
components, so you can be conf ident
of their perf ormance and durability.U.S. Vehicles:
According to state and federal
regulations, f ailure to perf orm
maintenance on the items marked
with will not void your emissions
warranties. However, all
maintenance services should be
perf ormed in accordance with the
intervals indicated by the
inf ormation display.
Maintenance Minder
Important Maintenance
Precautions Maintenance, replacement, or
repair of emissions control
devices and systems may be done
by any automotive repair
establishment or individual using
parts that are ‘‘certif ied’’ to EPA
standards.
240

Î
Î
Ì Ì
Ì
Î
Maintenance Minder
242
: Maintenance
Sub Items
Replace dust and pollen filter
Inspect drive belt
Replace transmission and transfer fluid
Replace spark plugs
Replace timing belt and inspect water pump
Inspect valve clearance
Replace engine coolant
Replace VTM-4 rear differential fluid
Maintenance
Main Items
Replace engine oil
Replace engine oil and oil filter
Inspect front and rear brakes
Check parking brake adjustment
Inspect these items:
Tie rod ends, steering gear box, and boots
Suspension components
Driveshaft boots
Brake hoses and lines (including ABS)
All fluid levels and condition of fluids
Exhaust system
Fuel lines and connect ions
Maintenance Sub Items
Rotate tires
Replace air cleaner element
If you drive in dusty conditions, replace
every 15,000 miles (24,000 km). 2
3
4
5
Symbol
A
B
Symbol 1
2 Symbol
6
If you drive primarily in urban areas that have high
concentrations of soot in the air from industry and from diesel-
powered vehicles, replace every 15,000 miles (24,000 km).
Driving in mountainous areas at very low vehicle speeds or
trailer towing results in higher transmission and transfer
temperatures or frequently fully loaded. This requires
transmission and transfer fluid changes more frequently
than recommended by the Maintenance Minder.
If you regulary drive your vehicle under these conditions, have
the transmission and transfer fluid changed every 30,000 miles
(48,000 km).
If you drive regularly in very high tempera tures (over 110°F,
43°C), in very low temperatures (under-20°F, -29°C), or towing a
trailer, replace every 60,000 mile (U.S.)/100,000 km (Canada)
Driving in mountainous areas at very low vehicle speeds or
trailer towing results in higher level of me chanical (shear) stress
to fluid or frequently fully loaded. This requires differential fluid
changes more frequently than recommended by the
Maintenance Minder. If you regularly drive your vehicle under
these conditions, have the differential fluid changed at
7,500 miles (12,000 km), then every 15,000 miles (24,000 km).
1
1
If the message ‘‚SERVICE DUE NOW ’’ does not appear more than 12 months
after the display is reset, change the engine oil every year.
See information on maintenance and emissions warranty on page .
Independent of the maintenance messages in the information display,
replace the brake fluid every 3 years.
Inspect idle speed every 160,000 miles (256,000 km).
Adjust the valves during services A, B, 1, 2, or 3 only if they are noisy.
NOTE: 1:
240
Maintenance Minder
