2007 GMC YUKON XL load capacity

Autoride®
If equipped, the Autoride®feature will provide a
superior vehicle ride and handling under a variety
of passenger and loading conditions.
The system is fully automatic and uses a computer
controller to continuously monitor vehicle speed,
wheel to body position, lift/dive and steering
position of the vehicle. The controller then sends
signals to each shock absorber to independently
adjust the damping level to provide the optimum
vehicle ride.
Autoride
®also interacts with the tow/haul switch
that, when engaged, will provide additional control
of the shock absorbers. This additional control
results in better ride and handling characteristics
when the vehicle is loaded or towing a trailer.
SeeTow/Haul Mode Light on page 242for more
information.
Towing a Trailer
Do not tow a trailer during break-in. SeeNew
Vehicle Break-In on page 136for more information.
{CAUTION:
If you do not use the correct equipment
and drive properly, you can lose control
when you pull a trailer. For example, if the
trailer is too heavy, the brakes may not
work well — or even at all. You and your
passengers could be seriously injured.
Pull a trailer only if you have followed all
the steps in this section. Ask your dealer
for advice and information about towing a
trailer with your vehicle.
Notice:Pulling a trailer improperly can
damage your vehicle and result in costly
repairs not covered by your warranty. To pull
a trailer correctly, follow the advice in this
part, and see your dealer for important
information about towing a trailer with your
vehicle.
To identify the trailering capacity of your vehicle,
you should read the information in “Weight of
the Trailer” that appears later in this section.
405

Weight of the Trailer Tongue
The tongue load (A) of any trailer is an important
weight to measure because it affects the total
or gross weight of your vehicle. The Gross Vehicle
Weight (GVW) includes the curb weight of the
vehicle, any cargo you may carry in it, and
the people who will be riding in the vehicle. If you
have a lot of options, equipment, passengers
or cargo in your vehicle, it will reduce the tongue
weight your vehicle can carry, which will also
reduce the trailer weight your vehicle can tow.
And if you will tow a trailer, you must add
the tongue load to the GVW because your vehicle
will be carrying that weight, too. See Loading
Your Vehicle for more information about
your vehicle’s maximum load capacity.The trailer tongue weight (A) should be 10 percent
to 15 percent of the total loaded trailer weight,
up to a maximum of 600 lbs (272 kg) with a
weight carrying hitch. The trailer tongue
weight (A) should be 10 percent to 15 percent
of the total loaded trailer weight, up to a maximum
of 1,000 lbs (453 kg) for the 1500 series and up to a
maximum of 1,500 lbs (680 kg) for the 2500 series
with a weight distributing hitch.
411

Do not exceed the maximum allowable tongue
weight for your vehicle. Choose the shortest hitch
extension that will position the hitch ball closest
to the vehicle. This will help reduce the effect
of trailer tongue weight on the rear axle.
After you have loaded the trailer, weigh the trailer
and then the tongue separately, to see if the
weights are proper. If they are not, you may be
able to get them right by moving some items
around in the trailer.
Trailering may be limited by the vehicle’s ability to
carry tongue weight. Tongue weight cannot
cause the vehicle to exceed the GVWR (Gross
Vehicle Weight Rating) or the RGAWR (Rear
Gross Axle Weight Rating). The effect of additional
weight may reduce your trailering capacity more
than the total of the additional weight.Consider the following example:
A vehicle model base weight is
5,500 lbs (2 495 kg); 2,800 lbs (1 270 kg)
at the front axle and 2,700 lbs (1 225 kg) at the
rear axle. It has a GVWR of 7,200 lbs (3 266 kg), a
RGAWR of 4,000 lbs (1 814 kg) and a GCWR
(Gross Combination Weight Rating) of 14,000 lbs
(6 350 kg). The trailer rating should be:
You can expect tongue weight to be at least
10 percent of trailer weight (850 lbs (386 kg)) and
because the weight is applied well behind the rear
axle, the effect on the rear axle will be greater than
just the weight itself, as much as 1.5 times as
much. The weight at the rear axle could be
850 lbs (386 kg) X 1.5 = 1,275 lbs (578 kg). Since
the rear axle already weighs 2,700 lbs (1 225 kg),
adding 1,275 lbs (578 kg) brings the total to
3,975 lbs (1 803 kg). This is very close to, but within
the limit for RGAWR as well. The vehicle is set to
trailer up to 8,500 lbs (3 856 kg).
412

But let’s say your specic vehicle is equipped with
some of the latest options and you have a front
seat passenger and two rear seat passengers with
some luggage and gear in the vehicle as well.
You may add 300 lbs (136 kg) to the front
axle weight and 400 lbs (181 kg) to the rear axle
weight. Your vehicle now weighs:
Weight is still below 7,200 lbs (3 266 kg) and you
may think that you should subtract 700 additional
pounds (318 kg) from your trailering capacity
to stay within GCWR limits. Your maximum trailer
would only be 7,800 lbs (3 538 kg). You may
go further and think you must limit tongue weight
to less than 1,000 lbs (454 kg) to avoid
exceeding GVWR. But, you must still consider the
effect on the rear axle. Because your rear axle
now weighs 3,100 lbs (1 406 kg), you can only put
900 lbs (408 kg) on the rear axle without
exceeding RGAWR.The effect of tongue weight is about 1.5 times the
actual weight. Dividing the 900 lbs (408 kg) by
1.5 leaves you with being able to handle only
600 lbs (272 kg) of tongue weight. Since tongue
weight is usually at least 10 percent of total loaded
trailer weight, you can expect that the largest
trailer your vehicle can properly handle is
6,000 lbs (2 721 kg).
It is important that you make sure your vehicle
does not exceed any of its ratings — GCWR,
GVWR, RGAWR, Maximum Trailer Rating
or Tongue Weight. The only way to be sure you
are not exceeding any of these ratings is to weigh
your vehicle and trailer.
Total Weight on Your Vehicle’s Tires
Be sure your vehicle’s tires are inated to the
upper limit for cold tires. You’ll nd these numbers
on the Certication label at the rear edge of the
driver’s door or seeLoading Your Vehicle on
page 390for more information. Then be sure you
don’t go over the GVW limit for your vehicle,
or the GAWR, including the weight of the trailer
tongue. If you use a weight distributing hitch, make
sure you don’t go over the rear axle limit before
you apply the weight distribution spring bars.
413

Those stations that do have E85 should have a
label indicating ethanol content. Do not use the fuel
if the ethanol content isgreaterthan 85%.
At a minimum, E85 should meet ASTM
Specication D 5798.
To ensure quick starts in the wintertime, the
E85 fuel must be formulated properly for your
climate according to ASTM specication D 5798.
If you have trouble starting on E85, it may be
because your E85 fuel is not properly formulated
for your climate. If this happens, switching to
gasoline or adding gasoline to your fuel tank may
improve starting. For good starting and heater
efficiency below 32°F (0°C), the fuel mix in the fuel
tank should contain no more than 70% ethanol.
It is best not to alternate repeatedly between
gasoline and E85. If you do switch fuels, it is
recommended that you add as much fuel as
possible — do not add less than ve gallons
(18.9 L) when refueling. You should drive the
vehicle immediately after refueling for at least
ve miles (8 km).
E85 has less energy per gallon than gasoline, so
you will need to rell your fuel tank more often
when using E85 than when you are using gasoline.
Regular unleaded gasoline is recommendedwhen pulling a trailer. For payload capacity with
ethanol fuel, seeLoading Your Vehicle on
page 390.
Notice:Some additives are not compatible
with E85 fuel and may harm your fuel system.
Damage caused by additives would not be
covered by your new vehicle warranty. Do not
use additives with E85 fuel.
Notice:Your vehicle was not designed for
fuel that contains methanol. Do not use
fuel containing methanol. It can corrode metal
parts in your fuel system and also damage
the plastic and rubber parts. That damage
would not be covered under your warranty.
Fuels in Foreign Countries
If you plan on driving in another country outside the
United States or Canada, the proper fuel may be
hard to nd. Never use leaded gasoline or any other
fuel not recommended in the previous text on fuel.
Costly repairs caused by use of improper fuel would
not be covered by your warranty.
To check the fuel availability, ask an auto club, or
contact a major oil company that does business
in the country where you will be driving.
431

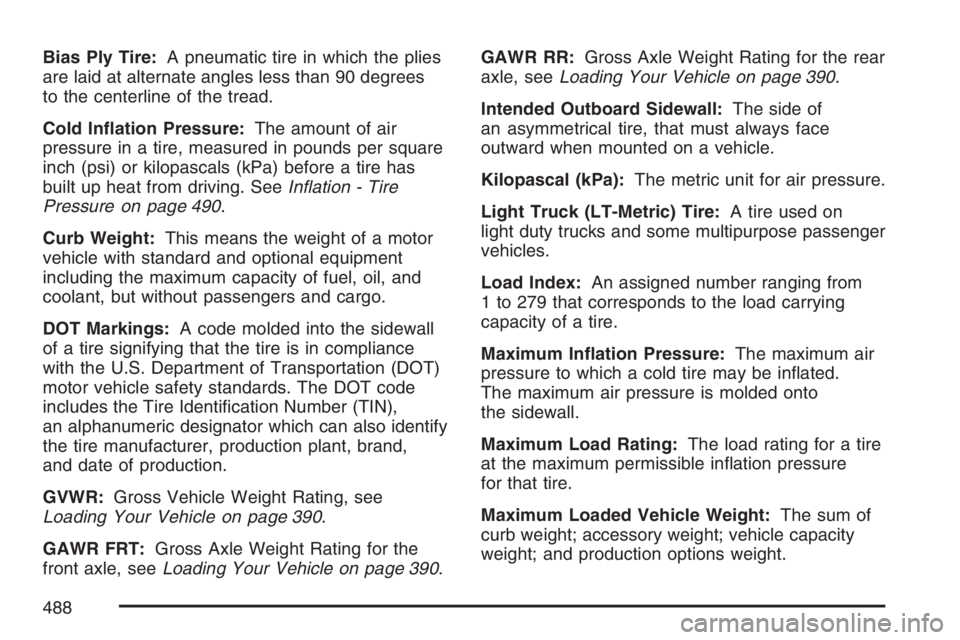

Bias Ply Tire:A pneumatic tire in which the plies
are laid at alternate angles less than 90 degrees
to the centerline of the tread.
Cold Ination Pressure:The amount of air
pressure in a tire, measured in pounds per square
inch (psi) or kilopascals (kPa) before a tire has
built up heat from driving. SeeInation - Tire
Pressure on page 490.
Curb Weight:This means the weight of a motor
vehicle with standard and optional equipment
including the maximum capacity of fuel, oil, and
coolant, but without passengers and cargo.
DOT Markings:A code molded into the sidewall
of a tire signifying that the tire is in compliance
with the U.S. Department of Transportation (DOT)
motor vehicle safety standards. The DOT code
includes the Tire Identication Number (TIN),
an alphanumeric designator which can also identify
the tire manufacturer, production plant, brand,
and date of production.
GVWR:Gross Vehicle Weight Rating, see
Loading Your Vehicle on page 390.
GAWR FRT:Gross Axle Weight Rating for the
front axle, seeLoading Your Vehicle on page 390.GAWR RR:Gross Axle Weight Rating for the rear
axle, seeLoading Your Vehicle on page 390.
Intended Outboard Sidewall:The side of
an asymmetrical tire, that must always face
outward when mounted on a vehicle.
Kilopascal (kPa):The metric unit for air pressure.
Light Truck (LT-Metric) Tire:A tire used on
light duty trucks and some multipurpose passenger
vehicles.
Load Index:An assigned number ranging from
1 to 279 that corresponds to the load carrying
capacity of a tire.
Maximum Ination Pressure:The maximum air
pressure to which a cold tire may be inated.
The maximum air pressure is molded onto
the sidewall.
Maximum Load Rating:The load rating for a tire
at the maximum permissible ination pressure
for that tire.
Maximum Loaded Vehicle Weight:The sum of
curb weight; accessory weight; vehicle capacity
weight; and production options weight.
488

UTQGS (Uniform Tire Quality Grading
Standards):A tire information system that
provides consumers with ratings for a tire’s
traction, temperature, and treadwear. Ratings are
determined by tire manufacturers using
government testing procedures. The ratings are
molded into the sidewall of the tire. SeeUniform
Tire Quality Grading on page 502.
Vehicle Capacity Weight:The number of
designated seating positions multiplied by
150 lbs (68 kg) plus the rated cargo load. See
Loading Your Vehicle on page 390.
Vehicle Maximum Load on the Tire:Load on an
individual tire due to curb weight, accessory
weight, occupant weight, and cargo weight.
Vehicle Placard:A label permanently attached to
a vehicle showing the vehicle’s capacity weight
and the original equipment tire size and
recommended ination pressure. See “Tire and
Loading Information Label” underLoading
Your Vehicle on page 390.Ination - Tire Pressure
Tires need the correct amount of air pressure to
operate effectively.
Notice:Do not let anyone tell you that
under-ination or over-ination is all right. It is
not. If your tires do not have enough air
(under-ination), you can get the following:
Too much exing
Too much heat
Tire overloading
Premature or irregular wear
Poor handling
Reduced fuel economy
If your tires have too much air (over-ination),
you can get the following:
Unusual wear
Poor handling
Rough ride
Needless damage from road hazards
490

A Tire and Loading Information label is attached to
the vehicle’s center pillar (B-pillar), below the
driver’s door lock post (striker). This label lists your
vehicle’s original equipment tires and their
recommended cold tire ination pressures. The
recommended cold tire ination pressure, shown on
the label, is the minimum amount of air pressure
needed to support your vehicle’s maximum load
carrying capacity.
For additional information regarding how much
weight your vehicle can carry, and an example of
the tire and loading information label, see
Loading Your Vehicle on page 390.When to Check
Check your tires once a month or more. Do not
forget to check the spare tire. For additional
information regarding the spare tire, seeSpare
Tire on page 526.
How to Check
Use a good quality pocket-type gage to check tire
pressure. You cannot tell if your tires are
properly inated simply by looking at them. Radial
tires may look properly inated even when
they’re underinated. Check the tire’s ination
pressure when the tires are cold. Cold means your
vehicle has been sitting for at least three hours
or driven no more than 1 mile (1.6 km).
491
