2007 GMC YUKON tow

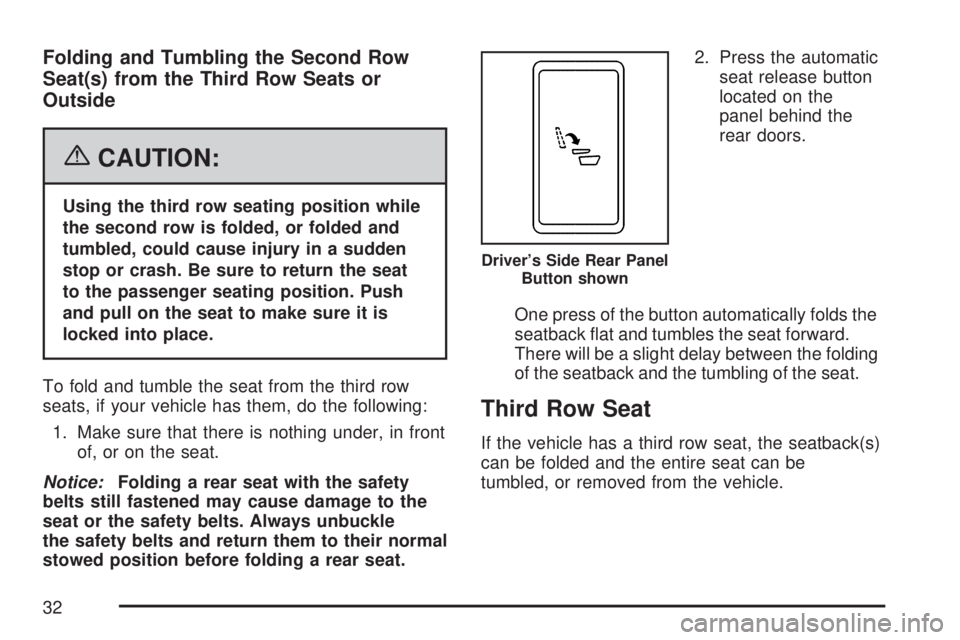

Folding and Tumbling the Second Row
Seat(s) from the Third Row Seats or
Outside
{CAUTION:
Using the third row seating position while
the second row is folded, or folded and
tumbled, could cause injury in a sudden
stop or crash. Be sure to return the seat
to the passenger seating position. Push
and pull on the seat to make sure it is
locked into place.
To fold and tumble the seat from the third row
seats, if your vehicle has them, do the following:
1. Make sure that there is nothing under, in front
of, or on the seat.
Notice:Folding a rear seat with the safety
belts still fastened may cause damage to the
seat or the safety belts. Always unbuckle
the safety belts and return them to their normal
stowed position before folding a rear seat.2. Press the automatic
seat release button
located on the
panel behind the
rear doors.
One press of the button automatically folds the
seatback at and tumbles the seat forward.
There will be a slight delay between the folding
of the seatback and the tumbling of the seat.
Third Row Seat
If the vehicle has a third row seat, the seatback(s)
can be folded and the entire seat can be
tumbled, or removed from the vehicle.
Driver’s Side Rear Panel
Button shown
32

Folding the Seatback(s)
To fold the seatback, do the following:
1. Open the liftgate to access the controls for
the seat.
2. Remove all items on the seat cushion.
Notice:Folding a rear seat with the safety
belts still fastened may cause damage to the
seat or the safety belts. Always unbuckle
the safety belts and return them to their normal
stowed position before folding a rear seat.
3. Lift the release lever,
located on the bottom
rear of the seatback
on the outboard
side of the seat, and
the seatback will
fold forward.
Unfolding the Seatback(s)
To return the seatback to the upright position, do
the following:
1. Open the liftgate to access the controls for
the seat.
2. Pull up on the seatback until it locks into the
upright position.
{CAUTION:
If the seatback is not locked, it could
move forward in a sudden stop or crash.
That could cause injury to the person
sitting there. Always push and pull on
the seatback to be sure it is locked.
3. Push and pull on the seatback to make sure it
is locked.
33

{CAUTION:
Never do this.
Here two children are wearing the same
belt. The belt can not properly spread the
impact forces. In a crash, the two children
can be crushed together and seriously
injured. A belt must be used by only
one person at a time.
Q:What if a child is wearing a lap-shoulder
belt, but the child is so small that the
shoulder belt is very close to the child’s
face or neck?
A:If the child is sitting in a rear seat outside
position, move the child toward the center
of the vehicle. If the child is sitting in the
second row center position, move the child
toward the safety belt buckle. In either
case, be sure that the shoulder belt still is on
the child’s shoulder, so that in a crash the
child’s upper body would have the restraint
that belts provide. SeeRear Safety Belt
Comfort Guides on page 56. If the child is
so small that the shoulder belt is still very close
to the child’s face or neck, you might want
to place the child in a rear seat that has a lap
belt, if your vehicle has one.
62

{CAUTION:
The body structure of a young child is
quite unlike that of an adult or older child,
for whom the safety belts are designed. A
young child’s hip bones are still so small
that the vehicle’s regular safety belt may
not remain low on the hip bones, as it
should. Instead, it may settle up around
the child’s abdomen. In a crash, the belt
would apply force on a body area that is
unprotected by any bony structure. This
alone could cause serious or fatal injuries.
Young children always should be secured
in appropriate child restraints.
Child Restraint Systems
An infant car bed (A), a special bed made for use
in a motor vehicle, is an infant restraint system
designed to restrain or position a child on a
continuous at surface. Make sure that the infant’s
head rests toward the center of the vehicle.
68

Folding an empty rear seat with the safety
belts secured, may cause damage to the safety
belt or the seat. When removing the child
restraint, always remember to return the safety
belts to their normal, stowed position before
folding the rear seat.
1. Attach and tighten the lower attachments to
the lower anchors. If the child restraint does
not have lower attachments or the desired
seating position does not have lower anchors,
secure the child restraint with the top tether
and the safety belts. Refer to your child
restraint manufacturer instructions and the
instructions in this manual.
1.1. Find the lower anchors for the desired
seating position.
1.2. Put the child restraint on the seat.
1.3. Attach and tighten the lower
attachments on the child restraint to the
lower anchors.2. If the child restraint manufacturer recommends
that the top tether be attached, attach and
tighten the top tether to the top tether anchor,
if the vehicle has one. Refer to the child
restraint instructions and the following steps:
2.1. Find the top tether anchor.
2.2. Route, attach and tighten the top tether
according to your child restraint
instructions and the following
instructions:
If the position you are
using does not have a
head rest/restraint
and you are using a
single tether, route
the tether over
the seatback.
81

How Does an Airbag Restrain?
In moderate to severe frontal or near frontal
collisions, even belted occupants can contact
the steering wheel or the instrument panel.
In moderate to severe side collisions, even belted
occupants can contact the inside of the vehicle.
The airbag supplements the protection provided by
safety belts. Airbags distribute the force of the
impact more evenly over the occupant’s upper
body, stopping the occupant more gradually. But
the frontal airbags would not help you in many
types of collisions, including rollovers, rear
impacts, and many side impacts, primarily because
an occupant’s motion is not toward the airbag.Roof-mounted rollover airbags would not help
you in many types of collisions, including many
frontal or near frontal collisions, and rear impacts,
primarily because an occupant’s motion is not
toward the airbag. Airbags should never be
regarded as anything more than a supplement
to safety belts, and then only in moderate to
severe frontal or near-frontal collisions for the
driver’s and right front passenger’s frontal airbags,
and only in moderate to severe side collisions
for roof-mounted rollover airbags.
99

{CAUTION:
If the airbag readiness light in the
instrument panel cluster ever comes on
and stays on, it means that something
may be wrong with the airbag system.
If this ever happens, have the vehicle
serviced promptly, because an adult-size
person sitting in the right front
passenger’s seat may not have the
protection of the frontal airbag. See
Airbag Readiness Light on page 229for
more on this, including important safety
information.Aftermarket equipment, such as seat covers, can
affect how well the passenger sensing system
operates. You may want to consider not using seat
covers or other aftermarket equipment if your
vehicle has the passenger sensing system. See
Adding Equipment to Your Airbag-Equipped
Vehicle on page 107for more information about
modications that can affect how the system
operates.
{CAUTION:
Stowing of articles under the passenger’s
seat or between the passenger’s seat
cushion and seatback may interfere with
the proper operation of the passenger
sensing system.
105

Keys............................................................ 113
Remote Keyless Entry System.................. 114
Remote Keyless Entry System Operation ... 116
Doors and Locks........................................ 122
Door Locks................................................ 122
Power Door Locks..................................... 123
Delayed Locking........................................ 123
Programmable Automatic Door Locks........ 124
Rear Door Security Locks......................... 124
Lockout Protection..................................... 125
Liftgate/Liftglass......................................... 126
Power Liftgate........................................... 128
Power Running Boards.............................. 132
Windows...................................................... 132
Power Windows........................................ 133
Sun Visors................................................ 134
Theft-Deterrent Systems............................. 134
Content Theft-Deterrent............................. 135
PASS-Key
®III+......................................... 136
PASS-Key®III+ Operation......................... 137Starting and Operating Your Vehicle......... 139
New Vehicle Break-In................................ 139
Ignition Positions....................................... 140
Retained Accessory Power (RAP)............. 141
Starting the Engine.................................... 141
Adjustable Throttle and Brake Pedal.......... 143
Engine Coolant Heater.............................. 144
Automatic Transmission Operation............. 145
Tow/Haul Mode......................................... 150
Parking Brake........................................... 152
Shifting Into Park (P)................................. 153
Shifting Out of Park (P)............................. 154
Parking Over Things That Burn................. 155
Engine Exhaust......................................... 156
Running the Engine While Parked............. 157
Mirrors......................................................... 158
Automatic Dimming Rearview Mirror with
OnStar
®, Compass and Temperature
Display................................................... 158
Outside Power Foldaway Mirrors............... 161
Section 2 Features and Controls
111
