2007 GMC YUKON remote control

Seats and Restraint Systems....................... 7
Front Seats
.............................................. 9
Rear Seats
............................................. 17
Safety Belts
............................................ 38
Child Restraints
...................................... 61
Airbag System
........................................ 90
Restraint System Check
....................... 108
Features and Controls.............................. 111
Keys
..................................................... 113
Doors and Locks
.................................. 122
Windows
............................................... 132
Theft-Deterrent Systems
....................... 134
Starting and Operating Your Vehicle
..... 139
Mirrors
.................................................. 158
OnStar
®System
................................... 164
Universal Home Remote System
.......... 166
Storage Areas
...................................... 178
Sunroof
................................................ 185Instrument Panel....................................... 187
Instrument Panel Overview
................... 190
Climate Controls
................................... 214
Warning Lights, Gages, and Indicators
... 225
Driver Information Center (DIC)
............ 244
Audio System(s)
................................... 272
Driving Your Vehicle................................. 341
Your Driving, the Road, and Your
Vehicle
.............................................. 342
Towing
................................................. 398
Service and Appearance Care.................. 417
Service
................................................. 420
Fuel
...................................................... 423
Checking Things Under the Hood
......... 428
All-Wheel Drive
..................................... 469
Rear Axle
............................................. 470
Front Axle
............................................ 471
Headlamp Aiming
................................. 473
2007 GMC Yukon Denali/Yukon XL Denali Owner ManualM
1

Memory Seat, Mirrors, and Pedals
Your vehicle has the memory package.
The controls for this
feature are located on
the driver’s door
panel, and are used to
program and recall
memory settings for the
driver’s seat, outside
mirrors, and the
adjustable throttle and
brake pedal feature
if your vehicle has it.
To save your positions in memory, do the
following:
1. Adjust the driver’s seat, including the seatback
recliner and lumbar, both outside mirrors, and
the throttle and brake pedals to a comfortable
position.SeeOutside Power Foldaway Mirrors on
page 161andAdjustable Throttle and Brake
Pedal on page 143for more information.
Not all mirrors will have the ability to save and
recall the mirror positions.
2. Press and hold button 1 until two beeps let
you know that the position has been stored.
A second seating, mirror, and throttle and brake
pedal position can be programmed by repeating
the above steps and pressing button 2.
To recall the memory positions, the vehicle
must be in PARK (P). Press and release either
button 1 or button 2 corresponding to the desired
driving position. The seat, outside mirrors, and
adjustable throttle and brake pedals will move to
the position previously stored. You will hear a
single beep.
If you use the remote keyless entry transmitter to
enter your vehicle and the remote recall memory
feature is on, automatic seat, mirror, and
adjustable pedal movement will occur. See
“MEMORY SEAT RECALL” underDIC Vehicle
Customization (With DIC Buttons) on page 262for
more information.
12

To stop recall movement of the memory feature at
any time, press one of the power seat controls,
memory buttons, power mirror buttons, or
adjustable pedal switch.
If something has blocked the driver’s seat and/or
the adjustable pedals while recalling a memory
position, the driver’s seat and/or the adjustable
pedals recall may stop working. If this happens,
press the appropriate control for the area that
is not recalling for two seconds, after the
obstruction is removed. Then try recalling the
memory position again by pressing the appropriate
memory button. If the memory position is still
not recalling, see your dealer for service.Easy Exit Seat
The control for this feature is located on the
driver’s door panel between buttons 1 and 2.
With the vehicle in PARK (P), the exit position can
be recalled by pressing the exit button. You will
hear a single beep. The driver’s seat will
move back.
If the easy exit seat feature is on in the Driver
Information Center (DIC), automatic seat
movement will occur when the key is removed
from the ignition. See “EASY EXIT SEAT” under
DIC Vehicle Customization (With DIC Buttons)
on page 262for more information.
Further programming for the memory seat feature
can be done using the DIC. You can select or
not select the following:
The automatic easy exit seat feature
The remote memory seat recall feature
For programming information, seeDIC Vehicle
Customization (With DIC Buttons) on page 262.
13

Keys............................................................ 113
Remote Keyless Entry System.................. 114
Remote Keyless Entry System Operation ... 116
Doors and Locks........................................ 122
Door Locks................................................ 122
Power Door Locks..................................... 123
Delayed Locking........................................ 123
Programmable Automatic Door Locks........ 124
Rear Door Security Locks......................... 124
Lockout Protection..................................... 125
Liftgate/Liftglass......................................... 126
Power Liftgate........................................... 128
Power Running Boards.............................. 132
Windows...................................................... 132
Power Windows........................................ 133
Sun Visors................................................ 134
Theft-Deterrent Systems............................. 134
Content Theft-Deterrent............................. 135
PASS-Key
®III+......................................... 136
PASS-Key®III+ Operation......................... 137Starting and Operating Your Vehicle......... 139
New Vehicle Break-In................................ 139
Ignition Positions....................................... 140
Retained Accessory Power (RAP)............. 141
Starting the Engine.................................... 141
Adjustable Throttle and Brake Pedal.......... 143
Engine Coolant Heater.............................. 144
Automatic Transmission Operation............. 145
Tow/Haul Mode......................................... 150
Parking Brake........................................... 152
Shifting Into Park (P)................................. 153
Shifting Out of Park (P)............................. 154
Parking Over Things That Burn................. 155
Engine Exhaust......................................... 156
Running the Engine While Parked............. 157
Mirrors......................................................... 158
Automatic Dimming Rearview Mirror with
OnStar
®, Compass and Temperature
Display................................................... 158
Outside Power Foldaway Mirrors............... 161
Section 2 Features and Controls
111

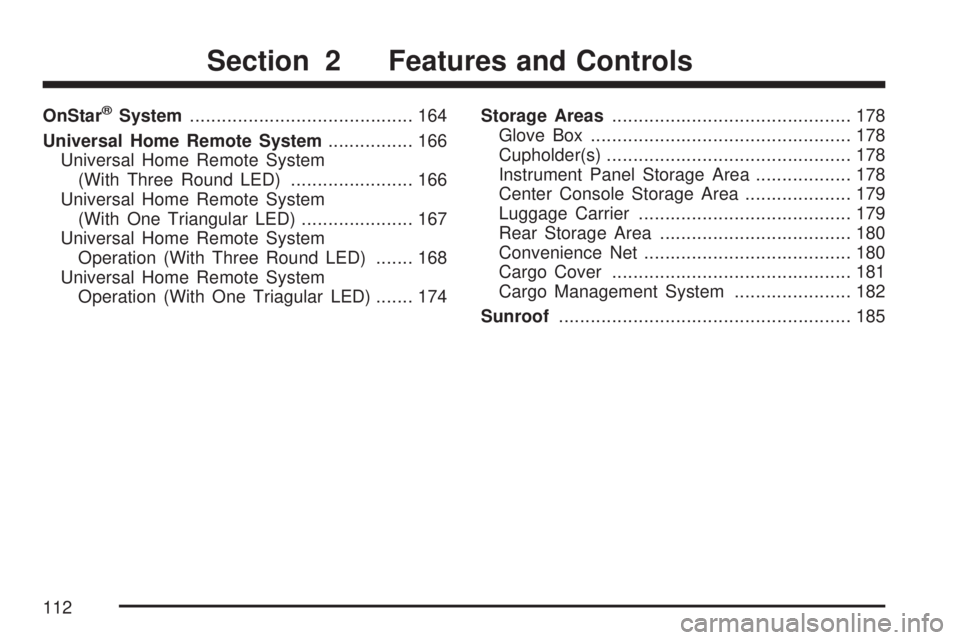

OnStar®System.......................................... 164
Universal Home Remote System................ 166
Universal Home Remote System
(With Three Round LED)....................... 166
Universal Home Remote System
(With One Triangular LED)..................... 167
Universal Home Remote System
Operation (With Three Round LED)....... 168
Universal Home Remote System
Operation (With One Triagular LED)....... 174Storage Areas............................................. 178
Glove Box................................................. 178
Cupholder(s).............................................. 178
Instrument Panel Storage Area.................. 178
Center Console Storage Area.................... 179
Luggage Carrier........................................ 179
Rear Storage Area.................................... 180
Convenience Net....................................... 180
Cargo Cover............................................. 181
Cargo Management System...................... 182
Sunroof....................................................... 185
Section 2 Features and Controls
112

To replace the battery in the RKE transmitter do
the following:
1. Use a at object with a thin edge into the
notch, located below the trunk release
button, and separate the bottom half from
the top half of the transmitter.
2. Remove the old battery, but do not use a
metal object to do this.
3. Slide the new battery into the transmitter with
the positive side of the battery facing down.
Use a type CR2032 battery, or equivalent
type. Make sure the cover is on tightly,
so water will not get in.
4. Snap the front and the back of the transmitter
together.
5. Test the operation of the transmitter with the
vehicle.
Remote Vehicle Start
Your vehicle may have a remote starting feature.
This feature allows you to start the engine from
outside of the vehicle. It may also start up the
vehicle’s heating or air conditioning systems and
rear window defogger. Normal operation of the
system will return after the key is turned to the
RUN position.If your vehicle has an automatic climate control
system, during remote start, the climate control
system will default to a heating mode during colder
outside temperatures and a cooling mode during
warmer outside temperatures. If your vehicle
does not have an automatic climate control
system, during remote start the climate control
system will turn on at the setting the vehicle was
set to when the vehicle was last turned off.
Laws in some communities may restrict the use of
remote starters. For example, some laws may
require a person using the remote start to have
the vehicle in view when doing so. Check
local regulations for any requirements on remote
starting of vehicles.
Do not use the remote start feature if your vehicle
is low on fuel. Your vehicle may run out of fuel.
The RKE transmitter with the remote start button,
provides an increased range of operation. However,
the range may be less while the vehicle is running.
As a result, you may need to be closer to your
vehicle to turn it off, than you were to turn it on.
There are other conditions which can affect the
performance of the transmitter, seeRemote
Keyless Entry System on page 114for additional
information.
119

Once two remote starts, or a single remote start
with one time extension has been done, the
vehicle must be started with the key.
After the key is removed from the ignition, the
vehicle can be remote started again.
The vehicle cannot be remote started if the key
is in the ignition, the hood is not closed, or if there
is an emission control system malfunction.
Also, the engine will turn off during a remote
vehicle start if the coolant temperature gets too
high or if the oil pressure gets low.
Vehicles that have the remote vehicle start feature
are shipped from the factory with the remote
vehicle start system enabled. The system may
be enabled or disabled through the DIC.
See “REMOTE START” underDIC Vehicle
Customization (With DIC Buttons) on page 262
for additional information.Remote Start Ready
If your vehicle does not have the remote vehicle
start feature, it may have the remote start
ready feature. This feature allows your dealer to
add the manufacturer’s remote vehicle start
feature.
If your vehicle has the remote start ready feature,
your RKE transmitter will have extended range
that will allow you to lock or unlock your vehicle
from approximately 197 feet (60 m) away.
See your dealer if you would like to add the
manufacturer’s remote vehicle start feature to
your vehicle.
121

Liftgate/Liftglass
{CAUTION:
It can be dangerous to drive with the
liftglass or liftgate open because carbon
monoxide (CO) gas can come into your
vehicle. You cannot see or smell CO.
It can cause unconsciousness and
even death.
If you must drive with the liftglass or
liftgate open, or if electrical wiring or
other cable connections must pass
through the seal between the body and
the liftglass or liftgate:
Make sure all other windows are shut.
Turn the fan on your heating or
cooling system to its highest speed
with the recirculation mode off. That
will force outside air into your vehicle.
SeeDual Automatic Climate Control
System on page 214.
CAUTION: (Continued)
CAUTION: (Continued)

If you have air outlets on or under
the instrument panel, open them all
the way.
If your vehicle is equipped with a
power liftgate, disable the power
liftgate function.
SeeEngine Exhaust on page 156.
SeePower Liftgate on page 128for more
information on how to use the power liftgate.
To unlock the liftgate, use the power door lock
switch or press the door unlock button on
the Remote Keyless Entry (RKE) transmitter twice.
SeeRemote Keyless Entry System Operation
on page 116.
126
