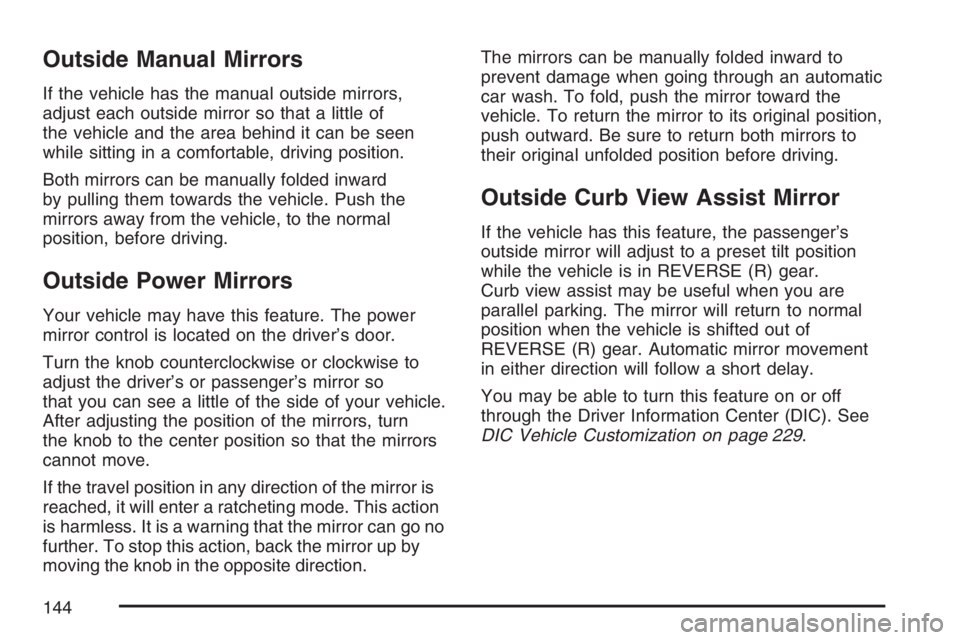

Outside Manual Mirrors
If the vehicle has the manual outside mirrors,
adjust each outside mirror so that a little of
the vehicle and the area behind it can be seen
while sitting in a comfortable, driving position.
Both mirrors can be manually folded inward
by pulling them towards the vehicle. Push the
mirrors away from the vehicle, to the normal
position, before driving.
Outside Power Mirrors
Your vehicle may have this feature. The power
mirror control is located on the driver’s door.
Turn the knob counterclockwise or clockwise to
adjust the driver’s or passenger’s mirror so
that you can see a little of the side of your vehicle.
After adjusting the position of the mirrors, turn
the knob to the center position so that the mirrors
cannot move.
If the travel position in any direction of the mirror is
reached, it will enter a ratcheting mode. This action
is harmless. It is a warning that the mirror can go no
further. To stop this action, back the mirror up by
moving the knob in the opposite direction.The mirrors can be manually folded inward to
prevent damage when going through an automatic
car wash. To fold, push the mirror toward the
vehicle. To return the mirror to its original position,
push outward. Be sure to return both mirrors to
their original unfolded position before driving.
Outside Curb View Assist Mirror
If the vehicle has this feature, the passenger’s
outside mirror will adjust to a preset tilt position
while the vehicle is in REVERSE (R) gear.
Curb view assist may be useful when you are
parallel parking. The mirror will return to normal
position when the vehicle is shifted out of
REVERSE (R) gear. Automatic mirror movement
in either direction will follow a short delay.
You may be able to turn this feature on or off
through the Driver Information Center (DIC). See
DIC Vehicle Customization on page 229.
144
9(Off):Press this button to turn off the entire
climate control system. Outside air will still
enter the vehicle, and will be directed to the oor.
Press the AUTO button, the mode button, the
fan arrows, or either temperature knob to turn the
system on.
C(Mode):Press this button to manually select
the air delivery mode to the oor, instrument panel,
or windshield outlets. The system will stay in the
selected mode until the mode button is pressed
again or the AUTO button is pressed.
Driver’s Side Temperature Knob:Turn this knob
clockwise or counterclockwise to raise or lower
the temperature on the driver’s side of the vehicle.
The display will show the temperature setting
decreasing or increasing and an arrow pointing
toward the driver. This knob can also adjust
the passenger’s side temperature setting if the
two are linked.
Passenger’s Side Temperature Knob:Turn this
knob clockwise or counterclockwise to manually
raise or lower the temperature on the passenger’s
side of the vehicle. The display will show the
temperature setting decreasing or increasing and
an arrow pointing toward the passenger.The passenger’s temperature setting can be set to
match and link to the driver’s temperature
setting by pressing and holding the AUTO button
for three seconds. When adjusting the driver’s
side temperature setting, the passenger’s
side temperature setting will follow and both
arrows will appear on the display. The passenger’s
side temperature setting also resets and relinks
to the driver’s side temperature setting if the
vehicle has been off for more than three hours.
Outside Air Temperature Display
A new outside temperature reading will be
displayed if the vehicle has been off for more than
three hours. If the vehicle has been off for less
than three hours, the old temperature reading may
be displayed because underhood heat is
affecting the true outside temperature. Underhood
heat can also affect the outside temperature
while the engine is running. It may also take
several minutes of driving before the display
updates to the actual outside temperature.
190
