2007 GMC ENVOY light

A.Exterior Lamp Controls
B.Air Outlets
C.Turn Signal/Multifunction Lever
D.OnStar
®/Audio Steering Wheel
Controls
E.Instrument Panel Cluster
F.Audio Steering Wheel ControlsG.Ignition Switch
H.Audio System
I.Climate Controls
J.Hood Release
K.Driver Information Center (DIC)
Steering Wheel Controls
L.Transfer Case ControlsM.Shift Lever
N.Lighter
O.Accessory Power Outlets
P.Parking Brake
Q.Rear Window Washer/Wiper
R.Rear Window Defogger
S.Glove Box
Getting to Know YourEnvoy2
See Section 3 of your Owner Manual.
Instrument Panel
DRIVER INFORMATION

3
See Section 3 of your Owner Manual.
A
B
C
D
E
F
Instrument Panel ClusterYour vehicle’s instrument panel is
equipped with this cluster or one verysimilar to it. The instrument panel
cluster includes these key features:
A.Tachometer
B.Speedometer C.Oil Pressure Gauge
D.Fuel Gauge
E.Voltmeter
F.Engine Coolant Temperature
Gauge
Note:
The instrument panel cluster is
designed to let you know about manyimportant aspects of your vehicle’s
operation. It is important to read yourOwner Manual and become familiar with the information being relayed toyou by the lights, gauges and indicators,as well as what action can be taken toensure safety and to prevent damage.

Getting to Know YourEnvoy4
Fuel Information Button
•Press to scroll through the range,
average fuel economy, fuel used andthe GM Oil Life System
TM.
• RANGE estimates the remaining dis
tance you can drive without refueling.
Range is based on recent fuel economy and the fuel remaining in the tank.
• AVG. ECON calculates how many
miles per gallon you are gettingbased on overall driving conditions.Press and hold the Select button
( ) while AVG. ECON is displayedand the DIC will begin calculating theaverage fuel economy from that pointin time.
• FUEL USED shows the current
amount of fuel used in gallons since
the last reset for FUEL USED. Thismode should be reset after every fueltank fillup.
• ENGINE OIL LIFE calculates an esti
mate (percentage) of the engine oil’sremaining useful life. It also will alertyou when it is time to change your oilby illuminating the CHANGE ENGOILlight on the DIC. Please remem
ber to always reset the oil life system
after an oil change by pressing andholding for four seconds while
ENGINE OIL LIFE is displayed. When
successful, the DIC will displayENGINE OILLIFE: 100%.
Driver Information Center (DIC)
(if equipped)
Your vehicle’s Driver Information Center
(DIC) is located in the instrument panel
cluster.
Access DIC modes
• Press one of the following DIC but
tons located on the steering wheel.
– Trip Information ( )
Trip Information Button
•Press to scroll through the
odometer, TRIP A, TRIP B, and
TIMER. When either TRIPAor TRIP
B is displayed, you can press the
Select button ( ) to reset the
displayed odometer.
• You can also reset a trip odometer
to zero by pressing and holding thereset stem for four seconds. WhenTIMER is displayed, you can press
to start or stop the timer. To reset
it to zero, push and hold while
TIMER is displayed.
Note:If your vehicle is not equipped
with DIC steering wheel buttons, pressthe trip odometer reset stem located inthe instrument panel cluster to selectthe information. Hold the stem for fourseconds to reset trip odometers.

Getting to Know YourEnvoy6

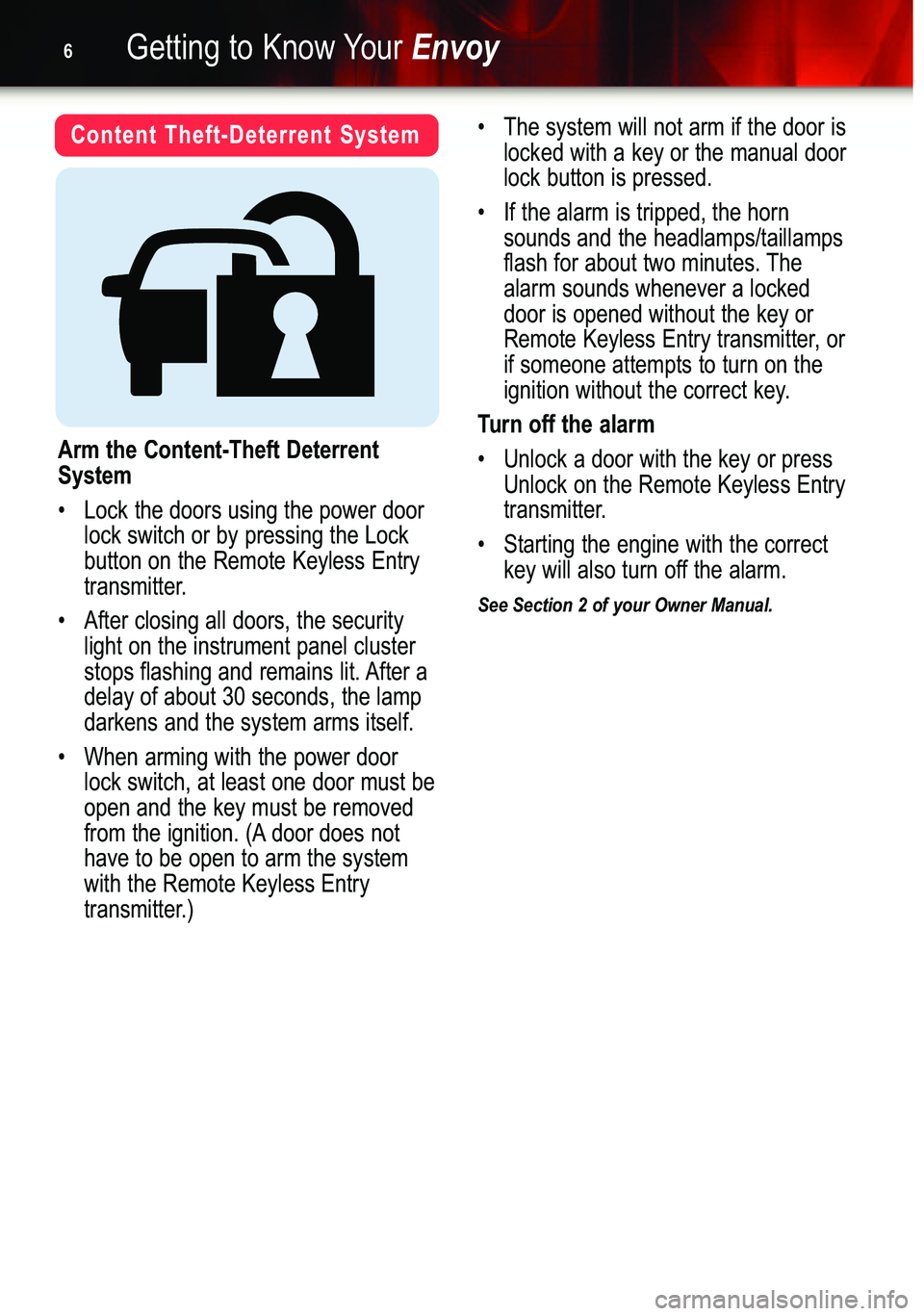

Content TheftDeterrent System
Arm the ContentTheft Deterrent
System
• Lock the doors using the power door
lock switch or by pressing the Lockbutton on the Remote Keyless Entrytransmitter.
• After closing all doors, the security
light on the instrument panel cluster
stops flashing and remains lit. After adelay of about 30 seconds, the lampdarkens and the system arms itself.
• When arming with the power door
lock switch, at least one door must beopen and the key must be removed
from the ignition. (A door does nothave to be open to arm the systemwith the Remote Keyless Entry transmitter.)
• The system will not arm if the door is
locked with a key or the manual doorlock button is pressed.
• If the alarm is tripped, the horn
sounds and the headlamps/taillamps
flash for about two minutes. Thealarm sounds whenever a lockeddoor is opened without the key or
Remote Keyless Entry transmitter, or
if someone attempts to turn on the
ignition without the correct key.
Turn off the alarm
• Unlock a door with the key or press
Unlock on the Remote Keyless Entry
transmitter.
• Starting the engine with the correct
key will also turn off the alarm.
See Section 2 of your Owner Manual.

7
COMFORT
Manual DualZone Climate
Controls (if equipped)
Select airflow source
• Turn the Mode knob on the right of
the climate control panel to thedesired setting:
( ) Instrument panel vents
( ) Instrument panel vents and
floor vents
( ) Floor vents
( ) Floor, windshield and side
window vents
( ) Windshield and side window
vents
Raise or lower fan speed
• Turn the fan control knob ( ) on the
left of the climate control panel.
Adjust the dual temperature controls
• Use the lever on the lefthand side of
the climate control panel to adjust the
temperature on the driver’s side ofthe vehicle.
• Use the righthand lever to adjust the
temperature on the front passenger’s
side of the vehicle and the tempera
ture for the second row.
Cool the vehicle interior more quickly
on very hot days
• Open the windows just long enough
to let the hot air escape.
• Choose the coolest temperature
setting.
• Activate the Recirculate ( ) and
A/C ( ) buttons.
•Place the A/C mode knob in the Vent
( ) mode.
Recirculate interior air and prevent
outside air from entering your vehicle
•Press the Recirculate ( ) button.
This feature can be activated while in
the Vent or BiLevel mode, but not inDefog, Defrost or Floor mode.
Turn on the rear window defogger
•Press the rear window defogger
(REAR) button.
•The indicator light on the button will
come on to let you know the rear
window defogger is active.
See Section 3 of your Owner Manual.

Getting to Know YourEnvoy8
Recirculate interior air and prevent
outside air from entering your vehicle
• Press the Recirculate ( ) button.
This feature can be activated while in
the Vent or BiLevel mode, but not inDefog, Defrost or Floor mode.
Clear the windshield and front side
windows of fog or frost more quickly
• Press the button and adjust the
fan speed.
Clear the rear glass of fog or frost
more quickly, and activate the heatedoutside rearview mirrors (if equipped)
• Press the Rear button.
• The indicator light on the button will
come on to let you know the rear
window defogger is active.
Automatic Operation
In the automatic mode, the system
will automatically control the inside temperature, air delivery mode and the fan speed to achieve your set temperature as quickly as possible.
1. Press the AUTO button.2.Set the driver’s and passenger’s
temperatures.
See Section 3 of your Owner Manual.
Automatic DualZone Climate
Controls (if equipped)
Manually select desired airflow source
• Press and release the Mode ( )
button until the desired source is
indicated on the display. Mode selec
tions include Vent, BiLevel, Floor
and Defog.
Manually raise or lower fan speed
•Press the upper or lower portion of
the fan control ( ) button.
Manually adjust the dual temperature
controls
• Use the knob on the lefthand side of
the climate control panel to adjust the
temperature on the driver’s side ofthe vehicle. Use the righthand knob
to adjust the temperature on the pas
senger’s side of the vehicle as well
as the second row.
• To match and link the passengerside
temperature to the driver’s, press and
hold the AUTO button for three seconds.

Getting to Know YourEnvoy10
Memory Seats (if equipped)
Save driver seat preference memory
setting
1.Adjust the driver seat (including seat
back recliner and lumbar) to a com
fortable position.
2. Press and hold either the driver 1 or
driver 2 memory button located on
the driver’s door. A double chime willsound to confirm your settings.
To program settings for a second driver,
repeat the same procedure using theother numbered memory button.
See Section 2 of your Owner Manual.
Heated Front Seats (if equipped)
Select a heat setting for both the
seatback and seat cushion
• Press and release the button labeled
with the heated seat ( ) icon located on the front door armrest until the indicator lights designateyour setting: three for High, two forMedium, one for Low and none
for Off.
Select a heat setting for the seatback
only
• Press and release the vertical heated
seatback () button until the switch
indicates the desired setting: three forHigh, two for Medium, one for Lowand none for Off.
The engine must be running to operate
this feature.
See Section 1 of your Owner Manual.

11

ENTERTAINMENT

Audio SystemsLoad one CD into the SixDisc
CD Player

1. With the ignition on, press andrelease the LOAD side of the LOAD
CD button.
2. Wait for the indicator light at the right side of the slot to turn green.
3. Insert the disc partway into the slot, label side up; the player will pull the
disc in.

MultipleDisc CD Player
(if equipped)

• Press the H or HR button until the correct hour appears on the display.
• Press and hold the M or MIN button until the correct minute appears on
the display.
The time may be set with the ignition on
or off.

Set the time with an FM station’s
Radio Data System (RDS) setting
(if equipped)

• Press and hold both HR and MN for two seconds until UPDATED and the
clock symbol appear on the display.
• If the time is not available from the station, NO UPDAT appears in the
display.

Program radio station presets

1. Turn the radio on.
2. Press the BAND button to select theband (AM/FM1/FM2/XM1/XM2).
3. Use the seek or tune knob to tune in the desired station.
4. Press AUTO EQ to select the equalization that best suits the type
of station selected.
5. Press and hold one of the six numbered pushbuttons until a beep
sounds; release the button.
6. Repeat these steps for each station preset, using a different numbered
button for each station.

Display a station’ s INFO message
when INFO appears on the display

• Press INFO to see the message.
Once the complete message has been displayed, INFO disappears
from the display.

Tune to an RDS broadcast of a
selected program type

1. Press the TYPE button to select the
Program Type you want to listen to.
2. Press the or button.

Access one of the two available XM
Satellite Radio bands (if equipped)

• Press the BAND button until XM1 or XM2 appears on the display.

MP3 Radio (if equipped)

A CDR or CDRW containing MP3
audio tracks will play automatically when
inserted into the CD/MP3 player.

See Section 3 of your Owner Manual.
