2007 GMC CANYON lock

Seats and Restraint Systems
....................... 7
Front Seats
.............................................. 9
Rear Seats
............................................. 17
Safety Belts
............................................ 20
Child Restraints
...................................... 43
Airbag System
........................................ 76
Restraint System Check
......................... 94
Features and Controls
................................ 97
Keys
....................................................... 99
Doors and Locks
.................................. 104
Windows
............................................... 110
Theft-Deterrent Systems
....................... 112
Starting and Operating
Your Vehicle
..................................... 115Mirrors
.................................................. 138
OnStar®System
................................... 146
Storage Areas
...................................... 150
Sunroof
................................................ 152
Instrument Panel
....................................... 153
Instrument Panel Overview
................... 156
Climate Controls
................................... 173
Warning Lights, Gages, and Indicators
.... 177
Driver Information Center (DIC)
............ 194
Audio System(s)
................................... 203
Driving Your Vehicle
................................. 241
Your Driving, the Road, and Your
Vehicle
.............................................. 242
Towing
................................................. 292
2007 GMC Canyon Owner ManualM
1

Front Seats
Manual Seats
{CAUTION:
You can lose control of the vehicle if
you try to adjust a manual driver’s seat
while the vehicle is moving. The sudden
movement could startle and confuse you,
or make you push a pedal when you do
not want to. Adjust the driver’s seat only
when the vehicle is not moving.Lift the bar located under the front of the seat to
unlock it. Slide the seat to where you want it
and release the bar. Try to move the seat with your
body to make sure the seat is locked into place.
9

Reclining Seatbacks
Manual Reclining Seatbacks
{CAUTION:
You can lose control of the vehicle if
you try to adjust a manual driver’s seat
while the vehicle is moving. The sudden
movement could startle and confuse you,
or make you push a pedal when you do
not want to. Adjust the driver’s seat only
when the vehicle is not moving.
{CAUTION:
If the seatback is not locked, it could
move forward in a sudden stop or crash.
That could cause injury to the person
sitting there. Always push and pull on
the seatback to be sure it is locked.If your seats have manual reclining seatbacks,
the lever used to operate them is located on the
outboard side of the seat(s).
To recline the seatback, do the following:
1. Lift the recline lever.
2. Move the seatback to the desired position,
then release the lever to lock the seatback
in place.
3. Push and pull on the seatback to make sure
it is locked.
12

To return the seatback to an upright position, do
the following:
1. Lift the lever fully without applying pressure to
the seatback and the seatback will return to
the upright position.
2. Push and pull on the seatback to make sure it
is locked.Power Reclining Seatbacks
If the seats have power
reclining seatbacks, use
the vertical power
seat control located on
the outboard side of
the seat.
To recline the seatback, press the control
toward the rear of the vehicle.
To raise the seatback, press the control
toward the front of the vehicle.
13

Seatback Latches
Your vehicle may have front seatbacks that fold
forward for easy access to the rear seats or
the storage area behind the seats.
To fold the seatback
forward, push the lever
on the side of the seat
rearward and pull the
seatback forward.{CAUTION:
If the seatback is not locked, it could
move forward in a sudden stop or crash.
That could cause injury to the person
sitting there. Always push and pull on the
seatback to be sure it is locked.
To return the seatback to the upright position,
push the seatback all the way back until it latches.
If the seatback was reclined before being folded
forward, it will return to the reclined position.
16

2. Pull the loop,
located on the
outboard side of the
seatback, forward
until you hear
a click.
3. Fold the seatback(s) forward.
To return the seatback(s) to the upright position,
do the following:
1. Lift the seatback(s) and push it into place.
{CAUTION:
If the seatback is not locked, it could
move forward in a sudden stop or crash.
That could cause injury to the person
sitting there. Always push and pull on
the seatback to be sure it is locked.2. Make sure the seatback(s) is locked by
pushing and pulling on it.
{CAUTION:
A safety belt that is improperly routed, not
properly attached, or twisted will not
provide the protection needed in a crash.
The person wearing the belt could be
seriously injured. After raising the rear
seatback, always check to be sure that the
safety belts are properly routed and
attached, and are not twisted.
3. Reconnect the center safety belt latch plate to
the mini buckle. Make sure the safety belt is
not twisted. Push and pull on the latch plate to
be sure it is secure.
When the seatback is not in use, it should be kept
in the upright, locked position.
19

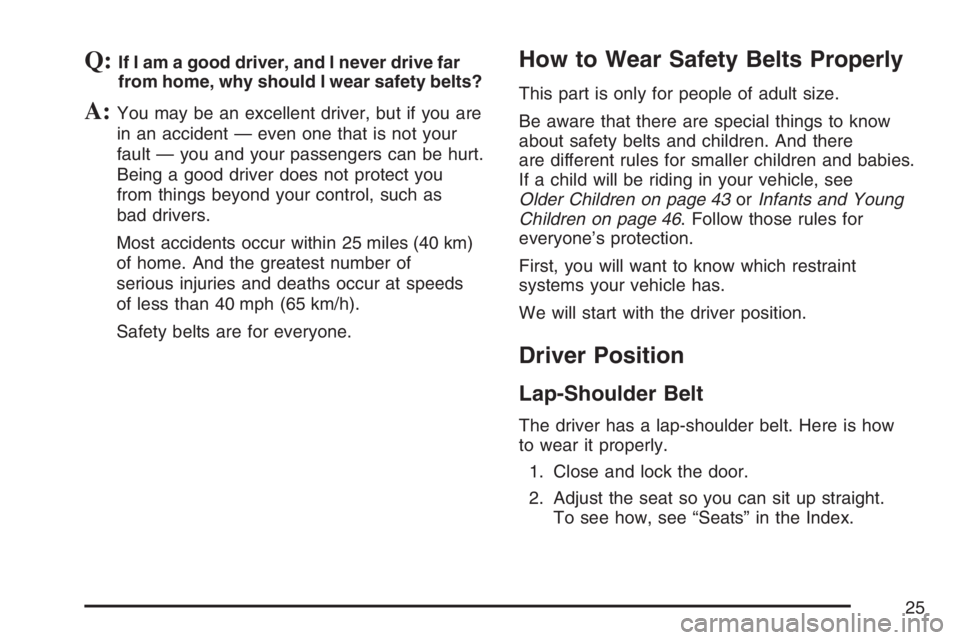

Q:If I am a good driver, and I never drive far
from home, why should I wear safety belts?
A:You may be an excellent driver, but if you are
in an accident — even one that is not your
fault — you and your passengers can be hurt.
Being a good driver does not protect you
from things beyond your control, such as
bad drivers.
Most accidents occur within 25 miles (40 km)
of home. And the greatest number of
serious injuries and deaths occur at speeds
of less than 40 mph (65 km/h).
Safety belts are for everyone.
How to Wear Safety Belts Properly
This part is only for people of adult size.
Be aware that there are special things to know
about safety belts and children. And there
are different rules for smaller children and babies.
If a child will be riding in your vehicle, see
Older Children on page 43orInfants and Young
Children on page 46. Follow those rules for
everyone’s protection.
First, you will want to know which restraint
systems your vehicle has.
We will start with the driver position.
Driver Position
Lap-Shoulder Belt
The driver has a lap-shoulder belt. Here is how
to wear it properly.
1. Close and lock the door.
2. Adjust the seat so you can sit up straight.
To see how, see “Seats” in the Index.
25

3. Pick up the latch plate and pull the belt across
you. Do not let it get twisted.
The lap-shoulder belt may lock if you pull the
belt across you very quickly. If this happens,
let the belt go back slightly to unlock it.
Then pull the belt across you more slowly.4. Push the latch plate into the buckle until
it clicks.
Pull up on the latch plate to make sure it is
secure. If the belt is not long enough,
seeSafety Belt Extender on page 42.
Make sure the release button on the buckle is
positioned so you would be able to unbuckle
the safety belt quickly if you ever had to.
5. Move the shoulder belt height adjuster to the
height that is right for you. Improper shoulder
belt height adjustment could reduce the
effectiveness of the safety belt in a crash. See
Shoulder Belt Height Adjustment on page 33.
26
