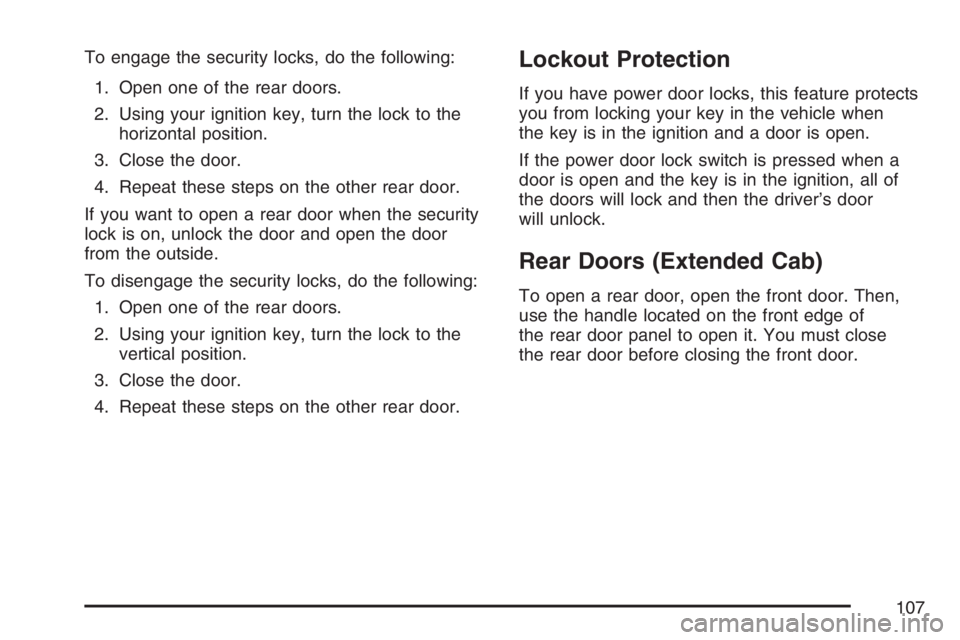

To engage the security locks, do the following:
1. Open one of the rear doors.
2. Using your ignition key, turn the lock to the
horizontal position.
3. Close the door.
4. Repeat these steps on the other rear door.
If you want to open a rear door when the security
lock is on, unlock the door and open the door
from the outside.
To disengage the security locks, do the following:
1. Open one of the rear doors.
2. Using your ignition key, turn the lock to the
vertical position.
3. Close the door.
4. Repeat these steps on the other rear door.Lockout Protection
If you have power door locks, this feature protects
you from locking your key in the vehicle when
the key is in the ignition and a door is open.
If the power door lock switch is pressed when a
door is open and the key is in the ignition, all of
the doors will lock and then the driver’s door
will unlock.
Rear Doors (Extended Cab)
To open a rear door, open the front door. Then,
use the handle located on the front edge of
the rear door panel to open it. You must close
the rear door before closing the front door.
107

Tailgate
You can open the tailgate by pulling up on the
outside handle while pulling the tailgate down.
When you put the tailgate back up, be sure
it latches securely.
You can lock the tailgate using your ignition key.
Turn the key counterclockwise to lock the tailgate.
Turn the key clockwise to unlock the tailgate.
Removing the Tailgate
Follow these steps if you want to remove the
tailgate:
1. With the tailgate fully open, lift up slightly on
the entire tailgate assembly.
2. Remove the
retaining cables from
both sides of the
tailgate by pulling the
clips away from the
bolt heads while
pushing the cable
bracket forward.
When the larger part
of the hole on the
bracket is over the
bolt, slide the
bracket off of
the bolt.
3. With the tailgate partially down, lift up on the
passenger’s side and pull the tailgate toward
you, then move the tailgate to the right to
release the driver’s side. You can then remove
the entire tailgate assembly.
108

Power Windows
The power window
switches for all windows
are located on the
driver’s door armrest.
In addition, each
passenger’s door has
its own switch.
The power windows will work when the ignition is
in ACC (Accessory) or ON or while Retained
Accessory Power (RAP) is active. SeeRetained
Accessory Power (RAP) on page 117.
Pull the front of the switch up to raise the window.
Press the front of the switch down to lower the
window.Do not hold all four power window switches down
for several seconds after the windows have
been completely lowered or raised, because the
vehicle may blow a fuse.
Express-Down Windows
The driver’s window has an express-down feature
that allows the window to be lowered fully without
continuously holding the switch. Press the front of
the switch past the rst position to activate the
express-down mode. The express-down mode can
be canceled at any time by pulling up on the switch.
Window Lockout
o
(Window Lockout):If you have a crew cab
vehicle with power windows, you will also have a
window lockout button located forward of the
window switches. This feature disables the
passenger’s window switches when the window
lockout button is pressed. To turn the lockout
feature on or off, press the window lockout button.
A red band on the side of the button can be seen
when the windows are not locked out.Crew Cab Switches
Shown
111

To activate the content theft-deterrent system,
do the following:
1. Close all the doors.
2. Lock the doors with the remote keyless entry
transmitter. The security light, located on the
instrument panel cluster, will ash.
If the lock button on the remote keyless entry
transmitter is pressed, but a door is open, the horn
will chirp six times. Press the lock button again,
within three seconds, and the doors will lock. Close
the open door and the system will be activated.
If a locked door is not opened using the remote
keyless entry transmitter, or by OnStar
®, the
pre-alarm will go off. If the engine is not started or
unlock not pressed within 10 seconds, the front
turn signal lamps will ash for two minutes, and the
horn will sound for two minutes, then will turn off
to save the battery power.
Remember, the theft-deterrent system will not
activate if you lock the doors with a key, the manual
door lock, or power door lock switch. The system
can only be activated using the remote keyless
entry transmitter, or by OnStar
®. SeeOnStar®
System on page 146for additional information.You should also remember that you can start your
vehicle with the correct ignition key if the alarm has
been set off.
Here is how to avoid setting off the alarm by
accident:
If you do not want to activate the theft-deterrent
system, the vehicle should be locked with the
door key after the doors are closed.
Always unlock a door with the remote keyless
entry transmitter. Unlocking a door any other
way will set off the alarm.
If you set off the alarm by accident, you can turn
off the alarm by pressing unlock on the remote
keyless entry transmitter. The alarm will not stop if
you try to unlock a door any other way.
Testing the Alarm
The alarm can be tested by following these steps:
1. From inside the vehicle, activate the system
by locking the doors with the remote keyless
entry transmitter.
2. Unlock the door with the manual door lock and
open the door. This should set off the alarm.
3. To turn the alarm off, press the unlock button
on the remote keyless entry transmitter or
start the engine.
113

If the alarm does not sound when it should but the
lights ash, check to see if the horn works. The
horn fuse may be blown. To replace the fuse, see
Fuses and Circuit Breakers on page 426.
If the alarm does not sound or the front turn signal
lamps do not ash, see your dealer for service.
Passlock®
Your vehicle has the Passlock®theft-deterrent
system.
Passlock
®is a passive theft-deterrent system.
Passlock®enables fuel if the ignition lock cylinder is
turned with a valid key. If an incorrect key is used or
the ignition lock cylinder is tampered with, the fuel
system is disabled and the vehicle will not start.
During normal operation, the security light will turn
off approximately ve seconds after the engine
is started. SeeSecurity Light on page 192.If the engine stalls and the security light ashes,
wait about 10 minutes until the light stops
ashing before trying to restart the engine.
Remember to release the key from START as
soon as the engine starts.
If the engine does not start after three tries, the
vehicle needs service.
If the engine is running and the security light
comes on, you will be able to restart the engine if
you turn the engine off. However, your Passlock
®
system is not working properly and must be
serviced by your dealer. Your vehicle is not
protected by Passlock
®at this time. See your
dealer for service.
In an emergency, call the Roadside Assistance
Center. SeeRoadside Assistance Program
on page 462.
114

Ignition Positions
With the key in the
ignition switch, you can
turn to four different
positions.
LOCK (A):This position locks the ignition. It also
locks the transmission on automatic transmission
vehicles. It will locks the steering wheel on
manual transmission vehicles when the key is
removed. It is a theft-deterrent feature. You
will only be able to remove your key when the
ignition is turned to LOCK.
If you have an automatic transmission, the ignition
switch cannot be turned to LOCK unless the
shift lever is in PARK (P).Notice:Using a tool to force the key from the
ignition switch could cause damage or break
the key. Use the correct key and turn the key
only with your hand. Make sure the key is all the
way in. If it is, turn the steering wheel left and
right while you turn the key hard. If none of this
works, then your vehicle needs service.
ACC (ACCESSORY) (B):This is the position in
which you can operate your electrical accessories
or items plugged into the accessory power
outlets. On automatic transmission vehicles,
this position unlocks the ignition. On manual
transmission vehicles, it unlocks the ignition and
steering wheel. Use this position if your vehicle
must be pushed or towed.
ON (C):This is the position that the switch
returns to after you start your engine and release
the switch. The switch stays in ON when the
engine is running. But even when the engine is
not running, you can use ON to operate the
electrical accessories and to display some
instrument panel cluster warning and indicator
lights. The transmission is also unlocked in
this position on automatic transmission vehicles.
116

The battery could be drained if you leave the key in
the ACC or ON position with the engine off. You
may not be able to start your vehicle if the battery is
allowed to drain for an extended period of time.
START (D):This is the position that starts the
engine. When the engine starts, release the key.
The ignition switch returns to ON for driving.
When the engine is not running, ACC and ON
allows you to operate the electrical accessories,
such as the radio or items plugged into the
accessory power outlets.
A warning tone will sound if you open the driver’s
door when the ignition is in ACC or LOCK and
the key is in the ignition.
Key In the Ignition
Never leave your vehicle with the keys inside, as it
is an easy target for joy riders or thieves. If you
leave the key in the ignition and park your vehicle,
a chime will sound, when you open the driver’s
door. Always remember to remove your key from
the ignition and take it with you. This will lock
your ignition and transmission. Also, always
remember to lock the doors.The battery could be drained if you leave the key
in the ignition while your vehicle is parked.
You may not be able to start your vehicle after it
has been parked for an extended period of time.
Retained Accessory Power (RAP)
Your vehicle has Retained Accessory Power (RAP)
which allows certain features of your vehicle to
continue working for up to 20 minutes after
the ignition key is turned to LOCK.
The radio, wipers, and power windows work when
the ignition key is in ON or ACC. Once the key
is turned from ON to LOCK, these features
continue to work for up to 20 minutes or until a
door is opened.
117

Starting the Engine
Place the transmission in the proper gear.
Automatic Transmission
Move your shift lever to PARK (P) or
NEUTRAL (N). Your engine will not start in
any other position -- this is a safety feature.
To restart when you are already moving, use
NEUTRAL (N) only.
Notice:Do not try to shift to PARK (P) if your
vehicle is moving. If you do, you could
damage the transmission. Shift to PARK (P)
only when your vehicle is stopped.
Manual Transmission
The shift lever should be in the NEUTRAL position
and the parking brake engaged. Hold the clutch
pedal to the oor and start the engine. Your
vehicle will not start if the clutch pedal is not all
the way down. That is a safety feature.
Starting Procedure
1. With your foot off the accelerator pedal, turn
the ignition key to START. When the engine
starts, let go of the key. The idle speed will go
down as the engine gets warm. Do not race the
engine immediately after starting it. Operate
the engine and transmission gently to allow the
oil to warm up and lubricate all moving parts.
Your vehicle has a Computer-Controlled
Cranking System. This feature assists in
starting the engine and protects components.
If the ignition key is turned to the START
position, and then released when the engine
begins cranking, the engine will continue
cranking for a few seconds or until the vehicle
starts. If the engine does not start and the
key is held in START for many seconds,
cranking will be stopped after 15 seconds to
prevent cranking motor damage. To prevent
gear damage, this system also prevents
cranking if the engine is already running.
Engine cranking can be stopped by turning the
ignition switch to the ACC or LOCK position.
118
