WARNING LIGHTS AND CHIMES
Warning lights and gauges can alert you to a vehicle condition that may
become serious enough to cause expensive repairs. A warning light may
illuminate when a problem exists with one of your vehicle’s functions.
Many lights will illuminate when you start your vehicle to make sure the
bulb works. If any light remains on after starting the vehicle, refer to the
respective system warning light for additional information.
Service engine soon:TheService
engine soonindicator light
illuminates when the ignition is first
turned to the ON position to check
the bulb. Solid illumination after the engine is started indicates the On
Board Diagnostics System (OBD-II) has detected a malfunction. Refer to
On board diagnostics (OBD-II)in theMaintenance and Specifications
chapter. If the light is blinking, engine misfire is occurring which could
damage your catalytic converter. Drive in a moderate fashion (avoid
heavy acceleration and deceleration) and have your vehicle serviced
immediately by your authorized dealer.
Under engine misfire conditions, excessive exhaust temperatures
could damage the catalytic converter, the fuel system, interior
floor coverings or other vehicle components, possibly causing a fire.
Check fuel cap:Illuminates when
the fuel cap may not be properly
installed. Continued driving with
this light on may cause the Service
engine soon warning light to come
on. Refer toFuel filler capin the
Maintenance and Specificationschapter.
2007 Taurus(tau)
Owners Guide (post-2002-fmt)
USA(fus)
Instrument Cluster
10

Tachometer:Indicates the engine
speed in revolutions per minute.
Driving with your tachometer
pointer continuously at the top of
the scale may damage the engine.
Fuel gauge:Indicates
approximately how much fuel is left
in the fuel tank (when the ignition
is in the ON position). The fuel
gauge may vary slightly when the
vehicle is in motion or on a grade.
The FUEL icon and arrow indicates
which side of the vehicle the fuel
filler door is located.
Refer toFilling the tankin theMaintenance and Specifications
chapter for more information.
Odometer:Registers the total miles
(kilometers) of the vehicle. Note:
When the odometer shows over
10,000 miles the tenths drop off the
display.
Refer toMessage Centerin the
Drivers Controlschapter on how to switch the display from Metric to
English.
Trip odometer:Registers the miles
(kilometers) of individual journeys.
Press and release the message
center INFO button until “TRIP”
appears in the display (this
represents the trip mode). Press
and hold the RESET button for three seconds to reset.
2007 Taurus(tau)
Owners Guide (post-2002-fmt)
USA(fus)
Instrument Cluster
14

•Remove loose labels before inserting tapes.
•Allow tapes which have been subjected to extreme heat, humidity or
cold to reach a moderate temperature before playing.
•Clean the cassette player head with a cassette cleaning cartridge after
10–12 hours of play to maintain good sound/operation.
Don’t:
•Expose tapes to direct sunlight, extreme humidity, heat or cold.
•Leave tapes in the cassette player for a long time when not being
played.
CD/CD player care:
Do:
•Handle discs by their edges only. Never touch the playing surface.
•Inspect discs before playing. Clean only with an approved CD cleaner
and wipe from the center out.
Don’t:
•Expose discs to direct sunlight or heat sources for extended periods
of time.
•Clean using a circular motion.
CD units are designed to play commercially pressed 4.75 in (12
cm) audio compact discs only. Due to technical incompatibility,
certain recordable and re-recordable compact discs may not
function correctly when used in Ford CD players. Dirty, warped
or damaged CDs, irregular shaped CDs, CDs with a scratch
protection film attached, and CDs with homemade paper
(adhesive) labels should not be inserted into the CD player. The
label may peel and cause the CD to become jammed. It is
recommended that homemade CDs be identified with permanent
felt tip marker rather than adhesive labels. Ballpoint pens may
damage CDs. Please contact your authorized dealer for further
information.
Audio system warranty and service:Refer to theWarranty Guide
for audio system warranty information. If service is necessary, see your
dealer or qualified technician.
2007 Taurus(tau)
Owners Guide (post-2002-fmt)
USA(fus)
Entertainment Systems
22

Operating tips
•To reduce fog build up on the windshield during humid weather, place
the air flow selector in the
position.
•To reduce humidity buildup within the cabin, do not drive with the
selector in the OFF or MAX A/C position when outside temperature is
below 40°F (3°C).
•To improve A/C cool down, drive with the windows slightly open for
the first 2–3 minutes after starting the vehicle or until the vehicle has
“aired out.”
•Do not put objects under the front seats that will interfere with the
airflow to the back seats.
•Remove any snow, ice or leaves from the air intake area at the base of
the windshield.
•For best cooling results when using the MAX A/C mode, move the
temperature control to full cold and initially set the fan to highest
speed, then adjust the temperature and fan to maintain comfort.
To aid in side window defogging/demisting in cold weather:
1. Select
.
2. Adjust the temperature control to maintain comfort.
3. Set the fan speed to the highest setting.
4. Direct the outer instrument panel vents towards the side windows.
To increase airflow to the outer instrument panel vents, close the vents
located in the middle of the instrument panel.
Do not place objects on top of the instrument panel as these
objects may become projectiles in a collision or sudden stop.
2007 Taurus(tau)
Owners Guide (post-2002-fmt)
USA(fus)
Climate Controls
24

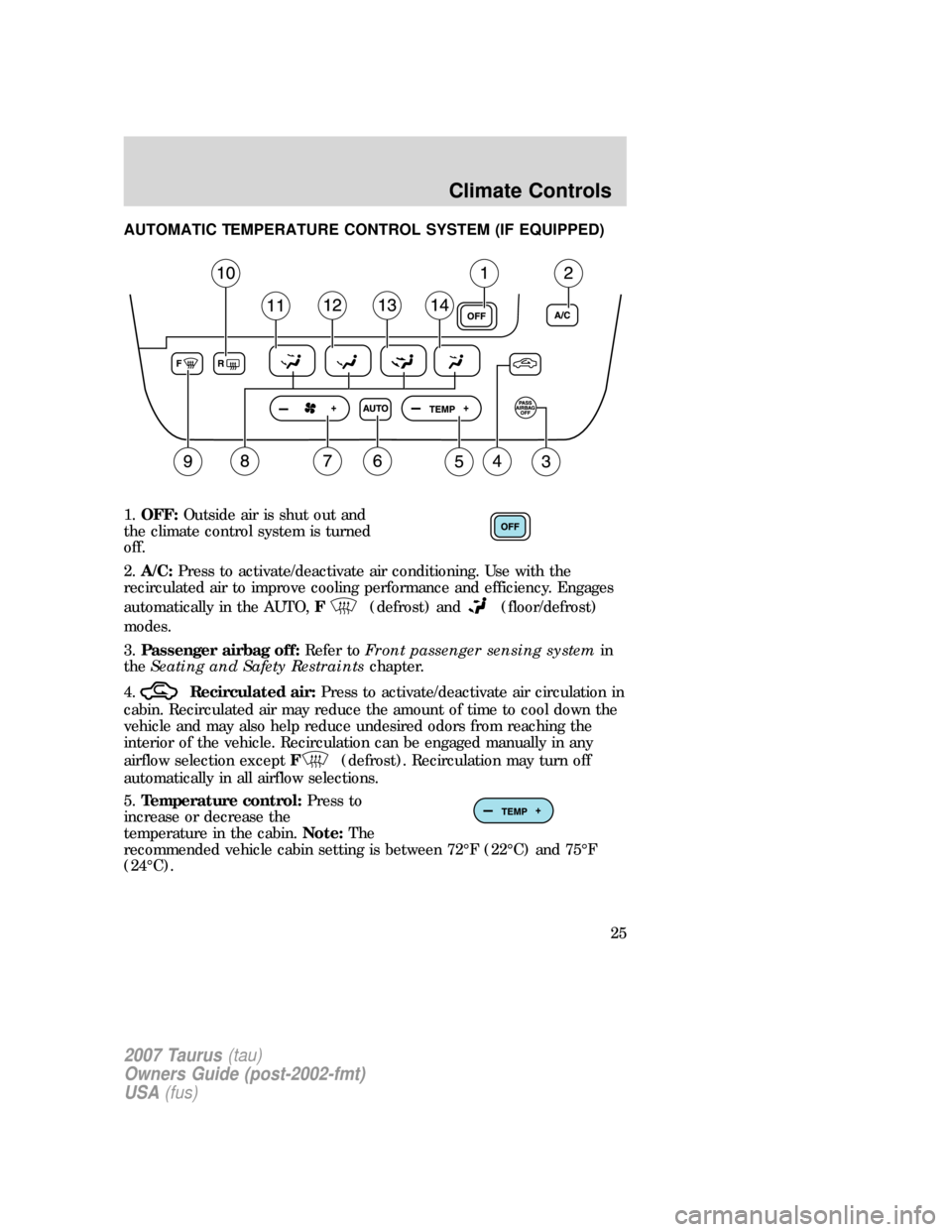

AUTOMATIC TEMPERATURE CONTROL SYSTEM (IF EQUIPPED)
1.OFF:Outside air is shut out and
the climate control system is turned
off.
2.A/C:Press to activate/deactivate air conditioning. Use with the
recirculated air to improve cooling performance and efficiency. Engages
automatically in the AUTO,F
(defrost) and(floor/defrost)
modes.
3.Passenger airbag off:Refer toFront passenger sensing systemin
theSeating and Safety Restraintschapter.
4.
Recirculated air:Press to activate/deactivate air circulation in
cabin. Recirculated air may reduce the amount of time to cool down the
vehicle and may also help reduce undesired odors from reaching the
interior of the vehicle. Recirculation can be engaged manually in any
airflow selection exceptF
(defrost). Recirculation may turn off
automatically in all airflow selections.
5.Temperature control:Press to
increase or decrease the
temperature in the cabin.Note:The
recommended vehicle cabin setting is between 72°F (22°C) and 75°F
(24°C).
2007 Taurus(tau)
Owners Guide (post-2002-fmt)
USA(fus)
Climate Controls
25

•To reduce humidity build up inside the vehicle,do notdrive with the
airflow selector in the OFF position, or with
(recirculated air)
engaged without A/C engaged as well.
•Do not put objects under the front seats that will interfere with the
airflow to the back seats.
•Remove any snow, ice or leaves from the air intake area at the base of
the windshield.
•For maximum cooling in the AUTO mode, press AUTO and set to
desired temperature; do not press A/C or
(recirculated air). In
the manual override mode, press
,and A/C, then set the
temperature to 60°F (16°C) and the fan to the highest setting.
•To improve the A/C cool down of the vehicle cabin, drive with the
windows slightly open for the first 2–3 minutes after starting the
vehicle or until the vehicle has “aired out.”
To aid in side window defogging/demisting in cold weather:
1. Select
.
2. Select A/C.
3. Adjust the temperature control to maintain comfort.
4. Set the fan speed to the highest setting.
5. Direct the outer instrument panel vents towards the side windows.
To increase airflow to the outer instrument panel vents, close the vents
located in the middle of the instrument panel.
Do not place objects on top of the instrument panel as these
objects may become projectiles in a collision or sudden stop.
REAR WINDOW DEFROSTER
The rear defroster control is located
on the instrument panel.
Press the rear defroster control to
clear the rear window of thin ice
and fog.
•A small LED will illuminate when
the rear defroster is activated.
The ignition must be in the ON position to operate the rear window
defroster.
R
2007 Taurus(tau)
Owners Guide (post-2002-fmt)
USA(fus)
Climate Controls
27

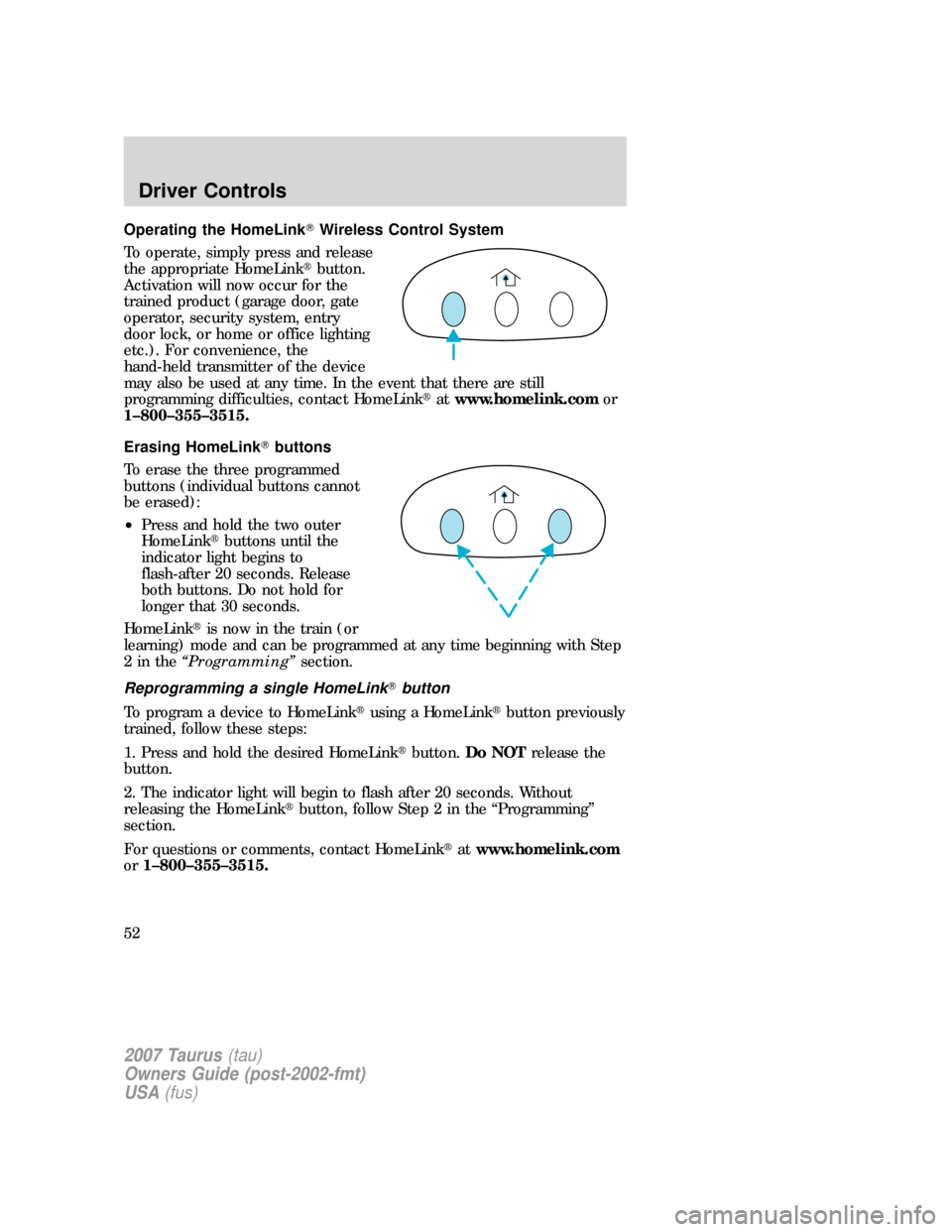

Operating the HomeLinkWireless Control System
To operate, simply press and release
the appropriate HomeLinkbutton.
Activation will now occur for the
trained product (garage door, gate
operator, security system, entry
door lock, or home or office lighting
etc.). For convenience, the
hand-held transmitter of the device
may also be used at any time. In the event that there are still
programming difficulties, contact HomeLinkatwww.homelink.comor
1–800–355–3515.
Erasing HomeLinkbuttons
To erase the three programmed
buttons (individual buttons cannot
be erased):
•Press and hold the two outer
HomeLinkbuttons until the
indicator light begins to
flash-after 20 seconds. Release
both buttons. Do not hold for
longer that 30 seconds.
HomeLinkis now in the train (or
learning) mode and can be programmed at any time beginning with Step
2inthe“Programming”section.
Reprogramming a single HomeLinkbutton
To program a device to HomeLinkusing a HomeLinkbutton previously
trained, follow these steps:
1. Press and hold the desired HomeLinkbutton.Do NOTrelease the
button.
2. The indicator light will begin to flash after 20 seconds. Without
releasing the HomeLinkbutton, follow Step 2 in the “Programming”
section.
For questions or comments, contact HomeLinkatwww.homelink.com
or1–800–355–3515.
2007 Taurus(tau)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
52

1. Turn the ignition to the 4 (ON)
position, then press the power door
UNLOCK control 3 times.
2. Turn the ignition to the 3 (OFF)
position, then press the power door
UNLOCK control 3 times.
3. Turn the ignition to the 4 (ON)
position. The horn will chirp one time as confirmation that the
programming mode is staged.
4. Within 5 seconds, press the power door UNLOCK control and then
press the power door LOCK control.Note:The horn will chirp once if
autolock was deactivated or chirp once then honk (one short and one
long chirp) if autolock was activated.
5. Turn the ignition to the 3 (OFF) position. The horn will chirp once to
confirm the procedure is complete.
Smart unlocking feature
The smart unlocking feature helps prevent you from locking yourself out
of the vehicle. With the key in any ignition position, the driver’s door will
automatically unlock if it is locked using the power lock control on the
driver’s door panel while the driver’s door is open.
CHILDPROOF DOOR LOCKS
•When these locks are set, the
rear doors cannot be opened from
the inside.
•The rear doors can be opened
from the outside when the doors
are unlocked.
The childproof locks are located on
rear edge of each rear door and
must be set separately for each
door. Setting the lock for one door will not automatically set the lock for
both doors.
•Move lock control up to engage the childproof lock.
•Move control down to disengage childproof locks.3
4
1 2
5
2007 Taurus(tau)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
64
