204-02-1 1 Rear Suspension 204-02-1 1
REMOVAL AND INSTALLATION
Using a suitable electric hand drill, remove
the rivets.
Vehicles with rear disc brakes
8. Remove the brake disc shield.
For additional information, refer to: Brake
Disc Shield
(206-04 Rear Disc Brake,
Removal and Installation).
9. Detach the parking brake cable from the
beam axle bracket on both sides.
All vehicles
10. Detach the parking brake cable from the
beam axle on both sides.
11. Remove the rear wheel speed sensor.
For additional information, refer to: Rear
Wheel Speed Sensor
(206-09 Anti-Lock
Control, Removal and Installation).
I*' AWARNING:M~~~ sure that the beam axle
is secured to the transmission jack. Failure
to follow this instruction may result in
personal injury.
Using a suitable securing strap, secure the
beam axle to a transmission jack.
13. Detach the shock absorber from the beam
axle on both sides.
14. Detach the spring from the lower spring
seat on both sides.
15. Remove the beam axle.
2006.0 Fiesta 1212006 GI 83767en
procarmanuals.com

204-02-1 2 Rear Suspension 204-02-1 2
REMOVAL AND INSTALLATION
Remove the beam axle retaining bolts on 3. Attach the spring to the lower spring seat on
both sides. both sides. /'
installation 4. N0TE:Do not fully tighten the shock
absorber retaining bolts at this stage.
All vehicles Attach the shock absorber to the beam axle
N0TE:Final tightening of the beam axle on both sides.
components should be carried out when the vehicle I I
weight is on the road wheels.
1. Using a suitable transmission jack, locate
the beam axle.
2. N0TE:Do not fully tighten the beam axle
retaining bolts at this stage.
Install the beam axle.
Install the beam axle retaining bolts on both
sides.
5. Remove the securing strap.
6. Lower and remove the transmission jack.
7. Install the rear wheel speed sensor.
For additional information, refer to: Rear
Wheel Speed Sensor
(206-09 Anti-Lock
Control, Removal and Installation).
2006.0 Fiesta 1212006 Gl83767en
procarmanuals.com

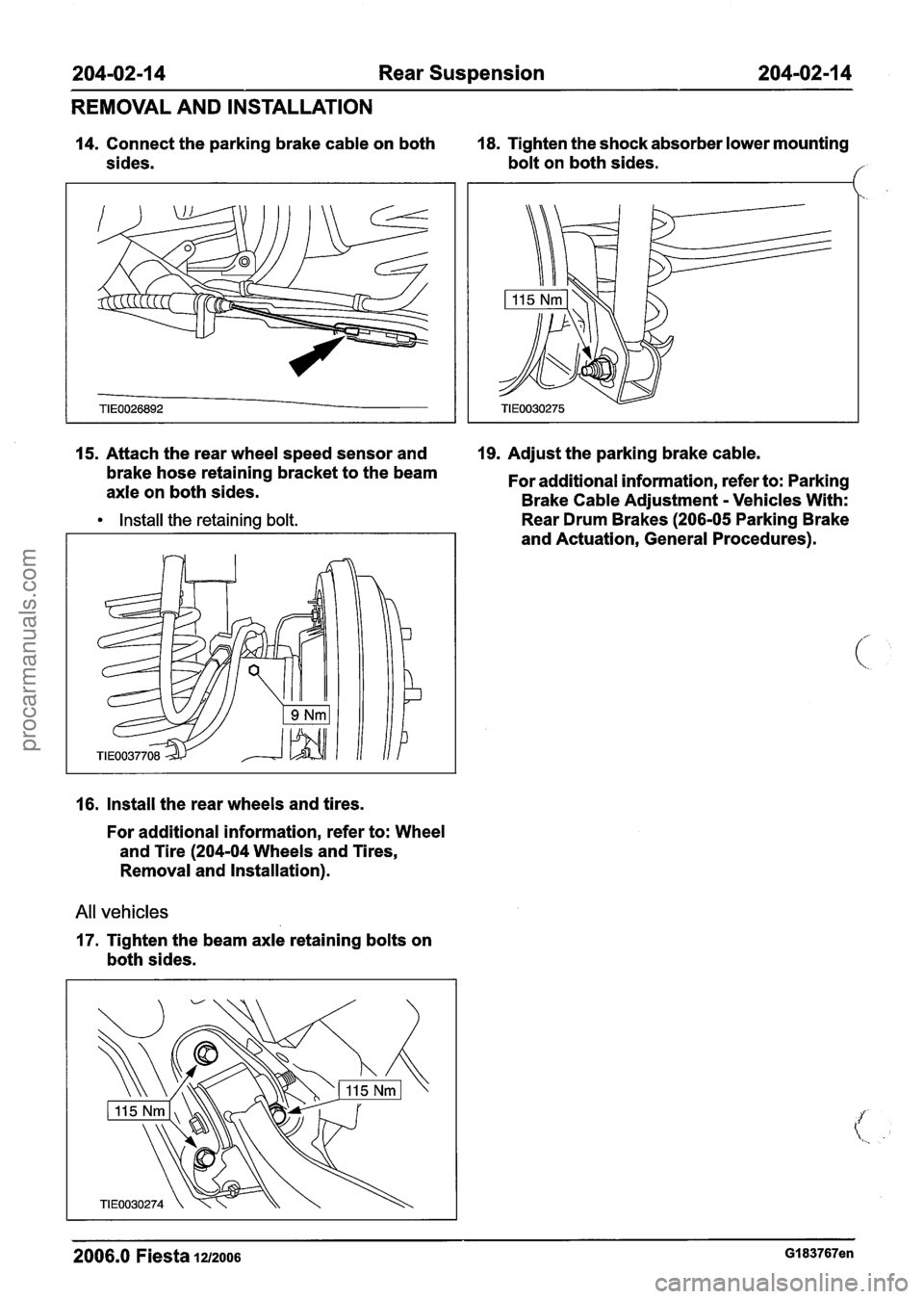

204-02-1 4 Rear Suspension 204102-14
REMOVAL AND INSTALLATION
14. Connect the parking brake cable on both 18. Tighten the shock absorber lower mounting
sides. bolt on both sides.
f
15. Attach the rear wheel speed sensor and 19. Adjust the parking brake cable.
brake hose retaining bracket to the beam
For additional information, refer to: Parking
axle on both sides.
Brake Cable Adjustment
- Vehicles With:
Install the retaining bolt. Rear Drum Brakes (206-05 Parking Brake
and Actuation, General Procedures).
16. Install the rear wheels and tires.
For additional information, refer to: Wheel
and Tire
(204-04 Wheels and Tires,
Removal and Installation).
All vehicles
17. Tighten the beam axle retaining bolts on
both sides.
2006.0 Fiesta 1212006 GI 83767en
procarmanuals.com

204-02-1 5 Rear Suspension 204-02-1 5
REMOVAL AND INSTALLATION
Wheel Spindle(l5 366 0)
ji t
' Removal
All vehicles
I. Remove the dust cap.
Vehicles with rear drum brakes
2. Remove the brake drum.
4. Remove the wheel spindle.
Vehicles with rear disc brakes
5. Remove the brake disc.
For additional information, refer to: Brake
Disc
(206-04 Rear Disc Brake, Removal and
Installation).
For additional information, refer to: Brake
6. Remove the wheel hub.
Drum
(206-02 Drum Brake, Removal and Remove and discard the wheel hub retaining ( Installation). nut.
3. Detach the wheel speed sensor from the
wheel spindle.
procarmanuals.com

204-02-1 6 Rear Suspension 204-02-1 6
REMOVAL AND INSTALLATION
7. Detach the wheel speed sensor from the
wheel spindle.
I
8. Remove the wheel spindle.
Installation
N0TE:lnstall a new wheel hub retaining nut.
1. To install, reverse the removal procedure.
2006.0 Fiesta 1212006 G183768en
procarmanuals.com

204-02-1 8 Rear Suspension 204-02-1 8
REMOVAL AND INSTALLATION
All vehicles Using the special tool, install the new wheel
7. Remove and discard the wheel speed sensor bearing (brake
disc shown).
ring (brake disc shown).
2. Install the circlip (brake disc shown).
8. Remove the circlip (brake disc shown).
3. CAUTIONS:
9. Using the special tool, remove and discard AMake sure the wheel speed sensor ring
the wheel bearing (brake disc shown).
is not knocked, damaged and kept free from
metal fragments.
A~rotect the face of the wheel speed
sensor ring with a non-ferrous flat block to
prevent damage.
A~ake sure the wheel hub or brake drum
is adequately supported and do not allow
it
to rest on the wheel studs..
AMake sure the wheel speed sensor ring
is pressed on slowly and squarely until fully
seated.
ADO not exceed a maximum load of 10 kN.
Installation
All vehicles
&AUTION:SU~~O~~ the wheel hub
assembly on the wheel mounting face and
not on the wheel nut studs.
2006.0 Fiesta 1212006 GI 83769en
procarmanuals.com

204-02-1 9 Rear Suspension 204-02-1 9
REMOVAL AND INSTALLATION
Using the special tool, install a new wheel
speed sensor ring (brake disc shown).
Vehicles with rear drum brakes
4. CAUTIONS:
AAvoid impact on the wheel speed sensor
ring.
AMake sure the wheel speed sensor ring
is clean.
AAvoid any contact between the wheel
, speed sensor ring and a magnetic surface.
' , A~otate the wheel hub assembly 10 times
counter-clockwise when tightening the wheel
hub retaining nut to prevent damage to the
wheel bearing.
N0TE:lnstall a new wheel hub retaining nut.
Install the brake drum and hub assembly.
5. Apply the parking brake.
Vehicles with rear disc brakes
6. CAUTIONS:
AAvoid impact on the wheel speed sensor
ring.
AMake sure the wheel speed sensor ring
is clean.
AAvoid any contact between the wheel
speed sensor ring and a magnetic surface.
A~otate the wheel hub assembly 10 times
counter-clockwise when tightening the wheel
hub retaining nut to prevent damage to the
wheel bearing.
N0TE:lnstall a new wheel hub retaining nut.
Install the wheel hub retaining nut.
7. lnstall the brake disc.
For additional information, refer to: Brake
Disc (206-04 Rear Disc Brake, Removal and
Installation).
All vehicles
8. Install the wheel and tire.
For additional information, refer to: Wheel
and Tire (204-04 Wheels and Tires, Removal
and Installation).
9. N0TE:lf the dust cap is damaged a new dust
cap must be installed.
Using a soft faced hammer and a wooden
block, install the dust cap.
2006.0 Fiesta 1212006 GI 83769en
procarmanuals.com

204-02-20 Rear Suspension 204-02-20
REMOVAL AND INSTALLATION
Trailing Arm Bushing(l5 730 0) ,
I
Remover/lnstaller, Rear Axle
Housing Bushings
Remover/lnstaller, Pivot
Bushing
205-297 (1 5-086)
15064
-- -
I Remover/lnstaller, Pivot
Adapter for
205-074
205-074-0 1 (1 5-064)
15110
Special Tool(s) ,
Bushing
205-342 (1 5-1 1 0)
151 1002
General Eaui~ment
Adapter for 205-342
205-342-02 (1 5-1 10-02)
I Transmission jack I
Removal
I. Raise and support the vehicle.
For additional information, refer to: Jacking
(100-02 Jacking and Lifting, Description
and Operation)
I Lifting (100-02 Jacking and Lifting,
Description and Operation).
2. Disconnect the wheel speed sensor electrical
connector.
f
3. Detach the parking brake cable from the
beam axle on both sides.
2006.0 Fiesta 1212006 G289770en
procarmanuals.com
