2007 FORD F150 fuse box

This switch is located in the front
passenger’s footwell, behind the kick
panel access cover, to the left of the
fuse box. The access cover needs to
be removed to reset the fuel pump
shut-off switch.
To reset the switch:
1. Turn the ignition OFF.
2. Check the fuel system for leaks.
3. If no leaks are apparent, reset the
switch by pushing in on the reset
button.
4. Turn the ignition ON.
5. Wait a few seconds and return
the key to OFF.
6. Make another check for leaks.
FUSES AND RELAYS
Fuses
If electrical components in the
vehicle are not working, a fuse may
have blown. Blown fuses are
identified by a broken wire within
the fuse. Check the appropriate
fuses before replacing any electrical
components.
Note:Always replace a fuse with one that has the specified amperage
rating. Using a fuse with a higher amperage rating can cause severe wire
damage and could start a fire.
15
2007 F-150(f12)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
244

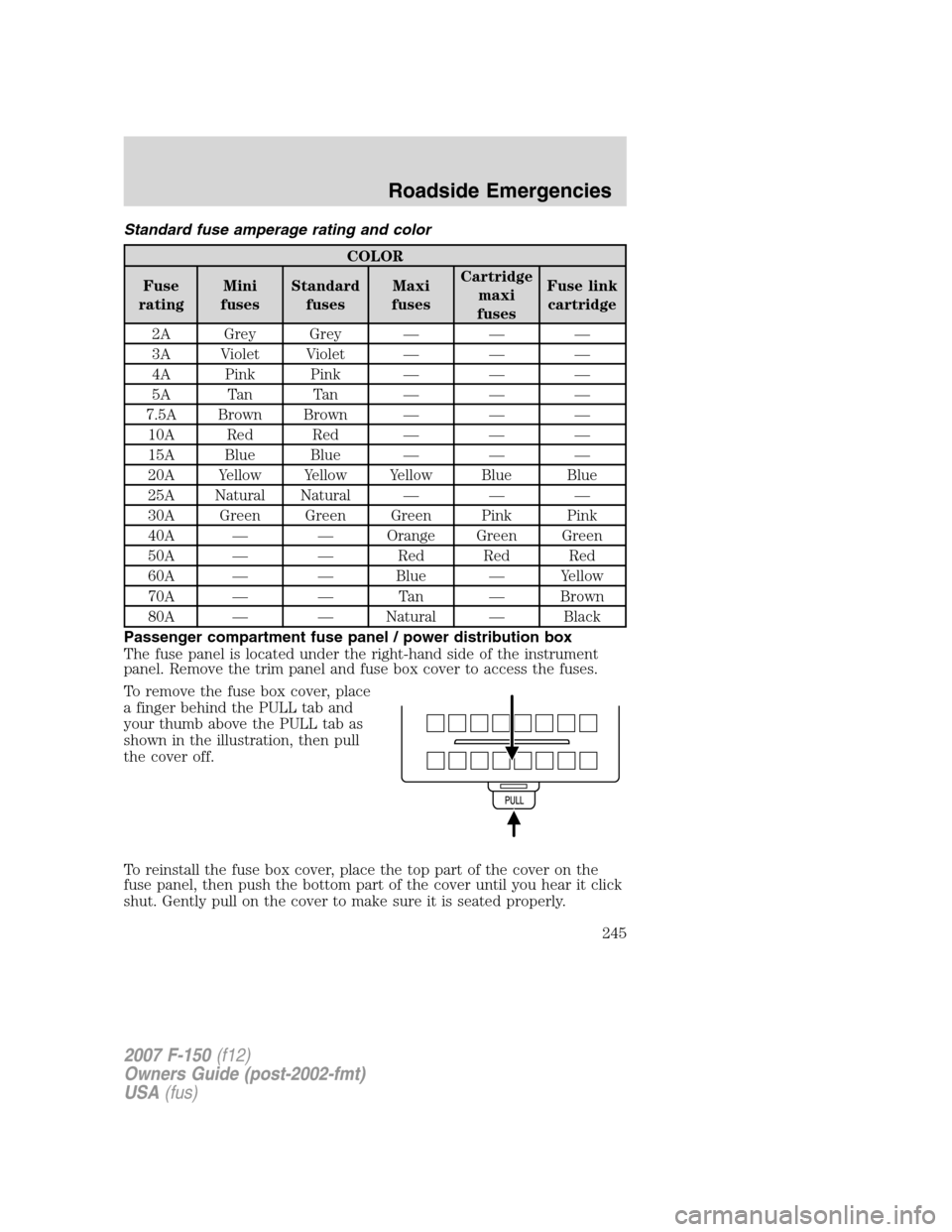

Standard fuse amperage rating and color
COLOR
Fuse
ratingMini
fusesStandard
fusesMaxi
fusesCartridge
maxi
fusesFuse link
cartridge
2A Grey Grey — — —
3A Violet Violet — — —
4A Pink Pink — — —
5A Tan Tan — — —
7.5A Brown Brown — — —
10A Red Red — — —
15A Blue Blue — — —
20A Yellow Yellow Yellow Blue Blue
25A Natural Natural — — —
30A Green Green Green Pink Pink
40A — — Orange Green Green
50A — — Red Red Red
60A — — Blue — Yellow
70A — — Tan — Brown
80A — — Natural — Black
Passenger compartment fuse panel / power distribution box
The fuse panel is located under the right-hand side of the instrument
panel. Remove the trim panel and fuse box cover to access the fuses.
To remove the fuse box cover, place
a finger behind the PULL tab and
your thumb above the PULL tab as
shown in the illustration, then pull
the cover off.
To reinstall the fuse box cover, place the top part of the cover on the
fuse panel, then push the bottom part of the cover until you hear it click
shut. Gently pull on the cover to make sure it is seated properly.
2007 F-150(f12)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
245

Always disconnect the battery before servicing high current
fuses.
To reduce risk of electrical shock, always replace the cover to
the Power Distribution Box and Auxiliary Relay Box before
reconnecting the battery or refilling fluid reservoirs.
If the battery has been disconnected and reconnected, refer to the
Batterysection of theMaintenance and Specificationschapter.
2007 F-150(f12)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
246

Auxiliary relay box
The relay box is located in the engine compartment on the left fender.
•With Daytime Running Lamp (DRL) and 4x4 options
•Without Daytime Running Lamp (DRL) and 4x4 options
The relays are coded as follows:
Fuse/Relay
LocationFuse Amp
RatingDescription
F03 5A Clockspring illumination
R01 Full ISO
Relay4x4 CCW
R02 Full ISO
Relay4x4 CW
R03
12ISO
RelayDaytime Running Lamps (DRL) high beam
disable
R201 Relay DRL
R202 Relay A/C clutch
D01 Diode A/C clutch
2007 F-150(f12)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
251

Oil (see Engine oil) ..................289
P
Parking brake ............................214
Parts (see Motorcraft parts) ....322
Passenger Occupant
Classification Sensor .................122
Power distribution box
(see Fuses) ...............................245
Power door locks ......................101
Power mirrors .............................77
Power point .................................72
Power steering ..........................216
fluid, checking and adding ....314
fluid, refill capacity ................324
fluid, specifications .................324
Power Windows ...........................74
Preparing to drive your
vehicle ........................................217
R
Radio ................................26, 28, 34
Relays ........................................244
Remote entry system ...............104
illuminated entry ....................108
locking/unlocking
doors ................................104–105
panic alarm .............................105
replacement/additional
transmitters .............................107
replacing the batteries ...........106
Reverse sensing system ...........225
Roadside assistance ..................241
S
Safety Belt Maintenance ..........139Safety belts (see Safety
restraints) .........121, 124, 126–127,
130–132, 134
Safety defects, reporting ..........272
Safety restraints ...............121, 124,
126–127, 130–132, 134
BeltMinder............................135
BeltMinder,
deactivating/activating ...........138
extension assembly ................139
for adults .........126–127, 130–132
for children .............................149
lap belt ....................................129
Occupant Classification
Sensor ......................................122
safety belt maintenance .........139
warning light and
chime ...............................134–135
Safety seats for children ..........153
Safety Compliance
Certification Label ....................329
Satellite Radio Information ........45
Seat belts
(see Safety restraints) .............121
Seats ..........................................115
child safety seats ....................153
cleaning ...................................280
heated ................................54, 119
memory seat ...................106, 119
SecuriLock passive anti-theft
system ................................112–113
Servicing your vehicle ..............283
Setting the clock
AM/FM stereo ...........................27
AM/FM/CD .................................29
AM/FM/In-dash 6 CD ................35
Snowplowing .................8, 238–239
