2007 FORD EXPLORER Owners Manual

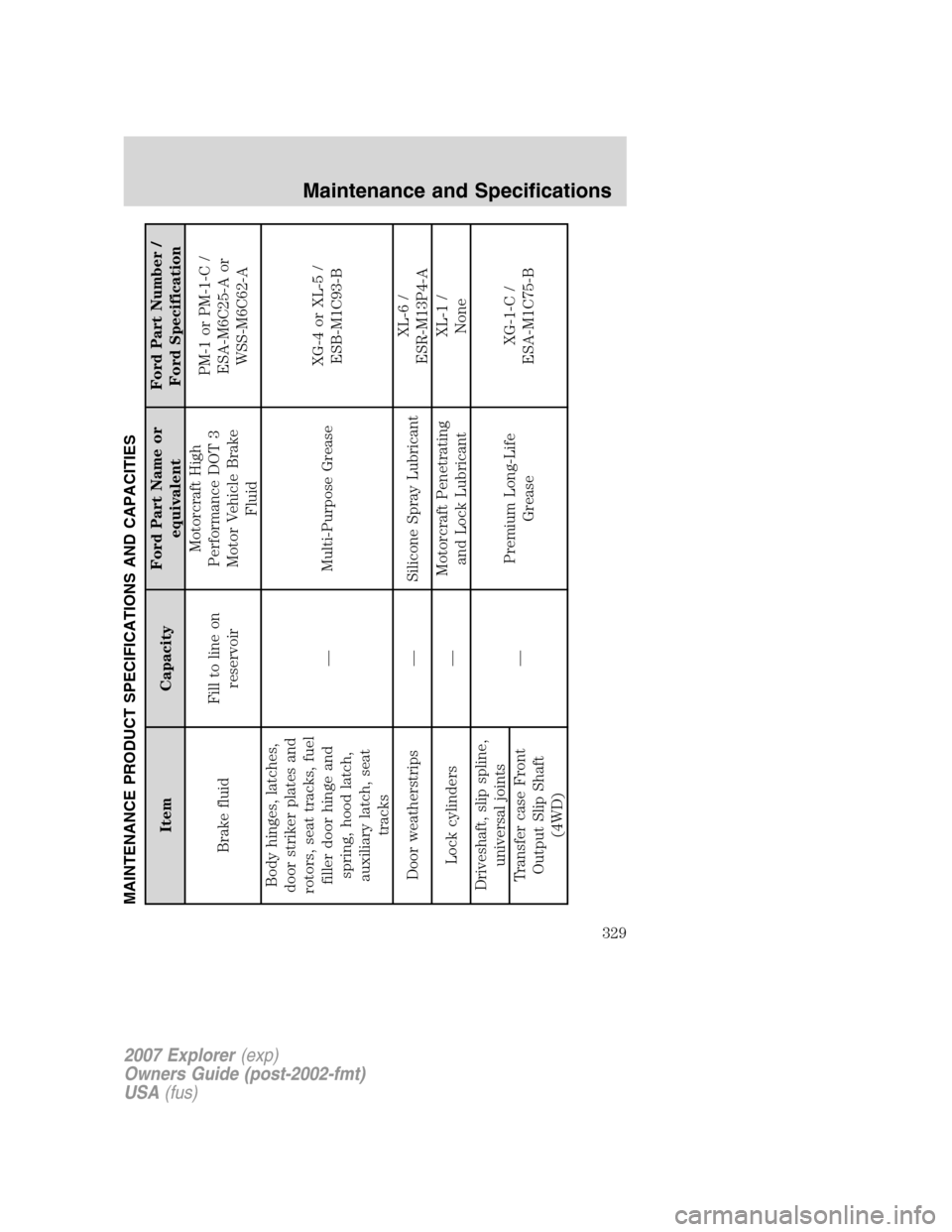

MAINTENANCE PRODUCT SPECIFICATIONS AND CAPACITIES
Item CapacityFord Part Name or
equivalentFord Part Number /
Ford Specification
Brake fluidFill to line on
reservoirMotorcraft High
Performance DOT 3
Motor Vehicle Brake
FluidPM-1 or PM-1-C /
ESA-M6C25-A or
WSS-M6C62-A
Body hinges, latches,
door striker plates and
rotors, seat tracks, fuel
filler door hinge and
spring, hood latch,
auxiliary latch, seat
tracks— Multi-Purpose GreaseXG-4 or XL-5 /
ESB-M1C93-B
Door weatherstrips — Silicone Spray LubricantXL-6 /
ESR-M13P4-A
Lock cylinders —Motorcraft Penetrating
and Lock LubricantXL-1 /
None
Driveshaft, slip spline,
universal joints
—Premium Long-Life
GreaseXG-1-C /
ESA-M1C75-B Transfer case Front
Output Slip Shaft
(4WD)
2007 Explorer(exp)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
329

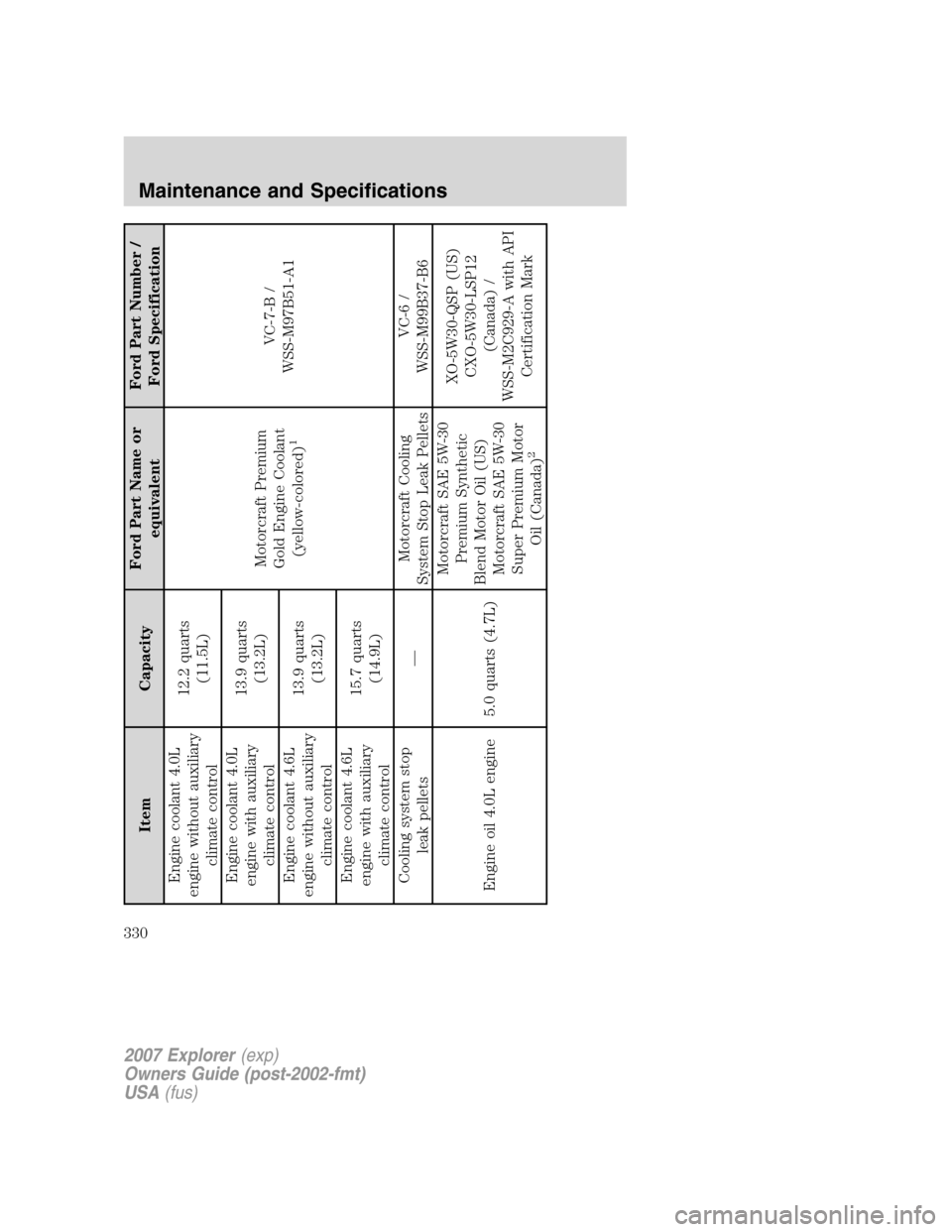

Item CapacityFord Part Name or
equivalentFord Part Number /
Ford Specification
Engine coolant 4.0L
engine without auxiliary
climate control12.2 quarts
(11.5L)
Motorcraft Premium
Gold Engine Coolant
(yellow-colored)
1
VC-7-B /
WSS-M97B51-A1 Engine coolant 4.0L
engine with auxiliary
climate control13.9 quarts
(13.2L)
Engine coolant 4.6L
engine without auxiliary
climate control13.9 quarts
(13.2L)
Engine coolant 4.6L
engine with auxiliary
climate control15.7 quarts
(14.9L)
Cooling system stop
leak pellets—Motorcraft Cooling
System Stop Leak PelletsVC-6 /
WSS-M99B37-B6
Engine oil 4.0L engine 5.0 quarts (4.7L)Motorcraft SAE 5W-30
Premium Synthetic
Blend Motor Oil (US)
Motorcraft SAE 5W-30
Super Premium Motor
Oil (Canada)
2
XO-5W30-QSP (US)
CXO-5W30-LSP12
(Canada) /
WSS-M2C929-A with API
Certification Mark
2007 Explorer(exp)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
330

Item CapacityFord Part Name or
equivalentFord Part Number /
Ford Specification
Engine oil 4.6L engine 6.0 quarts (5.7L)Motorcraft SAE 5W-20
Premium Synthetic
Blend Motor Oil (US)
Motorcraft SAE 5W-20
Super Premium Motor
Oil (Canada)
2
XO-5W20-QSP (US)
CXO-5W20-LSP12
(Canada) /
WSS-M2C930-A with API
Certification Mark
Automatic transmission
(5R55S) fluid13.0 quarts
(12.3L)
3
Motorcraft MERCON
V
AT F
4
XT-5-QM /
MERCON
V
Automatic transmission
(6R60) fluid12.2 quarts
(11.6L)
3
Motorcraft MERCON
SP
AT F
5
XT-6-QSP /
MERCON
SP
Rear axle fluid 3.5 pints (1.7L)Motorcraft SAE 75W-140
Synthetic Rear Axle
LubricantX Y-75W140-QL /
WSL-M2C192-A
Front axle fluid (4WD) 2.7 pints (1.3L)Motorcraft SAE 80W-90
Premium Rear Axle
LubricantXY-80W90-QL /
WSP-M2C197-A
Power steering fluidFill between the
MIN and MAX
lines on reservoirMotorcraft MERCON

Multi-Purpose ATFXT-2-QDX /
MERCON

Transfer case fluid
(4WD)1.5 quarts (1.4L)
Windshield washer fluid 4.2 quarts (4.0L)Motorcraft Premium
Windshield Washer
ConcentrateZC-32-A /
WSB-M8B16-A2
2007 Explorer(exp)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
331

Item CapacityFord Part Name or
equivalentFord Part Number /
Ford Specification
Fuel tank22.5 gallons
(85.2L)——
1Add the coolant type originally equipped in your vehicle.2Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only have the API
Certification mark and meet the requirements of Ford specification WSS-M2C929-A (4.0L) or
WSS-M2C930-A (4.6L).3Indicates only approximate dry-fill capacity. Some applications may vary based on cooler size and
if equipped with an in-tank cooler. The amount of transmission fluid and fluid level should be
checked by a qualified technician.4Automatic transmissions that require MERCON
V should only use MERCON
V fluid or fluid that
is specified dual usage MERCON
/ MERCON
V. Refer toscheduled maintenance informationto
determine the correct service interval. Use of any fluid other than the recommended fluid may
cause transmission damage.5Automatic transmissions that require MERCON
SP should only use MERCON
SP fluid. Use of a
dual usage fluid in an automatic transmission requiring MERCON
SP may cause transmission
damage. Refer toscheduled maintenance informationto determine the correct service interval.
Use of any fluid other than the recommended fluid may cause transmission damage.
2007 Explorer(exp)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
332

ENGINE DATA
Engine 4.0L SOHC V6
engine4.6L 3V V8
engine
Cubic inches 245 281
Required fuel 87 octane 87 octane
Firing order 1-4-2-5-3-6 1-3-7-2-6-5-4-8
Ignition system EDIS Coil on Plug
Spark plug gap 0.052–0.056 inch
(1.32–1.42 mm)0.040–0.050 inch
(1.02–1.27 mm)
1
Compression ratio 9.7:1 9.8:11Spark plug gap is not adjustable
Engine drivebelt routing
•4.0L V6 Engine
•4.6L V8 Engine
2007 Explorer(exp)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
333

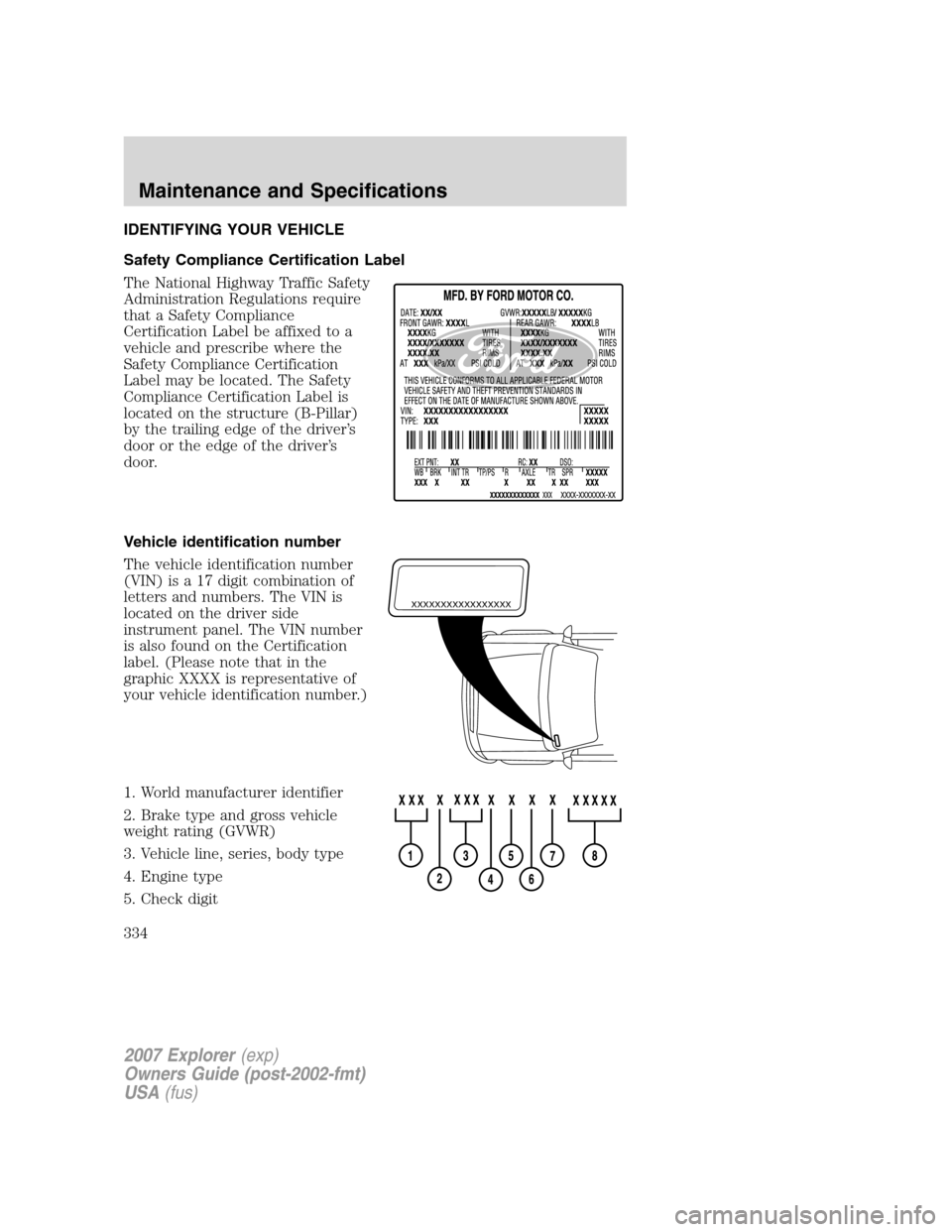

IDENTIFYING YOUR VEHICLE
Safety Compliance Certification Label
The National Highway Traffic Safety
Administration Regulations require
that a Safety Compliance
Certification Label be affixed to a
vehicle and prescribe where the
Safety Compliance Certification
Label may be located. The Safety
Compliance Certification Label is
located on the structure (B-Pillar)
by the trailing edge of the driver’s
door or the edge of the driver’s
door.
Vehicle identification number
The vehicle identification number
(VIN) is a 17 digit combination of
letters and numbers. The VIN is
located on the driver side
instrument panel. The VIN number
is also found on the Certification
label. (Please note that in the
graphic XXXX is representative of
your vehicle identification number.)
1. World manufacturer identifier
2. Brake type and gross vehicle
weight rating (GVWR)
3. Vehicle line, series, body type
4. Engine type
5. Check digit
XXXXXXXXXXXXXXXXX
2007 Explorer(exp)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
334

6. Model year
7. Assembly plant
8. Production sequence number
TRANSMISSION/TRANSAXLE CODE DESIGNATIONS
You can find a
transmission/transaxle code on the
Safety Compliance Certification
Label. The following table tells you
which transmission or transaxle
each code represents.
Description Code
Five-speed automatic (5R55S) V
Six-speed automatic (6R60) X
2007 Explorer(exp)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
335

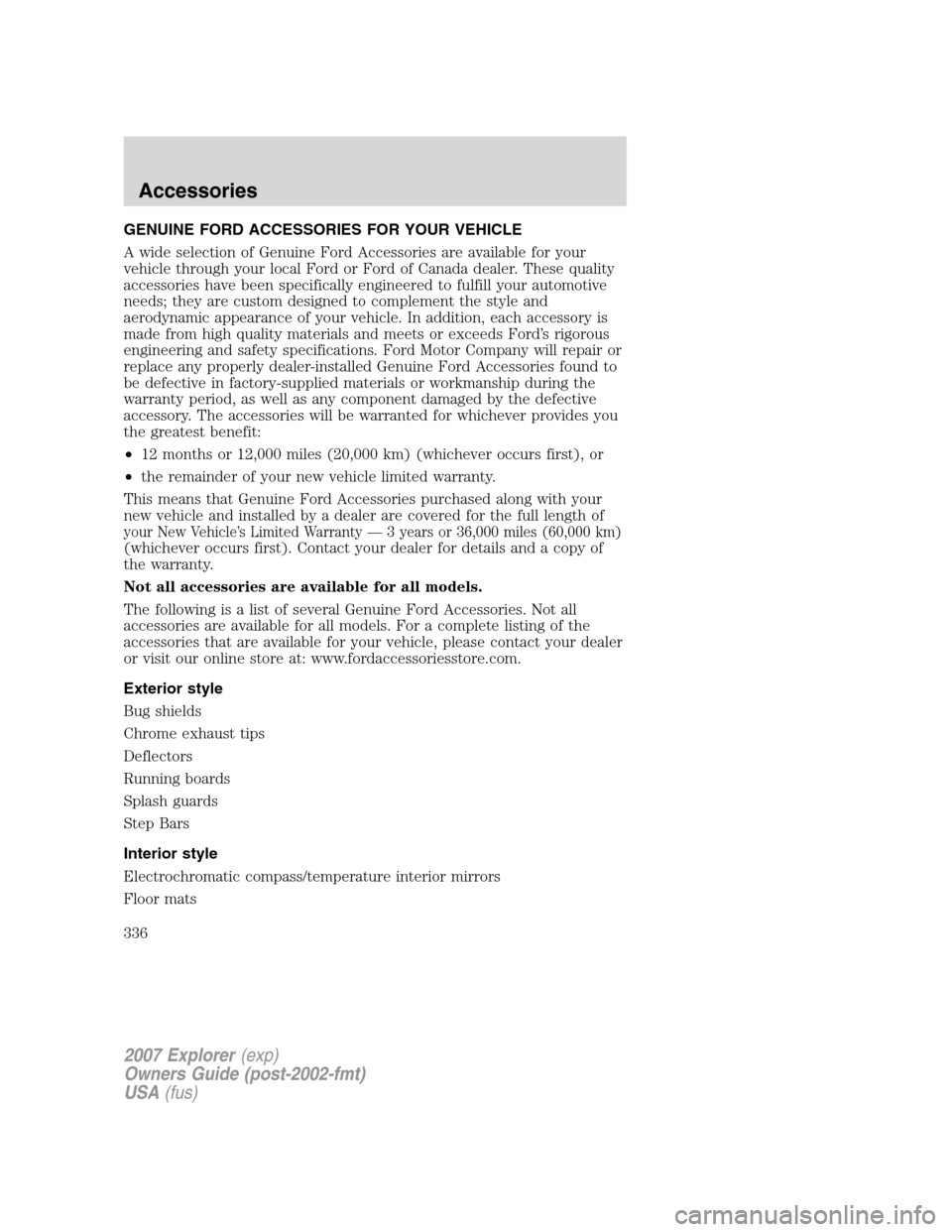

GENUINE FORD ACCESSORIES FOR YOUR VEHICLE
A wide selection of Genuine Ford Accessories are available for your
vehicle through your local Ford or Ford of Canada dealer. These quality
accessories have been specifically engineered to fulfill your automotive
needs; they are custom designed to complement the style and
aerodynamic appearance of your vehicle. In addition, each accessory is
made from high quality materials and meets or exceeds Ford’s rigorous
engineering and safety specifications. Ford Motor Company will repair or
replace any properly dealer-installed Genuine Ford Accessories found to
be defective in factory-supplied materials or workmanship during the
warranty period, as well as any component damaged by the defective
accessory. The accessories will be warranted for whichever provides you
the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
This means that Genuine Ford Accessories purchased along with your
new vehicle and installed by a dealer are covered for the full length of
your New Vehicle’s Limited Warranty — 3 years or 36,000 miles (60,000 km)
(whichever occurs first). Contact your dealer for details and a copy of
the warranty.
Not all accessories are available for all models.
The following is a list of several Genuine Ford Accessories. Not all
accessories are available for all models. For a complete listing of the
accessories that are available for your vehicle, please contact your dealer
or visit our online store at: www.fordaccessoriesstore.com.
Exterior style
Bug shields
Chrome exhaust tips
Deflectors
Running boards
Splash guards
Step Bars
Interior style
Electrochromatic compass/temperature interior mirrors
Floor mats
2007 Explorer(exp)
Owners Guide (post-2002-fmt)
USA(fus)
Accessories
336
