2007 FORD EXPEDITION Owners Manual

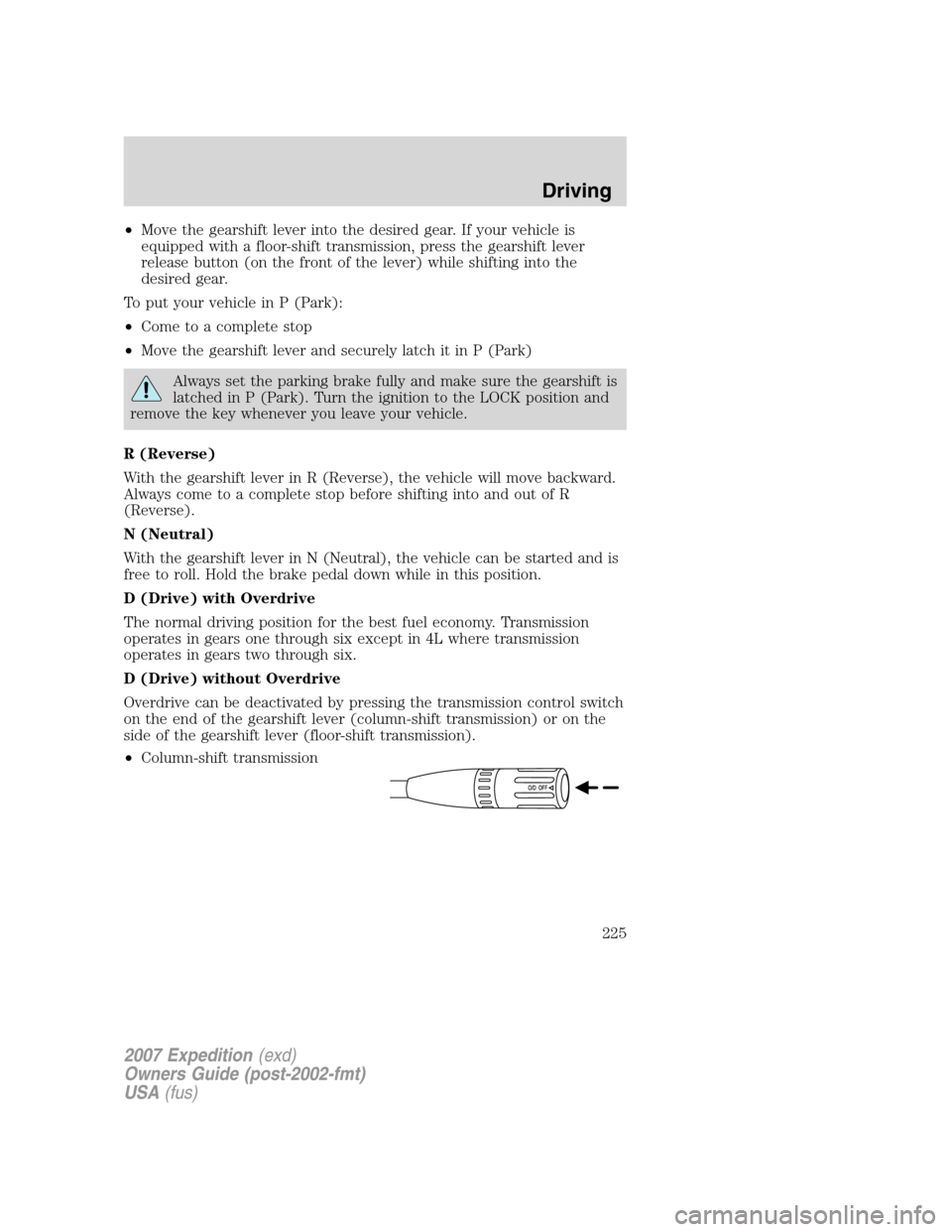

•Move the gearshift lever into the desired gear. If your vehicle is
equipped with a floor-shift transmission, press the gearshift lever
release button (on the front of the lever) while shifting into the
desired gear.
To put your vehicle in P (Park):
•Come to a complete stop
•Move the gearshift lever and securely latch it in P (Park)
Always set the parking brake fully and make sure the gearshift is
latched in P (Park). Turn the ignition to the LOCK position and
remove the key whenever you leave your vehicle.
R (Reverse)
With the gearshift lever in R (Reverse), the vehicle will move backward.
Always come to a complete stop before shifting into and out of R
(Reverse).
N (Neutral)
With the gearshift lever in N (Neutral), the vehicle can be started and is
free to roll. Hold the brake pedal down while in this position.
D (Drive) with Overdrive
The normal driving position for the best fuel economy. Transmission
operates in gears one through six except in 4L where transmission
operates in gears two through six.
D (Drive) without Overdrive
Overdrive can be deactivated by pressing the transmission control switch
on the end of the gearshift lever (column-shift transmission) or on the
side of the gearshift lever (floor-shift transmission).
•Column-shift transmission
2007 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
225

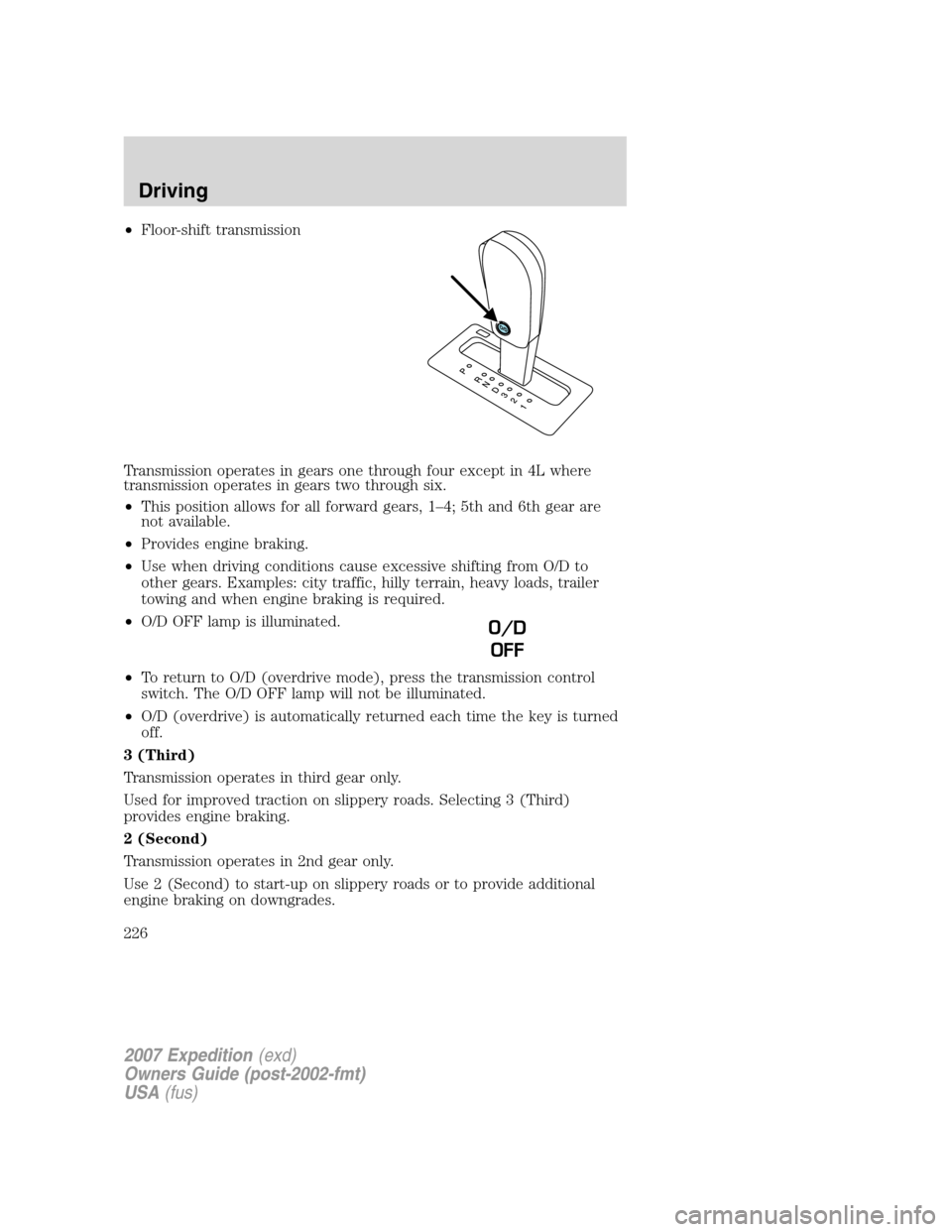

•Floor-shift transmission
Transmission operates in gears one through four except in 4L where
transmission operates in gears two through six.
•This position allows for all forward gears, 1–4; 5th and 6th gear are
not available.
•Provides engine braking.
•Use when driving conditions cause excessive shifting from O/D to
other gears. Examples: city traffic, hilly terrain, heavy loads, trailer
towing and when engine braking is required.
•O/D OFF lamp is illuminated.
•To return to O/D (overdrive mode), press the transmission control
switch. The O/D OFF lamp will not be illuminated.
•O/D (overdrive) is automatically returned each time the key is turned
off.
3 (Third)
Transmission operates in third gear only.
Used for improved traction on slippery roads. Selecting 3 (Third)
provides engine braking.
2 (Second)
Transmission operates in 2nd gear only.
Use 2 (Second) to start-up on slippery roads or to provide additional
engine braking on downgrades.
O/D
OFF
2007 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
226

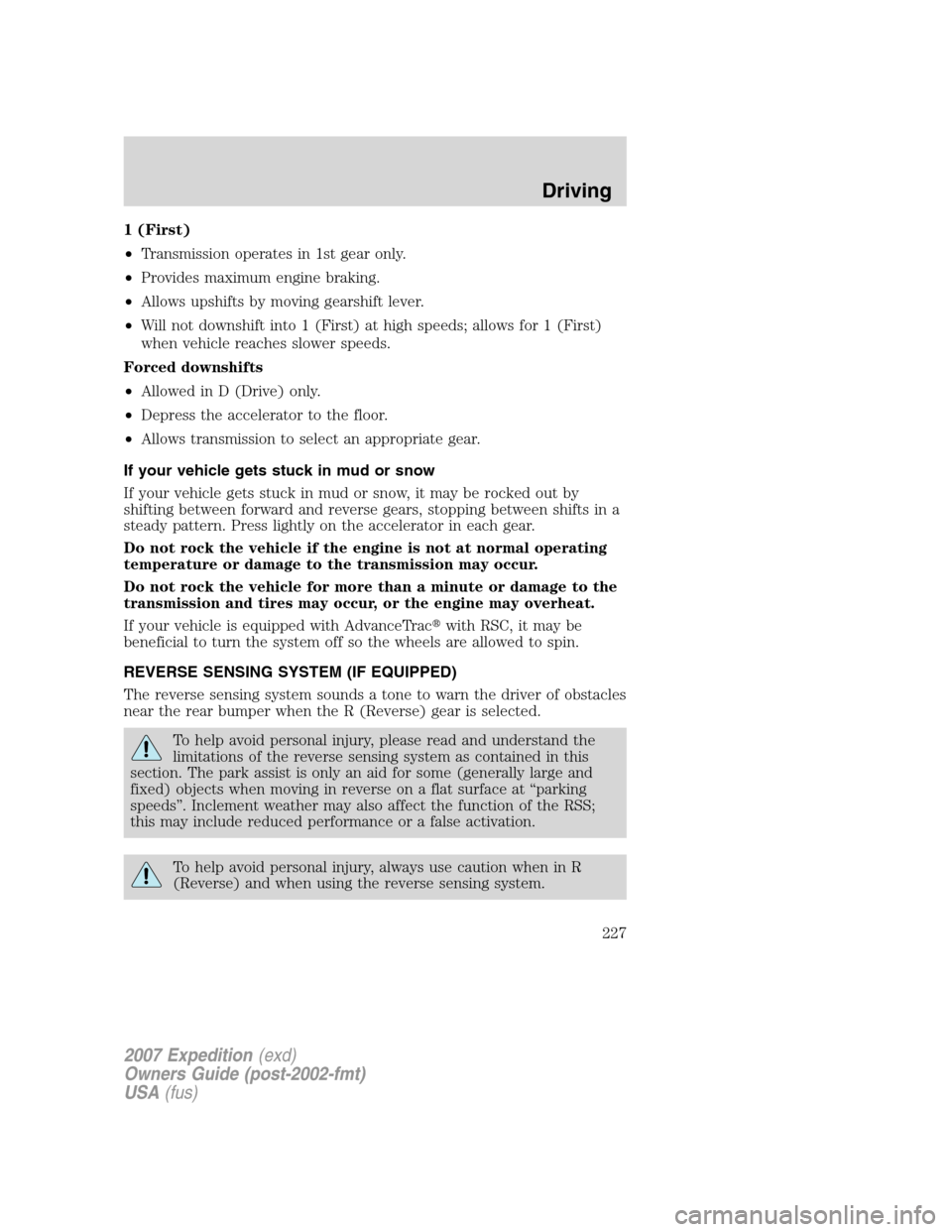

1 (First)
•Transmission operates in 1st gear only.
•Provides maximum engine braking.
•Allows upshifts by moving gearshift lever.
•Will not downshift into 1 (First) at high speeds; allows for 1 (First)
when vehicle reaches slower speeds.
Forced downshifts
•Allowed in D (Drive) only.
•Depress the accelerator to the floor.
•Allows transmission to select an appropriate gear.
If your vehicle gets stuck in mud or snow
If your vehicle gets stuck in mud or snow, it may be rocked out by
shifting between forward and reverse gears, stopping between shifts in a
steady pattern. Press lightly on the accelerator in each gear.
Do not rock the vehicle if the engine is not at normal operating
temperature or damage to the transmission may occur.
Do not rock the vehicle for more than a minute or damage to the
transmission and tires may occur, or the engine may overheat.
If your vehicle is equipped with AdvanceTrac
with RSC, it may be
beneficial to turn the system off so the wheels are allowed to spin.
REVERSE SENSING SYSTEM (IF EQUIPPED)
The reverse sensing system sounds a tone to warn the driver of obstacles
near the rear bumper when the R (Reverse) gear is selected.
To help avoid personal injury, please read and understand the
limitations of the reverse sensing system as contained in this
section. The park assist is only an aid for some (generally large and
fixed) objects when moving in reverse on a flat surface at “parking
speeds”. Inclement weather may also affect the function of the RSS;
this may include reduced performance or a false activation.
To help avoid personal injury, always use caution when in R
(Reverse) and when using the reverse sensing system.
2007 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
227

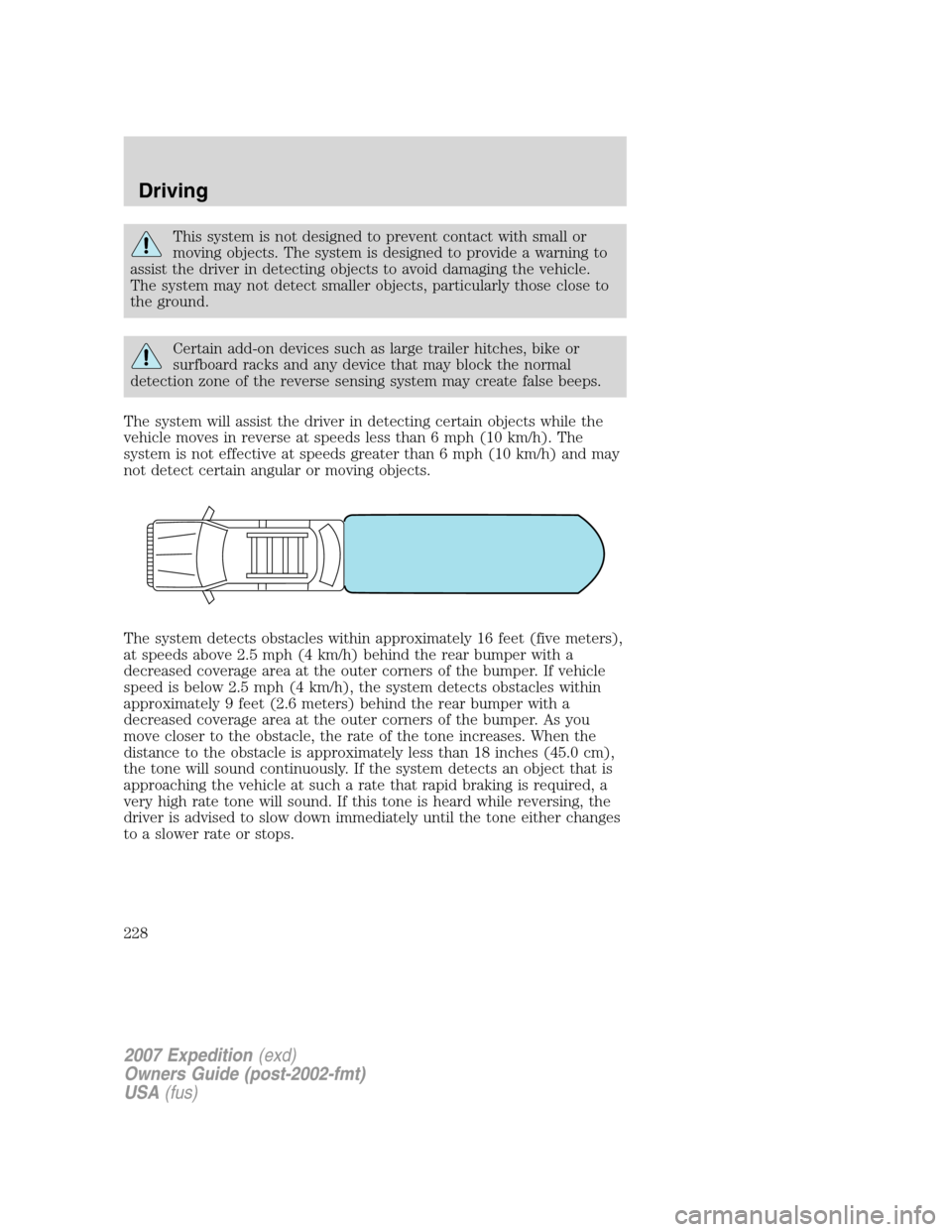

This system is not designed to prevent contact with small or
moving objects. The system is designed to provide a warning to
assist the driver in detecting objects to avoid damaging the vehicle.
The system may not detect smaller objects, particularly those close to
the ground.
Certain add-on devices such as large trailer hitches, bike or
surfboard racks and any device that may block the normal
detection zone of the reverse sensing system may create false beeps.
The system will assist the driver in detecting certain objects while the
vehicle moves in reverse at speeds less than 6 mph (10 km/h). The
system is not effective at speeds greater than 6 mph (10 km/h) and may
not detect certain angular or moving objects.
The system detects obstacles within approximately 16 feet (five meters),
at speeds above 2.5 mph (4 km/h) behind the rear bumper with a
decreased coverage area at the outer corners of the bumper. If vehicle
speed is below 2.5 mph (4 km/h), the system detects obstacles within
approximately 9 feet (2.6 meters) behind the rear bumper with a
decreased coverage area at the outer corners of the bumper. As you
move closer to the obstacle, the rate of the tone increases. When the
distance to the obstacle is approximately less than 18 inches (45.0 cm),
the tone will sound continuously. If the system detects an object that is
approaching the vehicle at such a rate that rapid braking is required, a
very high rate tone will sound. If this tone is heard while reversing, the
driver is advised to slow down immediately until the tone either changes
to a slower rate or stops.
2007 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
228

Audible Warnings
Distance to Object Warning
Speed above 2.5 mph (4 km/h)
up to 1.6 feet (.5 meters) Solid
1.6 feet (.5 meters) to 3.1 feet (1 meter) Fast beep
3.1 feet (1 meter) to 5.7 feet (1.8 meters) Medium/fast beep
5.7 feet (1.8 meters) to 9 feet (2.8 meters) Medium beep
9 feet (2.8 meters) to 13 feet (4 meters) Medium/slow beep
13 feet (4 meters) to 19.6 feet (6 meters) Slow beep
Speed below 2.5 mph (4 km/h)
up to 1.4 feet (.4 meters) Solid
1.4 feet (.4 meters) to 3 feet (.9 meters) Fast beep
3 feet (.9 meters) to 4.5 feet (1.4 meters) Medium beep
4.5 feet (1.4 meters) to 6.3 feet (1.9 meters) Medium/slow beep
6.3 feet (1.9 meters) to 8.7 feet (2.6 meters) Slow beep
8.7 feet (2.6 meters) to 16.4 feet (5 meters) No sound
The reverse sensing system is automatically enabled when the gear
selector is placed in R (Reverse) and the ignition is ON. A control in the
message center allows the driver to disable the system only when the
ignition is ON and the gear selector is in R (Reverse). Refer toMessage
centerin theDriver Controlschapter.
The message center will indicate the system is OFF and will not allow
the driver to switch the system ON to indicate a failure of the reverse
sensing system.
The radar sensor is located behind the rear bumper/fascia. Always
keep the rear bumper/fascia free from snow, ice and large
accumulations of dirt. These elements may cause the system to
operate inaccurately.
If the vehicle sustains damage to the rear bumper/fascia, leaving
it misaligned or bent, the sensing zone may be altered causing
inaccurate measurement of obstacles or false alarms.
2007 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
229

CONTROL TRAC FOUR-WHEEL DRIVE (4X4) OPERATION
(IF EQUIPPED)
For important information regarding safe operation of this type
of vehicle, seePreparing to drive your vehiclein this chapter.
If equipped with the Control Trac 4x4 System, and 4L (4x4 LOW)
is selected while the vehicle is moving, the system will not
engage. This is normal and should be no reason for concern.
Before 4L (4x4 LOW) can be engaged, the vehicle must be
brought to a complete stop and the transmission placed in N
(Neutral).
Do not use 4H (4X4) or 4L (4X4 LOW) on dry, hard surfaced roads.
Doing so will produce excessive noise, increased tire wear and may
damage drive components. 4H (4X4) and 4L (4X4 LOW) are only
intended for consistently slippery or loose surfaces. Use of 4H (4X4) or
4L (4X4 LOW) on these surfaces may produce some noise (such as
occasional clunks) but will not damage drive components.
Your 4x4 features the heavy-duty Control Trac system which includes a
computer-operated transfer case. This unique system is interactive with
the road, continually monitoring and adjusting torque delivery to the
front and rear wheels to optimize vehicle control.
System indicator messages
The Control Trac system indicator messages display in the reconfigurable
telltale (RTT) location in the message center only under the following
conditions. If these messages display when driving in 2H, contact your
authorized dealer as soon as possible. Refer toWarning lights and
chimesin theInstrument Clusterchapter.
•4X4 AUTO– displays when 4A is selected.
•4X4– displays when 4H is selected.
•4X4 LOW– displays when 4L is selected.
2007 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
230

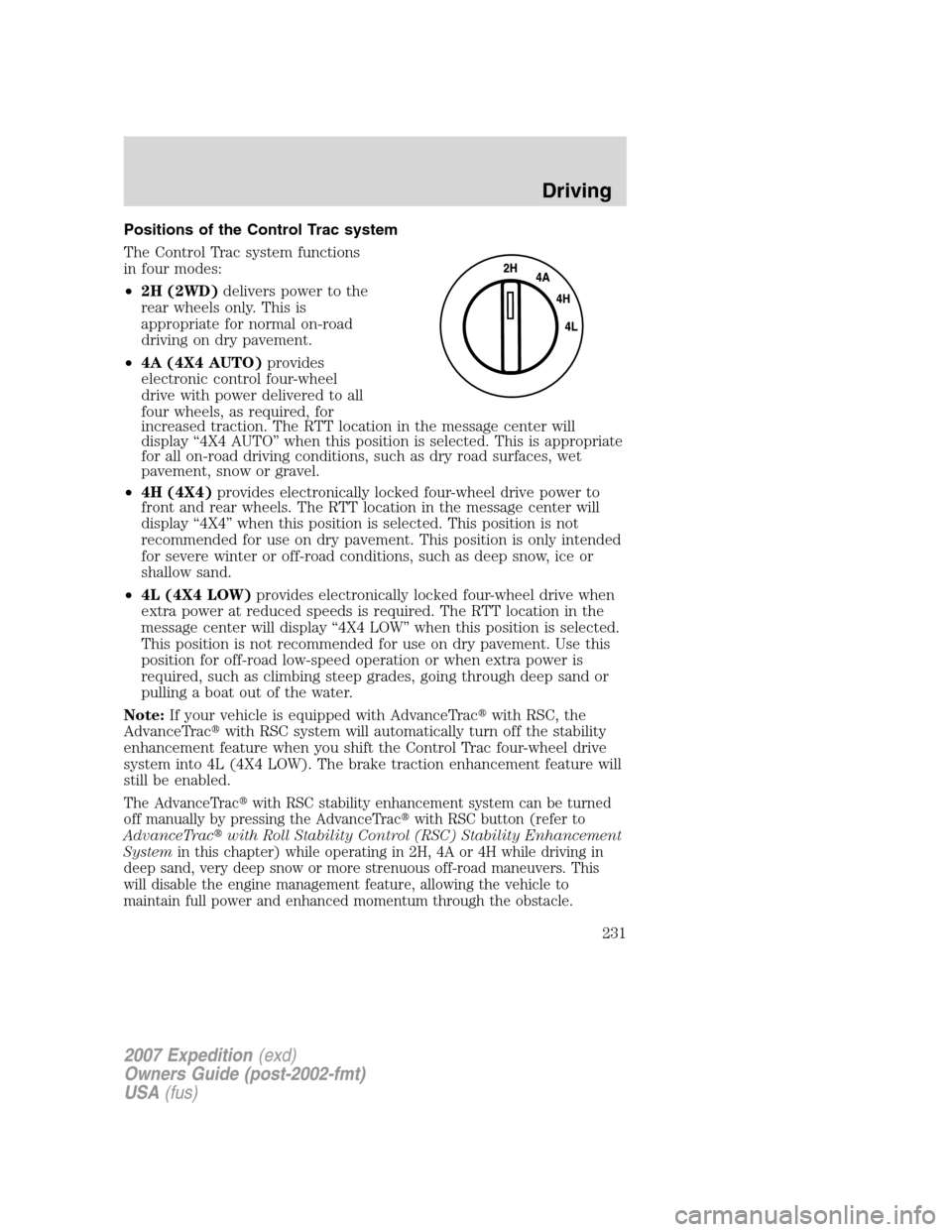

Positions of the Control Trac system
The Control Trac system functions
in four modes:
•2H (2WD)delivers power to the
rear wheels only. This is
appropriate for normal on-road
driving on dry pavement.
•4A (4X4 AUTO)provides
electronic control four-wheel
drive with power delivered to all
four wheels, as required, for
increased traction. The RTT location in the message center will
display “4X4 AUTO” when this position is selected. This is appropriate
for all on-road driving conditions, such as dry road surfaces, wet
pavement, snow or gravel.
•4H (4X4)provides electronically locked four-wheel drive power to
front and rear wheels. The RTT location in the message center will
display “4X4” when this position is selected. This position is not
recommended for use on dry pavement. This position is only intended
for severe winter or off-road conditions, such as deep snow, ice or
shallow sand.
•4L (4X4 LOW)provides electronically locked four-wheel drive when
extra power at reduced speeds is required. The RTT location in the
message center will display “4X4 LOW” when this position is selected.
This position is not recommended for use on dry pavement. Use this
position for off-road low-speed operation or when extra power is
required, such as climbing steep grades, going through deep sand or
pulling a boat out of the water.
Note:If your vehicle is equipped with AdvanceTrac
with RSC, the
AdvanceTrac
with RSC system will automatically turn off the stability
enhancement feature when you shift the Control Trac four-wheel drive
system into 4L (4X4 LOW). The brake traction enhancement feature will
still be enabled.
The AdvanceTrac
with RSC stability enhancement system can be turned
off manually by pressing the AdvanceTrac
with RSC button (refer to
AdvanceTrac
with Roll Stability Control (RSC) Stability Enhancement
Systemin this chapter) while operating in 2H, 4A or 4H while driving in
deep sand, very deep snow or more strenuous off-road maneuvers. This
will disable the engine management feature, allowing the vehicle to
maintain full power and enhanced momentum through the obstacle.
2007 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
231

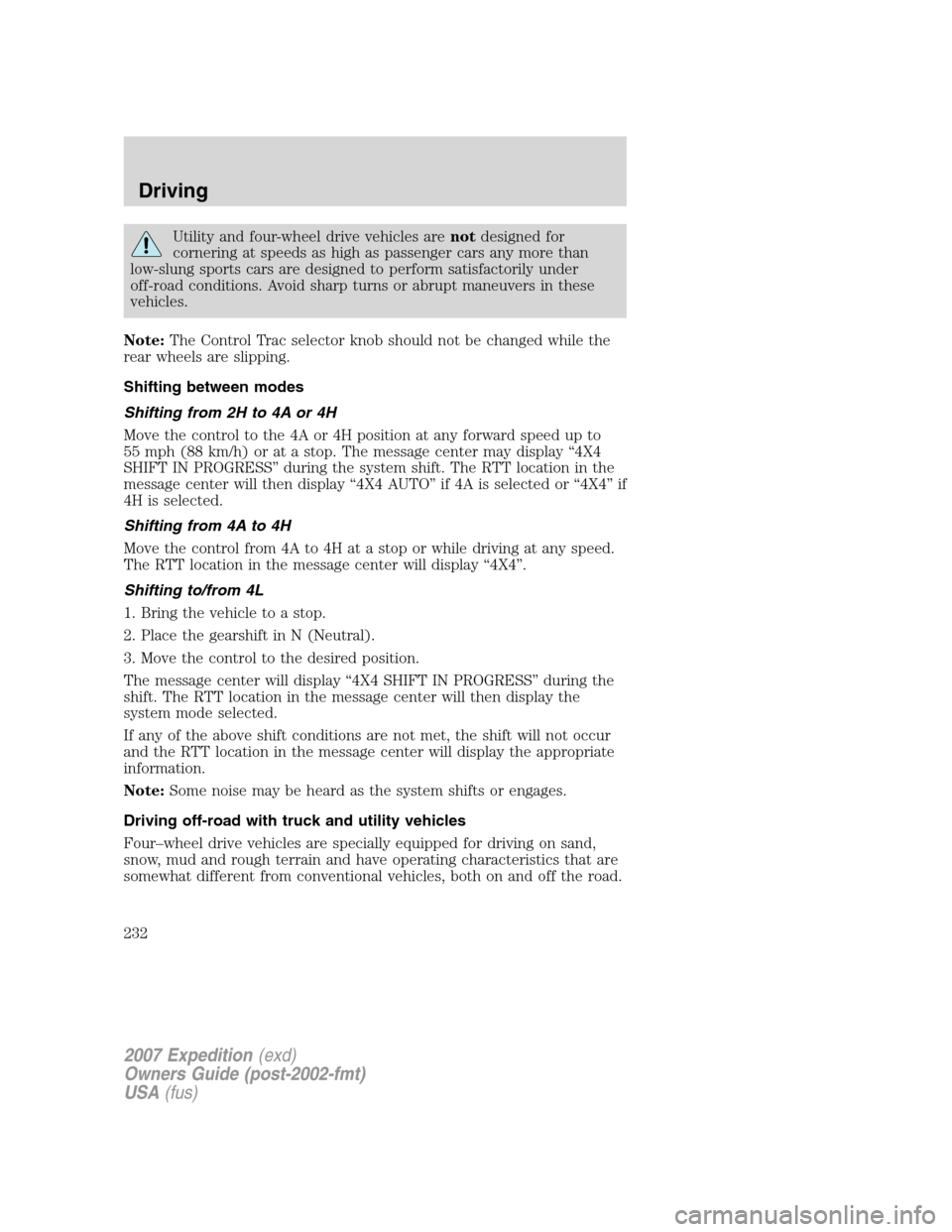

Utility and four-wheel drive vehicles arenotdesigned for
cornering at speeds as high as passenger cars any more than
low-slung sports cars are designed to perform satisfactorily under
off-road conditions. Avoid sharp turns or abrupt maneuvers in these
vehicles.
Note:The Control Trac selector knob should not be changed while the
rear wheels are slipping.
Shifting between modes
Shifting from 2H to 4A or 4H
Move the control to the 4A or 4H position at any forward speed up to
55 mph (88 km/h) or at a stop. The message center may display “4X4
SHIFT IN PROGRESS” during the system shift. The RTT location in the
message center will then display “4X4 AUTO” if 4A is selected or “4X4” if
4H is selected.
Shifting from 4A to 4H
Move the control from 4A to 4H at a stop or while driving at any speed.
The RTT location in the message center will display “4X4”.
Shifting to/from 4L
1. Bring the vehicle to a stop.
2. Place the gearshift in N (Neutral).
3. Move the control to the desired position.
The message center will display “4X4 SHIFT IN PROGRESS” during the
shift. The RTT location in the message center will then display the
system mode selected.
If any of the above shift conditions are not met, the shift will not occur
and the RTT location in the message center will display the appropriate
information.
Note:Some noise may be heard as the system shifts or engages.
Driving off-road with truck and utility vehicles
Four–wheel drive vehicles are specially equipped for driving on sand,
snow, mud and rough terrain and have operating characteristics that are
somewhat different from conventional vehicles, both on and off the road.
2007 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
232
