2007 FORD EXPEDITION headlamp

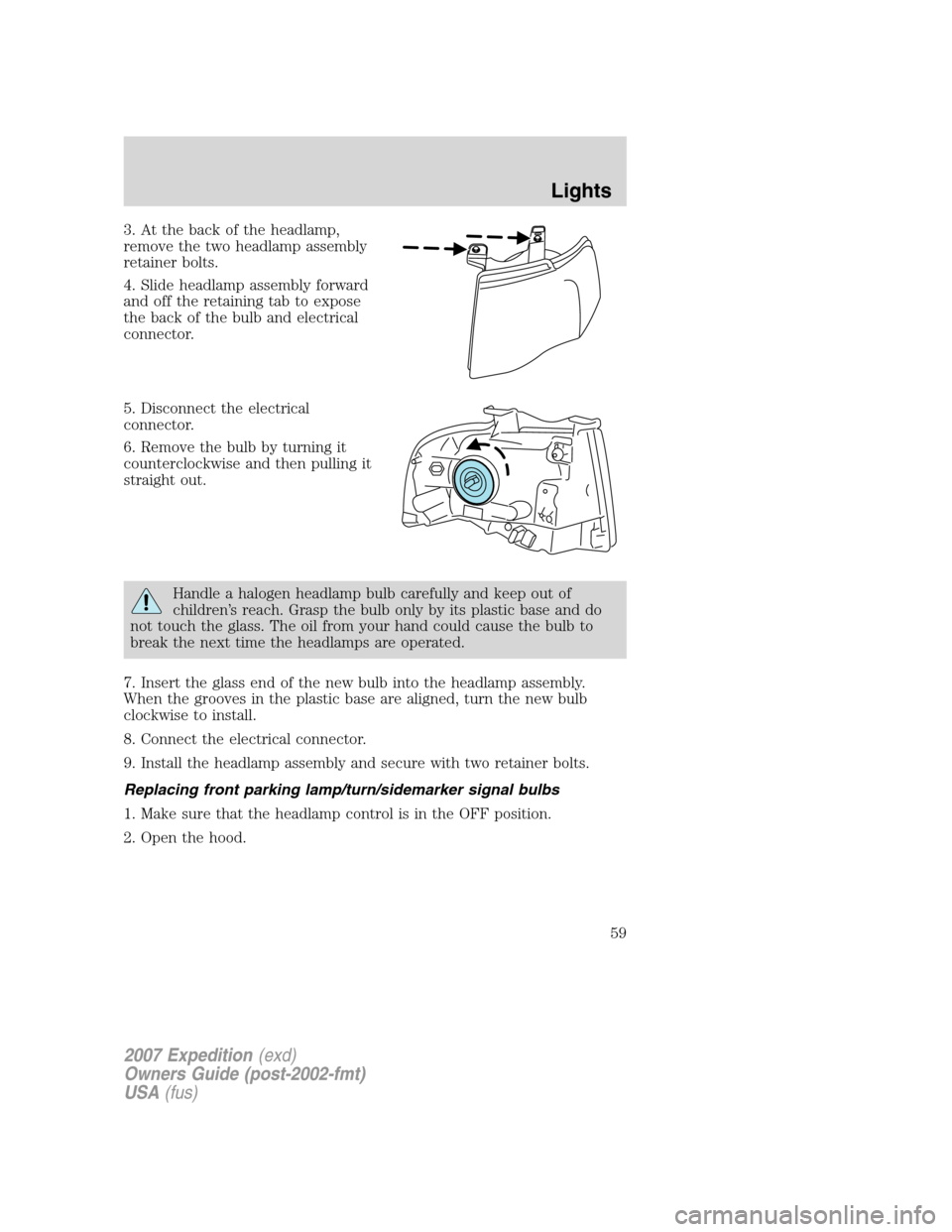

3. At the back of the headlamp,
remove the two headlamp assembly
retainer bolts.
4. Slide headlamp assembly forward
and off the retaining tab to expose
the back of the bulb and electrical
connector.
5. Disconnect the electrical
connector.
6. Remove the bulb by turning it
counterclockwise and then pulling it
straight out.
Handle a halogen headlamp bulb carefully and keep out of
children’s reach. Grasp the bulb only by its plastic base and do
not touch the glass. The oil from your hand could cause the bulb to
break the next time the headlamps are operated.
7. Insert the glass end of the new bulb into the headlamp assembly.
When the grooves in the plastic base are aligned, turn the new bulb
clockwise to install.
8. Connect the electrical connector.
9. Install the headlamp assembly and secure with two retainer bolts.
Replacing front parking lamp/turn/sidemarker signal bulbs
1. Make sure that the headlamp control is in the OFF position.
2. Open the hood.
2007 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
59

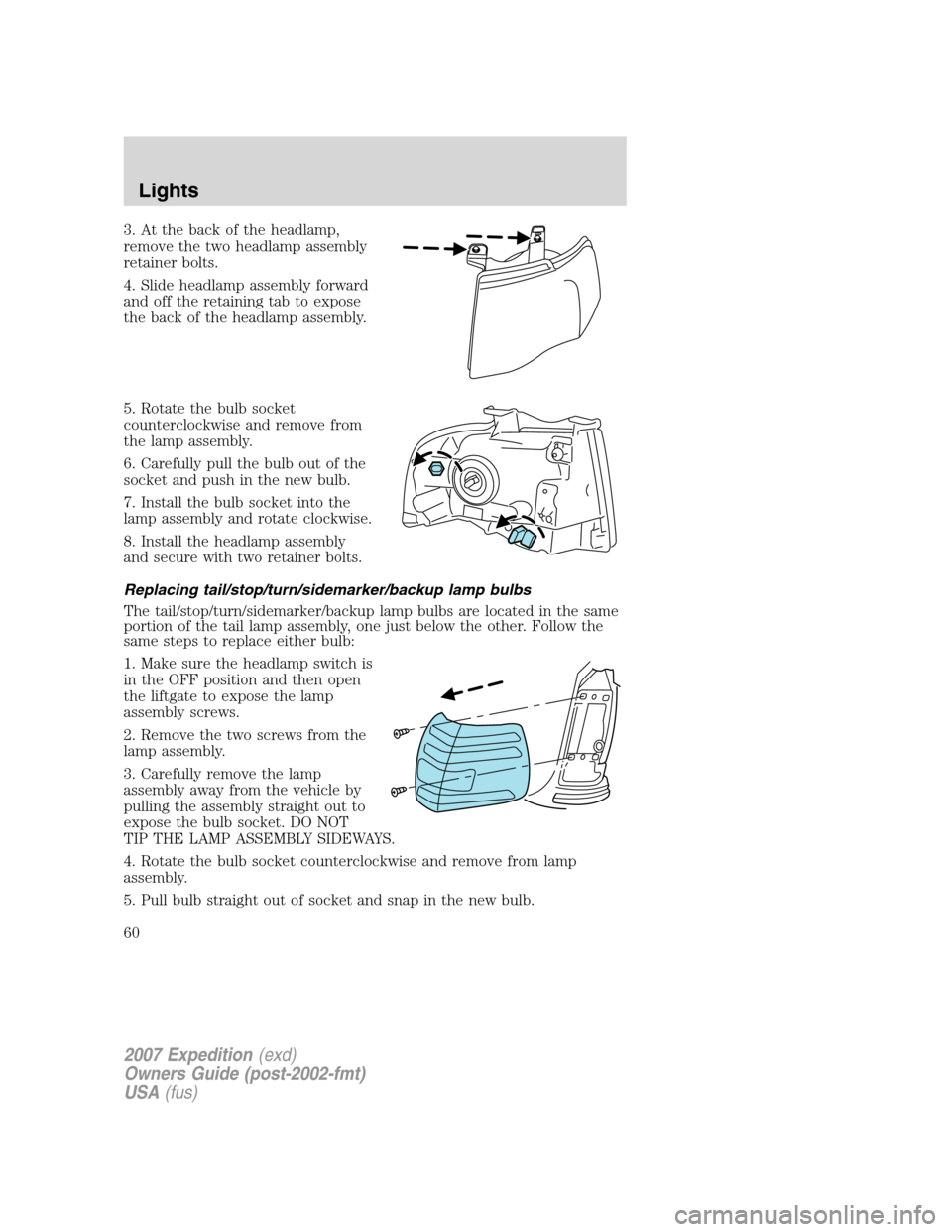

3. At the back of the headlamp,
remove the two headlamp assembly
retainer bolts.
4. Slide headlamp assembly forward
and off the retaining tab to expose
the back of the headlamp assembly.
5. Rotate the bulb socket
counterclockwise and remove from
the lamp assembly.
6. Carefully pull the bulb out of the
socket and push in the new bulb.
7. Install the bulb socket into the
lamp assembly and rotate clockwise.
8. Install the headlamp assembly
and secure with two retainer bolts.
Replacing tail/stop/turn/sidemarker/backup lamp bulbs
The tail/stop/turn/sidemarker/backup lamp bulbs are located in the same
portion of the tail lamp assembly, one just below the other. Follow the
same steps to replace either bulb:
1. Make sure the headlamp switch is
in the OFF position and then open
the liftgate to expose the lamp
assembly screws.
2. Remove the two screws from the
lamp assembly.
3. Carefully remove the lamp
assembly away from the vehicle by
pulling the assembly straight out to
expose the bulb socket. DO NOT
TIP THE LAMP ASSEMBLY SIDEWAYS.
4. Rotate the bulb socket counterclockwise and remove from lamp
assembly.
5. Pull bulb straight out of socket and snap in the new bulb.
2007 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
60

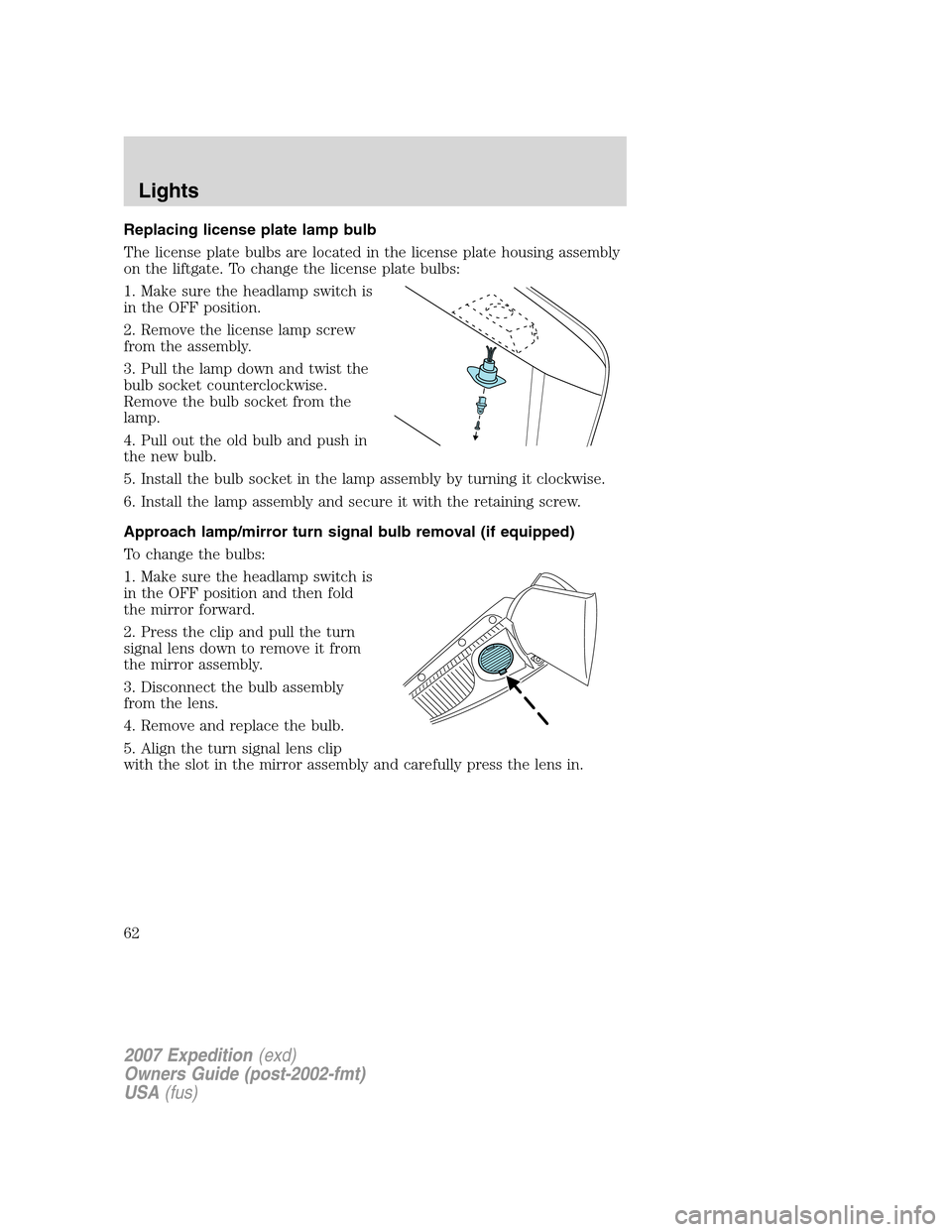

Replacing license plate lamp bulb
The license plate bulbs are located in the license plate housing assembly
on the liftgate. To change the license plate bulbs:
1. Make sure the headlamp switch is
in the OFF position.
2. Remove the license lamp screw
from the assembly.
3. Pull the lamp down and twist the
bulb socket counterclockwise.
Remove the bulb socket from the
lamp.
4. Pull out the old bulb and push in
the new bulb.
5. Install the bulb socket in the lamp assembly by turning it clockwise.
6. Install the lamp assembly and secure it with the retaining screw.
Approach lamp/mirror turn signal bulb removal (if equipped)
To change the bulbs:
1. Make sure the headlamp switch is
in the OFF position and then fold
the mirror forward.
2. Press the clip and pull the turn
signal lens down to remove it from
the mirror assembly.
3. Disconnect the bulb assembly
from the lens.
4. Remove and replace the bulb.
5. Align the turn signal lens clip
with the slot in the mirror assembly and carefully press the lens in.
2007 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
62

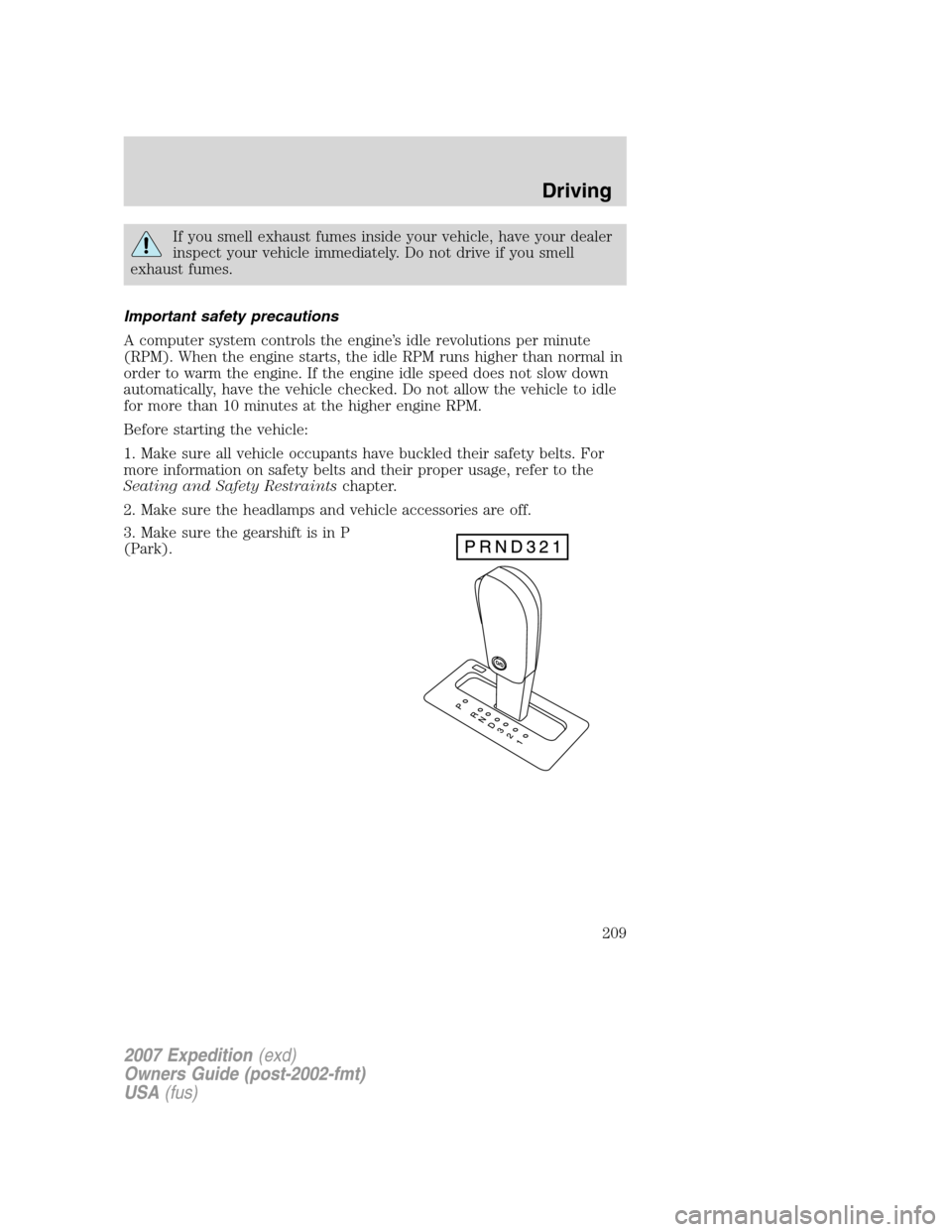

If you smell exhaust fumes inside your vehicle, have your dealer
inspect your vehicle immediately. Do not drive if you smell
exhaust fumes.
Important safety precautions
A computer system controls the engine’s idle revolutions per minute
(RPM). When the engine starts, the idle RPM runs higher than normal in
order to warm the engine. If the engine idle speed does not slow down
automatically, have the vehicle checked. Do not allow the vehicle to idle
for more than 10 minutes at the higher engine RPM.
Before starting the vehicle:
1. Make sure all vehicle occupants have buckled their safety belts. For
more information on safety belts and their proper usage, refer to the
Seating and Safety Restraintschapter.
2. Make sure the headlamps and vehicle accessories are off.
3. Make sure the gearshift is in P
(Park).
2007 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
209

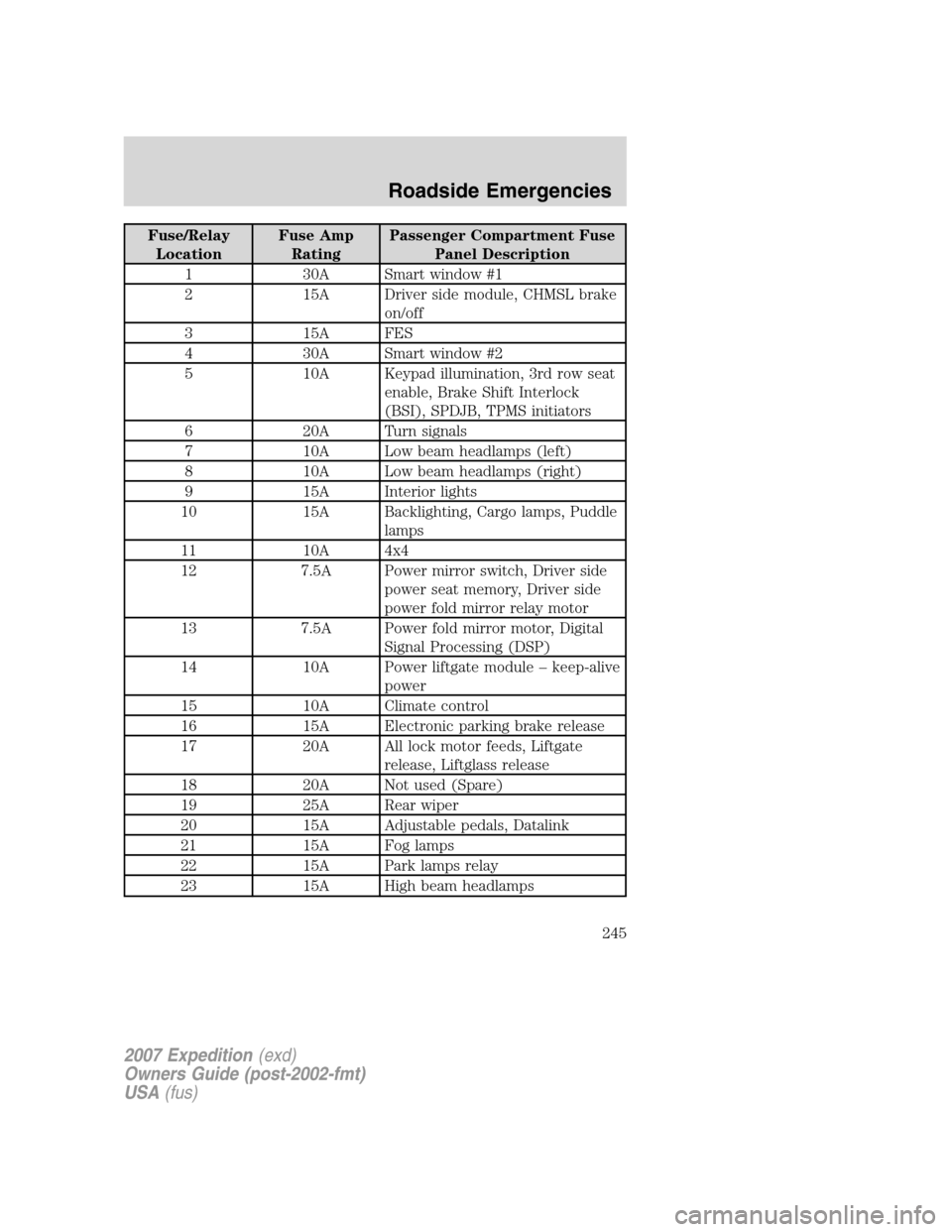

Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse
Panel Description
1 30A Smart window #1
2 15A Driver side module, CHMSL brake
on/off
3 15A FES
4 30A Smart window #2
5 10A Keypad illumination, 3rd row seat
enable, Brake Shift Interlock
(BSI), SPDJB, TPMS initiators
6 20A Turn signals
7 10A Low beam headlamps (left)
8 10A Low beam headlamps (right)
9 15A Interior lights
10 15A Backlighting, Cargo lamps, Puddle
lamps
11 10A 4x4
12 7.5A Power mirror switch, Driver side
power seat memory, Driver side
power fold mirror relay motor
13 7.5A Power fold mirror motor, Digital
Signal Processing (DSP)
14 10A Power liftgate module – keep-alive
power
15 10A Climate control
16 15A Electronic parking brake release
17 20A All lock motor feeds, Liftgate
release, Liftglass release
18 20A Not used (Spare)
19 25A Rear wiper
20 15A Adjustable pedals, Datalink
21 15A Fog lamps
22 15A Park lamps relay
23 15A High beam headlamps
2007 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
245

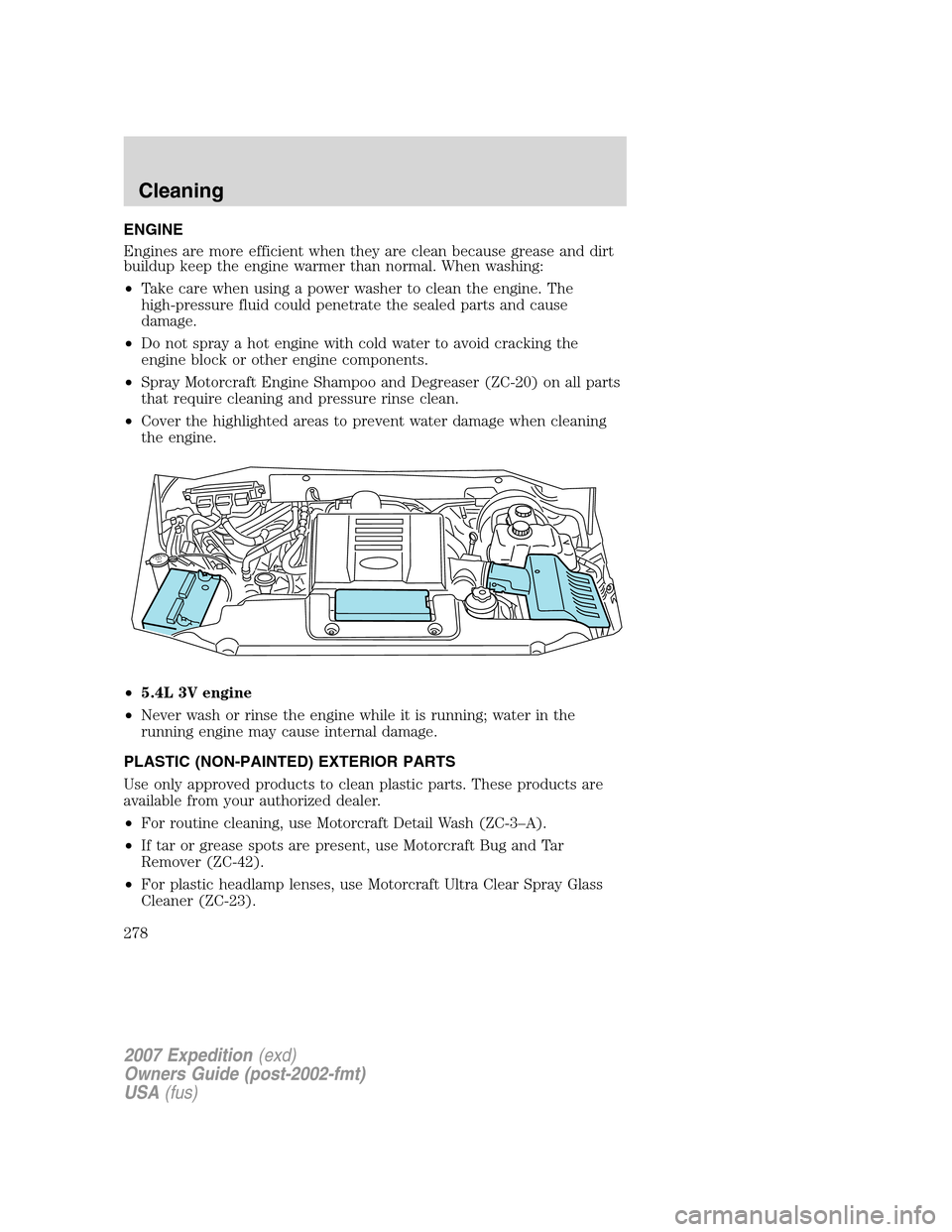

ENGINE
Engines are more efficient when they are clean because grease and dirt
buildup keep the engine warmer than normal. When washing:
•Take care when using a power washer to clean the engine. The
high-pressure fluid could penetrate the sealed parts and cause
damage.
•Do not spray a hot engine with cold water to avoid cracking the
engine block or other engine components.
•Spray Motorcraft Engine Shampoo and Degreaser (ZC-20) on all parts
that require cleaning and pressure rinse clean.
•Cover the highlighted areas to prevent water damage when cleaning
the engine.
•5.4L 3V engine
•Never wash or rinse the engine while it is running; water in the
running engine may cause internal damage.
PLASTIC (NON-PAINTED) EXTERIOR PARTS
Use only approved products to clean plastic parts. These products are
available from your authorized dealer.
•For routine cleaning, use Motorcraft Detail Wash (ZC-3–A).
•If tar or grease spots are present, use Motorcraft Bug and Tar
Remover (ZC-42).
•For plastic headlamp lenses, use Motorcraft Ultra Clear Spray Glass
Cleaner (ZC-23).
2007 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Cleaning
278

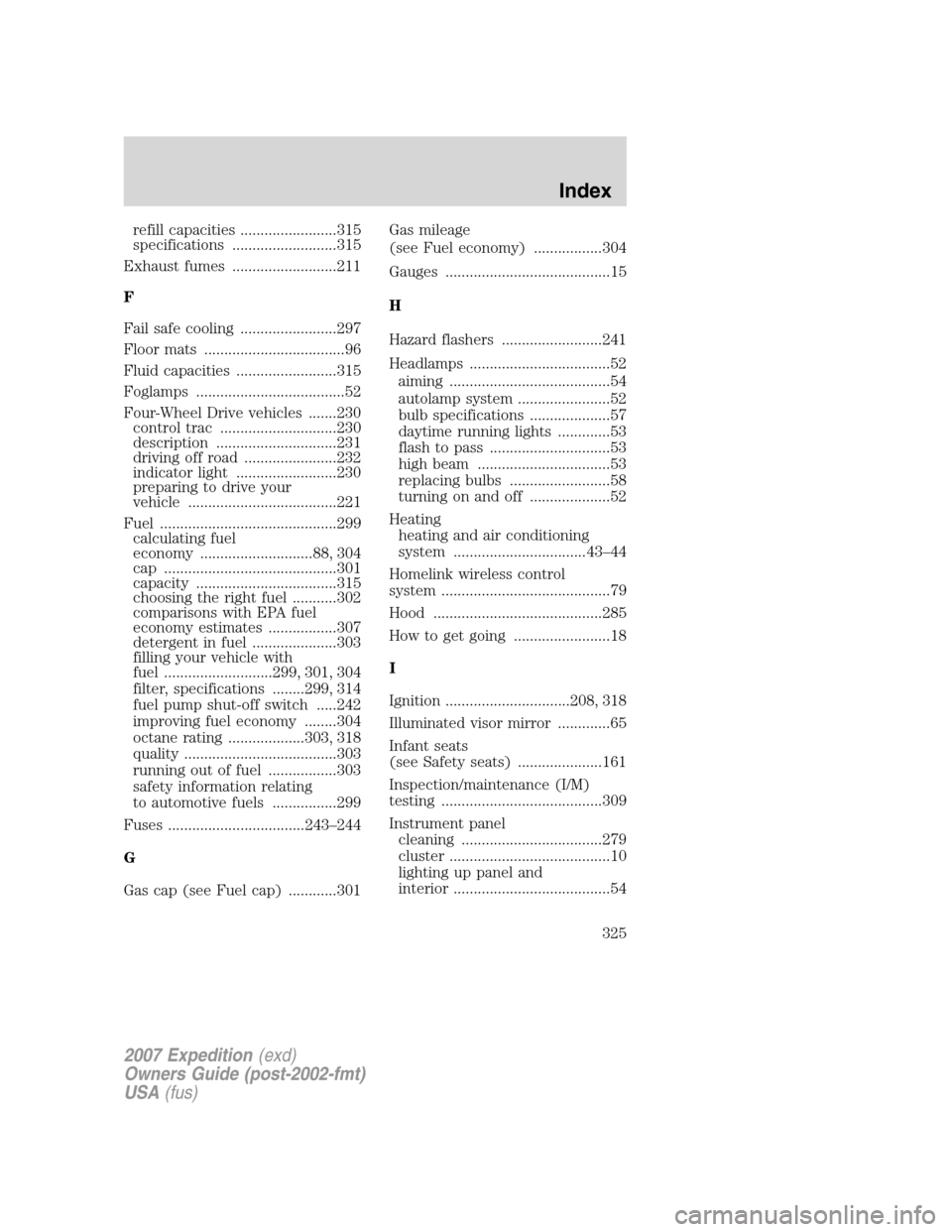

refill capacities ........................315
specifications ..........................315
Exhaust fumes ..........................211
F
Fail safe cooling ........................297
Floor mats ...................................96
Fluid capacities .........................315
Foglamps .....................................52
Four-Wheel Drive vehicles .......230
control trac .............................230
description ..............................231
driving off road .......................232
indicator light .........................230
preparing to drive your
vehicle .....................................221
Fuel ............................................299
calculating fuel
economy ............................88, 304
cap ...........................................301
capacity ...................................315
choosing the right fuel ...........302
comparisons with EPA fuel
economy estimates .................307
detergent in fuel .....................303
filling your vehicle with
fuel ...........................299, 301, 304
filter, specifications ........299, 314
fuel pump shut-off switch .....242
improving fuel economy ........304
octane rating ...................303, 318
quality ......................................303
running out of fuel .................303
safety information relating
to automotive fuels ................299
Fuses ..................................243–244
G
Gas cap (see Fuel cap) ............301Gas mileage
(see Fuel economy) .................304
Gauges .........................................15
H
Hazard flashers .........................241
Headlamps ...................................52
aiming ........................................54
autolamp system .......................52
bulb specifications ....................57
daytime running lights .............53
flash to pass ..............................53
high beam .................................53
replacing bulbs .........................58
turning on and off ....................52
Heating
heating and air conditioning
system .................................43–44
Homelink wireless control
system ..........................................79
Hood ..........................................285
How to get going ........................18
I
Ignition ...............................208, 318
Illuminated visor mirror .............65
Infant seats
(see Safety seats) .....................161
Inspection/maintenance (I/M)
testing ........................................309
Instrument panel
cleaning ...................................279
cluster ........................................10
lighting up panel and
interior .......................................54
2007 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Index
325

J
Jack ............................................250
positioning ...............................250
storage .....................................250
Jump-starting your vehicle ......259
K
Keyless entry system
autolock ...........................104, 106
keypad .....................................113
locking and unlocking doors ..114
programming entry code .......113
Keys ...................................114–116
positions of the ignition .........208
L
Lamps
autolamp system .......................52
bulb replacement
specifications chart ..................57
daytime running light ...............53
fog lamps ...................................52
headlamps .................................52
headlamps, flash to pass ..........53
instrument panel, dimming .....54
interior lamps .....................56, 58
replacing bulbs ...................58, 61
Lane change indicator
(see Turn signal) ........................55
Liftgate ........................97, 100, 109
Lights, warning and indicator ....10
anti-lock brakes (ABS) ..........213
Limited-slip axle .......................221
Load limits .................................193
Loading instructions .................199Locks
autolock ...........................104, 106
childproof ................................108
doors ........................................104
Lubricant specifications ...........315
Lug nuts ....................................259
Lumbar support, seats .....120–121
M
Message center ...........................85
english/metric button ...............92
system check button ................92
warning messages .....................92
Mirrors .........................................71
automatic dimming rearview
mirror ........................................71
fold away ...................................72
heated ..................................72–73
programmable memory ..........110
signal .........................................73
Moon roof ....................................78
Motorcraft parts ........282, 299, 314
N
Navigation system .......................42
O
Octane rating ............................303
Oil (see Engine oil) ..................288
P
Panic alarm feature, remote
entry system ..............................110
Parking brake ............................214
Parts (see Motorcraft parts) ....314
2007 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Index
326
