2007 FORD CROWN VICTORIA Owners Manual

Item Capacity Ford part nameFord part number /
Ford specification
Power steering fluidFill to line on
reservoirMotorcraft MERCON
V
AT FXT-5-QM /
MERCON
V
Automatic transmission
fluid (4R75E)13.9 quarts
(13.2L)
3
Motorcraft MERCON
V
AT F
4
XT-5-QM /
MERCON
V
Rear axle fluid
5
5.0 pints (2.4L)
6,7
Motorcraft SAE 80W-90
Premium Rear Axle
LubricantXY-80W90-QL /
WSP-M2C197-A
Rear axle fluid (Police)
5
Motorcraft SAE 75W-140
Synthetic Rear Axle
LubricantXY-75W140- QL /
WSL-M2C192-A
Windshield washer fluidFill to line on
reservoirMotorcraft Premium
Windshield Washer
ConcentrateZC-32-A /
WSB-M8B16-A2
Fuel tank19.0 gallons
(71.9L)——
1Add the coolant type originally equipped in your vehicle.2Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C930-A and the API Certification mark.3Indicates only approximate dry-fill capacity. Some applications may vary based on cooler size and
if equipped with an in-tank cooler. The amount of transmission fluid and fluid level should be set
by the indication on the dipstick’s normal operating range. Police or Handling Package refill
capacity- 12.8 quarts (12.1L).
2007 Crown Victoria(cro)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
257

4Automatic transmissions that require MERCON
V should only use MERCON
V fluid or fluid that
is specified dual usage MERCON
/MERCON
V. Refer toscheduled maintenance informationto
determine the correct service interval. Use of any fluid other than the recommended fluid may
cause transmission damage.5Rear axles are considered lubricated for life when the vehicle is used for normal service. For
severe duty requirements, seeExceptions and / or Special Operating Conditionsinscheduled
maintenance information.6Service refill capacities are determined by filling the rear axle 1/4 inch to 9/16 inch (6 mm to 14
mm) below the bottom of the filler hole.7Add 4 oz. (118 ml) of Additive Friction Modifier XL-3 or equivalent meeting Ford specification
EST-M2C118-A for complete refill of Traction-Lok rear axles.
2007 Crown Victoria(cro)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
258

ENGINE DATA
Engine 4.6L V8 engine 4.6L FFV V8 engine
Cubic inches 281 281
Required fuel 87 octane 87 octane or Ethanol
(E 85)
Firing order 1-3-7-2-6-5-4-8 1-3-7-2-6-5-4-8
Ignition system Coil on plug Coil on plug
Spark plug gap 0.052–0.056 inch
(1.32–1.42 mm)0.041–0.047 inch
(1.04–1.20 mm)
Compression ratio 9.4:1 9.4:1
Engine drivebelt routing
•4.6L V8 Engine
2007 Crown Victoria(cro)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
259

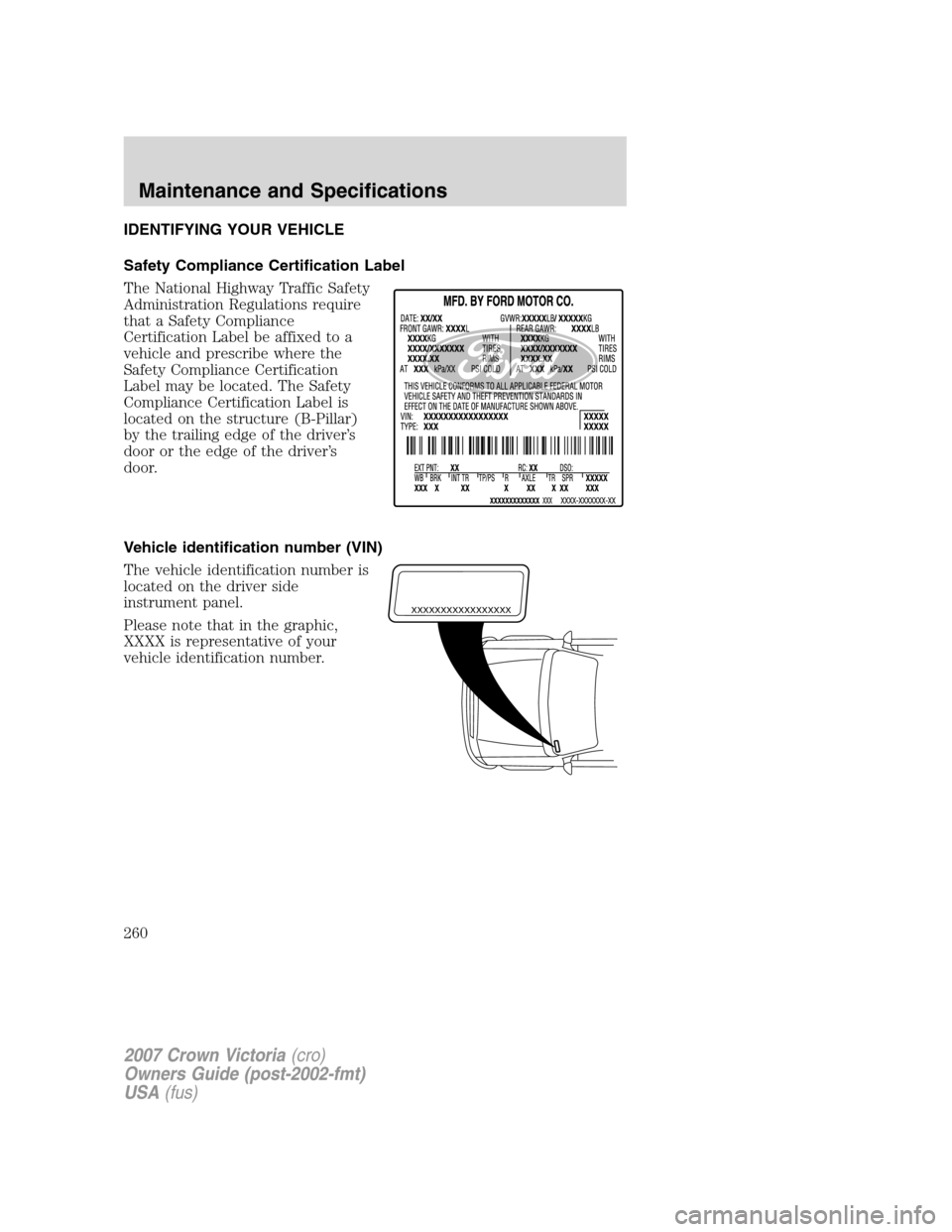

IDENTIFYING YOUR VEHICLE
Safety Compliance Certification Label
The National Highway Traffic Safety
Administration Regulations require
that a Safety Compliance
Certification Label be affixed to a
vehicle and prescribe where the
Safety Compliance Certification
Label may be located. The Safety
Compliance Certification Label is
located on the structure (B-Pillar)
by the trailing edge of the driver’s
door or the edge of the driver’s
door.
Vehicle identification number (VIN)
The vehicle identification number is
located on the driver side
instrument panel.
Please note that in the graphic,
XXXX is representative of your
vehicle identification number.
XXXXXXXXXXXXXXXXX
2007 Crown Victoria(cro)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
260

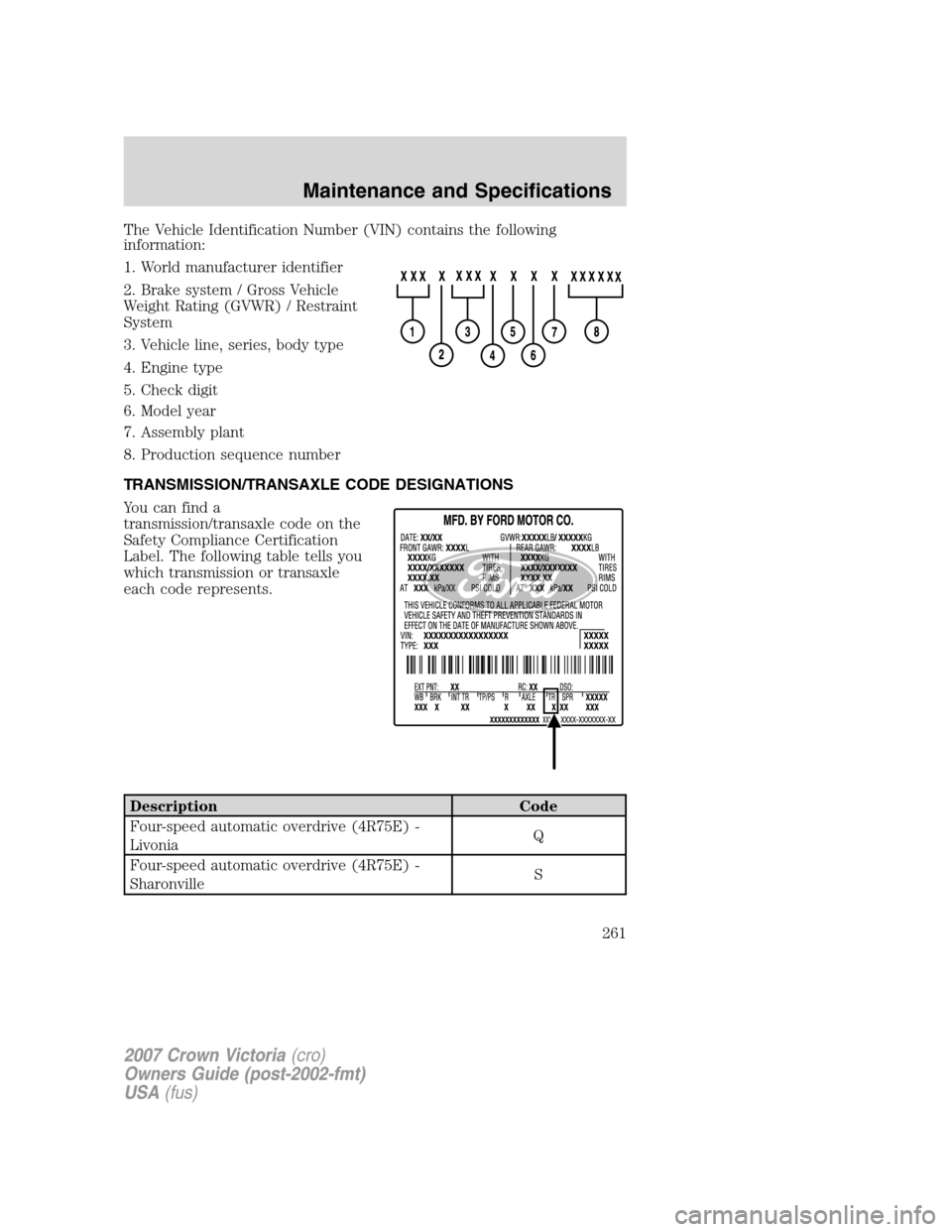

The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
System
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
TRANSMISSION/TRANSAXLE CODE DESIGNATIONS
You can find a
transmission/transaxle code on the
Safety Compliance Certification
Label. The following table tells you
which transmission or transaxle
each code represents.
Description Code
Four-speed automatic overdrive (4R75E) -
LivoniaQ
Four-speed automatic overdrive (4R75E) -
SharonvilleS
2007 Crown Victoria(cro)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
261

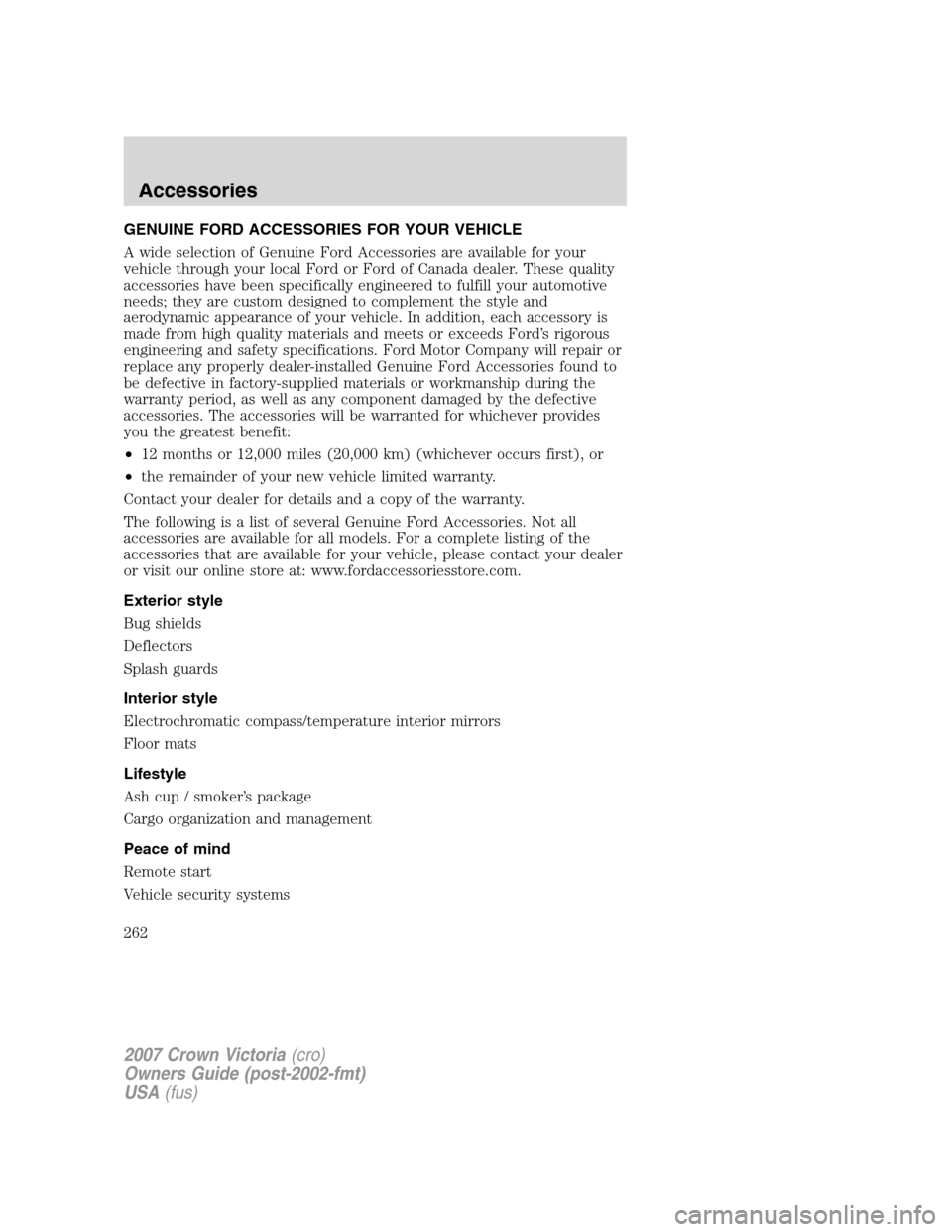

GENUINE FORD ACCESSORIES FOR YOUR VEHICLE
A wide selection of Genuine Ford Accessories are available for your
vehicle through your local Ford or Ford of Canada dealer. These quality
accessories have been specifically engineered to fulfill your automotive
needs; they are custom designed to complement the style and
aerodynamic appearance of your vehicle. In addition, each accessory is
made from high quality materials and meets or exceeds Ford’s rigorous
engineering and safety specifications. Ford Motor Company will repair or
replace any properly dealer-installed Genuine Ford Accessories found to
be defective in factory-supplied materials or workmanship during the
warranty period, as well as any component damaged by the defective
accessories. The accessories will be warranted for whichever provides
you the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
Contact your dealer for details and a copy of the warranty.
The following is a list of several Genuine Ford Accessories. Not all
accessories are available for all models. For a complete listing of the
accessories that are available for your vehicle, please contact your dealer
or visit our online store at: www.fordaccessoriesstore.com.
Exterior style
Bug shields
Deflectors
Splash guards
Interior style
Electrochromatic compass/temperature interior mirrors
Floor mats
Lifestyle
Ash cup / smoker’s package
Cargo organization and management
Peace of mind
Remote start
Vehicle security systems
2007 Crown Victoria(cro)
Owners Guide (post-2002-fmt)
USA(fus)
Accessories
262

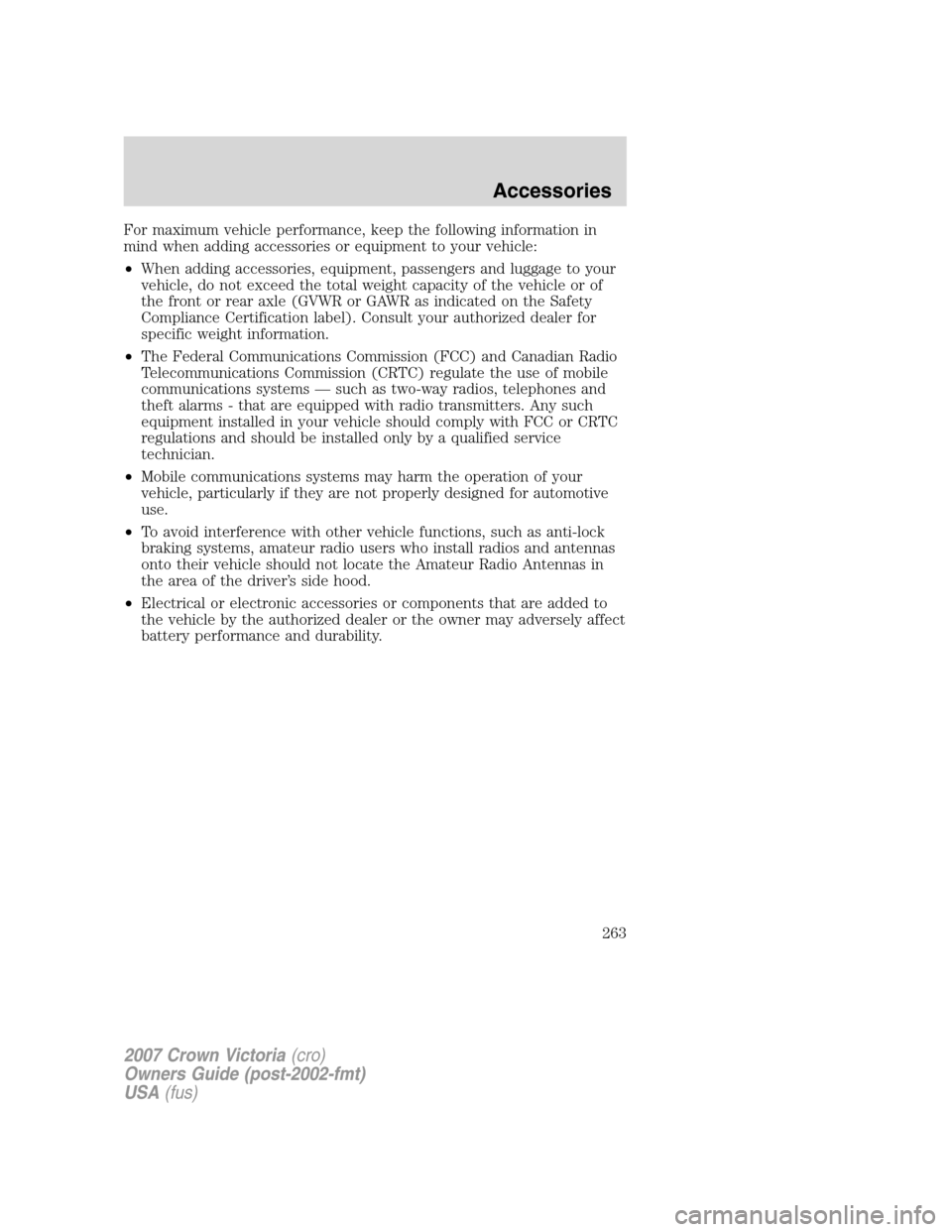

For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
•When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
Compliance Certification label). Consult your authorized dealer for
specific weight information.
•The Federal Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulate the use of mobile
communications systems — such as two-way radios, telephones and
theft alarms - that are equipped with radio transmitters. Any such
equipment installed in your vehicle should comply with FCC or CRTC
regulations and should be installed only by a qualified service
technician.
•Mobile communications systems may harm the operation of your
vehicle, particularly if they are not properly designed for automotive
use.
•To avoid interference with other vehicle functions, such as anti-lock
braking systems, amateur radio users who install radios and antennas
onto their vehicle should not locate the Amateur Radio Antennas in
the area of the driver’s side hood.
•Electrical or electronic accessories or components that are added to
the vehicle by the authorized dealer or the owner may adversely affect
battery performance and durability.
2007 Crown Victoria(cro)
Owners Guide (post-2002-fmt)
USA(fus)
Accessories
263

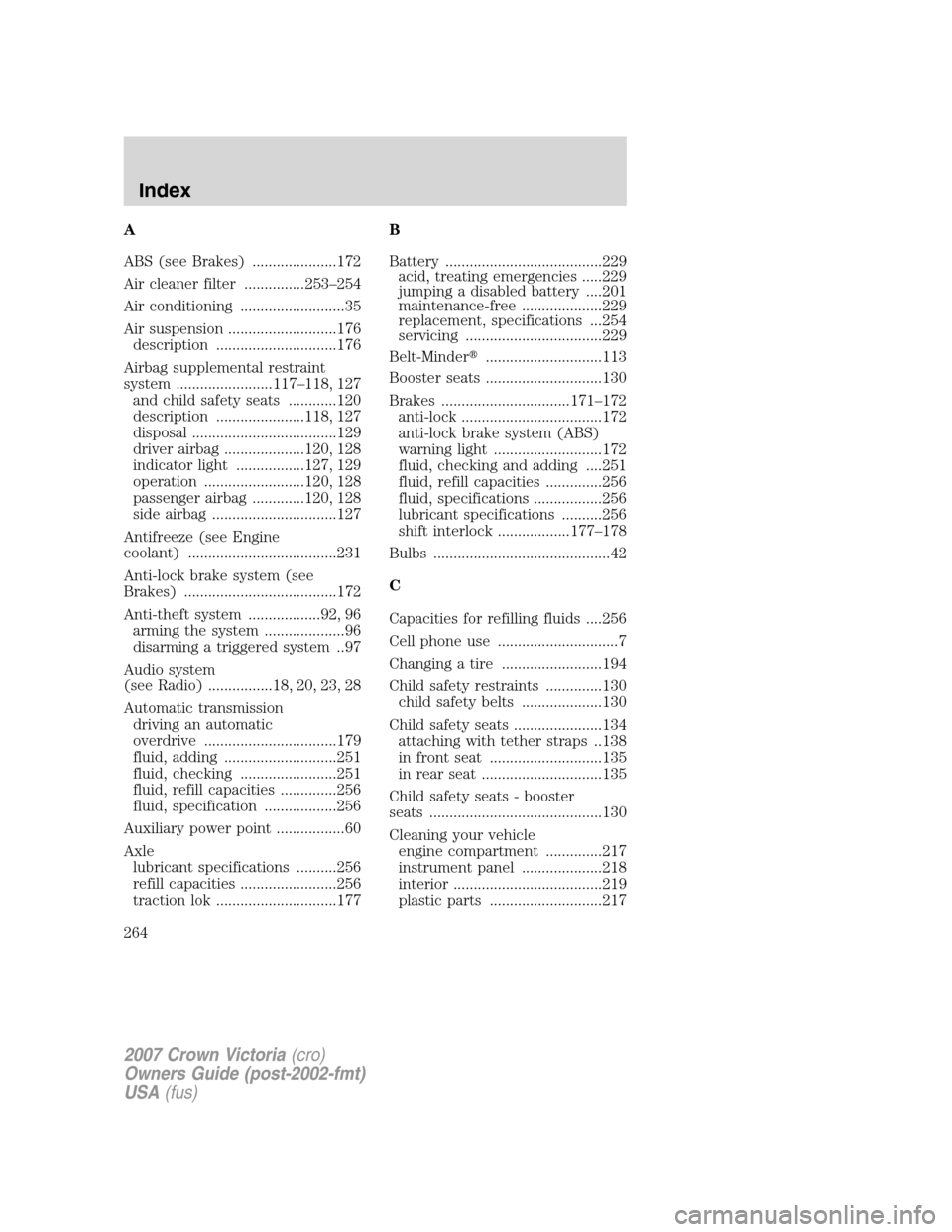

A
ABS (see Brakes) .....................172
Air cleaner filter ...............253–254
Air conditioning ..........................35
Air suspension ...........................176
description ..............................176
Airbag supplemental restraint
system ........................117–118, 127
and child safety seats ............120
description ......................118, 127
disposal ....................................129
driver airbag ....................120, 128
indicator light .................127, 129
operation .........................120, 128
passenger airbag .............120, 128
side airbag ...............................127
Antifreeze (see Engine
coolant) .....................................231
Anti-lock brake system (see
Brakes) ......................................172
Anti-theft system ..................92, 96
arming the system ....................96
disarming a triggered system ..97
Audio system
(see Radio) ................18, 20, 23, 28
Automatic transmission
driving an automatic
overdrive .................................179
fluid, adding ............................251
fluid, checking ........................251
fluid, refill capacities ..............256
fluid, specification ..................256
Auxiliary power point .................60
Axle
lubricant specifications ..........256
refill capacities ........................256
traction lok ..............................177B
Battery .......................................229
acid, treating emergencies .....229
jumping a disabled battery ....201
maintenance-free ....................229
replacement, specifications ...254
servicing ..................................229
Belt-Minder.............................113
Booster seats .............................130
Brakes ................................171–172
anti-lock ...................................172
anti-lock brake system (ABS)
warning light ...........................172
fluid, checking and adding ....251
fluid, refill capacities ..............256
fluid, specifications .................256
lubricant specifications ..........256
shift interlock ..................177–178
Bulbs ............................................42
C
Capacities for refilling fluids ....256
Cell phone use ..............................7
Changing a tire .........................194
Child safety restraints ..............130
child safety belts ....................130
Child safety seats ......................134
attaching with tether straps ..138
in front seat ............................135
in rear seat ..............................135
Child safety seats - booster
seats ...........................................130
Cleaning your vehicle
engine compartment ..............217
instrument panel ....................218
interior .....................................219
plastic parts ............................217
2007 Crown Victoria(cro)
Owners Guide (post-2002-fmt)
USA(fus)
Index
264
