Page 34 of 266

33

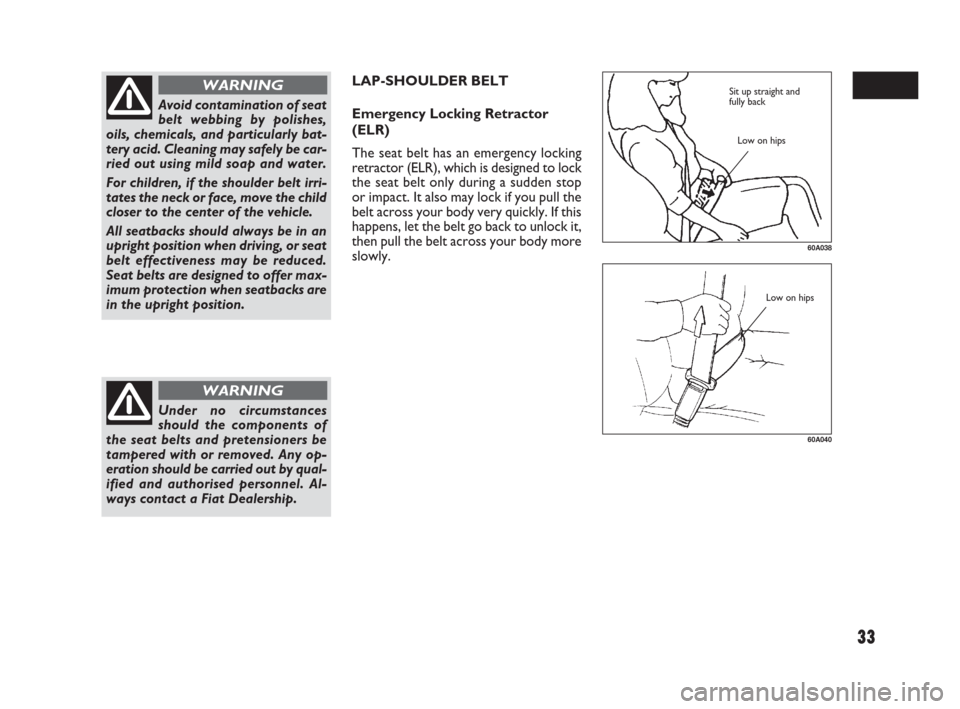

LAP-SHOULDER BELT
Emergency Locking Retractor
(ELR)
The seat belt has an emergency locking
retractor (ELR), which is designed to lock
the seat belt only during a sudden stop
or impact. It also may lock if you pull the
belt across your body very quickly. If this
happens, let the belt go back to unlock it,
then pull the belt across your body more
slowly.
Avoid contamination of seat
belt webbing by polishes,
oils, chemicals, and particularly bat-
tery acid. Cleaning may safely be car-
ried out using mild soap and water.
For children, if the shoulder belt irri-
tates the neck or face, move the child
closer to the center of the vehicle.
All seatbacks should always be in an
upright position when driving, or seat
belt effectiveness may be reduced.
Seat belts are designed to offer max-
imum protection when seatbacks are
in the upright position.
WARNING
60A038
Sit up straight and
fully back
Low on hips
60A040
Low on hips
Under no circumstances
should the components of
the seat belts and pretensioners be
tampered with or removed. Any op-
eration should be carried out by qual-
ified and authorised personnel. Al-
ways contact a Fiat Dealership.
WARNING
009-056 Fiat16 New GB 27-11-2007 11:25 Pagina 33
Page 36 of 266

35
DRIVER’S SEAT BELT
REMINDER
When the driver doesn’t buckle his or her
seat belt, the driver’s seat belt reminder
light in the instrument cluster will come
on and a buzzer will sound as a reminder
to the driver to buckle his or her seat belt.
For more details, refer to the explanation
below.
If the driver’s seat belt remains unbuckled
when the ignition switch is turned to the
“ON” position, the reminder works as fol-
lows:
1) The driver’s seat belt reminder light will
come on.
2) After the vehicle’s speed has reached
about 15 km/ h, the driver’s seat belt
reminder light will blink and a buzzer
will sound for about 95 seconds.3) After step 2) has finished, the reminder
light will remain on until the driver’s
seat belt is buckled.
If the driver has buckled his or her seat
belt and later unbuckles the seat belt, the
reminder system will be activated from
step 1) or step 2) according to the vehi-
cle’s speed. When the vehicle’s speed is
below about 15 km/h, the reminder will
start from step 1). When the vehicle’s
speed is above about 15 km/h, the re-
minder will start from step 2).
The reminder will be automatically can-
celed when the driver’s seat belt is buck-
led or the ignition switch is turned off. To unfasten the belt, push the red
“PRESS” button on the buckle and allow
the belt to retract.
60A03979J187
It is absolutely essential that
the driver and passengers
wear their seat belts at all times. Per-
sons who are not wearing seat belts
have a much greater risk of injury if
an accident occurs. Make a regular
habit of buckling your seat belt before
putting the key in the ignition.
WARNING
009-056 Fiat16 New GB 27-11-2007 11:25 Pagina 35
Page 37 of 266
36

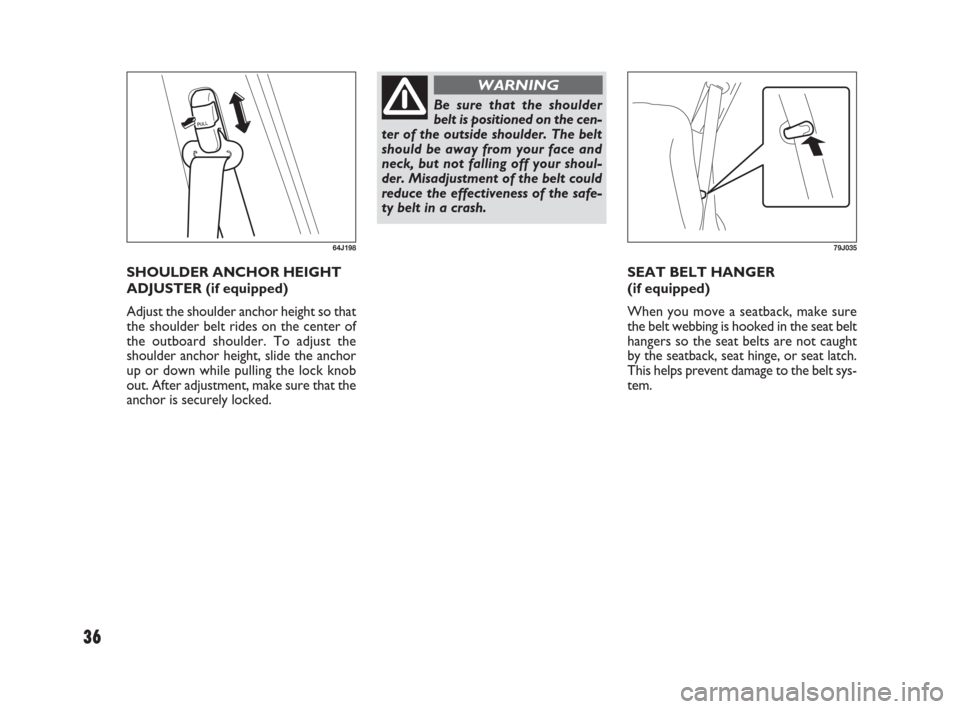

SEAT BELT HANGER
(if equipped)
When you move a seatback, make sure
the belt webbing is hooked in the seat belt
hangers so the seat belts are not caught
by the seatback, seat hinge, or seat latch.
This helps prevent damage to the belt sys-
tem. SHOULDER ANCHOR HEIGHT
ADJUSTER (if equipped)
Adjust the shoulder anchor height so that
the shoulder belt rides on the center of
the outboard shoulder. To adjust the
shoulder anchor height, slide the anchor
up or down while pulling the lock knob
out. After adjustment, make sure that the
anchor is securely locked.
64J198
Be sure that the shoulder
belt is positioned on the cen-
ter of the outside shoulder. The belt
should be away from your face and
neck, but not falling off your shoul-
der. Misadjustment of the belt could
reduce the effectiveness of the safe-
ty belt in a crash.
WARNING
79J035
009-056 Fiat16 New GB 27-11-2007 11:25 Pagina 36
Page 38 of 266

37

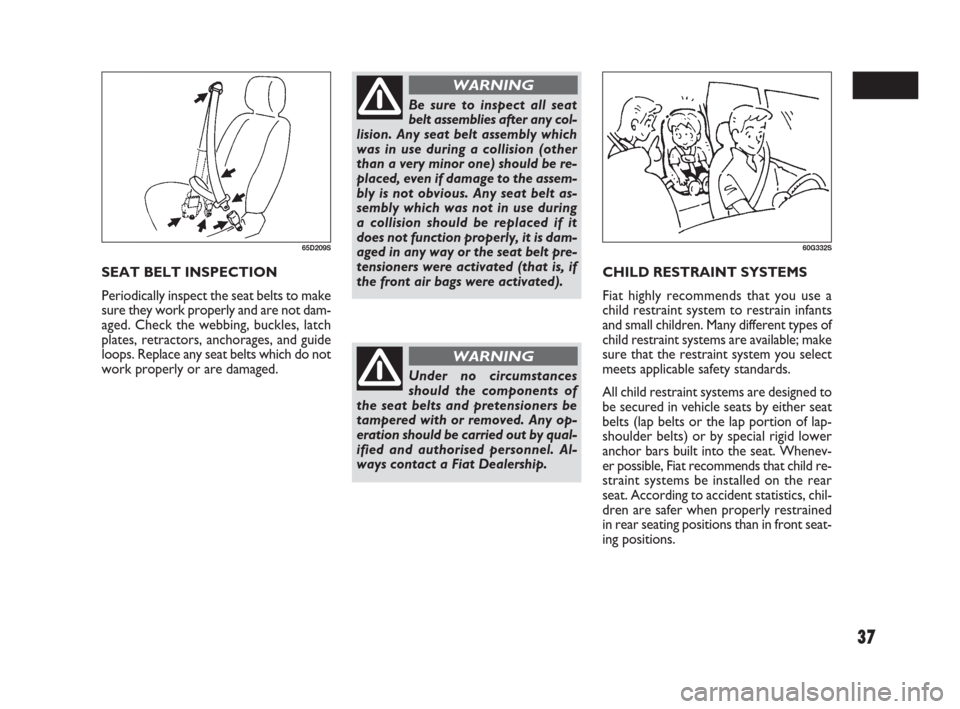

CHILD RESTRAINT SYSTEMS
Fiat highly recommends that you use a
child restraint system to restrain infants
and small children. Many different types of
child restraint systems are available; make
sure that the restraint system you select
meets applicable safety standards.
All child restraint systems are designed to
be secured in vehicle seats by either seat
belts (lap belts or the lap portion of lap-
shoulder belts) or by special rigid lower
anchor bars built into the seat. Whenev-
er possible, Fiat recommends that child re-
straint systems be installed on the rear
seat. According to accident statistics, chil-
dren are safer when properly restrained
in rear seating positions than in front seat-
ing positions. SEAT BELT INSPECTION
Periodically inspect the seat belts to make
sure they work properly and are not dam-
aged. Check the webbing, buckles, latch
plates, retractors, anchorages, and guide
loops. Replace any seat belts which do not
work properly or are damaged.
65D209S
Be sure to inspect all seat
belt assemblies after any col-
lision. Any seat belt assembly which
was in use during a collision (other
than a very minor one) should be re-
placed, even if damage to the assem-
bly is not obvious. Any seat belt as-
sembly which was not in use during
a collision should be replaced if it
does not function properly, it is dam-
aged in any way or the seat belt pre-
tensioners were activated (that is, if
the front air bags were activated).
WARNING
60G332S
Under no circumstances
should the components of
the seat belts and pretensioners be
tampered with or removed. Any op-
eration should be carried out by qual-
ified and authorised personnel. Al-
ways contact a Fiat Dealership.
WARNING
009-056 Fiat16 New GB 27-11-2007 11:25 Pagina 37
Page 39 of 266

38

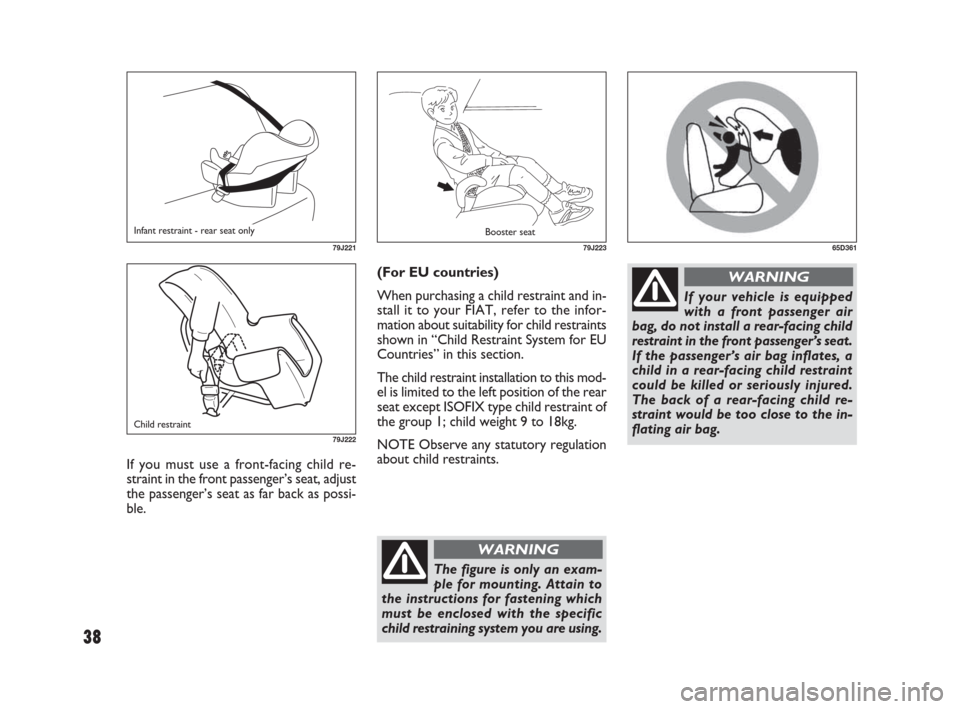

(For EU countries)
When purchasing a child restraint and in-
stall it to your FIAT, refer to the infor-
mation about suitability for child restraints
shown in “Child Restraint System for EU
Countries” in this section.
The child restraint installation to this mod-
el is limited to the left position of the rear
seat except ISOFIX type child restraint of
the group 1; child weight 9 to 18kg.
NOTE Observe any statutory regulation
about child restraints.
If you must use a front-facing child re-
straint in the front passenger’s seat, adjust
the passenger’s seat as far back as possi-
ble.
79J221
79J222
79J223
Infant restraint - rear seat only
Child restraintBooster seat
If your vehicle is equipped
with a front passenger air
bag, do not install a rear-facing child
restraint in the front passenger’s seat.
If the passenger’s air bag inflates, a
child in a rear-facing child restraint
could be killed or seriously injured.
The back of a rear-facing child re-
straint would be too close to the in-
flating air bag.
WARNING
65D361
The figure is only an exam-
ple for mounting. Attain to
the instructions for fastening which
must be enclosed with the specific
child restraining system you are using.
WARNING
009-056 Fiat16 New GB 27-11-2007 11:25 Pagina 38
Page 40 of 266

39

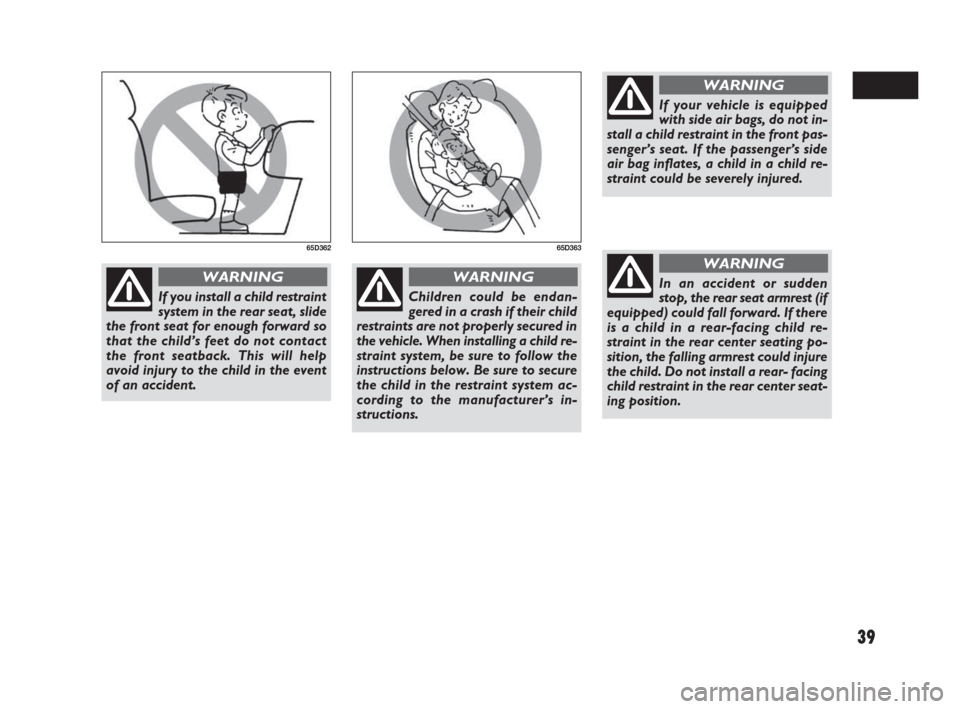

If you install a child restraint
system in the rear seat, slide
the front seat for enough forward so
that the child’s feet do not contact
the front seatback. This will help
avoid injury to the child in the event
of an accident.
WARNING
Children could be endan-
gered in a crash if their child
restraints are not properly secured in
the vehicle. When installing a child re-
straint system, be sure to follow the
instructions below. Be sure to secure
the child in the restraint system ac-
cording to the manufacturer’s in-
structions.
WARNING
65D36265D363
If your vehicle is equipped
with side air bags, do not in-
stall a child restraint in the front pas-
senger’s seat. If the passenger’s side
air bag inflates, a child in a child re-
straint could be severely injured.
WARNING
In an accident or sudden
stop, the rear seat armrest (if
equipped) could fall forward. If there
is a child in a rear-facing child re-
straint in the rear center seating po-
sition, the falling armrest could injure
the child. Do not install a rear- facing
child restraint in the rear center seat-
ing position.
WARNING
009-056 Fiat16 New GB 27-11-2007 11:25 Pagina 39
Page 43 of 266

42

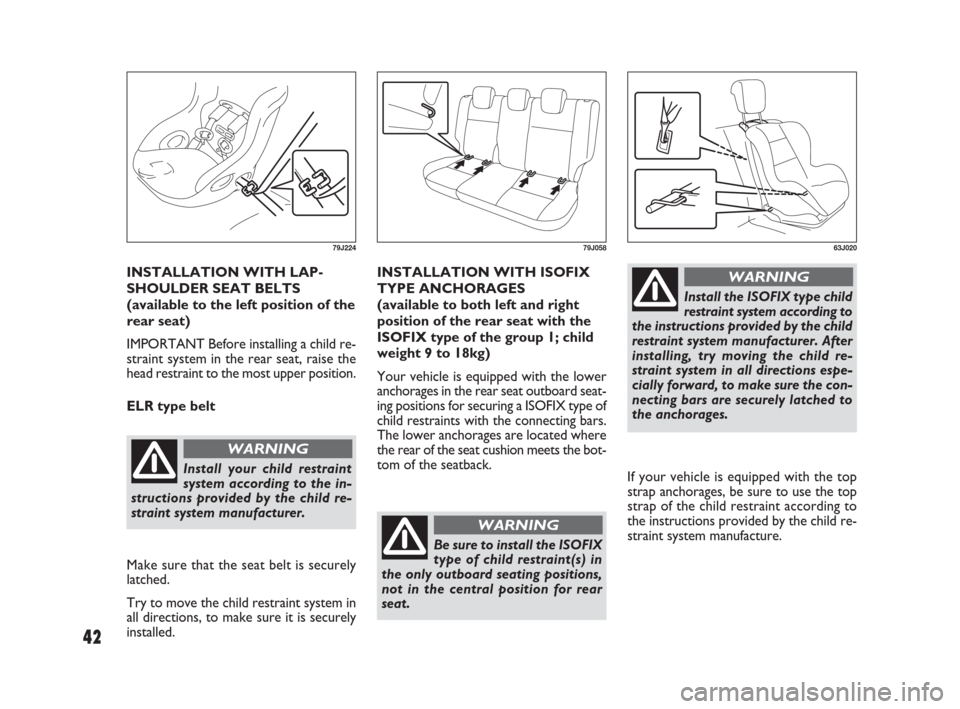

INSTALLATION WITH LAP-
SHOULDER SEAT BELTS
(available to the left position of the
rear seat)
IMPORTANT Before installing a child re-
straint system in the rear seat, raise the
head restraint to the most upper position.
ELR type belt
Make sure that the seat belt is securely
latched.
Try to move the child restraint system in
all directions, to make sure it is securely
installed.
Install your child restraint
system according to the in-
structions provided by the child re-
straint system manufacturer.
WARNING
79J224
INSTALLATION WITH ISOFIX
TYPE ANCHORAGES
(available to both left and right
position of the rear seat with the
ISOFIX type of the group 1; child
weight 9 to 18kg)
Your vehicle is equipped with the lower
anchorages in the rear seat outboard seat-
ing positions for securing a ISOFIX type of
child restraints with the connecting bars.
The lower anchorages are located where
the rear of the seat cushion meets the bot-
tom of the seatback.
79J058
Be sure to install the ISOFIX
type of child restraint(s) in
the only outboard seating positions,
not in the central position for rear
seat.
WARNING
If your vehicle is equipped with the top
strap anchorages, be sure to use the top
strap of the child restraint according to
the instructions provided by the child re-
straint system manufacture.
63J020
Install the ISOFIX type child
restraint system according to
the instructions provided by the child
restraint system manufacturer. After
installing, try moving the child re-
straint system in all directions espe-
cially forward, to make sure the con-
necting bars are securely latched to
the anchorages.
WARNING
009-056 Fiat16 New GB 27-11-2007 11:25 Pagina 42
Page 45 of 266

44

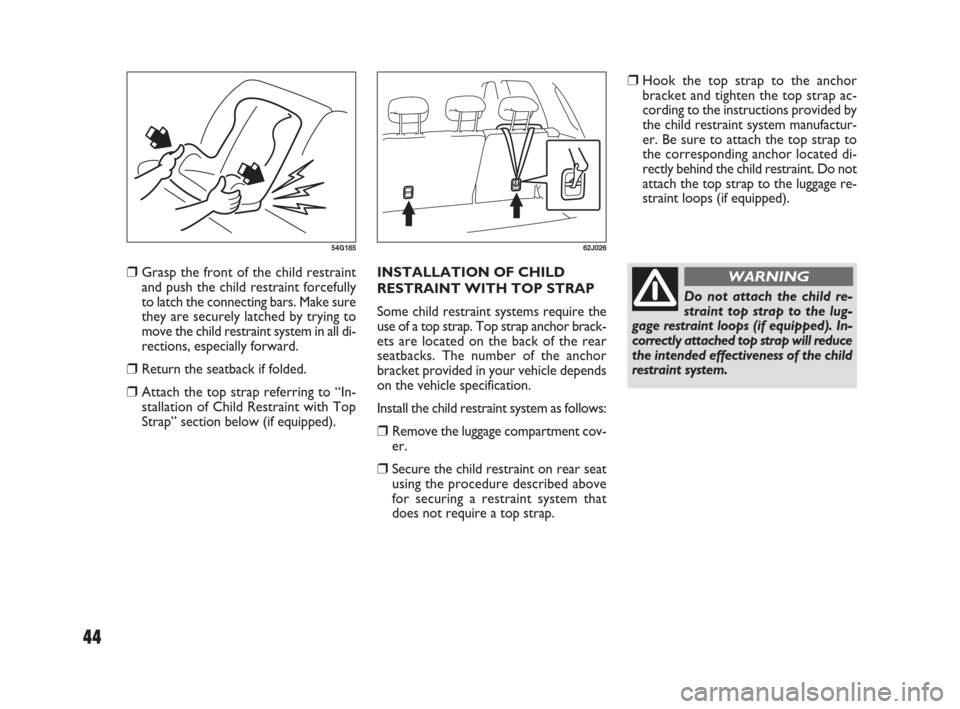

❒Hook the top strap to the anchor
bracket and tighten the top strap ac-
cording to the instructions provided by
the child restraint system manufactur-
er. Be sure to attach the top strap to
the corresponding anchor located di-
rectly behind the child restraint. Do not
attach the top strap to the luggage re-
straint loops (if equipped).
Do not attach the child re-
straint top strap to the lug-
gage restraint loops (if equipped). In-
correctly attached top strap will reduce
the intended effectiveness of the child
restraint system.
WARNING❒Grasp the front of the child restraint
and push the child restraint forcefully
to latch the connecting bars. Make sure
they are securely latched by trying to
move the child restraint system in all di-
rections, especially forward.
❒Return the seatback if folded.
❒Attach the top strap referring to “In-
stallation of Child Restraint with Top
Strap” section below (if equipped).INSTALLATION OF CHILD
RESTRAINT WITH TOP STRAP
Some child restraint systems require the
use of a top strap. Top strap anchor brack-
ets are located on the back of the rear
seatbacks. The number of the anchor
bracket provided in your vehicle depends
on the vehicle specification.
Install the child restraint system as follows:
❒Remove the luggage compartment cov-
er.
❒Secure the child restraint on rear seat
using the procedure described above
for securing a restraint system that
does not require a top strap.
54G18562J026
009-056 Fiat16 New GB 27-11-2007 11:25 Pagina 44
