Page 25 of 32
SERVICE SCHEDULE
Check Dualogic gearbox oil level every 20,000 km.
CHECKING OIL LEVEL
DUALOGIC GEARBOX HYDRAULIC
SYSTEM OIL
To have the oil level checked contact Fiat Dealership
only.
23
AIR CLEANER
1.28VVERSIONS
Refer to Owner Handbook to replace the air cleaner.
Used gearbox oil contains dangerous substances for the environment. For changing the oil we advise
contacting Fiat Dealerships who are equipped for disposing of used oil respecting nature and the
law.
603.83.448 PANDA DUAL GB 26-06-2007 11:11 Pagina 23
Page 26 of 32
24
ENGINE CODES - BODYWORK VERSIONS
Versions Engine code Body versions
4 seats 5 seats
1.2
8V188A4000 169AXB11 02 169AXB11 02B
PERFORMANCE
Top speed after initial car use is 155 km/h.
603.83.448 PANDA DUAL GB 26-06-2007 11:11 Pagina 24
Page 27 of 32
25
TRANSMISSION
1.2 8V
Gearbox Five forward gears and reverse,
electrohydraulic system with electronic control
Clutch Electric-hydraulic device with electronic control
DriveFront
603.83.448 PANDA DUAL GB 26-06-2007 11:11 Pagina 25
Page 28 of 32
26
WEIGHTS
Weights (kg)
Kerb weight
(including fuel, space-saver spare wheel,
tools and accessories):
Payload (*)
including the driver:
Maximum admitted loads (**)
– front axle:
– rear axle:
– total:
Towable loads:
– trailer with brakes:
– trailer without brakes:
Maximum load on roof:
Maximum load on tow hitch:
(*) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen car weight increases
thus reducing the specified payload.
(**) Loads not to be exceeded. It is the driver’s responsibility to place goods in the boot and/or on the loading surface in accordance with the
maximum
permissible loads.1.2
8V
865
445
730
660
1310
800
400
50
60
603.83.448 PANDA DUAL GB 26-06-2007 11:11 Pagina 26
Page 29 of 32
27
CAPACITIES
Dualogic gearbox hydraulic system
Specified fuels
Recommended products
TUTELA CAR CS SPEED -
Special oil with
“ATF DEXRON III” additive 1.28V
kg
0.59 litres
0.70
CO2emissions according to 1999/100/EC Directive (gr x 100 km)
CO
2emission value referred to combined consumption is 127 (gr x 100 km).
CO2EMISSIONS
603.83.448 PANDA DUAL GB 26-06-2007 11:11 Pagina 27
Page 30 of 32
28
FUEL CONSUMPTION
Fuel consumption according to 1999/100/EC Directive(litres x 100 km) Urban Extra-urban Combined
1.28V6.8 4.6 5.4
Consumption in AUTO–ECO logic.
603.83.448 PANDA DUAL GB 26-06-2007 11:11 Pagina 28
Page 31 of 32

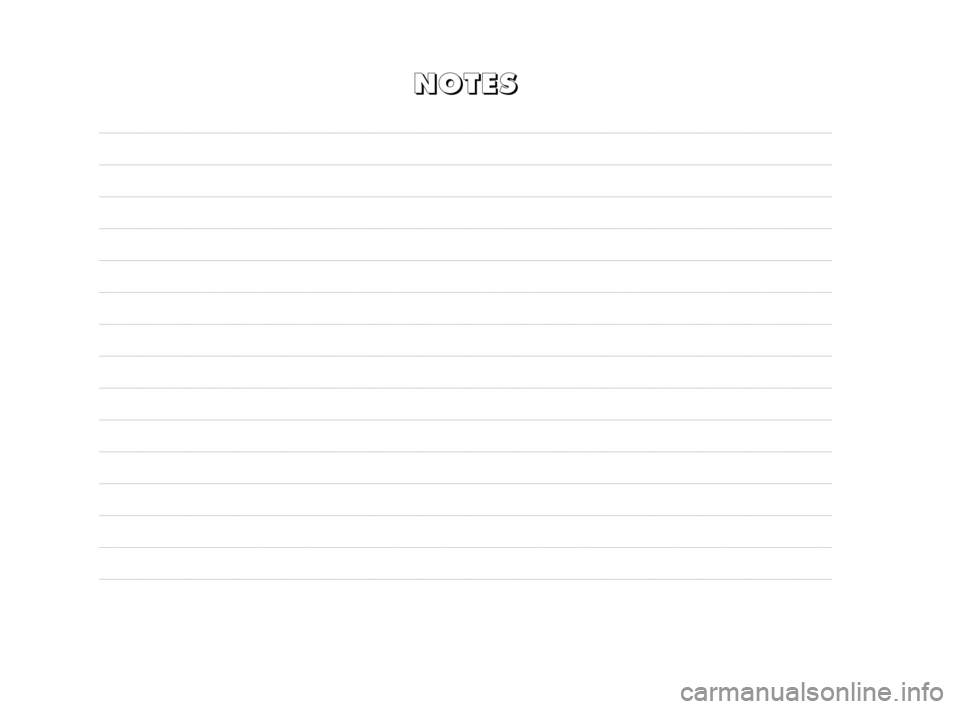

N N N N
O O O O
T T T T
E E E E
S S S S
603.83.448 PANDA DUAL GB 26-06-2007 11:11 Pagina 29
Page 32 of 32

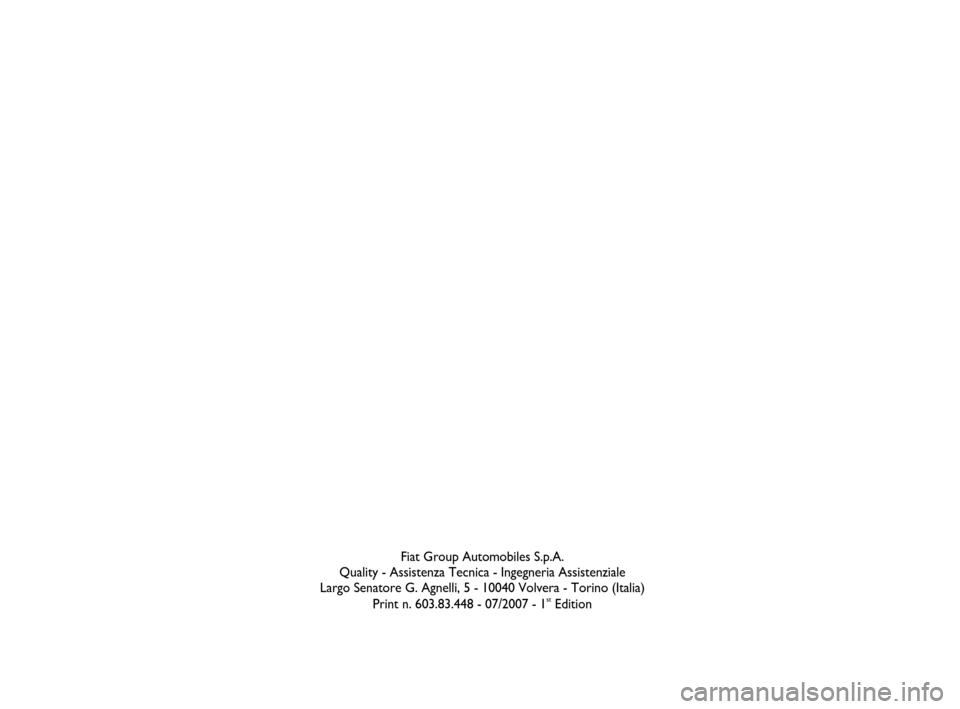

Fiat Group Automobiles S.p.A.
Quality - Assistenza Tecnica - Ingegneria Assistenziale
Largo Senatore G. Agnelli, 5 - 10040 Volvera - Torino (Italia)
Print n. 603.83.448 - 07/2007 - 1
stEdition
603.83.448 PANDA DUAL GB 26-06-2007 11:11 Pagina 30
