CONTENTS
Overview .................................................................................. 2
System components ................................................................ 3
Steering wheel controls ......................................................... 4
Compatible mobile phones ................................................... 5
Activating the hands-free kit ................................................. 5
Pairing your mobile phone and the hands-free kit
for the first time ...................................................................... 5
Pairing with other additional phones .................................. 6
Clearing the memory ............................................................. 6
603.83.479 Panda Bluet GB 21-06-2007 15:01 Pagina 1

2
HANDS-FREE KIT WITH VOICE RECOGNITION
AND Bluetooth
®TECHNOLOGY

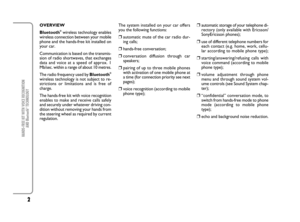

OVERVIEW
Bluetooth
®wireless technology enables
wireless connection between your mobile
phone and the hands-free kit installed on
your car.
Communication is based on the transmis-
sion of radio shortwaves, that exchanges
data and voice at a speed of approx. 1
Mb/sec. within a range of about 10 metres.
The radio frequency used by Bluetooth
®
wireless technology is not subject to re-
strictions or limitations and is free of
charge.
The hands-free kit with voice recognition
enables to make and receive calls safely
and securely under whatever driving con-
dition without removing your hands from
the steering wheel as required by current
regulation. The system installed on your car offers
you the following functions:
❒automatic mute of the car radio dur-
ing calls;
❒hands-free conversation;
❒conversation diffusion through car
speakers;
❒pairing of up to three mobile phones
with activation of one mobile phone at
a time (for connection priority see next
pages);
❒voice recognition (according to mobile
phone type);
❒automatic storage of your telephone di-
rectory (only available with Ericsson/
SonyEricsson phones);
❒use of different telephone numbers for
each contact (e.g. home, work, cellu-
lar according to mobile phone type);
❒starting/answering/refusing calls with
voice command (according to mobile
phone type);
❒volume adjustment through phone
menu and through sound system vol-
ume controls (see Sound System chap-
ter);
❒“confidential” conversation mode, to
switch from hands-free mode to phone
mode (according to mobile phone
type);
❒echo and background noise reduction.
603.83.479 Panda Bluet GB 21-06-2007 15:01 Pagina 2

3
HANDS-FREE KIT WITH VOICE RECOGNITION
AND Bluetooth
®TECHNOLOGY
SYSTEM COMPONENTS
The hands-free kit consists of the follow-
ing main components:
❒electronic control box
❒microphone
❒steering wheel controls
The electronic control box, located in the
dashboard, houses the Bluetooth
®wire-
less technology radio transmitter, the sig-
nal processing microprocessor and the
operating software.
The high-grade microphone housed aside
the front roof lamp has been designed to
guarantee optimum communication under
whatever condition.
Steering wheel controls feature two keys,
£and Ô(see figure on next page), en-
abling to activate all system functions.Press button
£:
❒to activate voice recognition;
❒to answer a call or dual call;
❒to redial the last number called;
❒to activate the “confidential” mode.
Press button
Ô:
❒to end the communication;
❒to refuse a call.
Press buttons
£and Ôsimultaneously
for at least 2 seconds for clearing the sys-
tem memory.IMPORTANT Clearing the memory will
disconnect all stored phones, will clear any
phone number stored in the system mem-
ory and will require to repeat the pairing
phase.
603.83.479 Panda Bluet GB 21-06-2007 15:01 Pagina 3

4
HANDS-FREE KIT WITH VOICE RECOGNITION
AND Bluetooth
®TECHNOLOGY
STEERING WHEEL CONTROLS
F0G0716m
Button
£
+
–
Ô
˜
÷
FUNCTION
To activate voice recognition
To answer a call or dual call
To adjust call volume
To turn up the volume (Radio or CD)
To adjust call volume
To turn down the volume (Radio or CD)
To end the communication
To refuse a call
Radio: to recall preset stations (from 1 to 6)
Tape player: to search next track (MSS function)
CD player: to search next track
CD Changer: to select next track
Radio: to recall preset stations (from 6 to 1)
Tape player: to search previous track (MSS function)
CD player: to search previous track
CD Changer: to select previous trackMode
Press button
Press button
Press button
Press button
Press button
Press button
603.83.479 Panda Bluet GB 21-06-2007 15:01 Pagina 4CE

5
HANDS-FREE KIT WITH VOICE RECOGNITION
AND Bluetooth
®TECHNOLOGY
ACTIVATING THE
HANDS-FREE KIT
After first pairing, just turn the ignition key
to MAR to activate the system. To pair
your phone and the hands-free kit after
first pairing, get into the car with your
phone on and the Bluetooth
®function
active.
PAIRING YOUR MOBILE PHONE
AND THE HANDS-FREE KIT FOR
THE FIRST TIME
To pair your mobile phone with your
hands-free kit for the first time you shall
activate the Bluetooth
®function on your
phone as described on your phone user’s
guide. The corresponding icon is displayed
on your phone when the function is active.
When pairing for the first time, the mes-
sage “Accoppiare l’apparecchio” (pair kit)
will be heard (the message will always be
in Italian since it is the default language).
Phone/hands-free kit pairing procedure
described in the phone manual shall there-
fore be carried out (follow the pairing in-
structions given on your phone user’s
guide). COMPATIBLE MOBILE PHONES
Compatible mobile phones are those tabulated below:
Make Model
BlackBerry7100 series7290
R520
Ericsson T39m
T68m
V500/V525/V600
V3/V80/V501
V547/V555/V551/V635
Motorola E398/E1000
E680/A780
MPX 220
270C/280i
3650/3660
6310/6310i
6600/6670
6260/6650
6230/6230i
6810/6820
Nokia6630/72806680
7600/7610
8800
8910/8910i
9300
N-Gage/N-Gage QD
N90
Make Model
Panasonic X700
PhilipsFisio 820Fisio 825
Qtek 8020
SGH-D500
Samsung SGH-E730
SGH-E640
GX15/GZ-100
Sharp GX30/GX31/GX32
TM200
S55/S56
SiemensS65/S66SK65
SX1
T68i
P800/P900
Sony EricssonP910iT606/,,,/T630
V800
Z600/Z608
SPVE200C500
TelitalNeoFoneE200
XDA2 XDA2/SPV M1000
603.83.479 Panda Bluet GB 21-06-2007 15:01 Pagina 5

6
HANDS-FREE KIT WITH VOICE RECOGNITION
AND Bluetooth
®TECHNOLOGY
IMPORTANT When the use of the hands-
free kit with Bluetooth®wireless tech-
nology is not desired, message “Accoppi-
are l’apparecchio” (pair kit) can be pre-
vented from being repeated by setting car
radio channel PHONE minimum volume
(see Sound System chapter). Turn the
sound system on to hear message “Ac-
coppiare l’apparecchio” (pair kit).
During the pairing procedure the
message asking for the passcode will
be displayed; enter “1234” as pass-
code and then confirm it.
Once this done, connection between your
phone and your hands-free kit will take
place automatically as soon as the two de-
vices are less than a few meters apart. A
“beep” will be heard, indicating that con-
nection is established. Here follows an ex-
ample of first pairing procedure for the
most common mobile phones.
IMPORTANT The system operates only
when the ignition key is turned to MAR.
Pairing procedure shall be performed on-
ly the first time you pair your phone and
your hands-free kit. Should instruction
“Accoppiare l’apparecchio” (pair kit) not
be heard at first pairing, reset the system
by pressing simultaneously buttons
£and
Ôfor 2 seconds at least.PAIRING WITH OTHER
ADDITIONAL PHONES
If you decide to pair another phone, you
just have to follow the ordinary pairing
procedure described in the previous para-
graph, in this way you can connect up to
3 mobile phones. To pair other phones
you shall reset the system (any phone
number stored will be cleared).
CLEARING THE MEMORY
Press the green
£and red Ôbuttons si-
multaneously for at least 2 seconds for
clearing the system memory.
IMPORTANT Clearing the memory will
disconnect all stored phones, will clear any
phone number stored in the system mem-
ory and will require to repeat the pairing
phase.PAIRING PRIORITY
If 2 mobile phones at least are paired, the
first phone paired (in chronological order)
will have highest priority. This means that
when getting into the car with system ac-
tive (key at MAR), this will be the first
phone to be searched and, if present, to
be connected. Should the priority phone
not be found, the system will then search
for the other phones.
COMMUNICATING
Find below a description of the main
communication procedures valid for
almost all mobile phones.
Making a call manually:
❒dial the number on the mobile phone
keypad;
❒press directly the phone button to start
the call;
❒the call will be switched automatically
to hands-free mode (on certain phone
models, e.g. SIEMENS S55, button
£must be pressed to shift the telephone
call to hands-free mode).
603.83.479 Panda Bluet GB 21-06-2007 15:01 Pagina 6

7
HANDS-FREE KIT WITH VOICE RECOGNITION
AND Bluetooth
®TECHNOLOGY
Making a call using the voice
recognition (after assigning a voice
tag to a phonebook entry):
❒press button £;
❒wait for sound signal to be heard and/or
“PHONE” writing to appear on sound
system display;
❒pronounce the name of the person you
wish to call;
❒the system will repeat the name for
confirmation and then will start the call;
❒if the name pronounced by the system
is not the required one, press button
Ôand repeat the procedure.Call through voice recognition is possible
only if voice tags have been assigned to
phonebook entries.
The hands-free kit recognises all voice tags
recorded on the phone thus enabling to
call with voice recognition any voice
tagged number.
It is however possible to store (accord-
ing to mobile phone type) voice tags di-
rectly in the hands-free kit memory but,
in this case, the hands-free kit will recog-
nise just those voice tags.
IMPORTANT Voice prompts are recog-
nised by the system only if properly
recorded, for this reason you have to
speak out naturally and clearly.To obtain optimum operation, please,
comply with these recommendations:
❒close the doors and windows;
❒turn off your engine and ventilation (key
at MAR);
❒make the recording from the driver’s
seat;
❒if using long names (e.g.: “John Brown”
instead of “John”) notice that the sys-
tem will record a voice tag for max. 2
seconds.
IMPORTANT Before using voice prompts
check that Bluetooth
®wireless technol-
ogy, “Voice recognition” and “Wordspot-
ting” functions on your phone are active
(according to mobile phone type). Voice
recognition performances are available
and depending on mobile phone model
used.
603.83.479 Panda Bluet GB 21-06-2007 15:01 Pagina 7
