DIRECTION INDICATORS
Front
To change the bulb, proceed as follows:
❒remove the protective cover releasing the catch;
❒turn the bulb holder (A) counterclockwise and remove it;
❒remove the bulb (B) pushing it gently and turning counterclockwise
(“bayonet connection”);
❒replace the bulb;
❒refit the bulb holder turning it clockwise, checking that it is secured
correctly;
❒refit the protective cover correctly.
Side
To change the bulb, proceed as follows:
❒push the lens (A) by hand in running direction to compress the catch;
❒remove the unit;
❒turn the bulb holder (B) counterclockwise, remove the snap-fitted
bulb (C) and replace it;
❒refit the bulb holder (B) in the lens then position the unit making sure
the catch clicks into place.
F0E0649m
F0E0650m

189
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
IN AN
EMERGENCY

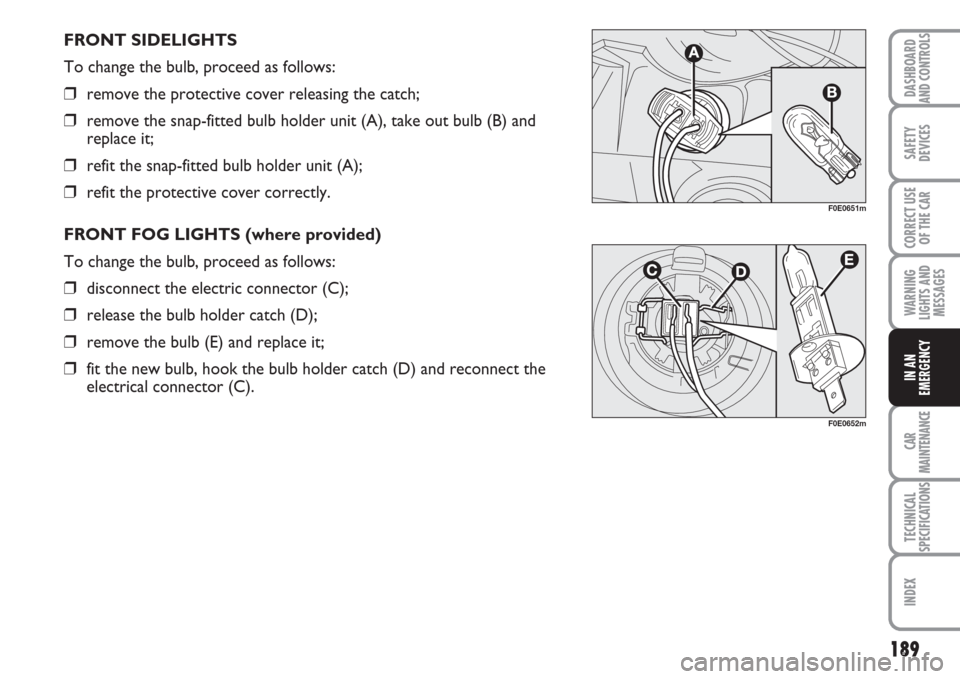

FRONT SIDELIGHTS
To change the bulb, proceed as follows:
❒remove the protective cover releasing the catch;
❒remove the snap-fitted bulb holder unit (A), take out bulb (B) and
replace it;
❒refit the snap-fitted bulb holder unit (A);
❒refit the protective cover correctly.
FRONT FOG LIGHTS (where provided)
To change the bulb, proceed as follows:
❒disconnect the electric connector (C);
❒release the bulb holder catch (D);
❒remove the bulb (E) and replace it;
❒fit the new bulb, hook the bulb holder catch (D) and reconnect the
electrical connector (C).
F0E0651m
F0E0652m

190
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
IN AN
EMERGENCY
REAR LIGHT CLUSTER
To change the bulb, proceed as follows:
❒from inside the boot release and remove cover (A) by turning the
retaining knob (B), then remove pin (C) to reach the third nut;
❒loosen the two visible nuts (D) and the third one that can be reached
through hole (E); remove the light unit;
❒remove connectors, loosen the three screws (F) and open the light
holder unit;
❒remove the burnt out bulb, by pressing it slightly and turning it
counterclockwise.
The same operations stand valid for the left light unit.
Bulbs are the following:
G - 12V-5/21W, two-light, for taillights and brake lights
H - 12V-21W for reversing light
I - 12V-21W for direction indicators
L - 12V-21W for rear fog lights
After replacing, refit the headlight by reversing the above operations.
F0E0673m
F0E0674m
F0E0675m

191
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
IN AN
EMERGENCY
THIRD BRAKE LIGHTS
To replace 12V-3W bulbs:
❒with the tailgate open, undo the four fastening screws under the caps
(shown by the arrows) and remove the panel;
❒take out connection (A);
❒undo the four screws securing the light unit and remove the cover
(B);
❒remove the bulbs (C) to be replaced from their seats.
After replacing the bulb, refit the two halves of the light unit then secure
the latter to the covering panel after reconnecting the electric
connection; refit the panel to the tailgate.
NUMBER PLATE LIGHTS
To replace the 12V-5W bulb:
❒using a screwdriver in the direction of the arrow, compress catch (F)
and take out the number plate light unit;
❒remove bulb holder and lens (D);
❒take out the bulb holder turning it slightly and replace the bulb (E).
F0E0254m
F0E0146m
F0E0676m

192
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
IN AN
EMERGENCY
IF AN INTERIOR LIGHT BURNS OUT
For the type of bulb and power rating, see “If a bulb burns out”.
FRONT CEILING LIGHT
To replace the 12V-10W cylindrical bulbs:
❒remove plastic caps (A) and casing (B) using a screwdriver;
❒unscrew the four screws (two in A and two in B) and slide the ceiling
light downwards toward the windscreen;
❒disconnect connector (D) from (C);
❒lift cover (E) using a screwdriver;
❒replace the burn out bulb;
❒reconnect the electrical connector and refit the ceiling light first
clicking it into place then securing it with the screws. Refit the plastic
caps (A) and the casing (B).
F0E0255m
F0E0623m

193
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
IN AN
EMERGENCY
REAR CEILING LIGHTS
To replace the 12V-10W cylindrical bulb from inside the car:
❒remove the lens (A) using a screwdriver in (C);
❒replace the bulb (B).
In versions fitted with double sunroof the ceiling lights are set along the
centre cross member: bulb can be replaced in the same way.
BOOT LIGHT
To replace the 12V-5W bulb:
❒remove the lens using a screwdriver in (D);
❒fold back the plastic trim (E) and replace the bulb (F).
F0E0150m
F0E0624m

194
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
IN AN
EMERGENCY
IF A FUSE BLOWS
GENERAL
The fuse is a protective device for the electric system: it comes into
action (i.e. it cuts off) mainly due to a fault or improper action on the
system.
When a device does not work, check the efficiency of its fuse. The
conductor element (A) must be intact; if not, replace the fuse with one of
the same amp rating (same colour).
(B): undamaged fuse.
(C): fuse with damaged filament.
To replace fuse, use the pliers (D) hooked inside the fuse box cover on
the left side of the dashboard.
F0E0625m
Never replace a fuse with metal wires or anything else.
WARNINGIf a general fuse (MEGA-FUSE, MIDI-FUSE, MAXI-FUSE) cuts in, do not attempt
any repair and contact a Fiat Dealership. Before replacing a fuse, make sure the
ignition key has been removed and that all the other services are switched off
and/or disengaged.
WARNINGNever replace a fuse with another with a higher amp rating; DANGER OF FIRE. If
a fuse blows again, contact Fiat Dealership.

195
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
IN AN
EMERGENCY

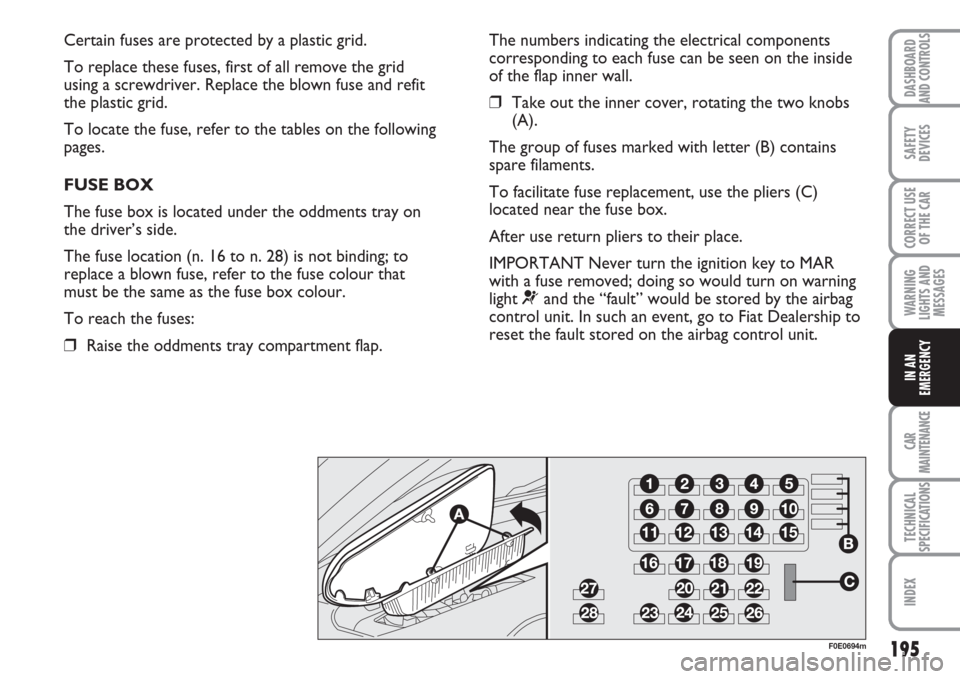

Certain fuses are protected by a plastic grid.
To replace these fuses, first of all remove the grid
using a screwdriver. Replace the blown fuse and refit
the plastic grid.
To locate the fuse, refer to the tables on the following
pages.
FUSE BOX
The fuse box is located under the oddments tray on
the driver’s side.
The fuse location (n. 16 to n. 28) is not binding; to
replace a blown fuse, refer to the fuse colour that
must be the same as the fuse box colour.
To reach the fuses:
❒Raise the oddments tray compartment flap.
F0E0694m
The numbers indicating the electrical components
corresponding to each fuse can be seen on the inside
of the flap inner wall.
❒Take out the inner cover, rotating the two knobs
(A).
The group of fuses marked with letter (B) contains
spare filaments.
To facilitate fuse replacement, use the pliers (C)
located near the fuse box.
After use return pliers to their place.
IMPORTANT Never turn the ignition key to MAR
with a fuse removed; doing so would turn on warning
light
¬and the “fault” would be stored by the airbag
control unit. In such an event, go to Fiat Dealership to
reset the fault stored on the airbag control unit.
