2007 FIAT GRANDE PUNTO Dualogic Transmission Manual

16
TRANSMISSION
1.4 1.3 Multijet 90HP
Five forward gears and reverse Six forward gears and reverse
Gearbox with electrohydraulic system electrohydraulic system
with electronic control with electronic control
ClutchSingle-disk, dry with Single-disk, dry with electric-hydraulic control electric-hydraulic control
Drive Front Front
603_83_378 Punto Dual GB 19-06-2007 14:32 Pagina 16

17
1.4
3 door 3 door 5 door
4 seat 5 seat 5 seat
1025 1025 1040
480 560 560
850 850 850
850 850 850
1505 1585 1600
1000 1000 1000
400 400 400
75 75 75
60 60 601.3 Multijet 90HP
3 door 3 door 5 door
4 seat 5 seat 5 seat
1130 1130 1145
480 560 560
950 950 950
850 850 850
1610 1690 1705
1000 1000 1000
400 400 400
75 75 75
60 60 60
WEIGHTS
Weights (kg)
Kerb weight
(including fuel, space-saver spare
wheel, tools and accessories):
Payload (*)
including the driver:
Maximum admitted loads (**)
– front axle:
– rear axle:
– total:
Towable loads:
– trailer with brakes:
– trailer without brakes:
Maximum load on roof:
Maximum load on tow hitch:
(*) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen car weight increases thus reducing the specified payload.
(**) Loads not to be exceeded. It is the driver’s responsibility to place goods in the boot and/or on the loading surface in accor-
dance with the maximum permissible loads.
603_83_378 Punto Dual GB 19-06-2007 14:32 Pagina 17

18
kg
0,59
– 1.41.3 Multijet 90HP
kg
0,43
0,040
CO2 EMISSIONS
CO2emissions according to 199/100/EC Directive (gr x 100 km).
CO
2emission value referred to combined consumption is 134 (gr x 100 km) with engine 1.4.
CO
2emission value referred to combined consumption is 116 (gr x 100 km) with engine 1.3 Multijet 90 HP.
CAPACITIES
Dualogic gearbox
hydraulic system
Clutch hydraulic system
litres
0,7
–litres
0,505
0,038Specified fuels
Recommended products
TUTELA CAR CS SPEED -
Special oil with “ATF
DEXRON III” additive
TUTELA TOP4
Synthetic fluid FMVSS no. 116
DOT 4, ISO 4925 SAE J1704,
CUNA NC 956- 01
603_83_378 Punto Dual GB 19-06-2007 14:32 Pagina 18

19

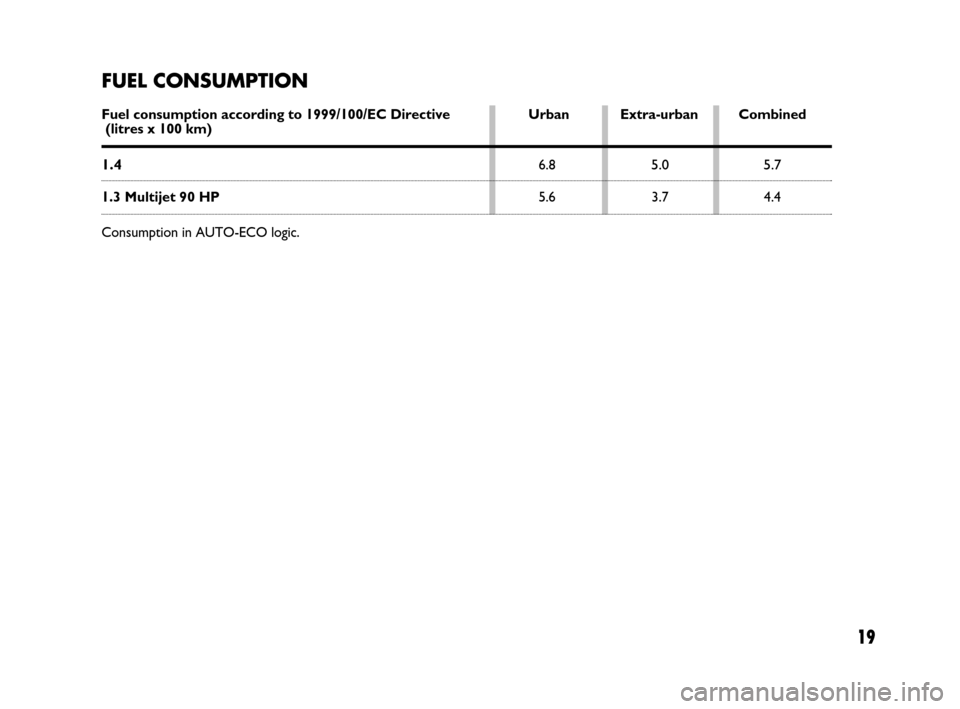

FUEL CONSUMPTION
Fuel consumption according to 1999/100/EC Directive Urban Extra-urban Combined(litres x 100 km)
1.46.85.0 5.7
1.3 Multijet 90 HP5.6 3.7 4.4
Consumption in AUTO-ECO logic.
603_83_378 Punto Dual GB 19-06-2007 14:32 Pagina 19

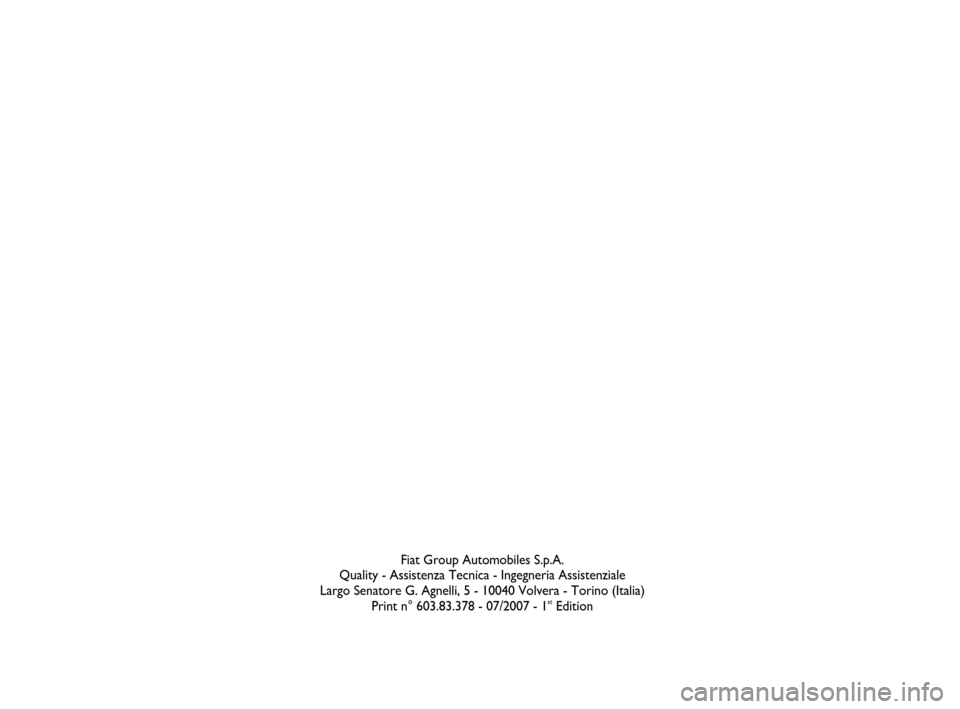

Fiat Group Automobiles S.p.A.
