2007 FIAT GRANDE PUNTO engine

11
AUTOMATIC MODE NOT
AVAILABLE
The message on the reconfigurable mul-
tifunction display comes on when, with en-
gine on, the AUTOmode cannot be se-
lected.CLUTCH OVERTEMPERATURE
The message on the reconfigurable mul-
tifunction display comes on together with
the buzzer to indicate clutch overheating.
In this event, reduce gears and stop the
car (turning the engine off) until regular
operating conditions are restored.PUSH BRAKE PEDAL - DELAYED
STARTUP
Messages are displayed in turns and in se-
quence on the reconfigurable multifunc-
tion display, together with the buzzer to
indicate brake pedal failure when trying to
start the engine.
IMPORTANT Messages are displayed on-
ly if at startup a gear other than neutral
(N) is engaged.
If the message on the recon-
figurable multifunction dis-
play continues to stay on,
contact Fiat Dealership.
If the message on the recon-
figurable multifunction dis-
play continues to stay on,
contact Fiat Dealership.
To safeguard clutch efficien-
cy do not use the accelerator
to keep the car still (e.g.:
when the car is parked facing
uphill) since clutch overheating could
damage it. Use the brake pedal and
press the accelerator pedal only when
deciding to move off.
If messages on the reconfig-
urable multifunction display
continue to stay on, contact
Fiat Dealership.
603_83_378 Punto Dual GB 19-06-2007 14:32 Pagina 11

15
PERFORMANCE
Top speed after initial car use is 165 km/h with engine 1.4.
Top speed after initial car use is 175 km/h with engine 1.3 Multijet 90 HP.
ENGINE CODES - BODYWORK VERSIONS
Versions Engine Body version
code 3 door 5 door
4 seat 5 seat
1.4350A1000 199AXB11 15B 199AXB11 15 199BXB11 16
1.3 Multijet 90 HP199A3000199AXD11 17B 199AXD11 17 199ABXD11 18
199AXD11 17D (❍) 199AXD11 17C (❍) 199AXD11 18B (❍)
(❍) Version with DPF
603_83_378 Punto Dual GB 19-06-2007 14:32 Pagina 15

18
kg
0,59
– 1.41.3 Multijet 90HP
kg
0,43
0,040
CO2 EMISSIONS
CO2emissions according to 199/100/EC Directive (gr x 100 km).
CO
2emission value referred to combined consumption is 134 (gr x 100 km) with engine 1.4.
CO
2emission value referred to combined consumption is 116 (gr x 100 km) with engine 1.3 Multijet 90 HP.

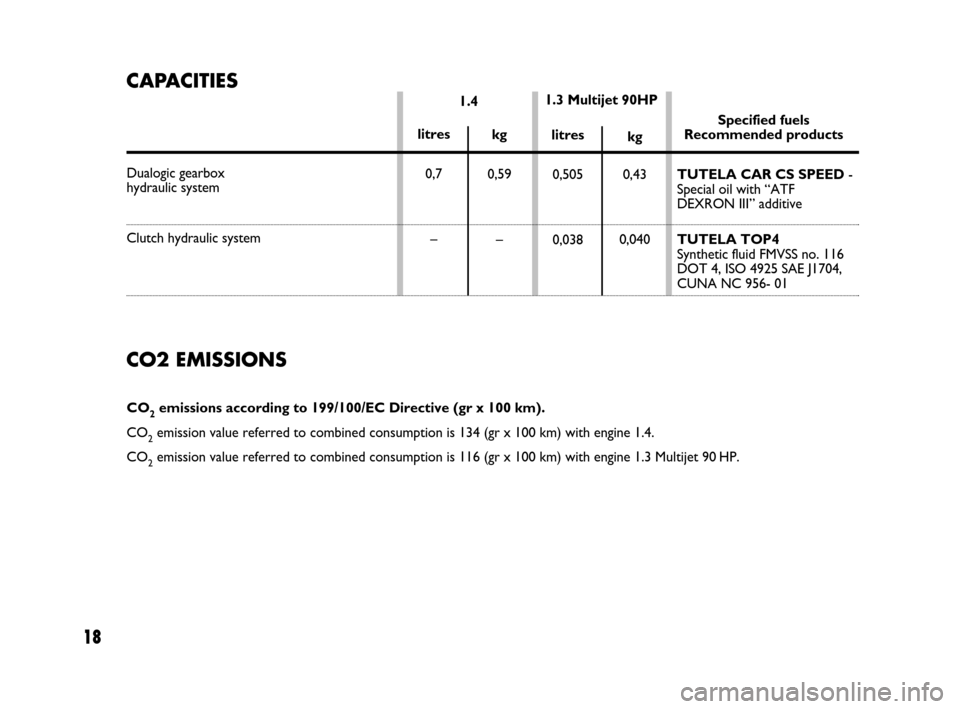

CAPACITIES
Dualogic gearbox
hydraulic system
Clutch hydraulic system
litres
0,7
–litres
0,505
0,038Specified fuels
Recommended products
TUTELA CAR CS SPEED -
Special oil with “ATF
DEXRON III” additive
TUTELA TOP4
Synthetic fluid FMVSS no. 116
DOT 4, ISO 4925 SAE J1704,
CUNA NC 956- 01
603_83_378 Punto Dual GB 19-06-2007 14:32 Pagina 18
