2007 FIAT FIORINO technical specifications

108
SAFETY
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING

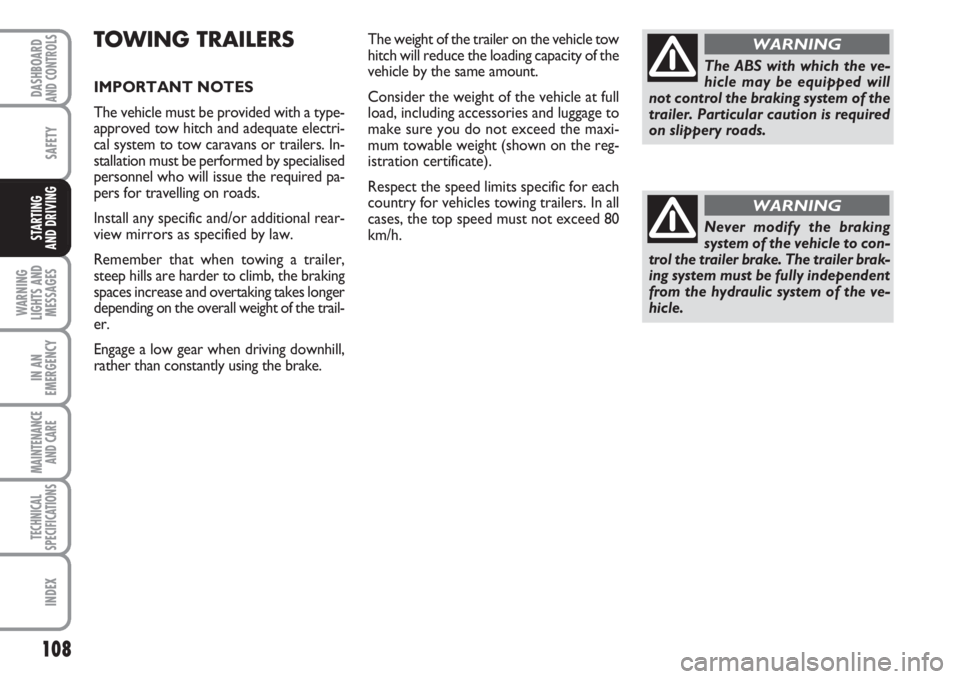

TOWING TRAILERS
IMPORTANT NOTES
The vehicle must be provided with a type-
approved tow hitch and adequate electri-
cal system to tow caravans or trailers. In-
stallation must be performed by specialised
personnel who will issue the required pa-
pers for travelling on roads.
Install any specific and/or additional rear-
view mirrors as specified by law.
Remember that when towing a trailer,
steep hills are harder to climb, the braking
spaces increase and overtaking takes longer
depending on the overall weight of the trail-
er.
Engage a low gear when driving downhill,
rather than constantly using the brake.
The ABS with which the ve-
hicle may be equipped will
not control the braking system of the
trailer. Particular caution is required
on slippery roads.
WARNING
Never modify the braking
system of the vehicle to con-
trol the trailer brake. The trailer brak-
ing system must be fully independent
from the hydraulic system of the ve-
hicle.
WARNING
The weight of the trailer on the vehicle tow
hitch will reduce the loading capacity of the
vehicle by the same amount.
Consider the weight of the vehicle at full
load, including accessories and luggage to
make sure you do not exceed the maxi-
mum towable weight (shown on the reg-
istration certificate).
Respect the speed limits specific for each
country for vehicles towing trailers. In all
cases, the top speed must not exceed 80
km/h.

109
SAFETY
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
SNOW TYRES
Use snow tyres type 185/65 R15 only (see
paragraph “Tyres” in section “Technical
specifications”).
The Fiat Dealership will be happy to pro-
vide advice concerning the most suitable
type of tyre for customer’s requirements.
For the type of snow tyre to be used, in-
flation pressures and specifications, follow
the instructions given in paragraph “Tyres”
in section “Technical specifications”.
The winter performance of these tyres is
considerably reduced when the tread thick-
ness is less than 4 mm. Replace them in this
case.Due to their specific features, the perfor-
mance of snow tyres is much lower than
that of standard tyres in normal conditions
or long motorway stretches. Use them ex-
clusively according to the performance
levels for which they were type-approved.
IMPORTANT When snow tyres are used
with a max speed index below the one
that can be reached by the vehicle (in-
creased by 5%), place a notice in the pas-
senger compartment, plainly in the driver’s
view, which states the max permissible
speed for snow tyres (as per EC Direc-
tive).
All four tyres should be the same (brand
and track) to ensure greater safety when
driving and braking and better driveabili-
ty.
Remember that it is inappropriate to
change the rotation direction of tyres.The max. speed of snow
tyres with “Q” mark must
not exceed 160 km/h, respecting how-
ever the applicable rules of the High-
way Code.
WARNING

110
SAFETY
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
SNOW CHAINS
Use of snow chains should be in compli-
ance with local regulations.
The snow chains may be applied only to
the front wheel tyres (drive wheels).
Check the tension of the chains after the
first few metres have been driven.
PROLONGED VEHICLE
INACTIVITY
If the vehicle needs to be stopped for longer
than one month, the following precautions
must be taken:
❒park the vehicle indoors in a dry and, pos-
sibly, well-ventilated place;
❒engage a gear and check that the hand-
brake is not engaged;
❒disconnect the negative terminal of the
battery and check charge (see paragraph
“Battery” in section “Maintenance and
care”);
❒clean and protect the painted parts using
protective wax;❒clean and protect the shiny metal parts
using special compounds readily available;
❒sprinkle talcum powder on the rubber
windscreen and rear window wiper
blades and lift them off the glass;
❒slightly open the windows;
❒cover the vehicle with a piece of fabric or
perforated plastic sheet; do not use com-
pact plastic tarpaulins, which prevent hu-
midity from evaporating from the surface
of the vehicle;
❒inflate tyres to a pressure of +0.5 bar
above the normal specified pressure and
check it at intervals;
❒do not drain the engine cooling system. Keep your speed down when
snow chains are fitted. Do not
exceed 50 km/h. Avoid pot-
holes, steps and pavements
and also avoid driving long distances on
roads not covered with snow in order
to prevent damaging the vehicle and
the roadbed.

111
SAFETY
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
GENERAL WARNINGS..................................................... 112
LOW BRAKE FLUID........................................................... 112
HANDBRAKE ON.............................................................. 112
AIRBAG FAILURE................................................................ 113
FRONT PASSENGER AIRBAG/
SIDE BAGS DISABLED....................................................... 113
ENGINE COOLANT HIGH TEMPERATURE............... 114
LOW BATTERY CHARGE................................................ 114
ABS SYSTEM FAILURE....................................................... 115
EBD SYSTEM FAILURE....................................................... 115
LOW ENGINE OIL PRESSURE........................................ 115
EXHAUSTED OIL................................................................ 115
SEAT BELTS NOT FASTENED......................................... 116
INCOMPLETE DOOR LOCKING.................................. 116
MINIMUM ENGINE OIL LEVEL....................................... 116
INJECTION SYSTEM FAILURE......................................... 117
EOBD ENGINE CONTROL SYSTEM FAILURE ........... 117
PARTICULATE FILTER CLOGGED................................ 118FUEL RESERVE...................................................................... 118
GLOW PLUG HEATING................................................... 118
GLOW PLUG HEATING FAILURE................................. 118
WATER IN DIESEL FUEL FILTER.................................... 119
VEHICLE PROTECTION SYSTEM
FAILURE - FIAT CODE ...................................................... 119
EXTERNAL LIGHTS FAILURE.......................................... 119
GENERIC FAILURE INDICATION................................. 120
BRAKE PAD WEAR............................................................ 120
PARKING SENSOR FAILURE........................................... 121
SIDE/TAILLIGHTS................................................................ 121
FOLLOW ME HOME.......................................................... 121
FRONT FOG LIGHTS........................................................ 121
REAR FOG LIGHTS............................................................ 121
LEFT-HAND DIRECTION INDICATOR....................... 122
RIGHT-HAND DIRECTION INDICATOR................... 122
MAIN BEAMS........................................................................ 122
W W
A A
R R
N N
I I
N N
G G
L L
I I
G G
H H
T T
S S
A A
N N
D D
M M
E E
S S
S S
A A
G G
E E
S S

112
SAFETY
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
WARNING LIGHTS
AND MESSAGES
GENERAL WARNINGS
Lighting of a warning light is associated to
a specific message and/or buzzer when ap-
plicable. These indications are brief and
precautionary and as such must not be
considered as exhaustive and/or alterna-
tive to the information contained in the
Owner’s Handbook, which you are rec-
ommended to read carefully in all cases.
Refer to the information in this section in
the event of a failure indication.
IMPORTANT Failure indications on the
display fall into either of two categories:
seriousfailure and less seriousfailure.
Seriousfailures are indicated by a re-
peated and prolonged warning “cycle”.
Less seriousfailures are indicated by a
limited warning “cycle”.
Press MENU ESCto stop the warning
cycle in both cases. The warning light (or
symbol on the display) on the instrument
panel will stay on until the cause of the fail-
ure is eliminated.LOW BRAKE FLUID
(red)
HANDBRAKE ON (red)
When the ignition key is moved to MAR,
the warning light turns on and should go
off after a few seconds.
Low brake fluid level
The warning light turns on when the lev-
el of the brake fluid in the reservoir falls
below the minimum level due to possible
leaks in the circuit.
On certain versions the dedicated mes-
sage is displayed.Handbrake on
The warning light turns on when the hand-
brake is on.
On certain versions, if the vehicle is mov-
ing the buzzer will also sound.
IMPORTANT If the warning light turns on
when travelling, check that the handbrake
is not engaged.
x
If the warning light xturns
on when travelling (on cer-
tain versions together with the mes-
sage on the display) stop the vehicle
immediately and contact Fiat Deal-
ership.
WARNING

113
SAFETY
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
AIRBAG FAILURE (red)
When the ignition key is
moved to MAR, the warning
light turns on and should go off after a few
seconds.
The warning light stays on glowing steadi-
ly if there is a failure in the airbag system.
On certain versions the dedicated mes-
sage is displayed.FRONT PASSENGER
AIRBAG/SIDE BAGS
DISABLED
(amber)
The warning light “comes on when the
front passenger’s airbag and the side bags
(where provided) are disabled. With front
passenger’s airbag on, turning the ignition
key to MAR, the warning light “comes
on steadily for about 4 seconds, it flashes
for other 4 seconds and then it goes off.
¬“
If the warning light ¬does
not turn on or stays on dur-
ing vehicle travel when turning the
key to MAR, a failure may be present
in the restraint systems. If this is the
case, the airbags or pretensioners
may not be deployed after an impact
or, in a minor number of cases, they
may be deployed accidentally. Con-
tact the Fiat Dealership immediate-
ly to have the system checked imme-
diately.
WARNING
The failure of the warning
light ¬is indicated by the
warning light flashing longer than the
expected 4 seconds “, thus signalling
that the front passenger airbag is de-
activated. In addition, the airbag sys-
tem automatically disables the airbag
on the passenger’s side (both front
and side airbags, where provided). In
this case, warning light ¬may not
indicate a fault in the system. Con-
tact the Fiat Dealership immediate-
ly to have the system checked before
driving off.
WARNING
When the warning light “comes on, it indicates that
the light ¬has failed. In addition, the
airbag system automatically disables
the airbag on the passenger’s side
(both front and side airbags, where
provided). Contact the Fiat Dealer-
ship immediately to have the system
checked before driving off.
WARNING

114
SAFETY
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
ENGINE COOLANT
HIGH TEMPERATURE
(red)
When the ignition key is moved
to MAR, the warning light turns on and
should go off after a few seconds.
The warning light turns on when the en-
gine is overheated.
If the warning light comes on, proceed as
follows:
❒during normal travel: stop the ve-
hicle, stop the engine and check that the
water level in the vessel is not under
the MIN reference line. In this case, wait
for a few minutes for the engine to cool
down, then slowly and carefully open
the cap, top-up with coolant and check
that the level is between the MIN and
MAX references on the vessel itself. Al-
so check for leakages. Go to a Fiat
Dealership if the warning should come
on when the engine is started again.❒In demanding vehicle use condi-
tions (e.g. towing trailers uphill or ve-
hicle at full load): slow down and stop
the vehicle if the warning light stays on.
Stop for 2 or 3 minutes with the engine
running and slightly accelerated to
favour better coolant circulation. Then
stop the engine. Check correct liquid
level as described above.
IMPORTANT Under severe use of the ve-
hicle, keep the engine on and slightly ac-
celerated for a few minutes before switch-
ing it off. On certain versions the dedi-
cated message is displayed.LOW BATTERY
CHARGE (red)
When the ignition key is moved
to MAR, the warning light turns on and
should go out as soon as the engine is
started (with the engine running at idle
speed a brief delay in going out is allowed).
If the warning light stays on glowing steadi-
ly, immediately contact the Fiat Dealer-
ship.
On certain versions the dedicated mes-
sage is displayed.
çw

115
SAFETY
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
ABS SYSTEM FAILURE
(amber)
When the ignition key is moved to MAR,
the warning light turns on and should go
off after a few seconds.
The warning light lights up when the sys-
tem is either not working or not available.
In this case, the braking system preserves
its efficiency unaltered without, howev-
er, offering the extra operating capacity of
the ABS system. Drive carefully and go to
a Fiat Dealership as soon as possible.
On certain versions the dedicated mes-
sage is displayed.EBD SYSTEM
FAILURE
(red) (amber)
Simultaneous turning on of the warning
lights
xwhile >the engine is running
indicates an EBD system failure or non-
availability of the system. Early locking of
the rear wheels may occur in the event of
violent braking causing the vehicle to
swerve.
Drive very carefully to a Fiat Dealership
to have the system inspected.
On certain versions the dedicated mes-
sage is displayed.
>x>v
LOW ENGINE OIL
PRESSURE (red)
EXHAUSTED OIL
(Multijet versions
with DPF, where
provided) (red)
Low engine oil pressure
When the ignition key is moved to MAR,
the warning light turns on and should go
out as soon as the engine is started.
On certain versions the dedicated mes-
sage is displayed.
If the warning light
vturns
on when the vehicle is travel-
ling (on certain versions to-
gether with the message on
the display) stop the engine immediately
and contact a Fiat Dealership.
