2007 FIAT DOBLO ESP

2

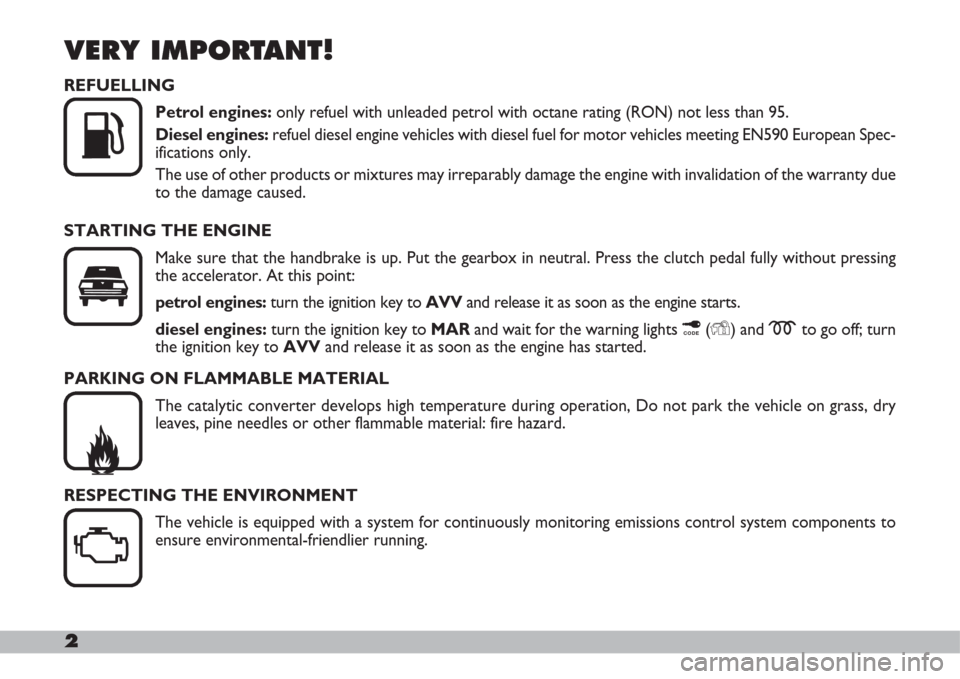

VERY IMPORTANT!
K

U
REFUELLING
Petrol engines:only refuel with unleaded petrol with octane rating (RON) not less than 95.
Diesel engines: refuel diesel engine vehicles with diesel fuel for motor vehicles meeting EN590 European Spec-
ifications only.
The use of other products or mixtures may irreparably damage the engine with invalidation of the warranty due
to the damage caused.
STARTING THE ENGINE
Make sure that the handbrake is up. Put the gearbox in neutral. Press the clutch pedal fully without pressing
the accelerator. At this point:
petrol engines: turn the ignition key to AVV and release it as soon as the engine starts.
diesel engines:turn the ignition key to MARand wait for the warning lights ¢(Y) and mto go off; turn
the ignition key to AVV and release it as soon as the engine has started.
PARKING ON FLAMMABLE MATERIAL
The catalytic converter develops high temperature during operation, Do not park the vehicle on grass, dry
leaves, pine needles or other flammable material: fire hazard.
RESPECTING THE ENVIRONMENT
The vehicle is equipped with a system for continuously monitoring emissions control system components to
ensure environmental-friendlier running.

9GETTING TO KNOW YOUR VEHICLE
ORDERING ADDITIONAL
REMOTE CONTROLS
The system can recognise up to 8
keys with incorporated remote con-
trol.
If additional remote controls are re-
quired for any reasons, go to a Fiat
Dealership, taking all the keys you
own and the CODE card with you.
REPLACING THE BATTERIES
Change the batteries (using spare
batteries of the same kind) as follows.
Open the plastic case by inserting a
screwdriver in recess A-fig. 5. Insert
new batteries Brespecting the polar-
ity and close the plastic case.SEAT BELTS
USING THE SEAT BELTS
The belt should be worn keeping the
chest straight and rested against the
seat back.
Take hold of the tongue A-fig. 6. In-
sert it into the buckle B, until you hear
it clicks.
At removal, if it jams, let it rewind for
a short stretch, then pull it out again
without jerking. Used batteries are
harmful to the environ-
ment. They should be dis-
posed of as specified by law in the
special containers provided, or
take them to a Fiat Dealership,
which will deal with their dispos-
al.
AB
fig. 5
F0A0005b
BC
A
fig. 6
F0A0006b

13GETTING TO KNOW YOUR VEHICLE
For maximum safety,
keep the back of your seat
upright,lean back into it
and make sure the seat belt fits
closely across your chest and
hips. Always fasten seat belts, in
front and rear seats! Travelling
without seat belts increases the
risk of severe and fatal injury in
the event of a crash.
fig. 10
F0A0010b
GENERAL INSTRUCTIONS
FOR USING
THE SEAT BELTS
The driver is responsible for re-
specting and enforcing the local rules
and laws regarding the use of seat
belts.
Always fasten the seat belts before
starting.
The webbing must not
be twisted. The upper
section must pass across
the shoulder and chest diagonal-
ly. The lower part must fit close-
ly across the passenger’s hips, fig.
10, and not the abdomen, to pre-
vent them from sliding forwards.
Do not use clips, fasteners etc. to
prevent the belt adhering to the
passenger’s body.Under no circumstances
should the components of
seat belts and preten-
sioners be tampered with or re-
moved. Any interventions should
be carried out by qualified and
authorised personnel. Always
contact a Fiat Dealership.
If the belt has been sub-
jected to heavy stress, for
example after an acci-
dent, it should be changed com-
pletely together with the an-
chors, anchor fastening screws
and the pretensioners. In fact,
even if the belt has no visible de-
fects, it could have lost its re-
silience.

30GETTING TO KNOW YOUR VEHICLE
Day
Year
MODE
briefly
press but-
ton
Month
Deutsch
Português
English
Español
Français
Italiano
Nederland
Polski Example:
LANG. SERVICEEXIT MENUTRIP B
SET TIME
CLOCK MODE
SET DATE
AUTOCLOSE
DIST. UNIT
CONS.
TEMP. UNIT BUTTON VOL.
BUZZER VOL.SPEED
BEEP
Example:
+
– +
–
– +
+
–
–
+
+–
––
++++
–––
++
– –+ +
–MODE
briefly
press
button
Briefly press buttonMODEto start surfing from the
standard screen. To surf the menu use buttons +or –.
NoteFor safety reasons, when the vehicle is running,
it is possible to access only the reduced menu (for set-
ting the “Speed Beep”). When the vehicle is stationary
access to the whole menu is enabled. On vehicles
equipped with Connect Nav+ many functions are dis-
played on the navigator display.
F0A0505g
Türkçe

42GETTING TO KNOW YOUR VEHICLE
EOBD engine control system
failure
Under normal conditions, turning the
ignition key to MAR, the warning light
turns on, but it should go out as soon
as the engine is started. The initial
turning on indicates that the warning
light is working properly. If the warn-
ing light stays on or turns on when
travelling:
– glowing steadily: means a fault in
the supply/ignition system which could
cause high emissions at the exhaust,
possible lack of performance, poor
handling and high consumption levels.
On certain versions the dedicated
message is displayed.
In these conditions it is possible to
continue driving without however re-
quiring heavy effort or high speed from
the engine. Prolonged use of the ve-
hicle with the warning light on may
cause damages. Contact Fiat Deal-
ershipas soon as possible. The warn-
ing light goes off if the fault disappears,
but it is still stored by the system.
– flashing: indicates the possibility
of damage to the catalyst (see “EOBD
system” in this section). INJECTION SYSTEM
FAILURE
(Multijet versions -
amber)
EOBD SYSTEM FAILURE
(petrol versions - amber)
Injection system failure
Turning the ignition key to MAR the
warning light turns on but it should go
off after engine starting.
If the warning light stays on or turns
on when travelling, means a fault in the
supply/ignition system which could
cause high emissions at the exhaust,
possible lack of performance, poor
handling and high consumption levels.
On certain versions the dedicated
message is displayed.
In these conditions it is possible to
continue driving without however re-
quiring heavy effort or high speed from
the engine. In any case, contact Fiat
Dealershipas soon as possible. INCOMPLETE
DOOR LOCKING
(red)
On certain versions the warning
light turns on when one or more
doors or the tailgate are not proper-
ly shut.
On certain versions the dedicated
message is displayed; symbols
¯/ ˙
indicate respectively left / right door
open.
A buzzer will sound when doors/tail-
gate are open and the vehicle is mov-
ing (only for versions with reconfig-
urable multifunction display).
´U

46GETTING TO KNOW YOUR VEHICLE
GENERIC
FAILURE
INDICATION
(amber)
The warning light turns on in the fol-
lowing circumstances.
Engine oil pressure sensor
failure
The warning light comes on when
the engine oil pressure sensor is faulty.
Contact Fiat Dealership as soon as
possible.
On certain versions the dedicated
message is displayed.
Speed limit exceeded
The display will show the dedicated
message when the vehicle exceeds the
set speed limit (see “Reconfigurable
Multifunction Display” in this section).
On certain versions the dedicated
message is displayed. The failure referring to these lights
could be: one or more blown bulbs,
a blown protection fuse or an electric
connection cut-off.
On certain versions the dedicated
message is displayed; symbols
¯/ ˙
indicate respectively the left / right
side.
REAR FOG LIGHTS
(amber)
The warning light turns on
when the rear fog lights are
turned on.
4
è
DIESEL
PARTICULATE
FILTER CLOGGED
(1.3 Multijet 85 HP and
1.9 Multijet 120 HP versions)
(Amber)
The warning light turns on when the
diesel particulate filter is clogged and
the driving conditions do not enable
to activate automatically the reclaim-
ing procedure.
To enable the cleaning procedure,
keep the vehicle running until the
warning light turns off.
The display will show the dedicated
message.
h
Warning light Uturns
on together with the ded-
icated message on the
display to indicate that the clean-
ing procedure cannot be per-
formed, contact Fiat Dealership
as soon as possible.

61GETTING TO KNOW YOUR VEHICLE
Demisting and defrosting the
rear window/s
Press button (. The electric mirror
demisting device also comes on.
Warning light 1on the instrument
panel will turn on.
You are advised to switch the button
off as soon as the rear window is clear.
Ventilation
1)Centre and side vents: complete-
ly open.
2)Air temperature knob C: point-
er in the blue sector.
3)Slider Bat Y.
4)Fan knob A: pointer at the re-
quired speed.
5)Air distribution knob D: pointer
at ¥.Recirculation
With the slider Bat Tthe inter-
nal air is recirculated.
IMPORTANTThis function is par-
ticularly useful when the outside air
is heavily polluted (in a traffic jam, tun-
nel, etc.) and when running on dusty
roads. You are advised against using
this function for long periods, howev-
er, especially if there are a lot of peo-
ple in the vehicle or on cold or rainy
days since the windows could mist up
effecting visibility and driving.MANUAL CLIMATE
CONTROL SYSTEM
(where provided)
The climate control system is ad-
justed manually.
CONTROLS fig. 78
A - Knob for operating the fan and
switching the climate control system
on and off.
The climate control system can on-
ly be switched on when the pointer on
this knob is at speed 1, 2, 3or 4 -,
the led on the knob will light up when
the system is on.
BCAD
fig. 78
F0A0047b

62GETTING TO KNOW YOUR VEHICLE
Maximum cooling
1) Air temperature knob C: point-
er in the blue sector.
2)Fan knob Aat fourth speed,
pointer at 4-.
3)Slider B: at T.
4)Air distribution knob D: pointer
at ¥.
5)Climate control system: press
knob C-fig. 78.
To moderate the cooling effect: po-
sition slider Bat Y, increase the
temperature and reduce the fan speed. Consequently, the climate control
system cannot be switched on when
the pointer is at 0p.
B- Recirculation slider, to cut out
outside air.
IMPORTANTThis function is par-
ticularly useful when the outside air
is heavily polluted (in a traffic jam, tun-
nel, etc.) and when running on dusty
roads. You are advised against using
this function for long periods, howev-
er, especially if there are a lot of peo-
ple in the vehicle or on cold or rainy
days since the windows could mist up
effecting visibility and driving.
C- Air temperature knob (warm/cool
air mixer).
D- Air distribution knob.CLIMATIC COMFORT
See previous chapter for air distrib-
ution and heating/ventilation functions.
IMPORTANTThe manual climate
control system is very useful for
speeding up the demising process be-
cause it dries the air. Simply adjust the
controls for the demisting function
(see previous section) and switch the
manual climate control system on by
pressing knob A-fig. 78. The system uses refrig-
erating fluid R134a which
will not pollute the envi-
ronment if it accidentally leaks.
Under no circumstances should
fluid R12 be used as this is in-
compatible with the system’s
component parts.
