2007 FIAT DOBLO key

EBD
FAILURE
(red) (amber)
The turning on at the same time of
warning lights
xand >with the en-
gine running indicates an EBD system
failure or that the system is unavail-
able; in this case heavy braking may
cause the rear wheels to lock before
time, with the possibility of skidding.
41GETTING TO KNOW YOUR VEHICLE
LOW BATTERY
CHARGE (red)
Turning the ignition key
to MARthe warning light turns on,
but it should go out as soon as the en-
gine is started (with the engine running
at idle speed a brief delay in going out
is allowed).
If the warning light stays on, contact
immediately Fiat Dealership. IMPORTANTUnder severe use of
the vehicle, keep the engine on and
slightly accelerated for few minutes
before switching it off. On certain ver-
sions the dedicated message is dis-
played.
w
Drive with the utmost care to the
nearest Fiat Dealershipto have the
system checked.
On certain versions the dedicated
message is displayed.
x>
LOW ENGINE
OIL PRESSURE
(red)
EXHAUST OIL
(Multijet versions) (red)
Low engine oil pressure
Turning the ignition key to MARthe
warning light turns on, but it should go
out as soon as the engine is started.
On certain versions the dedicated
message is displayed.
If the warning light
v
turns on when the vehicle
is travelling (on certain
versions together with the mes-
sage on the display) stop the en-
gine immediately and contact a
Fiat Dealership.
v
SEAT BELTS NOT
FASTENED (red)
The warning light on the di-
al turns on glowing steadily with
vehicle stationary and driver’s or pas-
senger’s seat belt not fastened cor-
rectly. The warning light will turn on
flashing when, with vehicle moving, dri-
ver’s or passenger’s seat belt are not
fastened correctly.
<
Exhaust oil (Multijet versions)
The warning light with turn on flash-
ing together with the message on the
display when the system detects that
the engine oil is exhaust.
After the first indication, at each en-
gine starting the warning light
v
will go on flashing for 60 seconds and
then for 2 hours until oil is changed.
If warning light
v
flashes, contact Fiat Deal-
ership immediately to
have oil changed and instrument
panel warning light turned off.

42GETTING TO KNOW YOUR VEHICLE
EOBD engine control system
failure
Under normal conditions, turning the
ignition key to MAR, the warning light
turns on, but it should go out as soon
as the engine is started. The initial
turning on indicates that the warning
light is working properly. If the warn-
ing light stays on or turns on when
travelling:
– glowing steadily: means a fault in
the supply/ignition system which could
cause high emissions at the exhaust,
possible lack of performance, poor
handling and high consumption levels.
On certain versions the dedicated
message is displayed.
In these conditions it is possible to
continue driving without however re-
quiring heavy effort or high speed from
the engine. Prolonged use of the ve-
hicle with the warning light on may
cause damages. Contact Fiat Deal-
ershipas soon as possible. The warn-
ing light goes off if the fault disappears,
but it is still stored by the system.
– flashing: indicates the possibility
of damage to the catalyst (see “EOBD
system” in this section). INJECTION SYSTEM
FAILURE
(Multijet versions -
amber)
EOBD SYSTEM FAILURE
(petrol versions - amber)
Injection system failure
Turning the ignition key to MAR the
warning light turns on but it should go
off after engine starting.
If the warning light stays on or turns
on when travelling, means a fault in the
supply/ignition system which could
cause high emissions at the exhaust,
possible lack of performance, poor
handling and high consumption levels.
On certain versions the dedicated
message is displayed.
In these conditions it is possible to
continue driving without however re-
quiring heavy effort or high speed from
the engine. In any case, contact Fiat
Dealershipas soon as possible. INCOMPLETE
DOOR LOCKING
(red)
On certain versions the warning
light turns on when one or more
doors or the tailgate are not proper-
ly shut.
On certain versions the dedicated
message is displayed; symbols
¯/ ˙
indicate respectively left / right door
open.
A buzzer will sound when doors/tail-
gate are open and the vehicle is mov-
ing (only for versions with reconfig-
urable multifunction display).
´U

INEFFICIENT ABS
SYSTEM (amber)
Turning the ignition key
to MARthe warning light turns on,
but it should go off after few seconds.
The warning light turns on when the
system is inefficient or unavailable. In
this case the braking system keeps its
effectiveness unchanged, but without
the potential offered by the ABS sys-
tem. Caution is advisable and it is nec-
essary to contact Fiat Dealership.
On certain versions the dedicated
message is displayed.
43GETTING TO KNOW YOUR VEHICLE
FUEL RESERVE
(amber)
Turning the ignition key to
MARthe warning light turns on, but
it should go off after few seconds.
The warning light turns on when
about 5-7 litres fuel are left in the tank.
IMPORTANT The warning light
flashes to indicate a failure, contact
Fiat Dealershipas soon as possible
to have the system checked.
On certain versions the dedicated
message is displayed. If the light flashes, it is necessary to
release the accelerator pedal to low-
er the speed of the engine until the
warning light stops flashing; continue
the journey at moderate speed, trying
to avoid driving conditions that may
cause further flashing and contact Fi-
at Dealership as soon as possible.
If, turning the ignition
key to MAR, the warning
light Udoes not turn on
or if it turns on glowing steadily
or flashing when travelling (on
certain versions together with
the message on the display), con-
tact Fiat Dealership as soon as
possible. Warning light Uoper-
ation can be checked by traffic
agents by proper equipment.
Comply with laws and regula-
tions of the country where you
are driving.
ç>

WATER IN DIESEL
FUEL FILTER
(Multijet versions -
amber)
Turning the ignition key toMARthe
warning light turns on, but it should go
off after few seconds. The warning
light
cturns on when there is water
in the diesel fuel filter. On certain ver-
sions the warning light
èturns on
and the display shows a dedicated
message.
44GETTING TO KNOW YOUR VEHICLE
GLOW PLUG
WARMING
(Multijet versions - am-
ber)
GLOW PLUG WARMING FAIL-
URE (Multijet versions - amber)
Spark plug pre-heating
Turning the ignition key to MAR, the
warning light turns on and it will turn
off when glow plugs reach the preset
temperature. Start the engine imme-
diately after warning light switching off.
IMPORTANTWith hot ambient
temperature, warning light stays on for
very short time.
Glow plug warming failure
The warning light turns on when
there is a failure in the glow plug
warming system. Contact Fiat Deal-
ershipas soon as possible.
On certain versions the dedicated
message is displayed. FRONT
PASSENGER’S AIR
BAG DEACTIVATED
(amber)
Warning light
Fcomes on when
front passenger’s air bag is deactivat-
ed.
With front passenger’s air bag on,
turning the ignition key to MAR,
warning light
Fcomes on steadily
for about 4 seconds, it flashes for oth-
er 4 seconds and then it shall go off.
Warning light
Findi-
cates also warning light ¬
failures. This is indicated
by intermittent flashing, over 4
seconds, of warning light F. In
this event warning light ¬indi-
cates that there could be a failure
in safety systems. Contact Fiat
Dealership immediately to have
the system checked.
mcF

HEATED REAR
WINDOW (amber)
The warning light turns
on when switching the heated rear
window on.
45GETTING TO KNOW YOUR VEHICLE
The presence of water in
the fuel circuit may cause
serious damage to the en-
tire injection system and cause ir-
regular engine operation. If the
warning light
cor èturns on
(on certain versions together
with the message on the display)
contact Fiat Dealership as soon
as possible to have the system re-
lieved. If the above indications
come on immediately after refu-
elling, water has probably been
poured into the tank: turn the en-
gine off immediately and contact
Fiat Dealership.
¢Y(
EXTERNAL LIGHT
FAILURE (amber)
The warning light turns on
when one of the following
lights is failing:
– sidelights
– brake lights (third brake light ex-
cluded)
– rear fog guards
– direction indicators
– number plate lights.
W
VEHICLE
PROTECTION
SYSTEM
FAILURE -
FIAT CODE
(amber)
Turning the key to MARthe warn-
ing light shall flash only once and then
go off.
If with the ignition key at MAR, the
warning light stays on, this indicates a
possible failure (see “Fiat Code sys-
tem” in section “Dashboard and con-
trols”).
IMPORTANTThe turning on at
the same time of the warning lights
U
and Yindicates a failure of the Fiat
CODE system.
If with the engine running the warn-
ing light
Uflashes, this means that
the vehicle is not protected by the en-
gine inhibitor device (see “Fiat Code
system” in section “Dashboard and
controls”).
Contact Fiat Dealership to have all
the key memorised.

56GETTING TO KNOW YOUR VEHICLE
A
B
fig. 67
F0A0178b

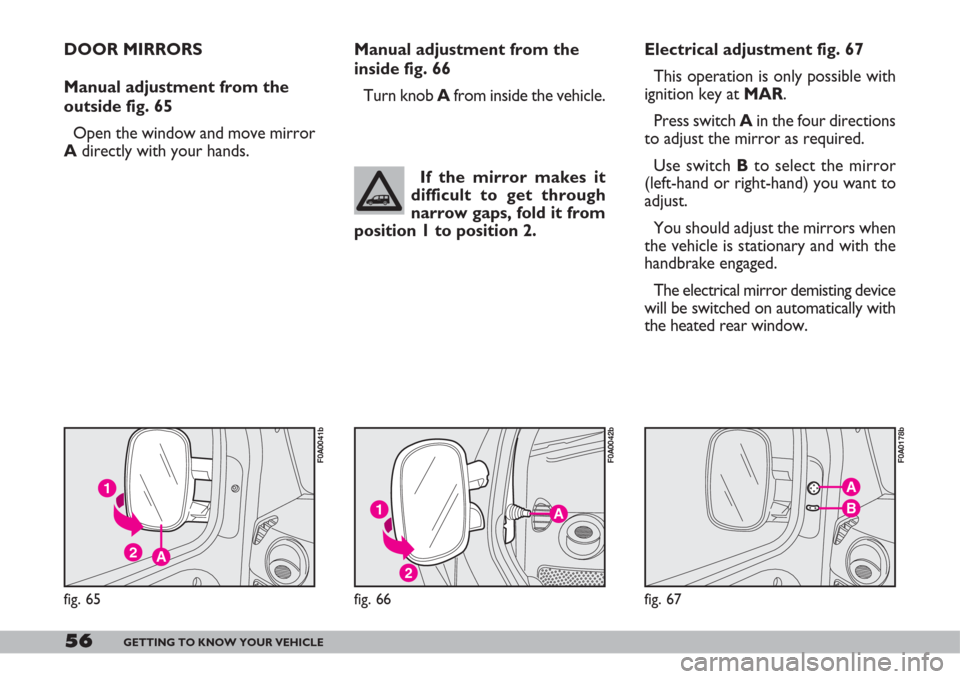

Manual adjustment from the
inside fig. 66
Turn knob Afrom inside the vehicle.
A
2
1
fig. 66
F0A0042b
If the mirror makes it
difficult to get through
narrow gaps, fold it from
position 1 to position 2.
Electrical adjustment fig. 67
This operation is only possible with
ignition key at MAR.
Press switch Ain the four directions
to adjust the mirror as required.
Use switch Bto select the mirror
(left-hand or right-hand) you want to
adjust.
You should adjust the mirrors when
the vehicle is stationary and with the
handbrake engaged.
The electrical mirror demisting device
will be switched on automatically with
the heated rear window. DOOR MIRRORS
Manual adjustment from the
outside fig. 65
Open the window and move mirror
A directly with your hands.
A
1
2
fig. 65
F0A0041b

63GETTING TO KNOW YOUR VEHICLE
LOOKING AFTER
THE SYSTEM
During the winter, the climate con-
trol system must be turned on at least
once a month for about ten minutes.
Have the system efficiency checked
before the summer at a Fiat Deal-
ership.STEERING COLUMN
STALKS
LEFT-HAND STALK
The left-hand stalk operates most of
the external lights.
The external lights can only be
switched on when the ignition key is
at MAR. The instrument panel and
the heating/ventilation (or climate con-
trol system) controls and the cigar
lighter ring will come on with the ex-
ternal lights.
The system is filled with
R134a refrigerant which
will not pollute the envi-
ronment in the event of leakage.
Under no circumstances should
R12 fluid be used as it is incom-
patible with the system compo-
nents and contains CFC.
fig. 79
F0A0048b
Side/taillights fig. 79
These come on when you turn the
ring from åto 6. Instrument panel
warning light 3will come on.
Dipped beam headlights fig. 80
These come on when you turn the
knurled switch from 6to 2.
IMPORTANTThe dipped beam
headlights will automatically be
switched off when the main beam
headlights are switched on if the front
fog lights are on.
62
y1Δ
fig. 80
F0A0049b

64GETTING TO KNOW YOUR VEHICLE
The direction indicators will auto-
matically be switched off when the ve-
hicle is straightened out.
If you wish to signal a lane change
where only a slight movement of the
steering wheel is required, move the
stalk up or down without pushing it far
enough to make it click. The stalk will
return to the neutral position as soon
as it is released.
RIGHT-HAND STALK
Windscreen wiper/washer
fig. 84
The device will only work when the
ignition key is at MAR.
fig. 84
F0A0053b
Main beam headlights fig. 81
Push the stalk from position 2to-
wards the dashboard to switch the
headlights on.
Warning light 1on the instrument
panel will turn on.
Pull the stalk towards the steering
wheel to switch the lights off.Flashing the headlights fig. 82
Pull the stalk towards the steering
wheel (unstable position).
Warning light 1on the instrument
panel will turn on.
Direction indicators fig. 83
Move the stalk as follows:
up - to switch on the right-hand di-
rection indicator
down - to switch on the left-hand di-
rection indicator.
Instrument panel warning light FD
or Rand Ewill come on flashing.
62
y1Δ
fig. 81
F0A0050b
fig. 82
F0A0051b
fig. 83
F0A0052b
