14GETTING TO KNOW YOUR CAR
fig. 12
P4Q01077
The figure is only an ex-
ample for mounting. At-
tain to the instructions
for fastening which must be en-
closed with the specific child re-
straint system you are using.
GROUPS 0 and 0+
Babies up to 13 kg must be carried
facing backwards on a cradle seat,
which, supporting the head, does not
induce stress on the neck in the event
of sharp deceleration.
The cradle is restrained by the car
seat belts, as shown infig. 12and in
turn it must restrain the child with its
own belts. SERIOUS DANGER: Never place cradle child’s seats on
the front passenger seat of cars fitted with passenger’s
air bag. The air bag activation could cause serious injuries,
even mortal. You are advised to carry children always on the rear seats,
as this is the most protected position in the case of a crash. In any case,
children’s seats must absolutely not be fitted on the front seat of cars
with passenger’s air bag, which during inflation could cause serious in-
jury, even mortal, regardless of the seriousness of the crash that trig-
gered it. Children may be placed on the front seat of cars fitted with
passenger’s air bag deactivation. In this case, it is absolutely necessary
to check the warning light
Fon the cluster to make sure that deacti-
vation has actually taken place (see paragraph “Passenger’s front air
bag” at item “Front air bags”). The front passenger’s seat shall be ad-
justed in the most backward position to prevent any contact between
child’s seat and dashboard.
001-069 Seicento GB 22-11-2007 10:49 Pagina 14

19GETTING TO KNOW YOUR CAR
DASHBOARD
Left-hand drive versions
The presence and position of the instruments and warning and indicator lights may vary according to the version of the car.
1.Left speaker housing - 2.Side window defroster/demister vents - 3.External light control stalk - 4.Horn - 5.Instrument
panel - 6.Steering wheel and airbag - 7.Windscreen/rear window wiper/washer control stalk - 8.Central air vents -
10.Windscreen defroster/demister vents - 11.Oddment compartment - 12.Right speaker housing - 13.Side window de-
froster/demister vents - 14.Oddment compartment under dashboard - 15.Control buttons - 16.Electric window controls
- 17.Heating and ventilation controls - 18.Sound system housing/oddment compartment - 19.Headlight adjustment con-
trol - 20.Ignition switch - 21.Fusebox.
P4Q00225fig. 17
001-069 Seicento GB 22-11-2007 10:49 Pagina 19

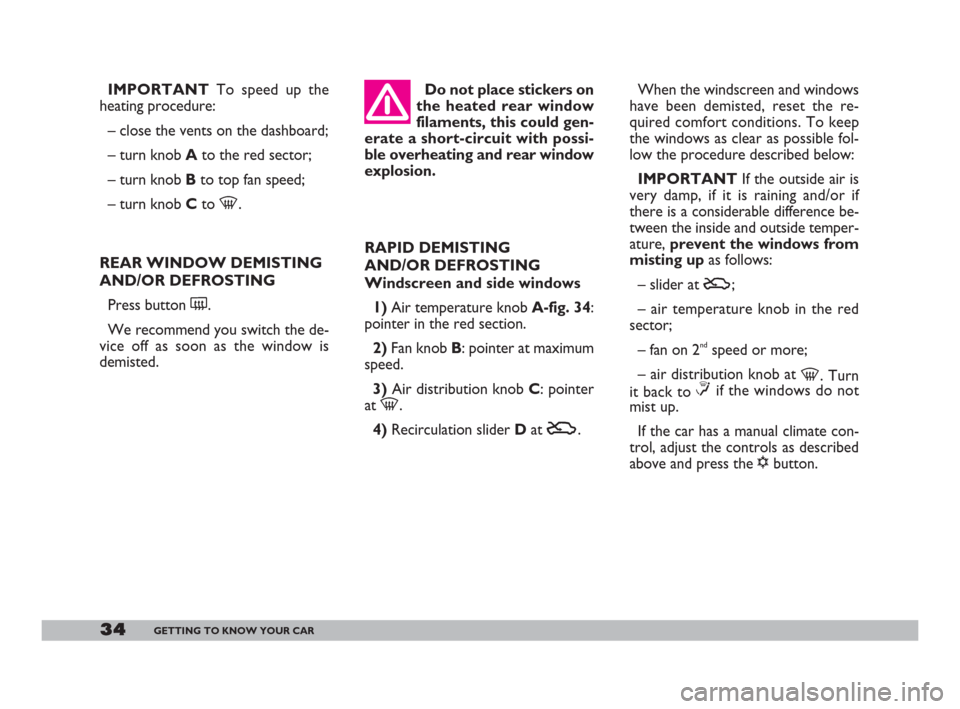

34GETTING TO KNOW YOUR CAR
IMPORTANTTo speed up the
heating procedure:
– close the vents on the dashboard;
– turn knob Ato the red sector;
– turn knob Bto top fan speed;
– turn knob Cto -.
REAR WINDOW DEMISTING
AND/OR DEFROSTING
Press button (.
We recommend you switch the de-
vice off as soon as the window is
demisted.Do not place stickers on
the heated rear window
filaments, this could gen-
erate a short-circuit with possi-
ble overheating and rear window
explosion.
RAPID DEMISTING
AND/OR DEFROSTING
Windscreen and side windows
1)Air temperature knob A-fig. 34:
pointer in the red section.
2)Fan knob B: pointer at maximum
speed.
3)Air distribution knob C: pointer
at -.
4)Recirculation slider Dat U. When the windscreen and windows
have been demisted, reset the re-
quired comfort conditions. To keep
the windows as clear as possible fol-
low the procedure described below:
IMPORTANTIf the outside air is
very damp, if it is raining and/or if
there is a considerable difference be-
tween the inside and outside temper-
ature, prevent the windows from
misting up as follows:
– slider at
U;
– air temperature knob in the red
sector;
– fan on 2
ndspeed or more;
– air distribution knob at
-. Turn
it back to≤if the windows do not
mist up.
If the car has a manual climate con-
trol, adjust the controls as described
above and press the √button.
001-069 Seicento GB 22-11-2007 10:49 Pagina 34

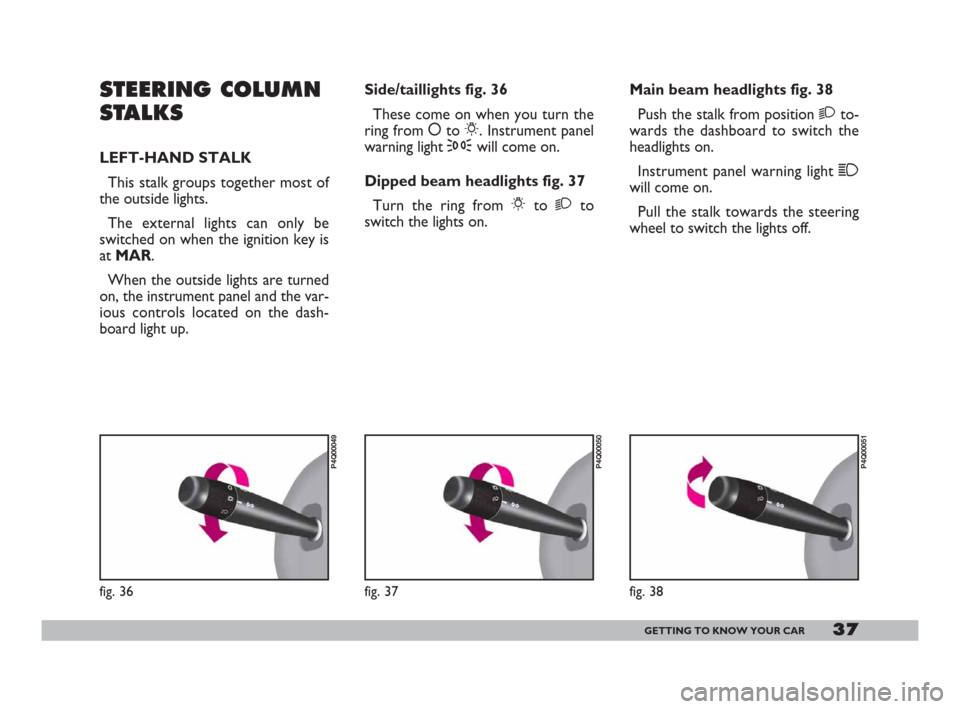

37GETTING TO KNOW YOUR CAR
Side/taillights fig. 36
These come on when you turn the
ring from åto 6. Instrument panel
warning light 3will come on.
Dipped beam headlights fig. 37
Turn the ring from 6to 2to
switch the lights on.Main beam headlights fig. 38
Push the stalk from position 2to-
wards the dashboard to switch the
headlights on.
Instrument panel warning light 1
will come on.
Pull the stalk towards the steering
wheel to switch the lights off.STEERING COLUMN
STALKS
LEFT-HAND STALK
This stalk groups together most of
the outside lights.
The external lights can only be
switched on when the ignition key is
at MAR.
When the outside lights are turned
on, the instrument panel and the var-
ious controls located on the dash-
board light up.
fig. 36
P4Q00049
fig. 37
P4Q00050
fig. 38
P4Q00051
001-069 Seicento GB 22-11-2007 10:49 Pagina 37

41GETTING TO KNOW YOUR CAR
HORN
Press one of the two area on the
steering wheel shown in fig. 48.FUEL CUT-OFF SWITCH
This is a safety cut-off switch which
comes into operation in the case of an
accident to block the supply of fuel
thereby stopping the engine.
If, after a crash, you can
smell fuel or see leaks
from the fuel system , no
not reset the switch to avoid fire
risk.
fig. 48
P4Q01057
If you cannot see any fuel leaks and
the car is in a fit state to continue its
journey, press button A-fig. 49lo-
cated in the engine compartment on
the dashboard bulkhead to reactivate
the fuel supply system, as illustrated.
Remember to turn the key to
STOPto avoid deploying the battery.
fig. 49
P4Q00176
001-069 Seicento GB 22-11-2007 10:49 Pagina 41

57GETTING TO KNOW YOUR CAR
Do not apply stickers or
other objects to the
steering wheel or to the
passenger's air bag cover or on
the side roof lining. Never apply
objects on the dashboard on pas-
senger side (e.g. mobile phones)
since they could interfere with
proper passenger air bag inflation
and cause severe injuries. – car wedging under other vehicles
or protective barriers (for
example under a truck or guard
rail);
as it offers no additional protection
compared with the seat belts, conse-
quently, it would be pointless. There-
fore, failure to come into action in the
above circumstances does not mean
that the system is not working prop-
erly.FRONT AIRBAG
PASSENGER SIDEThe passenger side airbag was de-
signed and calibrated to protect a per-
son wearing seat belts.
When fully inflated, the bag will fill
most of the space between the dash-
board and the passenger.
Manual deactivation
The passenger side airbag can be de-
activated if it is absolutely necessary
to carry a child in the front passenger
seat.
Turn the specific control switch un-
der the middle of the dashboard be-
tween the sound system compart-
ment and the oddment compartment
fig. 81with the ignition key to deac-
tivate the airbag. SERIOUS DAN-
GER: Never place
cradle child’s seats
on the front passenger seat of
cars fitted with passenger air bag.
Air bag activation could cause se-
rious injuries, even mortal. In the
case of need, always deactivate
the passenger’s air bag when a
child’s seat is placed on the front
seat. The front passenger’s seat
shall be adjusted in the most
backward position to prevent any
contact between child’s seat and
dashboard. Even if not compul-
sory by law, you are recom-
mended to reactivate the air bag
immediately as soon as child
transport is no longer necessary.
fig. 81
P4Q00183
001-069 Seicento GB 22-11-2007 10:49 Pagina 57

64GETTING TO KNOW YOUR CAR
AERIAL
To install:
1)Remove the plastic cap A-fig. 85
screwed onto the car roof.
2)Screw in the aerial. SOUND SYSTEMSTANDARD SYSTEM
Standard equipment includes car ra-
dio supply cables, car radio housing
and front loudspeaker housing.
The car radio must be installed
on specific housing occupied by the
glove compartment that is removed
by pressing on the two retaining tabs
A-fig. 84.
Here, supply cables are available and,
in case of car radio option provision,
the loudspeaker and aerial connec-
tions as well. Contact a Fiat Dealer-
ship if you want to install
a sound system after pur-
chasing your car. Their staff will
advise you on how to safeguard
the life of the battery. Excessive
idle intake can damage the bat-
tery and invalid the battery war-
ranty as well.
Large oddments compartments in
the dashboard making the passenger
compartment even more comfortable
are found in cars not equipped with a
SOUND SYSTEM SET-UP.
A specific
SOUND SYSTEM SET-UPkit
can be found in the Lineaccessori Fiat
range.
fig. 84
P4Q00128
fig. 85
P4Q00075
001-069 Seicento GB 22-11-2007 10:50 Pagina 64

65GETTING TO KNOW YOUR CAR
WIRING DIAGRAM AND ADDITIONAL BRANCHES fig. 86
A- Aerial
B- Radio receiver unit connection
C- Speaker on right dashboard
panel
D- Speaker on left dashboard panel
E- Power supply fuses
F- Power supply with extra fuse for
amplifier installation only (for systems
with 20 + 20W output or higher).
Wire colour coding:
A=light blue - BN=white/black - N=black -
NZ=black/purple - RN=red/black -
RV=red/green - SN=pink/black
F
E
DC
B
B
A
15
ST EQ NL CR
CARD1 2 3 4 5 6 SEARCH SCAN.
22
RN
BNNZ
SN
N RV
A
fig. 86
P4Q00181
