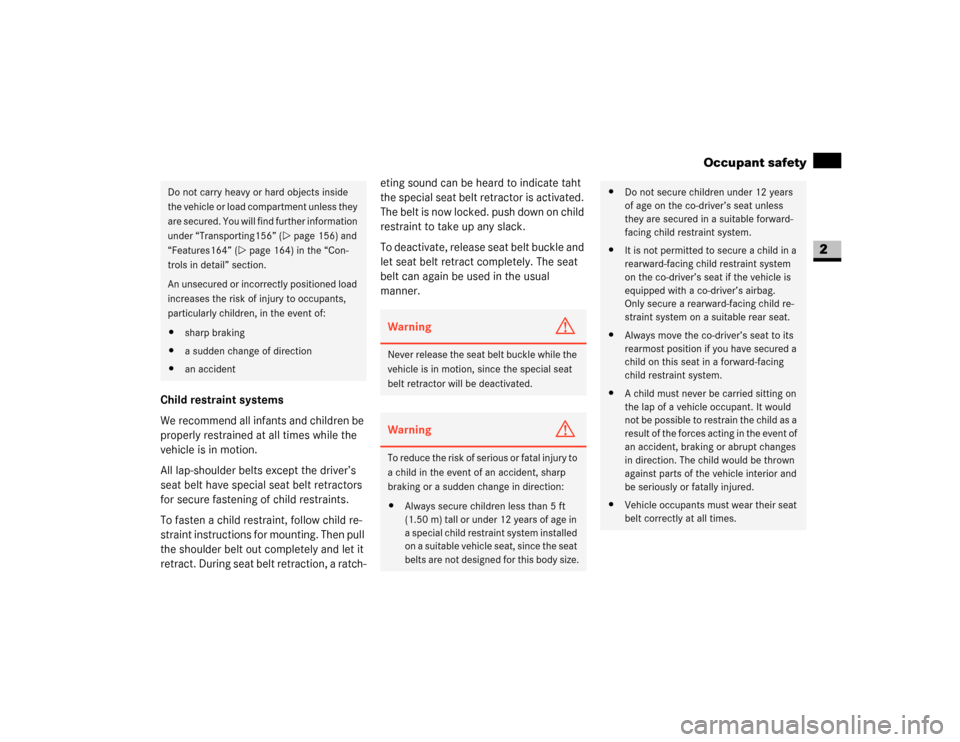

37 Safety
Occupant safety
2
Child restraint systems
We recommend all infants and children be
properly restrained at all times while the
vehicle is in motion.
All lap-shoulder belts except the driver’s
seat belt have special seat belt retractors
for secure fastening of child restraints.
To fasten a child restraint, follow child re-
straint instructions for mounting. Then pull
the shoulder belt out completely and let it
retract. During seat belt retraction, a ratch-eting sound can be heard to indicate taht
the special seat belt retractor is activated.
The belt is now locked. push down on child
restraint to take up any slack.
To deactivate, release seat belt buckle and
let seat belt retract completely. The seat
belt can again be used in the usual
manner.Do not carry heavy or hard objects inside
the vehicle or load compartment unless they
are secured. You will find further information
under “Transporting156” (\2page 156) and
“Features164” (\2page 164) in the “Con-
trols in detail” section.
An unsecured or incorrectly positioned load
increases the risk of injury to occupants,
particularly children, in the event of:
\4sharp braking
\4a sudden change of direction
\4an accident
Warning
G
Never release the seat belt buckle while the
vehicle is in motion, since the special seat
belt retractor will be deactivated.Warning
G
To reduce the risk of serious or fatal injury to
a child in the event of an accident, sharp
braking or a sudden change in direction:
\4Always secure children less than 5 ft
(1.50 m) tall or under 12 years of age in
a special child restraint system installed
on a suitable vehicle seat, since the seat
belts are not designed for this body size.
\4Do not secure children under 12 years
of age on the co-driver’s seat unless
they are secured in a suitable forward-
facing child restraint system.
\4It is not permitted to secure a child in a
rearward-facing child restraint system
on the co-driver’s seat if the vehicle is
equipped with a co-driver’s airbag.
Only secure a rearward-facing child re-
straint system on a suitable rear seat.
\4Always move the co-driver’s seat to its
rearmost position if you have secured a
child on this seat in a forward-facing
child restraint system.
\4A child must never be carried sitting on
the lap of a vehicle occupant. It would
not be possible to restrain the child as a
result of the forces acting in the event of
an accident, braking or abrupt changes
in direction. The child would be thrown
against parts of the vehicle interior and
be seriously or fatally injured.
\4Vehicle occupants must wear their seat
belt correctly at all times.

53 Controls in detail
Opening and closing
3
Remote control with key1 To unlock the sliding doors and
rear doors and opens or closes the
electric sliding door*
2ΠUnlocking button
3‹ Locking button
4Release button for mechanical key
5Battery check lamp.As a precaution, both remote controls
should always be carried.
Checking the batteries
\1Press theŒ or‹ button for
longer than 2 seconds.
The battery check lamp 5 comes on
briefly to indicate that the remote con-
trol batteries are in order.
Change the batteries immediately if the
lamp does not light up briefly during
check (\2page 315).
Warning
G
Do not leave children unsupervised in the
vehicle, even if they are secured by a child
restraint system.
The children could:
\4injure themselves on parts of the vehicle
\4unlock the door on vehicles with an elec-
tric sliding door by pressing the central
locking button, and then open the doors
and thereby injure other persons
\4get out of the vehicle and could either
injure themselves when doing so or they
could be injured by passing vehicles
\4be severely or even fatally injured by
prolonged exposure to intense heat
!Do not expose the key to high levels of
electromagnetic radiation, otherwise
this may interfere with the functions of
the key.
Protect the key from moisture to pre-
vent malfunctions.
iTo prevent theft, only use the remote
control in the immediate vicinity of the
vehicle.
In an emergency, the driver’s door and
rear door can also be unlocked manual-
ly using the key.iIf the batteries are checked within
signal range of the vehicle, pressing the
Œ or‹ button will lock or un-
lock the vehicle accordingly.

63 Controls in detail
Opening and closing
3
\1To close: make sure that the left-hand
rear door is closed.
\1Pull the right-hand rear door firmly
closed by the door handle.
\1To lock: slide catch2 to the right.
Only the rear door is locked.
The white marking is no longer visible.Using the central locking switch, you can
centrally lock or unlock from the inside ei-
ther the entire vehicle or the sliding doors
and rear doors only.The central locking switch is located on the
center console.
1To lock / unlock the entire vehicle
2To lock / unlock the sliding doors and
rear doorWarning
G
M a k e s u r e t h a t n o b o d y c a n b e c o m e t r a p p e d
as you close the rear door.
Locking and unlocking centrally
from the insideWarning
G
Do not leave children unsupervised in the
vehicle, even if they are secured by a child
restraint system. The children could:
\4injure themselves on parts of the vehicle
\4be severely or even fatally injured by
prolonged exposure to intense heat
If the children open a door, they could:
\4cause injury to others as a result
\4get out of the vehicle and could either
injure themselves when doing so or they
could be injured by passing vehicles
\4sustain serious injuries if they were to
fall out of the vehicle, due in particular
to the height of the passenger compart-
ment from the ground
iIf the key is in position0 or no longer in
the ignition lock, the indicator lamp in
the central locking switch lights up for
5 seconds after it is pressed. It lights
up permanently if the key is in position
1 or2 in the ignition lock.
N54.25-2917-31

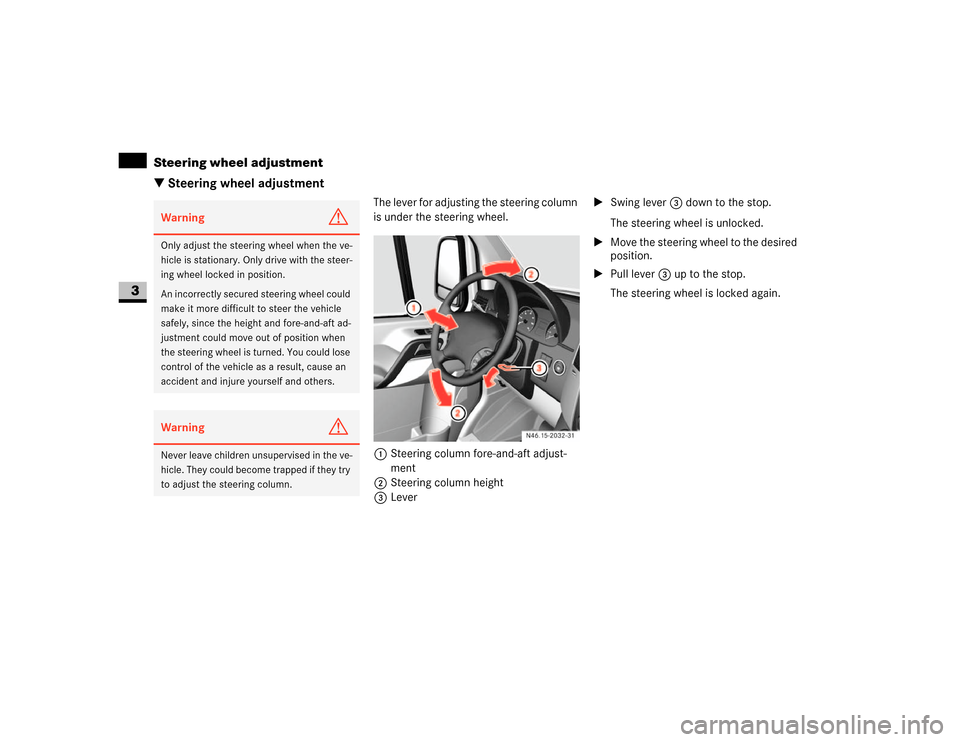

76 Controls in detailSteering wheel adjustment
3
\3 Steering wheel adjustment
The lever for adjusting the steering column
is under the steering wheel.
1Steering column fore-and-aft adjust-
ment
2Steering column height
3Lever\1Swing lever 3 down to the stop.
The steering wheel is unlocked.
\1Move the steering wheel to the desired
position.
\1Pull lever3 up to the stop.
The steering wheel is locked again.
Warning
G
Only adjust the steering wheel when the ve-
hicle is stationary. Only drive with the steer-
ing wheel locked in position.
An incorrectly secured steering wheel could
make it more difficult to steer the vehicle
safely, since the height and fore-and-aft ad-
justment could move out of position when
the steering wheel is turned. You could lose
control of the vehicle as a result, cause an
accident and injure yourself and others.Warning
G
Never leave children unsupervised in the ve-
hicle. They could become trapped if they try
to adjust the steering column.
N46.15-2032-31

114 Controls in detailDriving and parking
3
ParkingWarning
G
Only remove the key from the ignition lock
when the vehicle is stationary, since it is not
possible to steer the vehicle with the key re-
moved.
Always apply the handbrake after parking
the vehicle.
Never leave children unsupervised in the ve-
hicle. They could release the handbrake.
This could lead to a serious or fatal accident.
Warning
G
Always switch off the engine and apply the
handbrake before leaving the vehicle.
The vehicle could roll away if it is not
secured.
On uphill or downhill gradients steeper than
15%:
\4apply the handbrake
\4secure an unloaded vehicle by chocking
the front axle (\2page 303)
\4secure a loaded vehicle by, for example,
chocking the rear axle (\2page 303)!
CAUTION
Whenever you park the vehicle, always
remove the key to prevent the battery
from excessively discharging.
For vehicles which are out of use for ex-
tended periods and have a battery iso-
lating switch*, switch off the electrical
system (\2page 197).
Warning
G
Make sure that the exhaust system does not
come into contact with highly flammable
materials, e.g. dry grass or gasoline. The
flammable material could otherwise ignite
and set vehicle components on fire.Warning
G
Regulations in some countries require the
parking lamps to be switched on to illumi-
nate the vehicle for other road users if
parked on a public road at night. In built-up
areas, night reflectors can also be used.
Observe legal requirements.

115 Controls in detail
Driving and parking
3
Handbrake
The handbrake is located between the driv-
er’s seat and the co-driver’s seat.
1Lever
2Release knobApplying the handbrake
\1Pull lever1 up as far as the last de-
tent.
The7 indicator lamp in the instru-
ment cluster lights up while the engine
is running.
Releasing the handbrake
\1Raise lever1 slightly and press re-
lease knob2.
\1Guide lever1 down to the stop.
The7 indicator lamp in the instru-
ment cluster goes out.Emergency braking
Normally, you are only permitted to apply
the handbrake when the vehicle is station-
ary.
In exceptional cases, the handbrake can
be used for emergency braking if the ser-
vice brake fails.
\1Keep release knob2 pressed and
carefully apply lever1.Warning
G
Never leave children unsupervised in the ve-
hicle. They could release the handbrake.
This could lead to a serious or fatal accident.!
CAUTION
You must only apply the handbrake
when the vehicle is stationary.
iOn vehicles with a folding handbrake
lever, you can then press lever1
down to the stop.iOn vehicles with a folding handbrake
lever, you must first pull lever1 up to
the stop.
Warning
G
The wheels on the rear axle could lock if the
handbrake lever is applied too abruptly. The
vehicle could then start to skid.
Make sure that you apply the handbrake le-
ver carefully to ensure that braking applica-
tion is moderated.

144 Controls in detailOpen air
3
\3 Open airYou can open and close the side windows
electrically.
The switches for all side windows are locat-
ed on the door control panel.
Power window switches (driver’s side)1Power window, left
2Power window, right
\1Switch on the ignition (\2page 67).
\1To open: press and hold switch1
or2 until the window has reached the
desired position.\1To close: pull and hold switch1 or2
until the window has reached the de-
sired position.
Resetting the side windows
The side windows must be reset if the bat-
tery has been disconnected:
\1Pull the two power window switches
until the side windows are closed.
\1Hold the switches in this position for
about 1 second.
The side windows are reset.
Side windowsWarning
G
Make sure that nobody can become trapped
as you close a side window.
Remove the key from the ignition lock even
if you are only leaving the vehicle for a short
time.
Never leave children unsupervised in the ve-
hicle.
iThe window opens automatically when
you press the switch beyond the pres-
sure point and then release it.
To stop the window, pull or press the
switch again.

315 Practical hints
Changing the batteries
5
\3 Changing the batteriesIf the remote control batteries (remote
keyless entry) are discharged, you will only
be able to lock and unlock the vehicle man-
ually using the key.
If the batteries in the auxiliary heating re-
mote control are discharged, you will only
be able to switch the auxiliary heating on
or off using the auxiliary heating / heater
booster switch inside the vehicle
(\2page 140).
It is advisable to have the batteries
changed at an authorized Sprinter Dealer.You need two CR 2025 3 V cell batteries or
equivalent.
Do not touch the battery contact surfaces.Warning
G
Keep batteries away from children.
Consult a doctor immediately if a battery is
swallowed.
Dispose of used batteries in an environmen-
tally responsible manner.
Danger of explosion if the battery is not cor-
rectly replaced.
Replacements should always be either of
the same type or one which has been rec-
ommended by the manufacturer.
Environmental note
H
Batteries contain materials that can harm
the environment if disposed of improperly.
Recycling of batteries is the preferred meth-
od of disposal. Many states require sellers
of batteries to accept old batteries for recy-
cling.iAlways replace all the batteries at the
same time. Suitable batteries are avail-
able from an authorized Sprinter Deal-
er. You can also have the batteries
changed there and return used batter-
ies.
Remote control
(remote keyless entry)iWhen inserting the batteries, make
sure that they are clean and lint-free.!
CAUTION
Do not operate the remote control
while the battery is being replaced.
