Page 45 of 216
48
IISTOP
STOP
0
STOP
STOP
49/54
ADBCA
STST
B
KJIHGFEB
KJIHGFEB
CAB
STST
DA
B
I N S T R U M E N T P A N E L
Remark: Certain types of screen may adversely affect the readability of t he instrument panel.
A Signalling warning lampsB Operational warning lampsC Cruise control/speed limiter informationD Fuel gaugeE Trip mileage recorderF Total mileage recorder, maintenance indicator
G Speed indicatorH Display of automatic gearbox informationI Display of suspension sport modeJ Rev counterK Reset button for trip mileage recorder and mainte-nance indicator
INSTRUMENT PANEL - PETROL VERSION
INSTRUMENT PANEL - DIESEL VERSION
Page 46 of 216
53
II
00
00A
A
I N S T R U M E N T P A N E L
Maintenance intervals
If you use your vehicle in par- t i c u l a r l y d i f fi c u l t c o n d i t i o n s , it is essential to have recourse to the service schedule for “special con-ditions” comprising shorter inter-vals between services. See “Main-tenance Guide”.
Reset to zero
Your CITROËN technician resets the indicator to zero after each service. However, if you do your own servicing, the procedure for resetting to zero is as follows:1. Switch off the ignition.2. Press on button A and keep it pressed.3. Switch on the ignition.4. Keep button A pressed down until the screen indicates “=0” and the maintenance symbol disappears.
Note: If the maximum time between two oil changes is reached before the mileage has been covered, the mainte-nance spanner lights up and the i n s t r u m e n t p a n e l i n d i c a t e s “0 i n s t r u m e n t p a n e l i n d i c a t e s “ i n s t r u m e n t p a n e l i n d i c a t e s “ ” .
MILEAGE RECORDER
Display
When the driver's door is opened or the vehicle is unlocked with the remote control, for around 30 sec-onds there is display of the mile-age recorders and sometimes the maintenance spanner.
Trip mileage recorder reset
This can operate when the ignition is switched on.
With a long press on the zero reset button A, the trip mileage dis-played resets to zero.
FUEL GAUGE
If the fuel low warning lamp comes on permanently on horizontal ground, accompanied by a sound signal, there remain around 9 l of f u e l ( p e t r o l v e r s i o n ) o r 8 l of fuel ( D i e s e l v e r s i o n ) .
When the second-to-last bar dis-appears, you still have approx. 5 lof fuel.
REV COUNTER
When you approach maximum engine speed, crossing into the red zone indicates the need to engage a higher gear.
Page 59 of 216
62
II
T R I P C O M P U T E R
OPERATION
For selection and display of the various types of information, give short presses on the end of the windcsreen wiper stalk.
Press on the “TRIP” button on the radio panel, for permanent display of the trip computer information.
To reset the trip computer infor-mation to zero, keep the end of the control stalk pressed for a few seconds when you see the relevant information displayed.
The trip computer gives you access to:Three types of instantaneous information:
Range.Instantaneous consumption.Distance remaining to be travelled.Three types of information for two Journeys 1 and 2:The distance travelled.Average consumption.Average speed.The JourneysJourneys 1 and 2 are independent of each other but identical in use. For example you can allocate Journey 1 to daily calculations and Jour-ney 2 to monthly calculations.Resetting a Journey to zeroWhen the desired Journey is displayed, give a long press on the end of the wiper control stalk.Information concerning your vehicle
The o i l t e m p e r a t u r e ( f o r N a v i D r i v e d i s p l a y o n l y ) .The coolant temperature.The tyre pressures.
Page 60 of 216
63
II
T R I P C O M P U T E R
Colour screen CNaviDrive colour display
Range
This is the distance that can still be travelled on the amount of fuel remaining in the tank. When the dis-tance you can still travel is less than around 30 km ( 2 0 m i l e s ) , o n l y f o u r d a s h e s a r e d i s p l a y e d .
Instantaneous consumption
This is the result from the consumption recorded within the last 2 seconds. This function displays only from 3 0 k m / h ( 1 8 m p h ) .
Distance to be travelled
To enter it, see “Multifunction display”.
Distance travelled
This is the distance that has been travelled since the last reset to zero of the Journey selected.
Average consumption
This is the relationship between the fuel consumed and the distance travelled since the last reset to zero of the trip computer.
Average speed
This is obtained, from the last reset to zero of the trip computer, by dividing the distance travelled by the time t a k e n ( w i t h i g n i t i o n s w i t c h e d o n ) .
Page 206 of 216
4646
V
ABCD
A1A2A3A4
C1C2C3C4
A1
A2
A3
A4
B1
B2
B3
C1C2
C3
C4
A5
B1B2B3
D1D2D3D4
A5
D1
D2
D3
D4
A
B
C
D

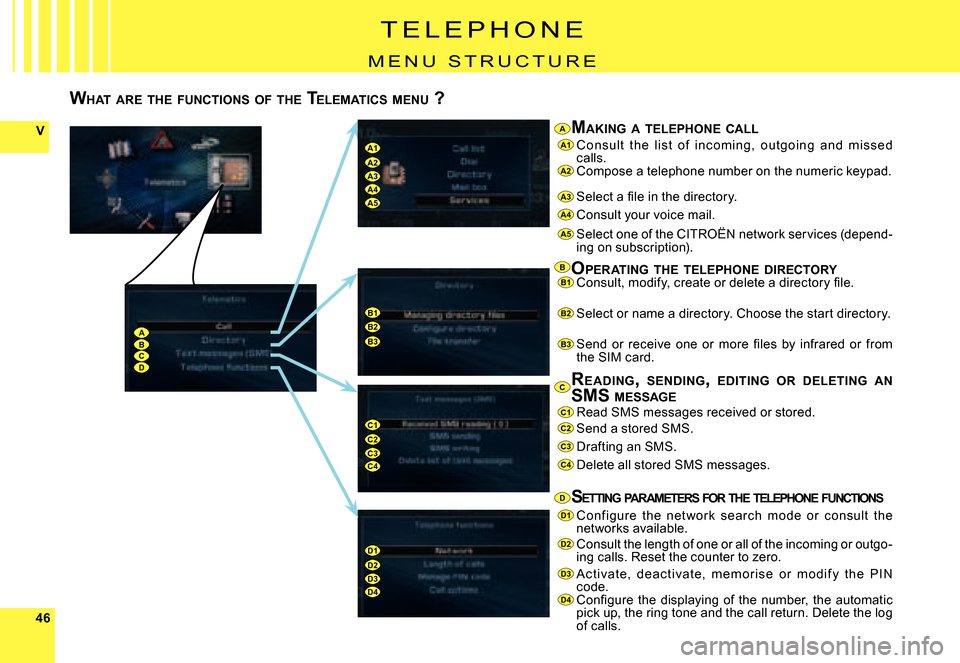

T E L E P H O N E
M E N U S T R U C T U R E
WHAT ARE THE FUNCTIONS OF THE TELEMATICS MENU ?
MAKING A TELEPHONE CALLC onsult t he list of inc oming, outgoing and mis se d calls.Compose a telephone number on the numeric keypad.
S e l e c t a fi l e i n t h e d i r e c t o r y .
Consult your voice mail.
O PERATING THE TELEPHONE DIRECTORY C o n s u l t , m o d i f y , c r e a t e o r d e l e t e a d i r e c t o r y fi l e .
Select or name a directory. Choose the start directo ry.
S e n d o r r e c e i v e o n e o r m o r e fi l e s b y i n f r a r e d o r f r o m the SIM card.
READING , SENDING , EDITING OR DELETING AN SMS MESSAGERead SMS messages received or stored.Send a stored SMS.
Drafting an SMS.
Delete all stored SMS messages.
Select one of the CITROËN network services (depend-ing on subscription).
SETTING PARAMETERS FOR THE TELEPHONE FUNCTIONS
Conf igure the net wor k search mode or c onsult the networks available.Consult the length of one or all of the incoming or outgo-ing calls. Reset the counter to zero.
Ac t i vate, de ac t i vate, m e m o r i s e o r m o di f y t he PI N code. C o n fi g u r e t h e d i s p l a y i n g o f t h e n u m b e r , t h e a u t o m a t i c pick up, the ring tone and the call return. Delete the log of calls.
