2007 Citroen C6 Owner's Manual

99
III
ab
ab
c

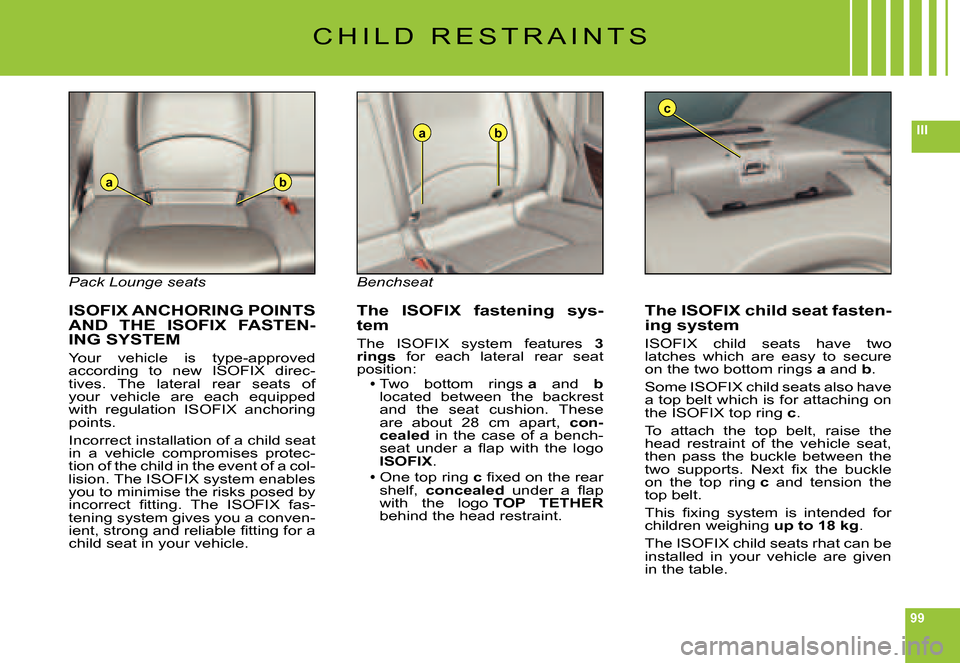

C H I L D R E S T R A I N T S
Pack Lounge seats
ISOFIX ANCHORING POINTS AND THE ISOFIX FASTEN-ING SYSTEM
Your vehicle is type-approved according to new ISOFIX direc-tives. The lateral rear seats of your vehicle are each equipped with regulation ISOFIX anchoring points.
Incorrect installation of a child seat in a vehicle compromises protec-tion of the child in the event of a col-lision. The ISOFIX system enables you to minimise the risks posed by incorrect fi tting. The ISOFIX fas-tening system gives you a conven-ient, strong and reliable fi tting for a child seat in your vehicle.
Benchseat
The ISOFIX fastening sys-tem
The ISOFIX system features 3rings for each lateral rear seat position:Two bottom rings a and blocated between the backrest and the seat cushion. These are about 28 cm apart, con-cealed in the case of a bench-seat under a fl ap with the logo ISOFIX.
One top ring c fi xed on the rear shelf, concealed under a fl ap with the logo TOP TETHERbehind the head restraint.

100
III
C H I L D R E S T R A I N T S
TABLE SUMMARISING THE INSTALLATION OF ISOFIX CHILD SEATS
In compliance with European legislation (ECE 16), this table indicates which of the ISOFIX child seats can be installed in seat positions in your vehicle that are equipped with ISOFIX anchoring points.
For ISOFIX universal and semi-universal child seats, the ISOFIX size class, defi ned by a letter from A to G, is shown on the child seat to the right of the ISOFIX logo.
To install an ISOFIX child seat in a Pack Lounge seat po sition you have to adjust the vehicle seat as far forward as possible. On ce the ISOFIX child seat is attached, it is then possible to recline the Pack Lounge seat.
Weight of child/Age given as a guide
U p t o 1 0 k g ( g r o u p 0 )U p t o a r o u n d 6 m o n t h s
Up to 10 kg and up to 13 kg (groups 0 and 0+)Up to around 1 year old
9 - 18 kg (group 1)From approx. 1 to 3 years
Type of ISOFIX child seatS h e l l“ R e a r - f a c i n g ”“ R e a r - f a c i n g ”“ F o r w a r d -f a c i n g ”
ISOFIX size classFGCDECDABB 1
ISOFIX lateral rear seats
ISOFIX uni-versal and s e m i - u n i -versal child seats
-I L - S UI L - S UI U FI L - S U
IUF: Seat position suitable for installation of an ISOFIX universal child seat. ISOFIX “forward-facing” child seats equipped with a top belt for attaching on th e top ring in the vehicle's ISOFIX seat posi-tions.IL-SU: Seat position suitable for installation of an ISOFI X semi-universal child seat. ISOFIX “for-ward-facing” child seats equipped with a bar, ISOFIX “rear-facin g” child seats, or ISOFIX shell seats equipped with either a top belt or a bar.
In the front passenger's s e a t p o s i t i o n , i t i s imperative to deactivate the front passenger's airbag if you are installing a “rear-facing” child seat there. Otherwise the child risks being k i l l e d o r s e r i o u s l y i n j u r e d should the airbag deploy.
Take care to comply with the fitting instructions given in the child seat manufacturer’s installation guide.
ISOFIX CHILD SEAT REC-OMMENDED
The ISOFIX child seat recom-mended for your vehicle is the RÖMER Duo ISOFIXmended for your vehicle mended . It is mar-keted by the CITROËN network.
It is equipped with a top belt and so is approved as an “ ISOFIX univer-sal” child seat, size class B1. It is essential to use the top belt.
This ISOFIX child seat can also be installed in seat positions that are not equipped with ISOFIX anchor-ing points. In this case, it is com-pulsory to secure it to the vehicle seat by means of the vehicle seat belt.

101
III
A
S U S P E N S I O N W I T H E L E C T R O N I C A L L Y
C O N T R O L L E D S P R I N G I N G A N D D A M P I N G
Active suspension with piloted damping and fl exibility automati-cally and instantaneously adjusts the dampers to your driving style, as well as to the condition of the road surface, this to achieve the maximum comfort for you and your passengers, as well as improved roadholding.
This symbol displays on your instrument panel.
SIGNALLINGIn the standard situation, button A is not lit up by day, it only illuminates at night.In sport mode, after you press button A, the latter lights up in orange, day or night.
Sport mode is retained when you switch off the engine.

102
III
G R O U N D C L E A R A N C E A D J U S T M E N T
Position changes may only be made when the engine is running.
The ground clearance is adjusted automatically. You can however modify the vehicle height in certain specifi c cases.
To change the position
Press once on one of the adjust-ment controls. The change of posi-tion is indicated at the start of the adjustment by:A message orA
Temporary display of the initial position with the symbol for the position requested.Note: You are recommended to avoid any changing of position while you have your foot on the brake.
Viewing of the position of the vehicle
On completion of the adjustmentyou see either a message or an illustration of the position attained by the vehicle, with the appropriate symbol.

103
III
G R O U N D C L E A R A N C E A D J U S T M E N T
AUTOMATIC CORRECTION OF GROUND CLEARANCE
Your vehicle has active suspension with variable damping which is electronically controlled. This automatically regu-lates the ground clearance according to the vehicle speed and the road surface conditions.
Limits on access to the posi-tions
Maximum height:
Impossible if speed > 10 km / h (6 mph).
Intermediate position:
Impossible if speed > 40 km / h (24 mph).
Normal road position: Always permitted.
Minimum height:
Impossible if speed > 10 km / h (6 mph).Note: If the speed authorised for a particular position is exceeded, the vehicle reverts automatically to the normal road position.
Signalling of a requested position not authorised
On the display:
The display indicates for a short time, via a message or by hatching on the requested position, that the adjustment is impossible.
The vehicle remains in the position that is authorised and the display confi rms this position.
Automatic variation of ground clearanceIf the speed Ifexceeds110 km / h(68 mph), on a good road, the ground clearance is lowered.
The vehicle reverts to the normal road position if the road dete-riorates or if the speed comes below 90 km / h (56 mph).When the vehicle is stationary the ground clearance is low-ered to the parking position.

104
III221
2
2
I N T E R I O R L I G H T I N G
Front
INTERIOR LAMPS
1. Interior lamps
A press on button 1 of the front interior lamp, switches the interior lamps on or off.
Switching on and off is progressive after an action on the remote con-trol, but immediate after a press on button 1.
Rear
2. Spotlamps
A press on one of the buttons 2switches the corresponding spot-lamp on or off.
These only work when the ignition is switched on.
Automatic lighting of the interior lampsThey come on when you remove the ignition key, unlock the vehicle or open a door.
They go out progressively when the doors are closed, the vehicle locked or the ignition switched on.
Deactivation/Activation of automatic lighting
A long press on button 1, deacti-vates the operaton of the inerior lamps. To reactivate them, press on the same button.
Changing bulbsTo change a front interior lamp bulb: Detach the transparent screen. Use a bulb W 5 W.To change a rear interior lamp bulb: Detach the two surrounds of the transparent screen and pull it away. Use a bulb W 5 W.

105
III
C
D
I N T E R I O R L I G H T I N G
LATERAL AMBIANCE LIGHT-ING
This is in the zone designated by the arrows.
Adjustments
With the vehicle lamps on, press on buttons C or D to change the brightness of the lateral ambiance lighting.
FLOOR LIGHTING
In the front and the rear of the vehi-cle, when a door is opened, this lights up the interior of the vehicle.
Changing the bulb
To change the bulb for the fl oor lighting (front or rear): Detach the cover. Use a bulb W 5 W.
Rear
PAVEMENT LIGHTING
With the door open, this lights up the ground next to the vehicle.
Changing the bulb
To change the bulb for the door sill lighting: Detach the cover. Use a bulb W 5 W.

106
IIIAB
C
I N T E R I O R C O M F O R T
GLOVEBOX
To open the glovebox, pull on the handle and lower the lid.
The glovebox has three sockets Afor connecting audio/video equip-ment.
Changing the bulb
To change the bulb in the glovebox lamp, detach the cover B, use a bulb W 5 W.
CUP-HOLDERS
To deploy the cup-holders, press on button C.
DRIVER'S ODDMENTS TRAY
To open the driver's oddments tray, pull the handle towards you.
While the vehicle is moving:The glovebox should remain closed.
The cup-holders should remain stowed
