2007 CITROEN C3 PLURIEL Owners Manual

2
3
1
IN
B
RIEF
12
I

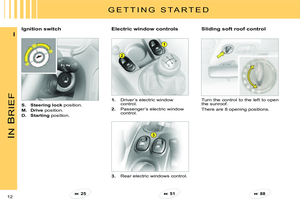

G E T T I N G S T A R T E D
Electric window controls
1. Driver’s electric window control.
2. Passenger’s electric window control.

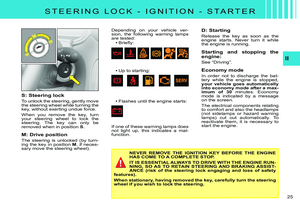

Ignition switch
S.Steering lock position.
M.Drive position.
D.Starting position.

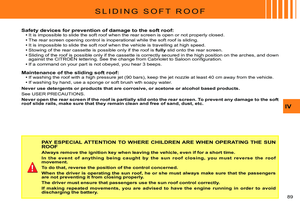

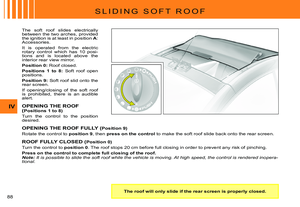

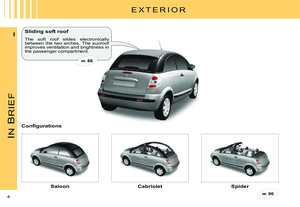

Sliding soft roof control
Turn the control to the left to open the sunroof.
There are 8 opening positions.
3. Rear electric windows control.
255188

A
IN
B
RIEF
13
I

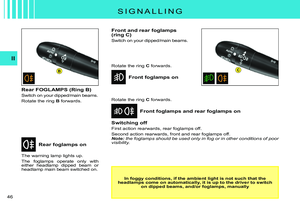

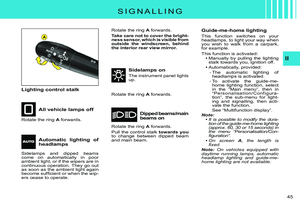

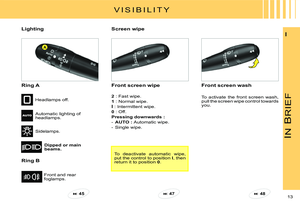

Lighting
Ring A
Ring B
Front and rear foglamps.
Headlamps off.
Automatic lighting of headlamps.
Sidelamps.
Dipped or main beams.
Front screen wipe
Screen wipe
Front screen wash
2 : Fast wipe.
1 : Normal wipe.
I : Intermittent wipe.
0 : Off.
Pressing downwards :
- AUTO : Automatic wipe.
- Single wipe.
To activate the front screen wash, pull the screen wipe control towards you.
V I S I B I L I T Y
454748
To deactivate automatic wipe, put the control to position I, then return it to position 0.

IN
B
RIEF
14
I
V E N T I L A T I O N

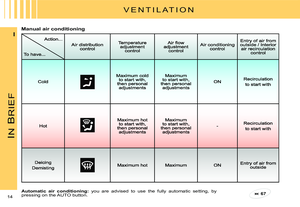

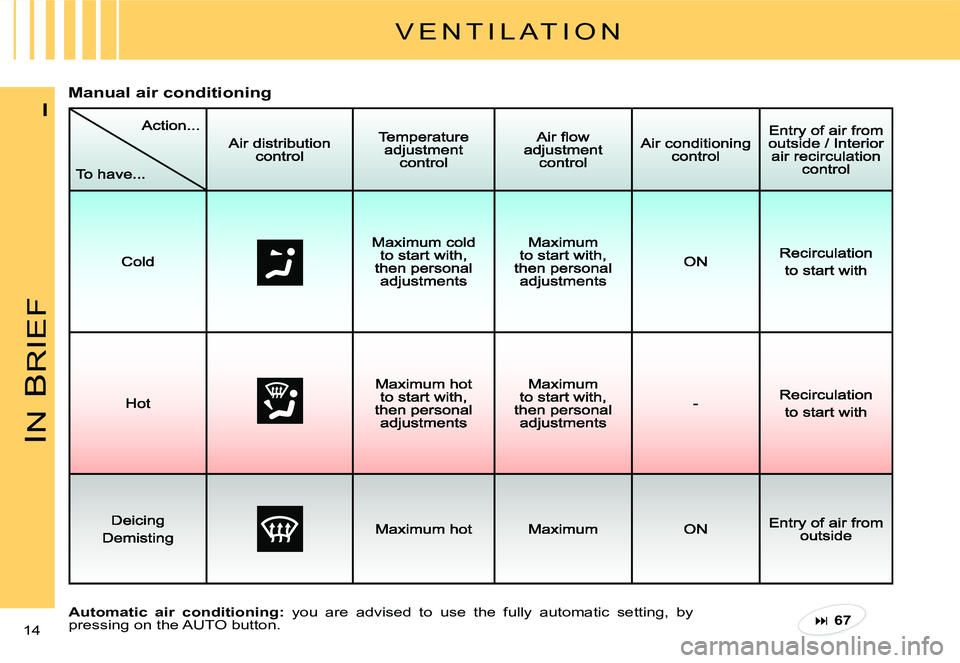

Manual air conditioning

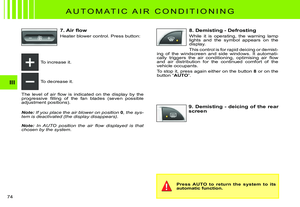

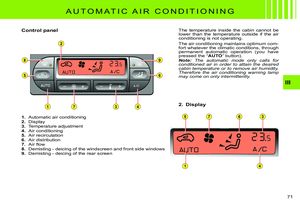

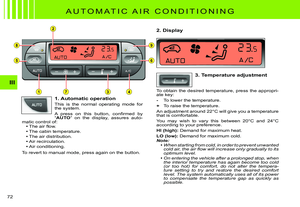

Automatic air conditioning: you are advised to use the fully automatic setting, by pressing on the AUTO button.67

DB
A
CAD
C
B
IN
B
RIEF
15
I

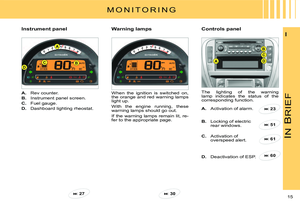

M O N I T O R I N G

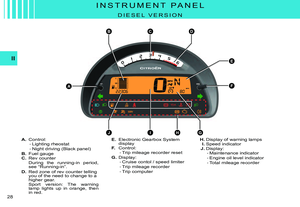

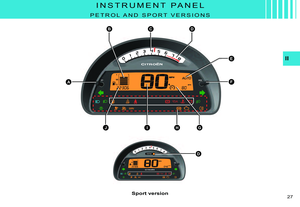

Instrument panelControls panel
A. Rev counter.
B. Instrument panel screen.
C. Fuel gauge.

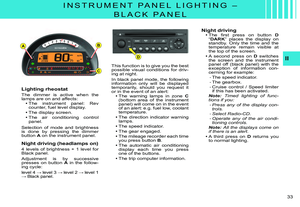

D. Dashboard lighting rheostat.
When the ignition is switched on, the orange and red warning lamps light up.
With the engine running, these warning lamps should go out.
If the warning lamps remain lit, re-fer to the appropriate page.

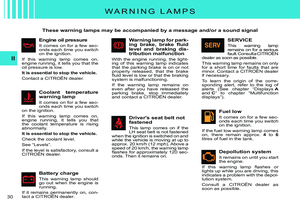

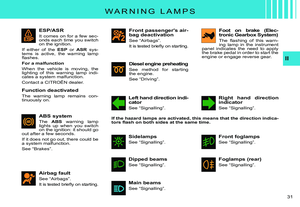

Warning lamps
The lighting of the warning lamp indicates the status of the corresponding function.
A. Activation of alarm.
B. Locking of electric rear windows.

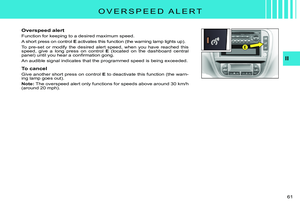

C. Activation of overspeed alert.

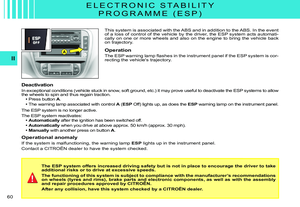

D. Deactivation of ESP.
2730
23
51
61
60

A
B
IN
B
RIEF
16
I

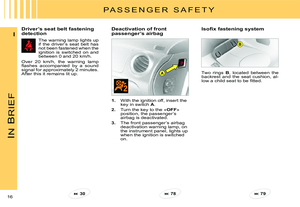

Driver’s seat belt fastening

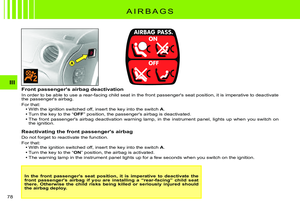

detectionDeactivation of front
passenger’s airbag
The warning lamp lights up if the driver’s seat belt has not been fastened when the ignition is switched on and between 0 and 20 km/h.
Over 20 km/h, the warning lamp fl ashes accompanied by a sound signal for approximately 2 minutes. After this it remains lit up.
1. With the ignition off, insert the key in switch A.
2. Turn the key to the «OFF» position, the passenger’s airbag is deactivated.
3. The front passenger’s airbag deactivation warning lamp, on the instrument panel, lights up when the ignition is switched on.

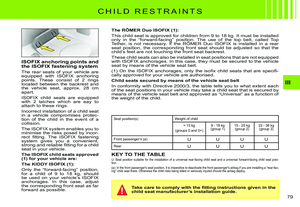

Isofi x fastening system
Two rings B, located between the backrest and the seat cushion, al-low a child seat to be fi tted.
P A S S E N G E R S A F E T Y
307879

BCA
IN
B
RIEF
17
I
Dashboard display

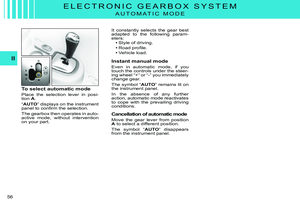

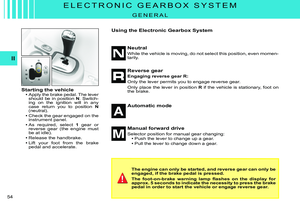

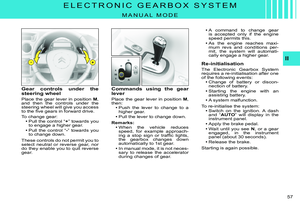

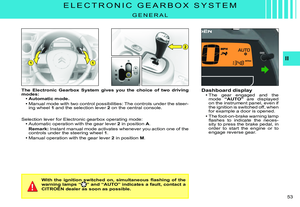

SensoDrive gearbox
B. Control under steering wheel «-».
C. Control under steering wheel «+».
This automated 5-speed manual gearbox gives you the choice of the comfort of automatic mode or the driving pleasure of a manual gearbox.A. Gear lever.
The gear engaged and «AUTO»mode are displayed on the instrument panel.
The foot-on-brake warning lamp fl ashes to indicate that it is necessary to press the brake pedal.
D R I V I N G
53

IN
B
RIEF
18
I
D R I V I N G

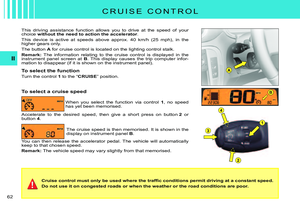

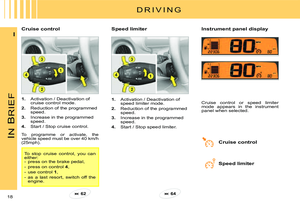

Cruise control Speed limiterInstrument panel display
1. Activation / Deactivation of cruise control mode.
2. Reduction of the programmed speed.
3. Increase in the programmed speed.
4. Start / Stop cruise control.
To programme or activate, the vehicle speed must be over 40 km/h (25mph).
1. Activation / Deactivation of speed limiter mode.
2. Reduction of the programmed speed.
3. Increase in the programmed speed.
4. Start / Stop speed limiter.
Cruise control or speed limiter mode appears in the instrument panel when selected.
Cruise control
Speed limiter
6462
To stop cruise control, you can either: - press on the brake pedal,
- press on control 4,
- use control 1,
- as a last resort, switch off the engine.

B
A
II
19

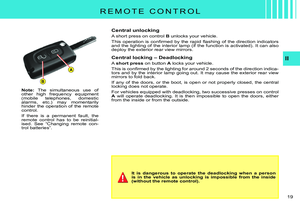

R E M O T E C O N T R O L
Note: The simultaneous use of other high frequency equipment (mobile telephones, domestic alarms, etc.) may momentarily hinder the operation of the remote control.
If there is a permanent fault, the remote control has to be reinitial-ised. See “Changing remote con-trol batteries”.
Central unlocking
A short press on control B unlocks your vehicle.
This operation is confi rmed by the rapid fl ashing of the direction indicators and the lighting of the interior lamp (if the function is activated). It can also deploy the exterior rear view mirrors.
Central locking – Deadlocking
A short press on button A locks your vehicle.
This is confi rmed by the lighting for around 2 seconds of the direction indica-tors and by the interior lamp going out. It may cause the exte rior rear view mirrors to fold back.
If any of the doors, or the boot, is open or not properly closed, the central locking does not operate.
For vehicles equipped with deadlocking, two successive presses on co ntrol A will operate deadlocking. It is then impossible to open the doors, either from the inside or from the outside.
It is dangerous to operate the deadlocking when a p erson is in the vehicle as unlocking is impossible from the inside (without the remote control).
