2007 CITROEN C2 DAG Owners Manual

81
III
A U T O M A T I C A I R C O N D I T I O N I N G
Manual recalling of one or more functions
One or more functions can be adjusted manually, while still retaining the other functions in automatic mode.
The function display “AUTO” then goes out.
4. Air conditioning
Press the control located on the control panel.
A symbol appears on the display (system active).
To prevent misting inside the vehicle in cold or humid weather, you are advised to use the AUTO mode.
Press on the control on the dashboard to activate or deactivate the production of cold air.
Air conditioning is then obtained from the mixing of hot air with cold air, using the air blower temperature adjustment 3.
5. Air recirculation
By pressing the control, the entry of air from outside is closed off and the symbol appears on the display.
This position is useful for excluding undesirable odours or fumes coming from outside. It should be cancelled as soon as possible in order to permit renewal of air in the cabin and to prevent misting.
For this, press the “AUTO ” button or press again on the air recycling button.
6. Air distribution
Press on the button to scroll through the displays of air fl ow to:
Windscreen.
Central and lateral air vents. Windscreen and passenger footwells.
Windscreen and passenger footwells.
Passenger footwells.
(Air vents closed).
Central and lateral air vents.
Central and lateral air vents and passenger footwells.
Note: In AUTO position the air distribution displayed is that chosen by the system.

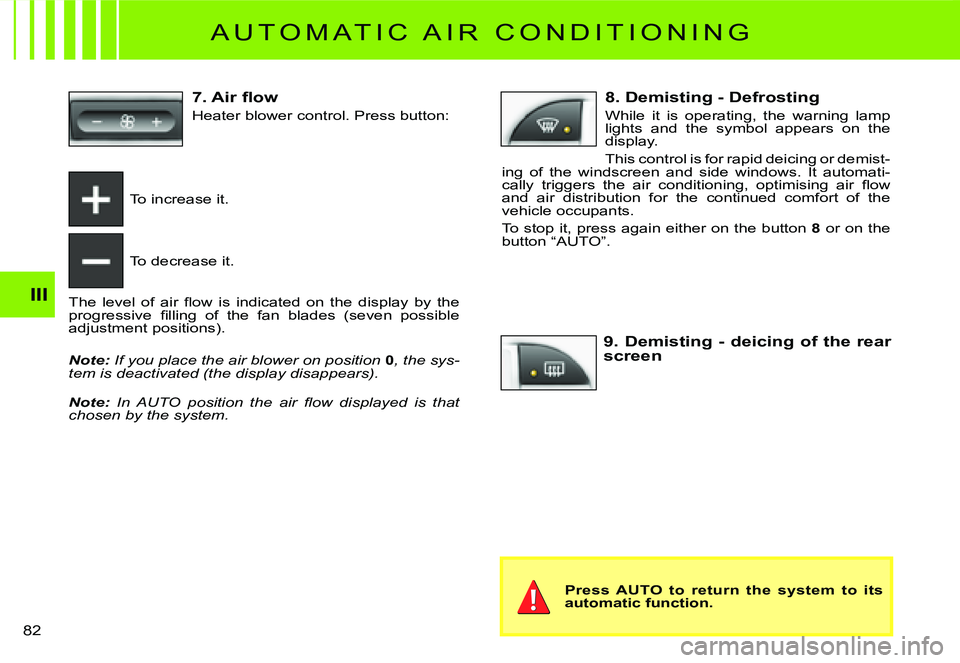

82
III
A U T O M A T I C A I R C O N D I T I O N I N G
To increase it.
To decrease it.
The level of air fl ow is indicated on the display by the progressive fi lling of the fan blades (seven possible adjustment positions).
Note: If you place the air blower on position 0, the sys-tem is deactivated (the display disappears).
Note: In AUTO position the air fl ow displayed is that chosen by the system.
7. Air fl ow
Heater blower control. Press button:
8. Demisting - Defrosting
While it is operating, the warning lamp lights and the symbol appears on the display.
This control is for rapid deicing or demist-ing of the windscreen and side windows. It automati-cally triggers the air conditioning, optimising air fl ow and air distribution for the continued comfort of the vehicle occupants.
To stop it, press again either on the button 8 or on the button “AUTO”.
9. Demisting - deicing of the rear screen
Press AUTO to return the system to its automatic function.

1
4
3
2
5
83
III

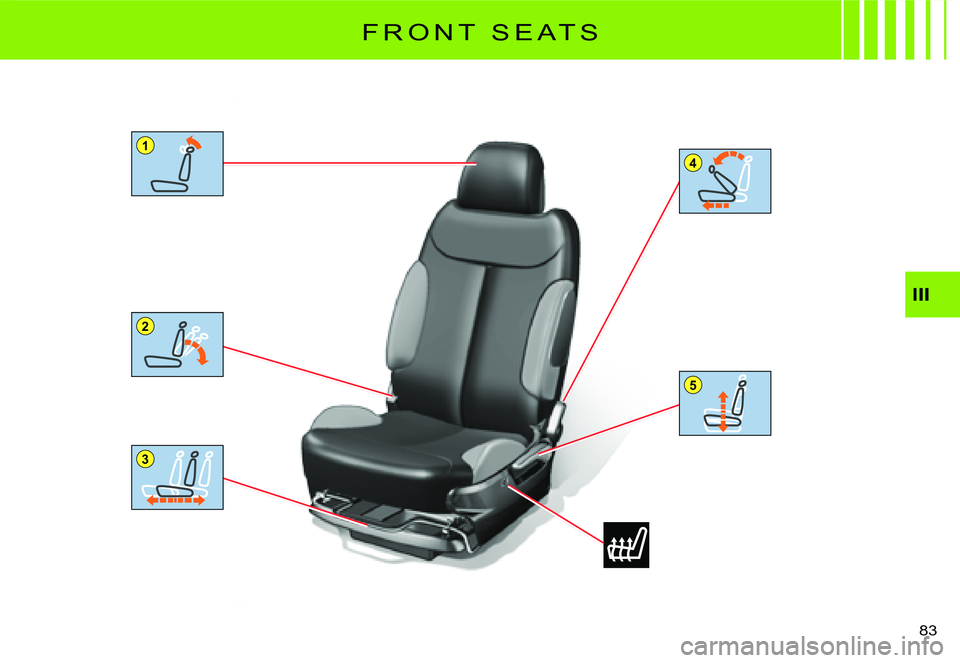

F R O N T S E A T S

1
5
4
3
2
84
III
F R O N T S E A T S
Manual adjustments
Head restraint
To raise or lower the head restraint, pull it forwards at the same time as sliding it.
The adjustment is correct when the top edge of the head restraint is at the same height as the top of the head.
To remove it, bring it to the high position. Lift the tab with the aid of a coin and pull.
Backrest angle
Action the control rearwards and adjust the angle of the back-rest.
It is possible to recline the backrest to an angle of 45° by tilt-ing it until it locks. Press the control to unlock.
Heated seats
The front seats can be heated indi-vidually. Use the controls located at the side of the seats, and select one of the three heating levels:
0: Off.
1: Slight heat.
2: Medium heat.
3: Maximum heat.
The seat temperature adjusts auto-matically.Note: The heated seats only oper-ate when the engine is running.
Seat height and rake adjustment
Lift the control and use the weight of your body to move th e seat to the desired position.
Reach
Lift the control bar and adjust to the desired position.
Access to the rear seat positions
To access the rear seat positions, action the control forwards to fold the backrest and slide the front seat.
Afterwards the front seat will revert to its initial position.
Make sure that the seat is secured in place (particularly if the rear seats are folded).

1
23
4
85
III
R E A R S E A T S
For ease of handling from the boot, it is advised to close the lower tailgate.

1
4
3
2
86
III
R E A R S E A T S
The function 3 is available on all models. The other functions are available depending on the version of your vehicl e.
Fore and aft adjustment
From the boot, it is possible to modify the loadspace by slidi ng the seats.
Push down control 2 and adjust to the desired position.
At the front of the seat, it is also possible to adjust knee room.
Raise the bar located under the seat and adjust to the de sired position (several positions).
Rear head restraints
The rear head restraints have two positions:A stowed position for when the seat is not occupied.A deployed position to provide passenger safety, by raising th em to their locking point.
To raise them, pull them upwards to their maximum height, pressin g the unlocking button.

Foldable backrest
It can be folded either totally or partially.
Lower the head restraint against the backrest, then pivot control 3 towards the rear of the vehicle.
The backrest also has a vertical position to optimise the bootsp ace.
When you reposition the backrest, make sure that it locks in place .
Folded (fully-folded position)
To facilitate this manoeuvre, slide the front seat as far forward as possible, using the fore/aft slide control.
Move the rear seat as far forward as possible using control 2, fold the backrest using control 3, then lift control 4.
The seat goes automatically to the fully-folded position.
Reposition the front seat. The rear seat in the fully-folded position will adapt automatically to the position of the front seat.
When restoring the seat to its original position, check that there is nothing obstructing the anchoring points to ensure that it latches properly.

87
III
S E A T C O N F I G U R A T I O N
TRANSPORTING LONG OBJECTS
REAR SEATS
By confi guring the rear seats, you can create space for a variety of objects.
As a safety measure, use the anchoring rings positioned on the boot fl oor.
4-seater versionsVersions with folding backrestsVersions with fully-folding seats

A
88
III
A I R B A G S
In the front passenger's seat position, it is imperative to deactivate the front passenger's airbag if you are installing a “r ear-facing” child seat there. Otherwise the child risks being killed or serio usly injured should the airbag deploy.
Front passenger's airbag deactivation
In order to be able to use a rear-facing child seat in the front passenger's seat position, it is imperative to deactivate the passenger's airbag.
For that:With the ignition switched off, insert the key into the switch A.
Turn the key to the “OFF” position, the passenger's airbag is deactivated.
The front passenger's airbag deactivation warning lamp, in th e instrument panel, lights up when you switch on the ignition.
Reactivating the front passenger's airbag
Do not forget to reactivate the function.
For that:With the ignition switched off, insert the key into the switch A.
Turn the key to the “ON” position, the airbag is activated.
The warning lamp in the instrument panel lights up for a f ew seconds when you switch on the ignition.
