2007 CHEVROLET MONTE CARLO headlamp

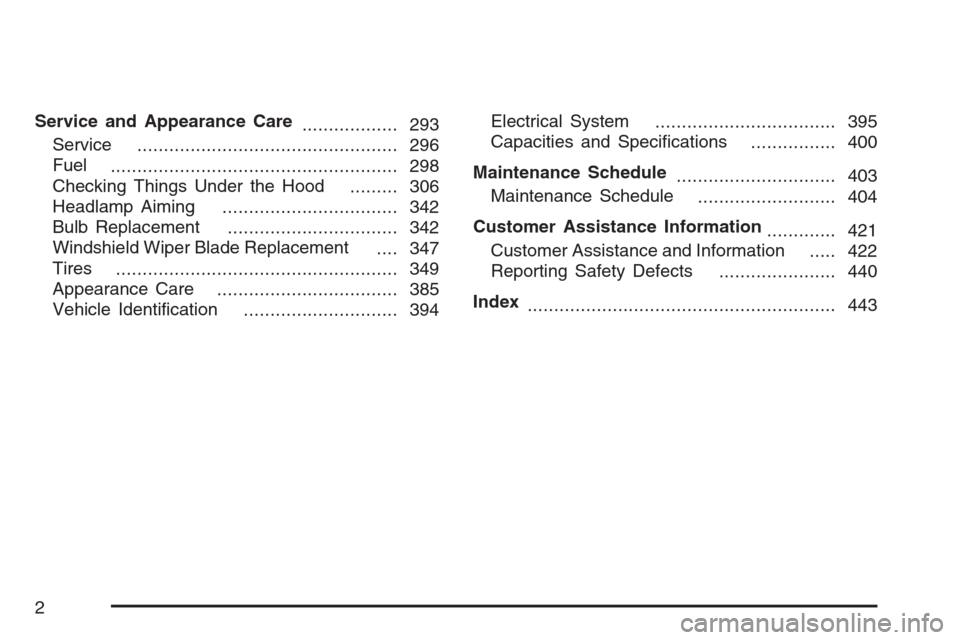

Service and Appearance Care
.................. 293
Service
................................................. 296
Fuel
...................................................... 298
Checking Things Under the Hood
......... 306
Headlamp Aiming
................................. 342
Bulb Replacement
................................ 342
Windshield Wiper Blade Replacement
.... 347
Tires
..................................................... 349
Appearance Care
.................................. 385
Vehicle Identication
............................. 394Electrical System
.................................. 395
Capacities and Specications
................ 400
Maintenance Schedule
.............................. 403
Maintenance Schedule
.......................... 404
Customer Assistance Information
............. 421
Customer Assistance and Information
..... 422
Reporting Safety Defects
...................... 440
Index
.......................................................... 443
2

Mirrors
Manual Rearview Mirror
Adjust all the mirrors so you can see clearly when
you are sitting in a comfortable driving position.
To reduce glare from headlamps behind you, pull
the lever at the bottom of the mirror toward you
(to the night position). To return the mirror back to
the day position, push the lever away from you.
There are two lamps located on the bottom of the
mirror. Press the button next to each lamp to
turn it on and off.
Manual Rearview Mirror with OnStar®
If the vehicle has this mirror, it has a lever located
at the bottom of the mirror between the two lamps.
The lever is used to change the mirror from the
day to the night position. To reduce glare from
headlamps behind you while driving at night, pull
the lever toward you. To return the mirror to the day
position, return the lever to its original position.
There are two map lamps located on the bottom
of the mirror. Press the button next to each lamp
to turn it on and off.There are also OnStar
®buttons located at the
bottom of the mirror face. See your dealer for more
information on the system and how to subscribe
to OnStar
®. SeeOnStar®System on page 125
for more information about the services OnStar®
provides.
Automatic Dimming Rearview
Mirror with OnStar
®
The vehicle may have an automatic dimming
rearview mirror with the OnStar®System.
Press the button located below the mirror, on
the far left, for up to three seconds to turn
the automatic dimming feature off and on.
There are two map lamps located on the bottom
of the mirror. Press the button next to each lamp
to turn it on and off.
There are also OnStar
®buttons located at the
bottom of the mirror. See your dealer for
more information on the system and how to
subscribe to OnStar
®. SeeOnStar®System
on page 125for more information about the
service OnStar
®provides.
123

Instrument Panel Overview........................ 146
Hazard Warning Flashers.......................... 148
Other Warning Devices............................. 148
Horn.......................................................... 148
Tilt Wheel.................................................. 148
Turn Signal/Multifunction Lever.................. 149
Turn and Lane-Change Signals................. 150
Headlamp High/Low-Beam Changer.......... 151
Flash-to-Pass............................................ 151
Windshield Wipers..................................... 151
Windshield Washer.................................... 152
Cruise Control........................................... 153
Exterior Lamps.......................................... 156
Delayed Headlamps.................................. 157
Daytime Running Lamps (DRL)/
Automatic Headlamp System.................. 158
Fog Lamps................................................ 158
Instrument Panel Brightness...................... 159
Courtesy Lamps........................................ 159
Dome Lamp.............................................. 159
Entry Lighting............................................ 160
Delayed Entry Lighting.............................. 160
Delayed Exit Lighting................................. 160
Parade Dimming........................................ 161Reading Lamps......................................... 161
Electric Power Management...................... 161
Battery Run-Down Protection..................... 162
Accessory Power Outlet(s)........................ 162
Ashtray(s) and Cigarette Lighter................ 164
Climate Controls......................................... 164
Climate Control System............................. 164
Outlet Adjustment...................................... 168
Passenger Compartment Air Filter............. 169
Warning Lights, Gages, and Indicators..... 170
Instrument Panel Cluster........................... 171
Speedometer and Odometer...................... 172
Tachometer............................................... 172
Safety Belt Reminder Light........................ 173
Passenger Safety Belt Reminder Light....... 173
Airbag Readiness Light............................. 174
Passenger Airbag Status Indicator............. 175
Charging System Light.............................. 177
Brake System Warning Light..................... 177
Anti-Lock Brake System Warning Light...... 178
Traction Control System (TCS)
Warning Light........................................ 179
Engine Coolant Temperature
Warning Light........................................ 179
Section 3 Instrument Panel
143

To tilt the wheel, hold the wheel and pull the lever.
Then move the wheel to a comfortable position
and release the lever to lock the wheel in place.
Turn Signal/Multifunction Lever
The lever on the left side of the steering column
includes the following:
GTurn and Lane Change Signals. See
Turn and Lane-Change Signals on page 150.
2Headlamp High/Low-Beam Changer. See
Headlamp High/Low-Beam Changer on
page 151.
Flash-to-Pass. SeeFlash-to-Pass on page 151.
NWindshield Wipers. SeeWindshield Wipers
on page 151.
LQWindshield Washer. SeeWindshield
Washer on page 152.
For information on the headlamps, seeExterior
Lamps on page 156.
149

Headlamp High/Low-Beam Changer
To change your headlamps from low beams to high
beams, or from high to low, pull the multifunction
lever all the way toward you. Then release it.
While the high beams
are on, this light will
appear on the
instrument panel cluster.
This light works only while the key is in RUN. The
fog lamps (if equipped) are not illuminated
when the high beams are on.
Flash-to-Pass
With the turn signal lever in the low-beam position,
pull the lever toward you briey to switch to
high-beam, (to signal you are going to pass).
If the headlamps are on, they will return to
low-beam when the lever is released.
This feature operates even if the headlamps are off.
Windshield Wipers
Be sure to clear ice and snow from the wiper
blades before using them. If they are frozen to the
windshield, gently loosen or thaw them. Damaged
wiper blades may not clear the windshield well,
making it harder to see and drive safely. If
the blades do become damaged, install new
blades or blade inserts. For more information, see
Windshield Wiper Blade Replacement on
page 347.
Heavy snow or ice can overload the wiper motor. A
circuit breaker will stop the motor until it cools down.
Clear away snow or ice to prevent an overload.
You control the windshield wipers by turning the
band with the wiper symbol on it.
8(Mist):For a single wiping cycle, turn the
band to mist. Hold it there until the wipers
start. Then let go. The wipers will stop after
one wipe. If you want more wipe cycles, hold
the band on mist longer.
151

Exterior Lamps
The exterior lamps
control is located on
the instrument panel
to the left of the
steering wheel.
It controls the following systems:
Headlamps
Taillamps
Parking Lamps
License Plate Lamps
Instrument Panel Lights
Fog Lamps (if equipped)The exterior lamps control has four positions:
O(Off):Briey turn the control to this position to
turn off the automatic light control. Briey turn
to this position again to turn automatic light control
on again.
AUTO (Automatic):Turn the control to this
position to automatically turn on the headlamps at
normal brightness, together with the following:
Parking Lamps
Taillamps
License Plate Lamps
Instrument Panel Lights
;(Parking Lamps):Turn the control to this
position to turn on the parking lamps together with
the following:
Taillamps
License Plate Lamps
Instrument Panel Lights
156

2(Headlamps):Turn the control to this position
to turn on the headlamps together with the
following lamps listed below. A warning chime will
sound if you open the driver’s door when the
ignition switch is off and the headlamps are on.
Parking Lamps
Taillamps
License Plate Lamps
Instrument Panel Lights
-(Fog Lamps, If your vehicle has them):Push
the fog lamps control in to turn on the fog lamps.
SeeFog Lamps on page 158.
Delayed Headlamps
The delayed headlamps feature provides a period
of exterior lighting as you leave the area around
your vehicle. The feature is activated when
the headlamps are on due to the automatic
headlamps control feature later described in this
section, and when the ignition is turned off.
Your headlamps will then remain on until the
exterior lamps control is moved to the parking
lamps position or until either a 30 second or
60 second lighting period has ended.
If you turn off the ignition with the headlamps
switch in the parking lamps or headlamps position,
the delayed headlamps cycle will not occur.
To disable the delayed headlamps feature or
change the time of delay, see “Exit Lighting” under
DIC Vehicle Customization on page 203.
157

Daytime Running Lamps
(DRL)/Automatic Headlamp System
Daytime Running Lamps (DRL) can make it
easier for others to see the front of your vehicle
during the day. DRL can be helpful in many
different driving conditions, but they can be
especially helpful in the short periods after
dawn and before sunset. Fully functional daytime
running lamps are required on all vehicles rst
sold in Canada.
A light sensor on top of the instrument panel
makes the DRL work, so be sure it is not covered.
The DRL system’s automatic headlamp control
will make the low-beam headlamps come on at a
reduced brightness when the following conditions
are met:
The ignition is in RUN.
The exterior lamps control is in AUTO.
The engine is running.When the DRL are on, only the low-beam
headlamps, at a reduced level of brightness, will
be on. The headlamps, taillamps, sidemarker, and
other lamps will not be on. The instrument
panel and cluster will also not be lit.
When it is dark enough outside, your low-beam
headlamps will turn off and the headlamps
and parking lamps will turn on. The other lamps
that come on with the headlamps will also
come on.
When it is bright enough outside, the headlamps
will go off and the DRL will come on.
As with any vehicle, you should turn on the
regular headlamp system when you need it.
Fog Lamps
-(Fog Lamps):If your vehicle has fog lamps,
the button is located on the exterior lamps control.
The exterior lamps control is located on the
instrument panel to the left of the steering column.
The ignition must be in RUN for the fog lamps
to illuminate.
158
