2007 CHEVROLET CORVETTE ECO mode

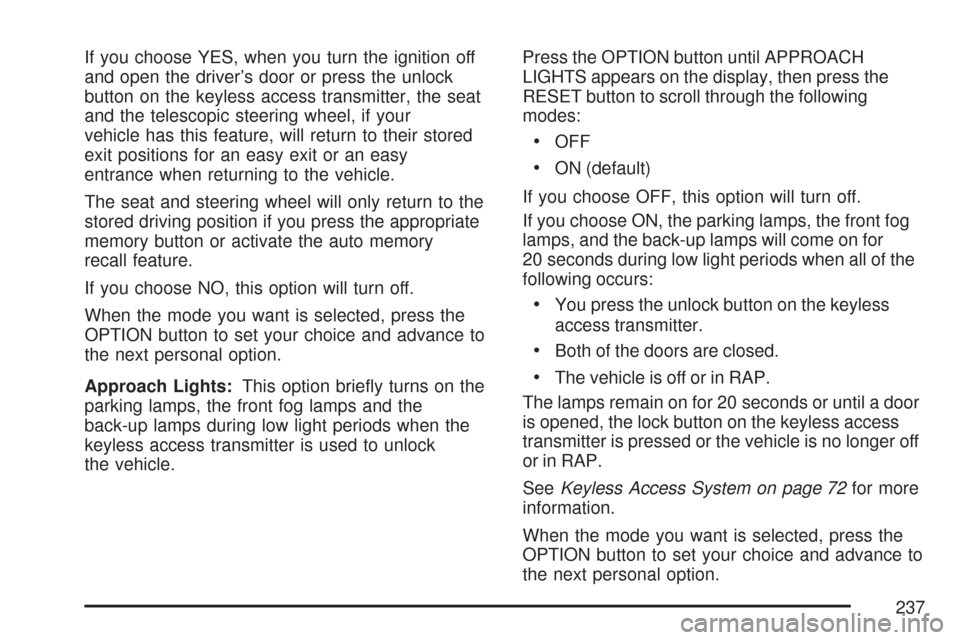

If you choose YES, when you turn the ignition off
and open the driver’s door or press the unlock
button on the keyless access transmitter, the seat
and the telescopic steering wheel, if your
vehicle has this feature, will return to their stored
exit positions for an easy exit or an easy
entrance when returning to the vehicle.
The seat and steering wheel will only return to the
stored driving position if you press the appropriate
memory button or activate the auto memory
recall feature.
If you choose NO, this option will turn off.
When the mode you want is selected, press the
OPTION button to set your choice and advance to
the next personal option.
Approach Lights:This option briey turns on the
parking lamps, the front fog lamps and the
back-up lamps during low light periods when the
keyless access transmitter is used to unlock
the vehicle.Press the OPTION button until APPROACH
LIGHTS appears on the display, then press the
RESET button to scroll through the following
modes:
OFF
ON (default)
If you choose OFF, this option will turn off.
If you choose ON, the parking lamps, the front fog
lamps, and the back-up lamps will come on for
20 seconds during low light periods when all of the
following occurs:
You press the unlock button on the keyless
access transmitter.
Both of the doors are closed.
The vehicle is off or in RAP.
The lamps remain on for 20 seconds or until a door
is opened, the lock button on the keyless access
transmitter is pressed or the vehicle is no longer off
or in RAP.
SeeKeyless Access System on page 72for more
information.
When the mode you want is selected, press the
OPTION button to set your choice and advance to
the next personal option.
237

Twilight Delay:This option allows you to set the
amount of time you want the parking lamps
and front fog lamps to remain on after you exit the
vehicle. This will occur when the vehicle is off
or in RAP and the headlamps are on due to the
automatic headlamp system. The parking
lamps and front fog lamps will remain on until the
driver selected time expires, the exterior lamp
control is activated or the vehicle is no longer off
or in RAP.
Press the OPTION button until TWILIGHT DELAY
appears on the display, then press the RESET
button to scroll through the following modes:
OFF
15 S
30 S (default)
90 S
If you choose OFF, this option will turn off.
If you choose 15 S, the twilight delay time will be
set to 15 seconds.
If you choose 30 S, the twilight delay time will be
set to 30 seconds.
If you choose 90 S, the twilight delay time will be
set to 90 seconds.When the mode you want is selected, press the
OPTION button to set your choice and advance to
the next personal option.
Flash at Unlock:This option activates the front
and rear turn signals for two short ashes
when the unlock or hatch/trunk button on the
keyless access transmitter is pressed. This will
only occur when the vehicle is off.
Press the OPTION button until FLASH AT
UNLOCK appears on the display, then press the
RESET button to scroll through the following
modes:
YES (default)
NO
If you choose YES, the front and rear turn signals
will ash twice when you press the unlock button or
the hatch/trunk button on the keyless access
transmitter.
If you choose NO, this option will turn off.
When the mode you want is selected, press the
OPTION button to set your choice and advance to
the next personal option.
238

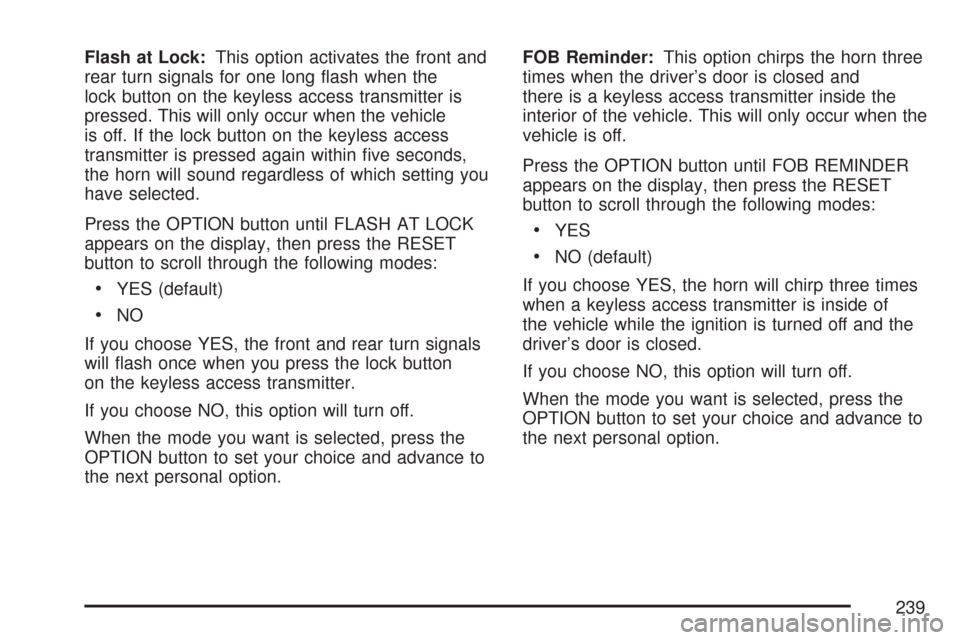

Flash at Lock:This option activates the front and
rear turn signals for one long ash when the
lock button on the keyless access transmitter is
pressed. This will only occur when the vehicle
is off. If the lock button on the keyless access
transmitter is pressed again within ve seconds,
the horn will sound regardless of which setting you
have selected.
Press the OPTION button until FLASH AT LOCK
appears on the display, then press the RESET
button to scroll through the following modes:
YES (default)
NO
If you choose YES, the front and rear turn signals
will ash once when you press the lock button
on the keyless access transmitter.
If you choose NO, this option will turn off.
When the mode you want is selected, press the
OPTION button to set your choice and advance to
the next personal option.FOB Reminder:This option chirps the horn three
times when the driver’s door is closed and
there is a keyless access transmitter inside the
interior of the vehicle. This will only occur when the
vehicle is off.
Press the OPTION button until FOB REMINDER
appears on the display, then press the RESET
button to scroll through the following modes:
YES
NO (default)
If you choose YES, the horn will chirp three times
when a keyless access transmitter is inside of
the vehicle while the ignition is turned off and the
driver’s door is closed.
If you choose NO, this option will turn off.
When the mode you want is selected, press the
OPTION button to set your choice and advance to
the next personal option.
239

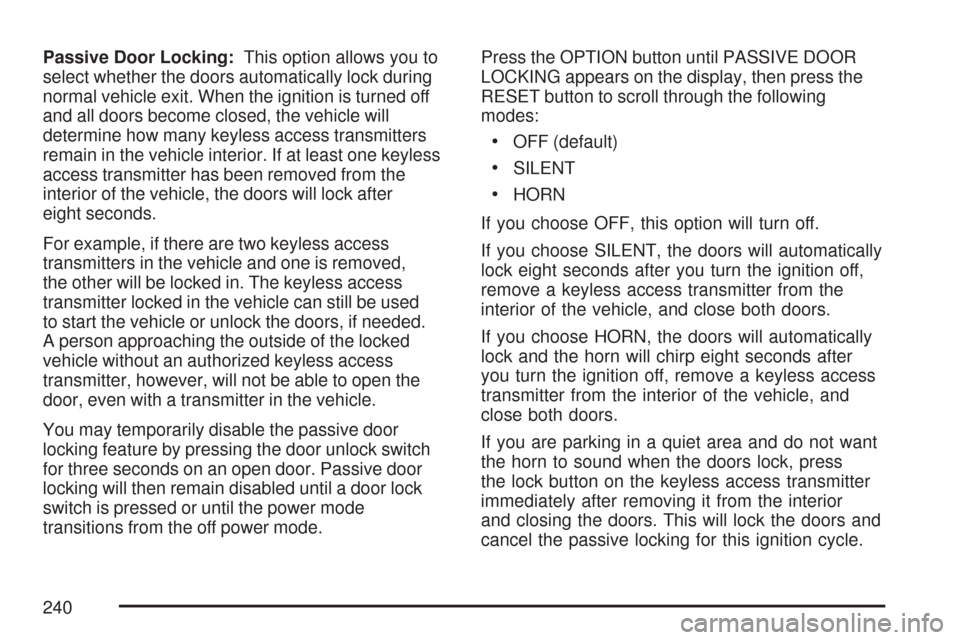

Passive Door Locking:This option allows you to
select whether the doors automatically lock during
normal vehicle exit. When the ignition is turned off
and all doors become closed, the vehicle will
determine how many keyless access transmitters
remain in the vehicle interior. If at least one keyless
access transmitter has been removed from the
interior of the vehicle, the doors will lock after
eight seconds.
For example, if there are two keyless access
transmitters in the vehicle and one is removed,
the other will be locked in. The keyless access
transmitter locked in the vehicle can still be used
to start the vehicle or unlock the doors, if needed.
A person approaching the outside of the locked
vehicle without an authorized keyless access
transmitter, however, will not be able to open the
door, even with a transmitter in the vehicle.
You may temporarily disable the passive door
locking feature by pressing the door unlock switch
for three seconds on an open door. Passive door
locking will then remain disabled until a door lock
switch is pressed or until the power mode
transitions from the off power mode.Press the OPTION button until PASSIVE DOOR
LOCKING appears on the display, then press the
RESET button to scroll through the following
modes:
OFF (default)
SILENT
HORN
If you choose OFF, this option will turn off.
If you choose SILENT, the doors will automatically
lock eight seconds after you turn the ignition off,
remove a keyless access transmitter from the
interior of the vehicle, and close both doors.
If you choose HORN, the doors will automatically
lock and the horn will chirp eight seconds after
you turn the ignition off, remove a keyless access
transmitter from the interior of the vehicle, and
close both doors.
If you are parking in a quiet area and do not want
the horn to sound when the doors lock, press
the lock button on the keyless access transmitter
immediately after removing it from the interior
and closing the doors. This will lock the doors and
cancel the passive locking for this ignition cycle.
240

Language:This option allows you to select the
language the DIC, the Head-Up Display (HUD), if
your vehicle has this feature, and the radio
uses to display messages. Each language mode
will be displayed in its own language. For example,
English will be displayed as ENGLISH, Spanish
as ESPANOL, etc. If your vehicle has the
navigation system, you will not have the Japanese
language mode.
Press the OPTION button until LANGUAGE
appears on the display, then press the RESET
button to scroll through the following modes:
ENGLISH (default)
DEUTSCH (German)
FRANCAIS (French)
ITALIANO (Italian)
ESPANOL (Spanish)
If you choose a language that you do not
understand, press the OPTION and RESET
buttons for ve seconds. The DIC will begin
displaying all of the various languages one by one
for as long as the buttons are pressed. When
the desired language is displayed, release
the buttons and the DIC will set to this language.When the mode you want is selected, press the
OPTION button to set your choice and advance to
the next personal option.
Personalize Name:This option allows you to
type in a name or greeting that will appear on
the DIC display whenever the corresponding
keyless access transmitter (1 or 2) is used or one
of the memory buttons (1 or 2) located on the
driver’s door is pressed.
Press the OPTION button until PERSONALIZE
NAME appears on the display, then press
the RESET button to scroll through the following
modes:
YES
NO (default)
If you choose YES, you can type in a name that
will appear on the DIC display.
To program a name, use the following procedure:
1. Enter the PERSONAL OPTIONS menu
and select the driver number (1 or 2) that you
would like to program by following the
instructions listed previously under “Entering
the Personal Options Menu”.
242

XM™ Satellite Radio Service
If your vehicle has the XM™ satellite radio
service, it is based in the 48 contiguous United
States and Canada. XM™ offers a large variety of
coast-to-coast channels including music, news,
sports, talk, traffic/weather (U.S. subscribers), and
children’s programming. XM™ provides digital
quality audio and text information that includes
song title and artist name. A service fee is required
in order to receive the XM™ service. For more
information, contact XM™; In the U.S. at
www.xmradio.com or call 1-800-852-XMXM (9696)
or in Canada at www.xmradio.ca or call
1-877-GET-XMSR (438-9677).
Playing the Radio
Top Knob (Power/Volume):Press this knob to
turn the system on and off. Turn this knob
clockwise or counterclockwise to increase or
decrease the volume.
4(Information):For RDS, press the4button to
change what display while using RDS. The display
options are station name, RDS station frequency,
PTY, and the name of the program (if available).For XM™ (if equipped), press the information
button while in XM™ mode to retrieve four different
categories of information related to the current
song or channel: Artist, Song Title, Category
or PTY, Channel Number/Channel Name.
To change the default on the display, press the
4button until you see the desired display,
then hold the
4for two seconds. The radio
produces one beep and the selected display is
now the default.
AUTO
n(Automatic Volume):Automatic
volume automatically adjusts the audio system to
make up for road and wind noise as you drive,
by it increasing the volume as vehicle speed
increases.
Set the volume at the desired level. Press the
AUTO
nbutton to select AUTO VOLUME MIN
(minimum), AUTO VOLUME MED (medium),
or AUTO VOLUME MAX (maximum). Each higher
setting provides more volume compensation at
faster vehicle speeds. To turn automatic volume
off, press the AUTO
nuntil AUTO VOLUME
OFF displays.
247

BAND:Press this button to listen to the radio
when a CD is playing. The inactive CD(s) remains
inside the radio for future listening.
CD AUX (Auxiliary):Press this button to play
a CD when listening to the radio. CD displays
when a CD is in the player. If your system has
a remote playback device, pressing this button a
second time allows the remote device to play.
AUTO EQ (Automatic Equalization):Press
AUTO EQ to select the equalization setting
while playing a CD. The equalization is stored
when a CD is played. For more information
on AUTO EQ, see “AUTO EQ” listed previously
in this section.
Playing an MP3 CD-R Disc
Your vehicle’s radio system may have the MP3
feature. If it has this feature, it is capable of playing
an MP3 CD-R disc. For more information on
how to play an MP3 CD-R disc, seeUsing an
MP3 on page 261later in this section.
UsingR(Song List) Mode
(Single CD, MP3, and Six-Disc CD)
This feature is capable of saving 20 track
selections. To save tracks into the song list
feature, perform the following steps:
1. Turn the CD player on and load it with at
least one CD.
2. Check to see that the CD player is not in
song list mode. S-LIST should not display.
If S-LIST displays, press the
R(song list)
button to turn it off.
3. Select the desired CD by pressing the
numbered pushbutton and then use the
right
uSEEK arrow or turn theO/e(tune)
knob to locate the track to be saved. The track
begins to play.
4. Press and hold the
Rbutton to save the
track into memory. When song list is pressed,
one beep sounds. ADDED SONG displays.
5. Repeat Steps 3 and 4 for saving other
selections.
SONGLIST FULL displays if you try to save
more than 20 selections.
259

To play the song list, press theRbutton.
The recorded tracks begins to play in the order
they were saved.
Seek through the song list by using the left
tor
right
uSEEK arrows. Seeking past the last saved
track returns to the rst saved track.
To delete tracks from the song list, perform the
following steps:
1. Turn the CD player on.
2. Press the
Rbutton to turn song list on.
S-LIST displays.
3. Press either the left
tor rightuSEEK arrow
or turn the
O/eknob to select the
desired track to be deleted.
4. Press and hold the
Rbutton for two seconds.
Release the button when SONG REMOVED
displays.
After a track has been deleted, the remaining
tracks are moved up the list. When another track
is added to the song list, the track is added to
the end of the list.To delete the entire song list, perform the
following steps:
1. Turn the CD player on.
2. Press the
Rbutton to turn song list on.
S-LIST displays.
3. Press and hold the
Rbutton for more
than four seconds. One beep sounds and
SONGLIST EMPTY displays indicating
the song list has been deleted.
If a CD is ejected, and the song list contains
saved tracks from that CD, those tracks are
automatically deleted from the song list. Any tracks
saved to the song list again are added to the
bottom of the list.
To end song list mode, press the
Rbutton.
One beep sounds and S-LIST is removed from
the display.
260
