2007 CHEVROLET CORVETTE check engine light

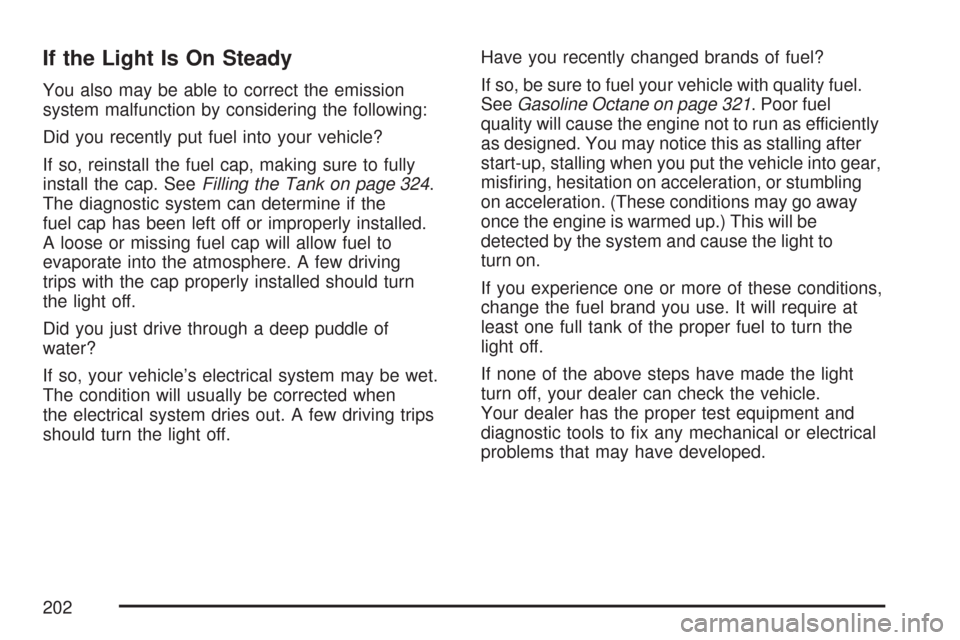

If the Light Is On Steady
You also may be able to correct the emission
system malfunction by considering the following:
Did you recently put fuel into your vehicle?
If so, reinstall the fuel cap, making sure to fully
install the cap. SeeFilling the Tank on page 324.
The diagnostic system can determine if the
fuel cap has been left off or improperly installed.
A loose or missing fuel cap will allow fuel to
evaporate into the atmosphere. A few driving
trips with the cap properly installed should turn
the light off.
Did you just drive through a deep puddle of
water?
If so, your vehicle’s electrical system may be wet.
The condition will usually be corrected when
the electrical system dries out. A few driving trips
should turn the light off.Have you recently changed brands of fuel?
If so, be sure to fuel your vehicle with quality fuel.
SeeGasoline Octane on page 321. Poor fuel
quality will cause the engine not to run as efficiently
as designed. You may notice this as stalling after
start-up, stalling when you put the vehicle into gear,
misring, hesitation on acceleration, or stumbling
on acceleration. (These conditions may go away
once the engine is warmed up.) This will be
detected by the system and cause the light to
turn on.
If you experience one or more of these conditions,
change the fuel brand you use. It will require at
least one full tank of the proper fuel to turn the
light off.
If none of the above steps have made the light
turn off, your dealer can check the vehicle.
Your dealer has the proper test equipment and
diagnostic tools to x any mechanical or electrical
problems that may have developed.
202

Emissions Inspection and
Maintenance Programs
Some state/provincial and local governments have
or may begin programs to inspect the emission
control equipment on your vehicle. Failure to pass
this inspection could prevent you from getting a
vehicle registration.
Here are some things you need to know to help
your vehicle pass an inspection:
Your vehicle will not pass this inspection if the
check engine light is on or not working properly.
To perform a check engine light bulb check with the
keyless ignition, make sure the transmitter fob is in
the passenger compartment. SeeIgnition Positions
on page 90. Press the bottom of the Acc. button on
the instrument panel and hold the button down for
ve seconds. The instrument panel, including the
check engine light, will light up and the ignition will
be on, but the engine will not start — if you pressthe bottom of the Acc. button only briey, less than
ve seconds, the accessory power mode will be
turned on, but not the ignition. After the bulb check,
be sure to press and release the Acc. button again
to turn the ignition off and avoid draining the
vehicle’s battery.
Your vehicle will not pass this inspection if the
OBD (on-board diagnostic) system determines that
critical emission control systems have not been
completely diagnosed by the system. The vehicle
would be considered not ready for inspection.
This can happen if you have recently replaced
the battery or if the battery has run down.
The diagnostic system is designed to evaluate
critical emission control systems during normal
driving. This may take several days of routine
driving. If you have done this and your vehicle
still does not pass the inspection for lack of
OBD system readiness, your dealer can prepare
the vehicle for inspection.
203

{CAUTION:
Do not keep driving if the oil pressure is
low. If you do, your engine can become
so hot that it catches re. You or others
could be burned. Check your oil as
soon as possible and have your vehicle
serviced.
Notice:Lack of proper engine oil maintenance
may damage the engine. The repairs would
not be covered by your warranty. Always follow
the maintenance schedule in this manual for
changing engine oil.
Security Light
For information
regarding this light,
seeTheft-Deterrent
Systems on page 87.
Fog Lamp Light
The fog lamp light
will come on when
the fog lamps are
in use.
The light will go out when the fog lamps are
turned off. SeeFog Lamps on page 171for
more information.
205

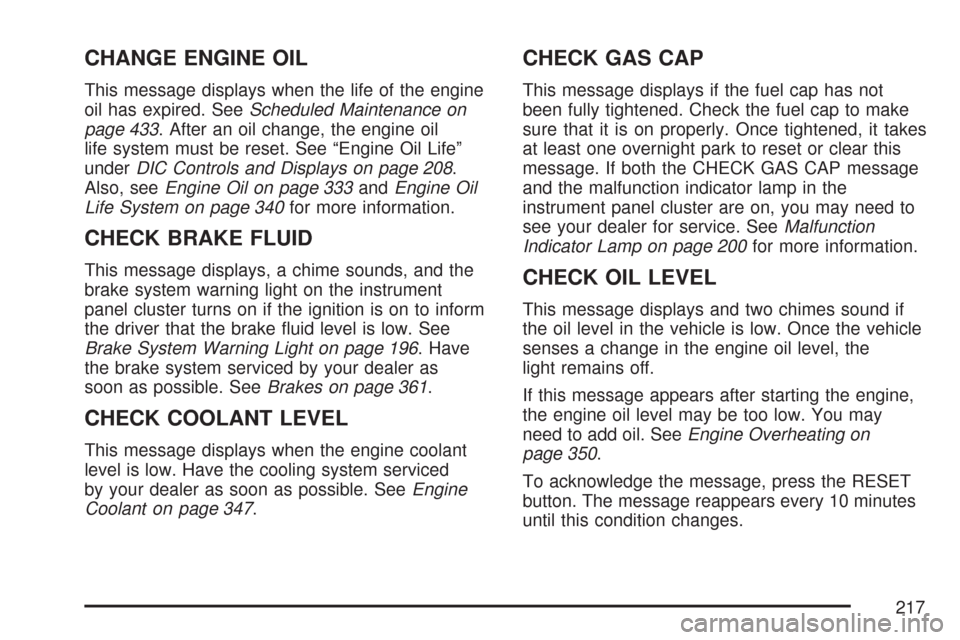

CHANGE ENGINE OIL
This message displays when the life of the engine
oil has expired. SeeScheduled Maintenance on
page 433. After an oil change, the engine oil
life system must be reset. See “Engine Oil Life”
underDIC Controls and Displays on page 208.
Also, seeEngine Oil on page 333andEngine Oil
Life System on page 340for more information.
CHECK BRAKE FLUID
This message displays, a chime sounds, and the
brake system warning light on the instrument
panel cluster turns on if the ignition is on to inform
the driver that the brake uid level is low. See
Brake System Warning Light on page 196. Have
the brake system serviced by your dealer as
soon as possible. SeeBrakes on page 361.
CHECK COOLANT LEVEL
This message displays when the engine coolant
level is low. Have the cooling system serviced
by your dealer as soon as possible. SeeEngine
Coolant on page 347.
CHECK GAS CAP
This message displays if the fuel cap has not
been fully tightened. Check the fuel cap to make
sure that it is on properly. Once tightened, it takes
at least one overnight park to reset or clear this
message. If both the CHECK GAS CAP message
and the malfunction indicator lamp in the
instrument panel cluster are on, you may need to
see your dealer for service. SeeMalfunction
Indicator Lamp on page 200for more information.
CHECK OIL LEVEL
This message displays and two chimes sound if
the oil level in the vehicle is low. Once the vehicle
senses a change in the engine oil level, the
light remains off.
If this message appears after starting the engine,
the engine oil level may be too low. You may
need to add oil. SeeEngine Overheating on
page 350.
To acknowledge the message, press the RESET
button. The message reappears every 10 minutes
until this condition changes.
217

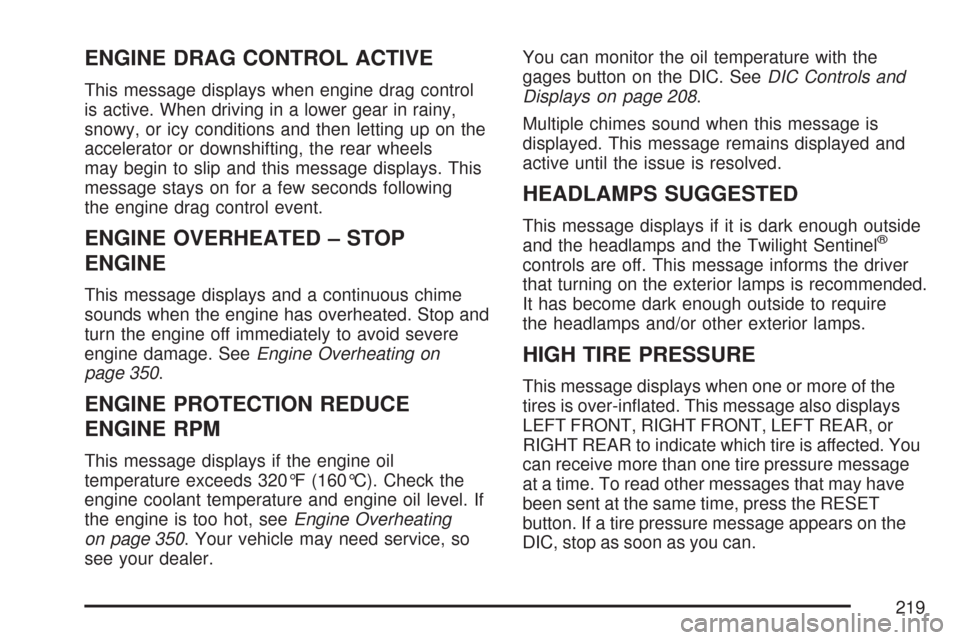

ENGINE DRAG CONTROL ACTIVE
This message displays when engine drag control
is active. When driving in a lower gear in rainy,
snowy, or icy conditions and then letting up on the
accelerator or downshifting, the rear wheels
may begin to slip and this message displays. This
message stays on for a few seconds following
the engine drag control event.
ENGINE OVERHEATED – STOP
ENGINE
This message displays and a continuous chime
sounds when the engine has overheated. Stop and
turn the engine off immediately to avoid severe
engine damage. SeeEngine Overheating on
page 350.
ENGINE PROTECTION REDUCE
ENGINE RPM
This message displays if the engine oil
temperature exceeds 320°F (160°C). Check the
engine coolant temperature and engine oil level. If
the engine is too hot, seeEngine Overheating
on page 350. Your vehicle may need service, so
see your dealer.You can monitor the oil temperature with the
gages button on the DIC. SeeDIC Controls and
Displays on page 208.
Multiple chimes sound when this message is
displayed. This message remains displayed and
active until the issue is resolved.
HEADLAMPS SUGGESTED
This message displays if it is dark enough outside
and the headlamps and the Twilight Sentinel®
controls are off. This message informs the driver
that turning on the exterior lamps is recommended.
It has become dark enough outside to require
the headlamps and/or other exterior lamps.
HIGH TIRE PRESSURE
This message displays when one or more of the
tires is over-inated. This message also displays
LEFT FRONT, RIGHT FRONT, LEFT REAR, or
RIGHT REAR to indicate which tire is affected. You
can receive more than one tire pressure message
at a time. To read other messages that may have
been sent at the same time, press the RESET
button. If a tire pressure message appears on the
DIC, stop as soon as you can.
219

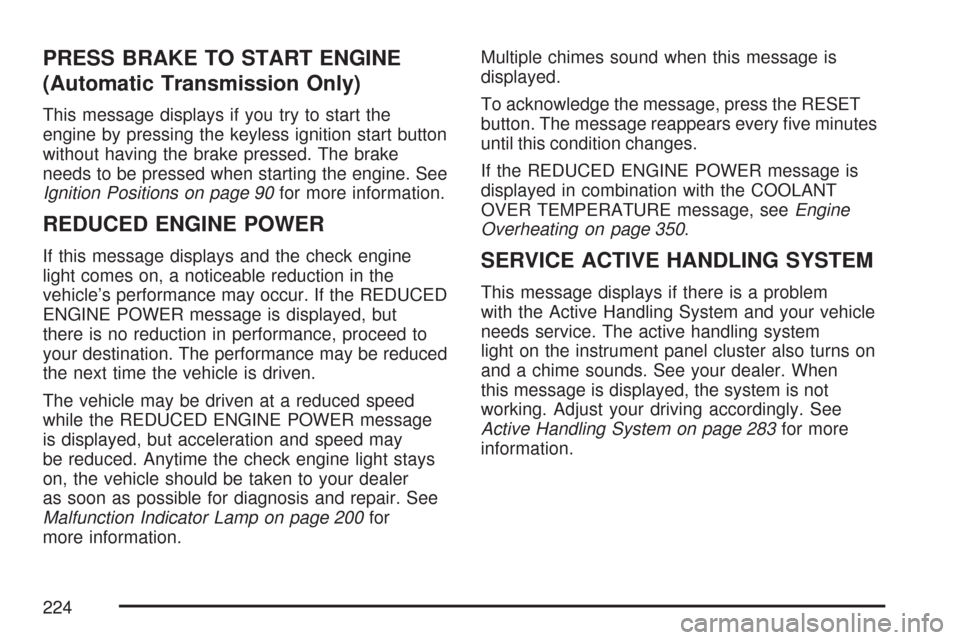

PRESS BRAKE TO START ENGINE
(Automatic Transmission Only)
This message displays if you try to start the
engine by pressing the keyless ignition start button
without having the brake pressed. The brake
needs to be pressed when starting the engine. See
Ignition Positions on page 90for more information.
REDUCED ENGINE POWER
If this message displays and the check engine
light comes on, a noticeable reduction in the
vehicle’s performance may occur. If the REDUCED
ENGINE POWER message is displayed, but
there is no reduction in performance, proceed to
your destination. The performance may be reduced
the next time the vehicle is driven.
The vehicle may be driven at a reduced speed
while the REDUCED ENGINE POWER message
is displayed, but acceleration and speed may
be reduced. Anytime the check engine light stays
on, the vehicle should be taken to your dealer
as soon as possible for diagnosis and repair. See
Malfunction Indicator Lamp on page 200for
more information.Multiple chimes sound when this message is
displayed.
To acknowledge the message, press the RESET
button. The message reappears every ve minutes
until this condition changes.
If the REDUCED ENGINE POWER message is
displayed in combination with the COOLANT
OVER TEMPERATURE message, seeEngine
Overheating on page 350.SERVICE ACTIVE HANDLING SYSTEM
This message displays if there is a problem
with the Active Handling System and your vehicle
needs service. The active handling system
light on the instrument panel cluster also turns on
and a chime sounds. See your dealer. When
this message is displayed, the system is not
working. Adjust your driving accordingly. See
Active Handling System on page 283for more
information.
224

SERVICE AIR CONDITIONING
This message displays when the electronic sensors
that control the air conditioning and heating
systems are no longer working. Have the climate
control system serviced by your dealer if you notice
a drop in heating and air conditioning efficiency.
SERVICE ANTILOCK BRAKES
If this message displays while you are driving, stop
as soon as possible and turn the ignition off. Then
start the engine again to reset the system. If the
message stays on, or comes back on again while
you are driving, your vehicle is in need of service.
See your dealer. If the anti-lock brake system (ABS)
warning light is on and the regular brake system
warning light is not on, you still have brakes, but do
not have ABS. If the regular brake system warning
light is also on, you do not have ABS and there is a
problem with the brakes. SeeAnti-Lock Brake
System Warning Light on page 197andBrake
System Warning Light on page 196.
If this message is displayed, the Traction Control
System (TCS) and the Active Handling System
will also be disabled. The DIC will scroll three
messages: SERVICE ANTILOCK BRAKES,
SERVICE TRACTION SYSTEM, and SERVICEACTIVE HANDLING, and the instrument panel
cluster lights will come on along with a chime.
When the service message is displayed, the
computer controlled systems will not assist the
driver. Have the system repaired by your dealer as
soon as possible. Adjust your driving accordingly.
To acknowledge these messages, press the
RESET button.SERVICE CHARGING SYSTEM
If this message displays while you are driving,
there may be a problem with the electrical charging
system. It could mean that there is a loose or
broken drive belt or that there is another electrical
problem. Have your vehicle checked right away
by your dealer. Driving while this message is
on could drain the battery.
If you must drive a short distance with the
message on, be certain to turn off the vehicle’s
accessories, such as the radio and air conditioner.
Multiple chimes sound when this message is
displayed.
To acknowledge the message, press the RESET
button. The message reappears every 10 minutes
until this condition changes.
225

TRACTION SYSTEM AND ACTIVE
HANDLING – ON
If the Traction Control System (TCS) and Active
Handling System are off, this message displays
briey, the instrument panel cluster light turns off,
and a chime sounds when the TCS and Active
Handling System are turned on by briey pressing
the Active Handling System button on the
console. SeeTraction Control System (TCS) on
page 281andActive Handling System on
page 283for more information.
TRACTION SYSTEM – OFF
This message displays and stays on, a single,
quick tone sounds, and the traction control system
(TCS) warning light on the instrument panel
cluster turns on when the TCS is turned off by
pressing the Active Handling System button on the
console. SeeTraction Control System (TCS)
Warning Light on page 197. SeeTraction Control
System (TCS) on page 281for more information.
To acknowledge the message, press the
RESET button.
TRACTION SYSTEM – ON
This message displays and a single, quick tone
sounds when the Traction Control System (TCS) is
turned on by pressing the Active Handling System
button on the console. This message automatically
clears from the DIC display on its own. SeeTraction
Control System (TCS) on page 281for more
information.
TRANSMISSION HOT IDLE ENGINE
This message displays and four chimes sound
if the transmission uid temperature rises above
270°F (132°C) or rises rapidly. The transmission
may shift gears or apply the torque converter
clutch to reduce the uid temperature. Driving
aggressively or driving on long hills can cause the
transmission uid temperature to be higher than
normal. If this message appears, you may continue
to drive at a slower speed. Monitor the transmission
uid temperature and allow it to cool to at least
230°F (110°C). The transmission uid temperature
can be monitored with the gages button on the DIC.
SeeDIC Controls and Displays on page 208and
Automatic Transmission Fluid on page 345. Also
check the engine coolant temperature. If it is also
hot, seeEngine Overheating on page 350.
231
