If Your Vehicle is Stuck in Sand,
Mud, Ice, or Snow
In order to free your vehicle when it is stuck,
you will need to spin the wheels, but you do not
want to spin your wheels too fast. The method
known as rocking can help you get out when you
are stuck, but you must use caution.
{CAUTION:
If you let your vehicle’s tires spin at high
speed, they can explode, and you or others
could be injured. And, the transaxle or
other parts of the vehicle can overheat.
That could cause an engine compartment
re or other damage. When you are stuck,
spin the wheels as little as possible. Do not
spin the wheels above 35 mph (55 km/h) as
shown on the speedometer.
Notice:Spinning the wheels can destroy parts
of your vehicle as well as the tires. If you spin
the wheels too fast while shifting the transaxle
back and forth, you can destroy the transaxle.
SeeRocking Your Vehicle to Get It Out on
page 259.
For information about using tire chains on your
vehicle, seeTire Chains on page 357.
258

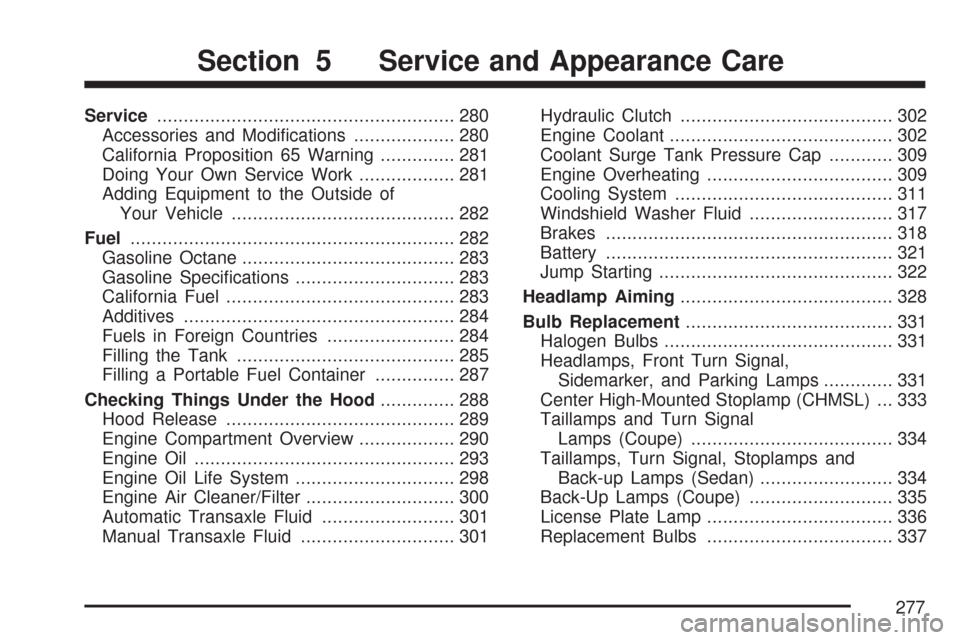

Service........................................................ 280
Accessories and Modications................... 280
California Proposition 65 Warning.............. 281
Doing Your Own Service Work.................. 281
Adding Equipment to the Outside of
Your Vehicle.......................................... 282
Fuel............................................................. 282
Gasoline Octane........................................ 283
Gasoline Specications.............................. 283
California Fuel........................................... 283
Additives................................................... 284
Fuels in Foreign Countries........................ 284
Filling the Tank......................................... 285
Filling a Portable Fuel Container............... 287
Checking Things Under the Hood.............. 288
Hood Release........................................... 289
Engine Compartment Overview.................. 290
Engine Oil................................................. 293
Engine Oil Life System.............................. 298
Engine Air Cleaner/Filter............................ 300
Automatic Transaxle Fluid......................... 301
Manual Transaxle Fluid............................. 301Hydraulic Clutch........................................ 302
Engine Coolant.......................................... 302
Coolant Surge Tank Pressure Cap............ 309
Engine Overheating................................... 309
Cooling System......................................... 311
Windshield Washer Fluid........................... 317
Brakes...................................................... 318
Battery...................................................... 321
Jump Starting............................................ 322
Headlamp Aiming........................................ 328
Bulb Replacement....................................... 331
Halogen Bulbs........................................... 331
Headlamps, Front Turn Signal,
Sidemarker, and Parking Lamps............. 331
Center High-Mounted Stoplamp (CHMSL) ... 333
Taillamps and Turn Signal
Lamps (Coupe)...................................... 334
Taillamps, Turn Signal, Stoplamps and
Back-up Lamps (Sedan)......................... 334
Back-Up Lamps (Coupe)........................... 335
License Plate Lamp................................... 336
Replacement Bulbs................................... 337
Section 5 Service and Appearance Care
277

Electrical System........................................ 383
Add-On Electrical Equipment..................... 383
Headlamp Wiring....................................... 383
Windshield Wiper Fuses............................ 383
Power Windows and Other Power
Options.................................................. 383Fuses and Circuit Breakers....................... 384
Floor Console Fuse Block......................... 384
Engine Compartment Fuse Block............... 386
Capacities and Specications.................... 390
Section 5 Service and Appearance Care
279

Headlamp Aiming
The optical headlamp aiming system has been
preset at the factory and should need no further
adjustment
However, If the vehicle is damaged in an accident,
the headlamp aim may be affected and adjustment
may be necessary.
If oncoming vehicles ash their high beams at
you, this may also mean the vertical aim needs to
be adjusted.
It is recommended that the vehicle is taken to
your dealer/retailer for service if the headlamps
need to be re-aimed. It is possible however,
to re-aim the headlamps as described.The vehicle should be properly prepared as
follows:The vehicle should be placed so the
headlamps are 25 ft. (7.6 m) from a light
colored wall.
The vehicle must have all four tires on a
perfectly level surface which is level all
the way to the wall.
The vehicle should be placed so it is
perpendicular to the wall.
The vehicle should not have any snow, ice,
or mud on it.
The vehicle should be fully assembled and
all other work stopped while headlamp
aiming is being done.
The vehicle should be normally loaded
with a full tank of fuel and one person or
160 lbs (75 kg) on the driver’s seat.
Tires should be properly inated.
Headlamp aiming is done with the vehicle’s
low-beam headlamps. The high-beam headlamps
will be correctly aimed if the low-beam headlamps
are aimed properly.
328

To adjust the vertical aim on the headlamps:
1. Open the hood. SeeHood Release on
page 289for more information.
2. Locate the aim dot on the lens of the
low-beam headlamp.
3. Record the distance from the ground to the
aim dot on the low-beam headlamp.4. At a wall, measure from the ground upward (A)
to the recorded distance from Step 3 and
mark it.
5. Draw or tape a horizontal line (B) on the wall
the width of the vehicle at the height of the
mark in Step 4.
Notice:Do not cover a headlamp to improve
beam cut-off when aiming. Covering a
headlamp may cause excessive heat build-up
which may cause damage to the headlamp.
6. Turn on the low-beam headlamps and place a
piece of cardboard or equivalent in front of the
headlamp not being adjusted. Do not place
it directly on the headlamp. This allows
only the beam of light from the headlamp
being adjusted to be seen on the at surface.
329

7. Locate the vertical headlamp aiming screws,
which are under the hood near each headlamp
assembly.
The adjustment screw can be turned with
a 6 mm socket wrench.8. Turn the vertical aiming screw until the
headlamp beam is aimed to the horizontal tape
line. Turn it clockwise or counterclockwise to
raise or lower the angle of the beam.
9. Make sure that the light from the headlamp is
positioned at the bottom edge of the horizontal
tape line. The lamp on the left (A) shows
the correct headlamp aim. The lamp on the
right (B) shows the incorrect headlamp aim.
10. Repeat Steps 7 through 9 for the opposite
headlamp.
330

Bulb Replacement
For the proper type of replacement bulbs,
seeReplacement Bulbs on page 337.
For any bulb changing procedure not listed in
this section, contact your dealer.
Halogen Bulbs
{CAUTION:
Halogen bulbs have pressurized gas
inside and can burst if you drop or
scratch the bulb. You or others could be
injured. Be sure to read and follow the
instructions on the bulb package.
Headlamps, Front Turn Signal,
Sidemarker, and Parking Lamps
A. Front Turn Signal/Parking Lamp
B. Sidemarker
C. Headlamp
331

To replace one of these bulbs:
1. Open the hood. SeeHood Release on
page 289for more information.
2. Remove the two hex bolts from the headlamp
assembly.
3. Remove the two plastic fasteners from the
fascia.
4. Pull the front fascia back.
You may need someone else to assist you
with Steps 3 and 4.5. Pull the headlamp assembly up on an angle
and towards the radiator to remove it.
6. Disconnect the bulb base from the wiring
harness by lifting the plastic locking tab.
7. To replace a headlamp bulb, do the following:
7.1. Disconnect the wiring harness from the
bulb socket.
7.2. Remove the black retainer by turning it
counterclockwise.
8. Turn the bulb socket for the headlamp, front
turn signal, or parking lamp counterclockwise.
For the sidemarker bulb, you will need to
use a tool to assist in turning the bulb socket.
9. Pull the old bulb out of the socket.
10. Install a new bulb.
11. Reinstall the bulb assembly by reversing
Steps 1 through 8.
When reinstalling the headlamp assembly,
rst make sure that the wiring harness is
in its original position. If not, the headlamp
assembly will not t correctly.
You will also need to line up the two tabs
on the bottom of the assembly that t into
two slots in the headlamp assembly bracket.
332
