2007 CHEVROLET AVALANCHE check engine

5. Then replace the pressure cap. Be sure the
pressure cap is hand-tight and fully seated.
6. Verify coolant level after engine is shut off
and the coolant is cold. If necessary, repeat
coolant ll procedure steps 1 through 6.
Engine Fan Noise
Your vehicle has electric cooling fans, you may
hear the fans spinning at low speed during
most everyday driving. The fans may turn off if no
cooling is required. Under heavy vehicle loading,
trailer towing, and/or high outside temperatures,
or if you are operating your air conditioning
system, the fans may change to high speed and
you may hear an increase in fan noise. This
is normal and indicates that the cooling system
is functioning properly. The fans will change to
low speed when additional cooling is no longer
required.
Power Steering Fluid
SeeEngine
Compartment Overview
on page 444for
reservoir location.
When to Check Power Steering Fluid
It is not necessary to regularly check power
steering uid unless you suspect there is a leak
in the system or you hear an unusual noise.
A uid loss in this system could indicate a problem.
Have the system inspected and repaired.
469

How to Check Power Steering Fluid
To check the power steering uid, do the following:
1. Turn the key off and let the engine
compartment cool down.
2. Wipe the cap and the top of the
reservoir clean.
3. Unscrew the cap and wipe the dipstick
with a clean rag.
4. Replace the cap and completely tighten it.
5. Remove the cap again and look at the
uid level on the dipstick.
The level should be at the FULL COLD mark.
If necessary, add only enough uid to bring
the level up to the mark.
What to Use
To determine what kind of uid to use, see
Recommended Fluids and Lubricants on page 574.
Always use the proper uid. Failure to use the
proper uid can cause leaks and damage hoses
and seals.
Windshield Washer Fluid
What to Use
When you need windshield washer uid, be sure
to read the manufacturer’s instructions before
use. If you will be operating your vehicle in an area
where the temperature may fall below freezing,
use a uid that has sufficient protection against
freezing.
470

Brakes
Brake Fluid
Your brake master
cylinder reservoir is
lled with DOT-3 brake
uid. SeeEngine
Compartment Overview
on page 444for the
location of the reservoir.
There are only two reasons why the brake uid
level in the reservoir might go down. The rst
is that the brake uid goes down to an acceptable
level during normal brake lining wear. When
new linings are put in, the uid level goes back
up. The other reason is that uid is leaking out of
the brake system. If it is, you should have your
brake system xed, since a leak means that
sooner or later your brakes will not work well,
or will not work at all.So, it is not a good idea to top off your brake uid.
Adding brake uid will not correct a leak. If you
add uid when your linings are worn, then you
will have too much uid when you get new brake
linings. You should add or remove brake uid,
as necessary, only when work is done on
the brake hydraulic system.
{CAUTION:
If you have too much brake uid, it can
spill on the engine. The uid will burn
if the engine is hot enough. You or others
could be burned, and your vehicle could
be damaged. Add brake uid only when
work is done on the brake hydraulic
system. See “Checking Brake Fluid”
in this section.
When the brake uid falls to a low level, the brake
warning light will come on. SeeBrake System
Warning Light on page 246.
Refer to the Maintenance Schedule to determine
when to check your brake uid. SeeScheduled
Maintenance on page 563.
472

Checking Brake Fluid
You can check the brake uid without taking
off the cap.
Look at the brake uid
reservoir. The uid
level should be
above MIN. If it is
not, have your brake
system checked to
see if there is a leak.
After work is done on the brake hydraulic system,
make sure the level is above the MIN but not
over the MAX mark.
What to Add
When you do need brake uid, use only DOT-3
brake uid. Use new brake uid from a sealed
container only. SeeRecommended Fluids
and Lubricants on page 574.
Always clean the brake uid reservoir cap and
the area around the cap before removing it. This
will help keep dirt from entering the reservoir.
{CAUTION:
With the wrong kind of uid in the brake
system, the brakes may not work well, or
they may not even work at all. This could
cause a crash. Always use the proper
brake uid.
Notice:
Using the wrong uid can badly damage
brake system parts. For example, just a
few drops of mineral-based oil, such
as engine oil, in the brake system can
damage brake system parts so badly that
they will have to be replaced. Do not
let someone put in the wrong kind of uid.
If you spill brake uid on your vehicle’s
painted surfaces, the paint nish can
be damaged. Be careful not to spill brake
uid on your vehicle. If you do, wash it
off immediately. SeeWashing Your Vehicle
on page 541.
473

CAUTION: (Continued)
But if a battery has ller caps, be sure the
right amount of uid is there. If it is low,
add water to take care of that rst. If you
do not, explosive gas could be present.
Battery uid contains acid that can
burn you. Do not get it on you. If you
accidentally get it in your eyes or on
your skin, ush the place with water
and get medical help immediately.
{CAUTION:
Fans or other moving engine parts can
injure you badly. Keep your hands away
from moving parts once the engine is
running.5. Check that the jumper cables do not have
loose or missing insulation. If they do, you
could get a shock. The vehicles could
be damaged too.
Before you connect the cables, here are some
basic things you should know. Positive (+)
will go to positive (+) or to a remote
positive (+) terminal if the vehicle has one.
Negative (−) will go to a heavy, unpainted
metal engine part or to a remote negative (−)
terminal if the vehicle has one.
Do not connect positive (+) to negative (−)
or you will get a short that would damage
the battery and maybe other parts too.
And do not connect the negative (−) cable
to the negative (−) terminal on the dead
battery because this can cause sparks.
479

Rear Axle
When to Check Lubricant
It is not necessary to regularly check rear axle
uid unless you suspect there is a leak or you hear
an unusual noise. A uid loss could indicate a
problem. Have it inspected and repaired.
All axle assemblies are lled by volume of uid
during production. They are not lled to reach
a certain level. When checking the uid level on
any axle, variations in the readings can be caused
by factory ll differences between the minimum
and the maximum uid volume. Also, if a vehicle
has just been driven before checking the uid
level, it may appear lower than normal because
uid has traveled out along the axle tubes and has
not drained back to the sump area. Therefore,
a reading taken ve minutes after the vehicle has
been driven will appear to have a lower uid
level than a vehicle that has been stationary for
an hour or two. Remember that the rear axle
assembly must be supported to get a true reading.
How to Check Lubricant
To get an accurate reading, the vehicle should be
on a level surface.
For 5.3L engines, the proper level is from
0.04 inch to 0.75 inch (1.0 mm to 19.0 mm)
below the bottom of the ller plug hole,
located on the rear axle. Add only enough
uid to reach the proper level.
For 6.0L engines, the proper level is from
0.6 inch to 1.6 inches (15 mm to 40 mm)
below the bottom of the ller plug hole,
located on the rear axle. Add only enough
uid to reach the proper level.
482

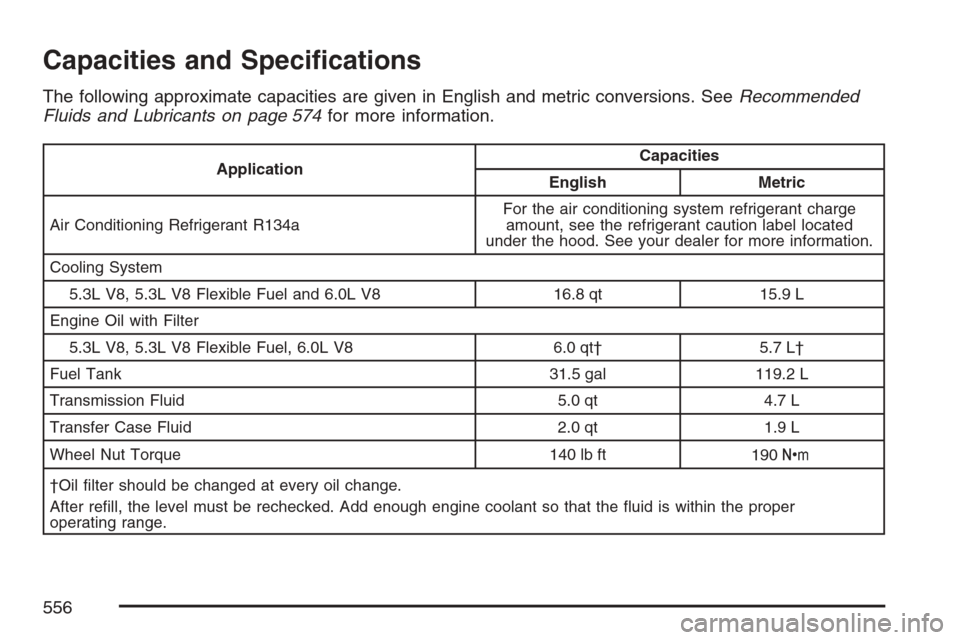

Capacities and Specications
The following approximate capacities are given in English and metric conversions. SeeRecommended
Fluids and Lubricants on page 574for more information.
ApplicationCapacities
English Metric
Air Conditioning Refrigerant R134aFor the air conditioning system refrigerant charge
amount, see the refrigerant caution label located
under the hood. See your dealer for more information.
Cooling System
5.3L V8, 5.3L V8 Flexible Fuel and 6.0L V8 16.8 qt 15.9 L
Engine Oil with Filter
5.3L V8, 5.3L V8 Flexible Fuel, 6.0L V8 6.0 qt† 5.7 L†
Fuel Tank 31.5 gal 119.2 L
Transmission Fluid 5.0 qt 4.7 L
Transfer Case Fluid 2.0 qt 1.9 L
Wheel Nut Torque 140 lb ft
190Y
†Oil lter should be changed at every oil change.
After rell, the level must be rechecked. Add enough engine coolant so that the uid is within the proper
operating range.
556

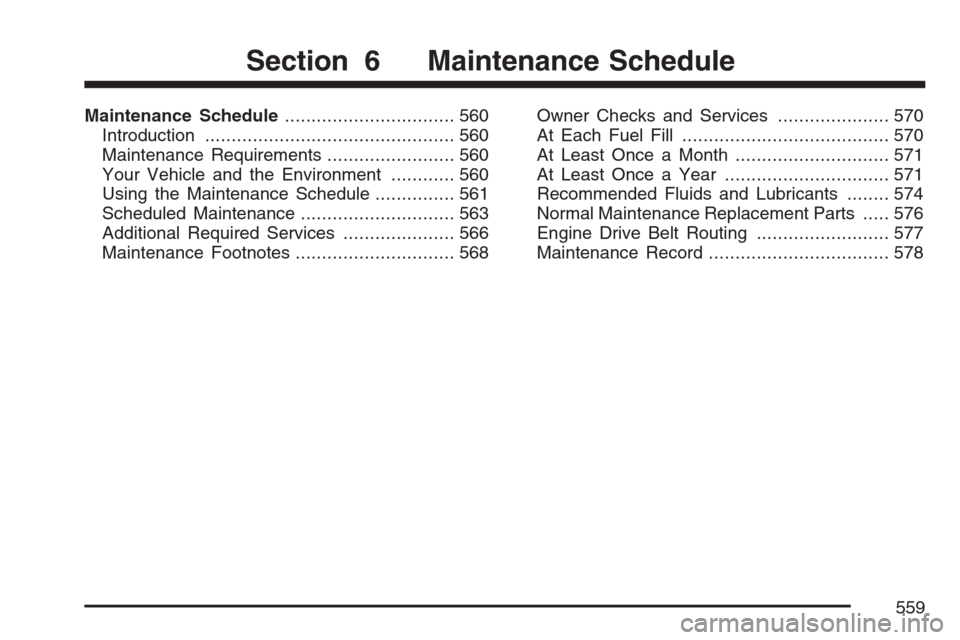

Maintenance Schedule................................ 560
Introduction............................................... 560
Maintenance Requirements........................ 560
Your Vehicle and the Environment............ 560
Using the Maintenance Schedule............... 561
Scheduled Maintenance............................. 563
Additional Required Services..................... 566
Maintenance Footnotes.............................. 568Owner Checks and Services..................... 570
At Each Fuel Fill....................................... 570
At Least Once a Month............................. 571
At Least Once a Year............................... 571
Recommended Fluids and Lubricants........ 574
Normal Maintenance Replacement Parts..... 576
Engine Drive Belt Routing......................... 577
Maintenance Record.................................. 578
Section 6 Maintenance Schedule
559
