2007 CADILLAC XLR V display

Quick POI (Point of Interest) Selection
This menu allows you to choose a point of
interest (POI), such as gas stations, restaurants,
hotels, etc. to be displayed on the map screen.
You can also set a destination to a specic POI.
Setting the Quick POI Menu
To set the Quick POI list displayed on the map
screen, do the following:
1. Select the category you would like to replace.
2. Select a Quick POI category from the
Quick POI selection menu list. The system will
return to the Quick POI selection screen
when a POI is selected.
3. Touch Return to save the setting and return to
previous menu.
Displaying Quick POI Icons
To display POI icons of a category on the map
screen, do the following:
1. Touch the map screen once.
2. Touch the POI button. The Quick POI
Selection list will be displayed.
3. Select a category type or touch List
Categories Or All Local POIs to display the
icons of the selected category on the
map screen.
245

Removing Quick POI Icons
To remove POI icons from the map screen, do the
following:
1. Touch the map screen once.
2. Touch the POI OFF screen button. The
current POI icons will be removed from
the map screen.
Setting a Destination Using Quick POI
This feature will allow you to choose a POI as your
destination. To set a destination using a POI, do
the following:
1. Touch the POI icon on the map screen that
you wish to set as a destination.
The selected icon will be surrounded by a
blinking box, and the name of the icon will be
displayed. You may also touch INFO to
view the POI name, address, city, and phone
number, if available.2. Touch the ENT DEST screen button.
If a nal destination has already been entered,
you can add the POI as a waypoint. See
Edit Waypoint on page 254for more
information.
3. Touch Enter to start planning your route.
4. To start route guidance, touch Start or begin
driving the vehicle. Route guidance will
automatically begin after a short distance.
If you wish to cancel the route you have just set,
do the following:
1. Press the ROUTE hard key.
2. Touch the Route Preference screen button.
3. Touch the Cancel Route screen button.
4. Select YES to cancel or NO to continue.
246

Guidance Appearance
This menu allows you to set the guidance
appearance screen options. This screen is
displayed on the map while on a planned route.
The current settings will appear as light blue.
Split Map:Select this feature to display the
guidance screen on the map at all times.
Full Screen:Select this feature to display the
guidance screen on the map when approaching a
maneuver.Turn List:Select this feature to have the
guidance screen display several upcoming turns.
Directional arrows, street name, and distance
to the next turn will be displayed. As you approach
the next turn, the system will display a closer
view of the upcoming maneuver.
Arrow:Select this feature to have the guidance
screen display the next turn. A directional
arrow, street name, and distance to the turn will
be displayed. As you approach the turn, the
system will display a closer view of the upcoming
maneuver.
2D:Select this feature to display the guidance
screen as a two-dimensional view.
3D:Select this feature to display the guidance
screen as a three-dimensional view.
247

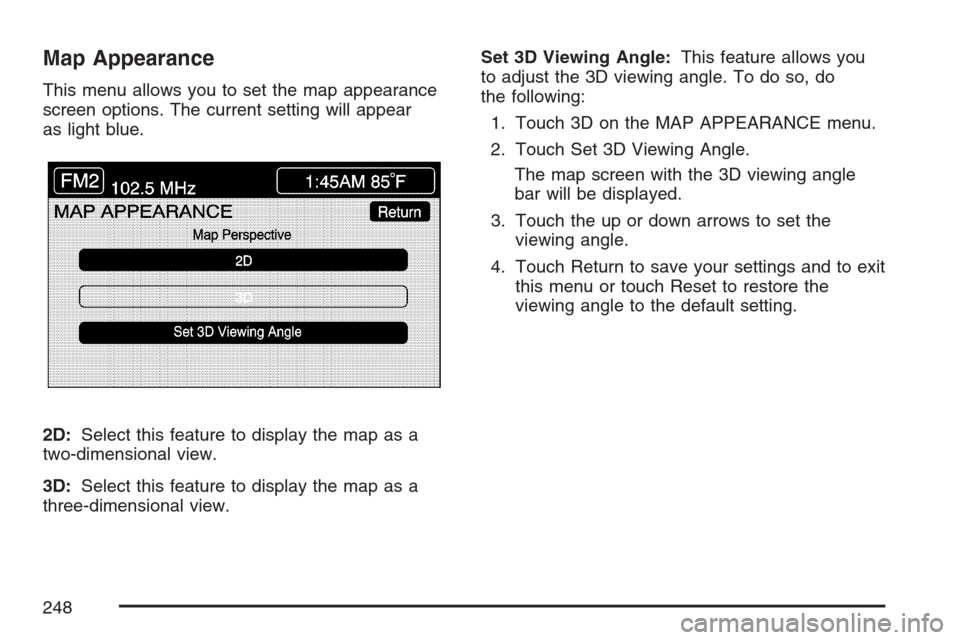

Map Appearance
This menu allows you to set the map appearance
screen options. The current setting will appear
as light blue.
2D:Select this feature to display the map as a
two-dimensional view.
3D:Select this feature to display the map as a
three-dimensional view.Set 3D Viewing Angle:This feature allows you
to adjust the 3D viewing angle. To do so, do
the following:
1. Touch 3D on the MAP APPEARANCE menu.
2. Touch Set 3D Viewing Angle.
The map screen with the 3D viewing angle
bar will be displayed.
3. Touch the up or down arrows to set the
viewing angle.
4. Touch Return to save your settings and to exit
this menu or touch Reset to restore the
viewing angle to the default setting.
248

Voice Guidance Volume Settings
This feature allows you to set the voice prompt
volume level or to turn voice prompts on or off.
Set the voice prompt volume level by touching the
numbered buttons to increase or decrease the
volume level. You may also choose to turn
the voice prompts off. Then touch Return to save
your setting and to return to the SETUP MENU.
If a voice prompt is active while the audio system
is on, the audio system volume will decrease
and the voice prompt will be heard through the
driver’s side front speaker.
Voice prompts will not be heard while using voice
recognition.
Plan Route
To plan a route, press the ROUTE key. The PLAN
ROUTE menu will be displayed.
You may use one of several destination entry
methods to plan a route. SeeEnter Destination on
page 259for more information.
249

Edit Memory Point
This feature allows you to store, delete, and edit
memory points. Touch the Edit Memory Point
screen button from the PLAN ROUTE menu to
access the EDIT MEMORY POINT screen.
You can store memory points in four different
categories, personal, business, entertainment, and
marked point.Memory points are stored when you select either
START or MARK when setting a destination
on the map or when you are storing destinations
in memory.
A total of 60 locations can be stored. The last
10 destinations entered will be stored under
Previous Destination. In addition, one memory
point can be stored under the Home category.
If all 60 stored points are entered, the system will
notify you that there is no available storage left
in memory points. A memory point must be
removed before storing additional memory points.
Registering Memory Points
To store a memory point, do the following:
1. Select a category from the EDIT MEMORY
POINT menu.
2. Touch REGISTER.
3. Select a method for entering a destination. A
map will appear displaying the memory point’s
location.
4. If available, touch INFO to view the address
information for the memory point.
5. Touch Enter to store the point.
250

Editing Memory Points
This feature allows you to edit the contents stored
in memory. The following options are available:
Icon Editing of a Memory Point
Each memory point is displayed with a default
icon. To edit an icon, do the following:
1. Select the category of the memory point.
2. Select the item you want to edit.
3. Touch the icon. The EDIT MEMORY POINT
icon screen will appear.
4. Touch the icon you would like to use. The
system will then return to the EDIT MEMORY
POINT menu.
5. Touch Return to go back to the previous
screen.
You will see the new memory point icon on
the map.
When selecting an icon, you can choose from
18 different icons, three of which are sound icons.
The same icon may be used for other memory
points as well.
Name Editing of a Memory Point
To modify the name of a stored memory point, do
the following:
1. Select the category of the memory point.
2. Select the item you want to edit.
3. Touch the NAME screen button and use the
alpha keypad to edit the name. Names may
contain up to 15 alpha and/or numeric
characters.
4. Touch Return to go to the previous screen.
Moving Memory Points
To move a memory point from one category to
another, do the following:
1. Select the category of the memory point.
2. Select the memory point you want to edit.
3. Touch CATEGORY. A list of categories will
appear. The current category for the item will
be highlighted and cannot be selected.
4. Touch the screen button for the category you
want the memory point placed in. A pop-up
window will appear displaying the change
in category.
5. Touch Return to go back to the previous
screen.
251

Adding a Waypoint
To add a waypoint to your route, do the following:
1. Touch Add Waypoint.
2. Enter a destination. SeeEnter Destination on
page 259.
A map will appear showing the location of the
waypoint.
3. Touch Enter to add your waypoint.
4. Touch the ADD screen button to insert the
waypoint in the desired order.
5. The system will display the ROUTE
INFORMATION screen. From this screen,
several options are available.List:Touch List to view the waypoint on the map
or to change the order of the waypoints and
nal destination. To change the order, touch CHG
ORDER, then touch the blank screen button
next to the destination to select the order of the
waypoints and nal destination. Press the
MAP key to view the destination and waypoints on
the map screen.
Delete:Touch Delete to delete a waypoint or the
nal destination. A conrmation window will
appear. Touch YES to delete the point or NO to
return to the previous screen.
255
