Raise or lower the lever until the arrow starts to
ash to signal a lane change. Hold it there until the
lane change is complete. The lever returns to its
original position when it is released.
Rapid ashing of arrows when signaling for a turn
or lane change may be caused by a burned-out
signal bulb. Other driver’s will not see the signal.
Replace burned-out bulbs to help avoid possible
accidents. Check the fuse and for burned-out bulbs
if the arrow fails to work when signaling a turn.
SeeFuses and Circuit Breakers on page 487for
more information.
Turn Signal On Chime
If the turn signal is left on for about 1 mile (1.6 km),
a warning chime will sound and the TURN
SIGNAL ON message will appear on the Driver
Information Center (DIC) display. See “Turn Signal
On” underDIC Warnings and Messages on
page 264for more information.
Headlamp High/Low-Beam Changer
Push forward on the turn signal/multifunction
lever to change the headlamps from low to high
beam. Pull the lever back and then release it
to change from high to low beam.
If you turn the vehicle off with the high beams on,
the next time you start your vehicle the low
beams will be on.
To re-activate high beams, pull lever toward you
and then push it forward again.
This light on the
instrument panel cluster
will be on, indicating
high-beam usage.
183

Unnecessary Warnings
FCA may occasionally provide an unnecessary
warning to guard rails, signs, and other stationary
objects. This is normal operation, your vehicle
does not need service.
Other Messages
There are three messages that may appear on the
Driver Information Center (DIC). They are
CLEAN RADAR, RADAR CRUISE NOT READY
and SERVICE RADAR CRUISE. SeeDIC
Warnings and Messages on page 264.
Cleaning the System
The radar can become blocked by snow, ice, or
dirt. If so, you may need to turn off the engine and
clean the lens. See “Cleaning the System”
underAdaptive Cruise Control on page 197.
Flash-to-Pass
This feature allows you to use the high-beam
headlamps to signal the driver in front of you that
you want to pass.
Pull and hold the turn signal/multifunction lever
toward you to use this feature. When you do this,
the following will occur:
If the headlamps are off, in low-beam or in
Daytime Running Lamps (DRL) mode, the
high-beam headlamps will turn on. They will
stay on as long as you hold the lever
there. Release the lever to turn them off.
If the headlamps are in high-beam mode, they
will switch to low beam. To return to
high-beam, push the lever away from you.
188

Windshield Wipers
The lever on the right side of the steering column
operates the windshield wipers.
7(Mist):Pull the lever down and release it for
a single wiping cycle. The lever will return to its
original position. For more cycles, hold the
lever down before releasing it.
9(Off):Put the lever in this position to turn off
the wipers.
&(Delay):Put the lever in this position to set a
delay between wipes. Turn the delay adjustment
band to set the length of the delay.
x(Delay Adjustment):Use this band to set the
length of the delay between wipes when using the
delay feature. The closer you move the band
toward mist, the longer the delay. The windshield
wiper lever must be in delay for this feature to work.
6(Low Speed):Put the lever in this position
for slow, steady wiping cycles.
1(High Speed):Put the lever in this position
for rapid wiping cycles.
If the windshield wipers are in use for about
six seconds while you are driving, the exterior
lamps will come on automatically if the exterior
lamp control is in AUTO. SeeWiper Activated
Headlamps on page 215for more information.
Be sure to clear ice and snow from the wiper
blades before using them. If they’re frozen to the
windshield, gently loosen or thaw them. If the
blades do become damaged, install new blades.
For more information, seeWindshield Wiper Blade
Replacement on page 419.
189

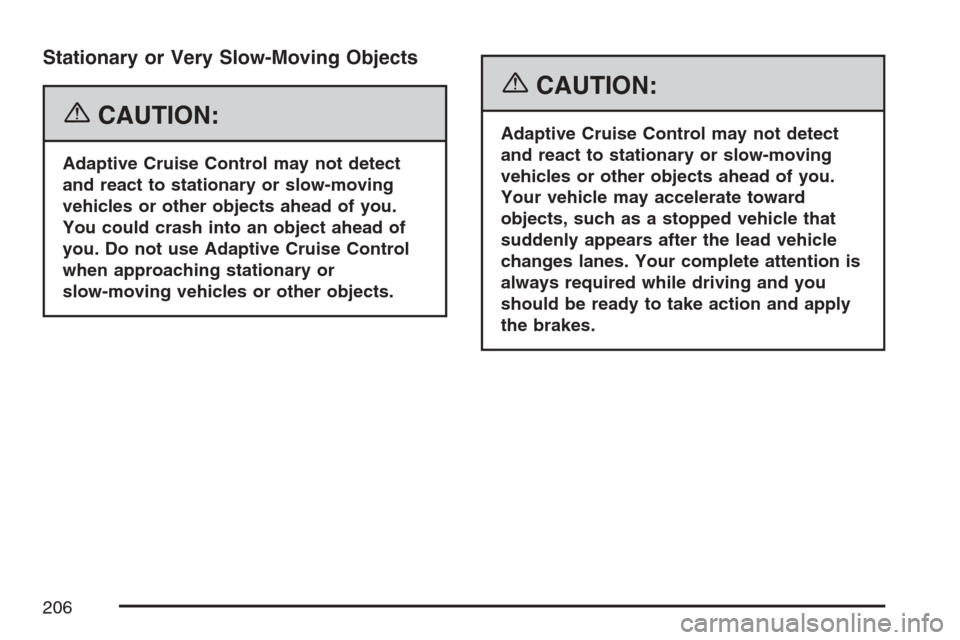

Stationary or Very Slow-Moving Objects
{CAUTION:
Adaptive Cruise Control may not detect
and react to stationary or slow-moving
vehicles or other objects ahead of you.
You could crash into an object ahead of
you. Do not use Adaptive Cruise Control
when approaching stationary or
slow-moving vehicles or other objects.
{CAUTION:
Adaptive Cruise Control may not detect
and react to stationary or slow-moving
vehicles or other objects ahead of you.
Your vehicle may accelerate toward
objects, such as a stopped vehicle that
suddenly appears after the lead vehicle
changes lanes. Your complete attention is
always required while driving and you
should be ready to take action and apply
the brakes.
206

Other Vehicle Lane Changes
If another vehicle enters the same lane as you,
Adaptive Cruise Control will not detect the vehicle
until it is completely in the lane. Be ready to
take action and apply the brakes yourself.
Using Adaptive Cruise Controls on Hills
and When Towing a Trailer
How well Adaptive Cruise Control will work on hills
and when towing a trailer depends on your
speed, vehicle load, traffic conditions and thesteepness of the hills. It may not detect a vehicle
in your lane while driving on hills. When going
up steep hills, you may want to use the accelerator
pedal to maintain your speed. When going
downhill when towing a trailer, you may want to
brake to keep your speed down. Applying the
brake disengages the system. You may choose
not to use Adaptive Cruise Control on steep
hills when towing a trailer.
Disengaging Adaptive Cruise Control
To disengage the system, apply the brake pedal
or move the Adaptive Cruise Control switch to
off. Adaptive Cruise Control information will
not appear on the HUD when the system is not
engaged.
Erasing Set Speed Memory
When you turn the Adaptive Cruise Control switch
or the ignition off, the set speed memory is erased.
210

Head-Up Display (HUD)
{CAUTION:
If the HUD image is too bright, or too high
in your eld of view, it may take you more
time to see things you need to see when it
is dark outside. Be sure to keep the HUD
image dim and placed low in your eld
of view.
If equipped, the Head-Up Display (HUD) allows
you to see some of the driver information that
appears on your instrument panel cluster on the
windshield.
The information may be displayed in English or
metric units and appears as an image focused out
toward the front of your vehicle. To change
from English to metric units, seeDIC Controls and
Displays on page 258.
The HUD consists of the following information:
Speedometer
Turn Signal Indicators
High-Beam Indicator Symbol
Driver Shift Control Transmission Feature,
seeAutomatic Transmission Operation on
page 116
Check Gages Icon
Adaptive Cruise Control Features and
Indicators (If Equipped), seeAdaptive Cruise
Control on page 197
Forward Collision Alert Features and
Indicators (If Equipped), seeForward Collision
Alert (FCA) System on page 184
Radio Features
United States version shown, Canada similar
223

Outlet Adjustment
Use the lever located in the center of each outlet
to change the direction of the airow, either
side-to-side or up and down. Use the thumbwheels
to open or close the outlets to adjust the airow.
Turn the thumbwheel towards the center
console to open the outlets and allow the
maximum amount of air to enter your vehicle. Turn
the thumbwheel towards the vehicle door to
close the outlets and minimize the amount of air
entering the vehicle.
Operation Tips

Clear away any ice, snow or leaves from the
air inlets at the base of the windshield that
may block the ow of air into your vehicle.
Use of non-GM approved hood deectors may
adversely affect the performance of the system.
Keep the path under the front seats clear of
objects to help circulate the air inside of your
vehicle more effectively.
If the airow seems low when the fan speed is
at the highest setting, the passenger
compartment air lter may need to be replaced.
For more information, seePassenger
Compartment Air Filter on page 239.
Rear Climate Control System
Your vehicle has a rear climate control system.
The base model includes air outlets in the rear of
the center console for cooling and under-seat
air outlets for heating. The temperature, quantity,
and air delivery location is controlled automatically
by the front climate control system.
Some vehicles are equipped with an optional
climate control panel for the rear passenger,
located on the back of the center console.
The left knob controls the temperature of the air to
the rear passengers. Turning the knob to the
left will make the air cooler. Turning the knob to
the right will make the air warmer.
237

To access the passenger compartment air lter,
do the following:
1. Pull back the rubber hood seal from the edge
of the leaf screen vent cover.
2. Remove the three fasteners that hold the lter
access cover in place and slide the cover off.
3. To access the lter, remove the black plastic
water deector by lifting the outboard edge of
the deector to release the retention tab.
4. Lift the inboard edge of the deector to
release the retention tab.
5. Lift and slide the water deector toward the
inboard side and remove it.6. The top edge of the lter should be visible.
Reach in and lift the lter out, pulling upward
and toward the front of the vehicle.
7. Insert the new air lter by sliding it back into
place. Make sure the arrow on the lter is
pointing toward the passenger compartment.
Reverse steps 1 through 3 to reinstall the water
deector, lter cover and the hood seal.
