2007 CADILLAC ESCALADE ESV clock setting

Climate Controls
Dual Automatic Climate Control
System
With this system, you can control the heating,
cooling, and ventilation in your vehicle. Your
vehicle also has a ow-through ventilation system
described later in this section.
You can select different climate control settings for
the driver and passengers.
Driver’s Side Temperature Knob
The driver’s side knob is used to adjust the
temperature of the air coming through the system
on the driver’s side. The temperature can be
adjusted even if the system is turned off. This is
possible since outside air will always ow through
the system as the vehicle is moving forward
unless it is set to recirculation mode. See
“Recirculation” later in this section.
Turn the knob counterclockwise or clockwise to
lower or increase the cabin temperature. The
display will show the temperature setting
decreasing or increasing.
Passenger’s Side Temperature Knob
The passenger’s side knob can be used to change
the temperature of the air coming through the
system on the passenger’s side of the vehicle. The
temperature can be adjusted even if the system
is turned off. This is possible since outside air will
always ow through the system as the vehicle
is moving forward unless it is set to recirculation
mode. See “Recirculation” later in this section.
Climate Control with Cooled and Heated Seats
shown
220

Turn the knob counterclockwise or clockwise to
lower or increase the cabin temperature. The
display will show the temperature setting
decreasing or increasing.
Set the passenger’s temperature setting to match
the driver’s temperature setting by pressing the
passenger power knob.
Automatic Operation
AUTO (Automatic):When automatic operation
is active the system will control the inside
temperature, the air delivery, and the fan speed.
Use the steps below to place the entire system in
automatic mode:
1. Press the AUTO button.
When AUTO is selected, the display will
change to show the current temperature(s)
and AUTO come on the display. The current
delivery mode and fan speed will also be
displayed for approximately ve seconds.When AUTO is selected, the air conditioning
operation and air inlet will be automatically
controlled. The air conditioning compressor will
run when the outside temperature is over
about 40°F (4°C). The air inlet will normally be
set to outside air. If it is hot outside, the air
inlet may automatically switch to recirculate
inside air to help quickly cool down your
vehicle. The light on the button will come on
in recirculation.
2. Set the driver’s and passenger’s temperature.
To nd your comfort setting, start with a 74°F
(23°C) temperature setting and allow about
20 minutes for the system to regulate. Use the
driver’s or passenger’s temperature buttons to
adjust the temperature setting as necessary.
If you choose the temperature setting of 60°F
(15°C), the system will remain at the maximum
cooling setting. If you choose the temperature
setting of 90°F (32°C), the system will remain at
the maximum heat setting. Choosing either
maximum setting will not cause the vehicle to
heat or cool any faster.
221

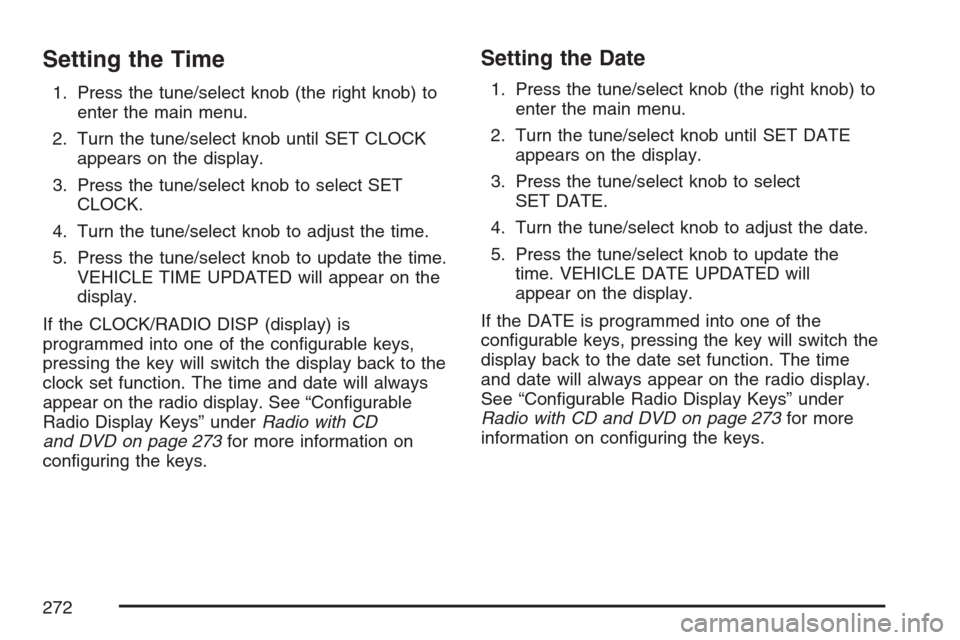

Setting the Time
1. Press the tune/select knob (the right knob) to
enter the main menu.
2. Turn the tune/select knob until SET CLOCK
appears on the display.
3. Press the tune/select knob to select SET
CLOCK.
4. Turn the tune/select knob to adjust the time.
5. Press the tune/select knob to update the time.
VEHICLE TIME UPDATED will appear on the
display.
If the CLOCK/RADIO DISP (display) is
programmed into one of the congurable keys,
pressing the key will switch the display back to the
clock set function. The time and date will always
appear on the radio display. See “Congurable
Radio Display Keys” underRadio with CD
and DVD on page 273for more information on
conguring the keys.
Setting the Date
1. Press the tune/select knob (the right knob) to
enter the main menu.
2. Turn the tune/select knob until SET DATE
appears on the display.
3. Press the tune/select knob to select
SET DATE.
4. Turn the tune/select knob to adjust the date.
5. Press the tune/select knob to update the
time. VEHICLE DATE UPDATED will
appear on the display.
If the DATE is programmed into one of the
congurable keys, pressing the key will switch the
display back to the date set function. The time
and date will always appear on the radio display.
See “Congurable Radio Display Keys” under
Radio with CD and DVD on page 273for more
information on conguring the keys.
272
