2007 CADILLAC ESCALADE ESV display

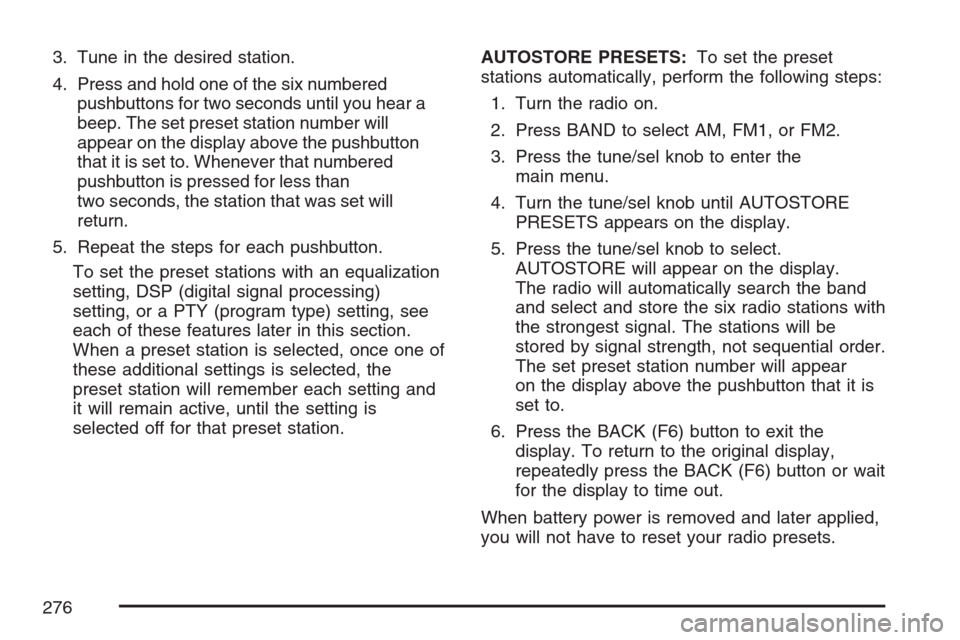

3. Tune in the desired station.
4. Press and hold one of the six numbered
pushbuttons for two seconds until you hear a
beep. The set preset station number will
appear on the display above the pushbutton
that it is set to. Whenever that numbered
pushbutton is pressed for less than
two seconds, the station that was set will
return.
5. Repeat the steps for each pushbutton.
To set the preset stations with an equalization
setting, DSP (digital signal processing)
setting, or a PTY (program type) setting, see
each of these features later in this section.
When a preset station is selected, once one of
these additional settings is selected, the
preset station will remember each setting and
it will remain active, until the setting is
selected off for that preset station.AUTOSTORE PRESETS:To set the preset
stations automatically, perform the following steps:
1. Turn the radio on.
2. Press BAND to select AM, FM1, or FM2.
3. Press the tune/sel knob to enter the
main menu.
4. Turn the tune/sel knob until AUTOSTORE
PRESETS appears on the display.
5. Press the tune/sel knob to select.
AUTOSTORE will appear on the display.
The radio will automatically search the band
and select and store the six radio stations with
the strongest signal. The stations will be
stored by signal strength, not sequential order.
The set preset station number will appear
on the display above the pushbutton that it is
set to.
6. Press the BACK (F6) button to exit the
display. To return to the original display,
repeatedly press the BACK (F6) button or wait
for the display to time out.
When battery power is removed and later applied,
you will not have to reset your radio presets.
276

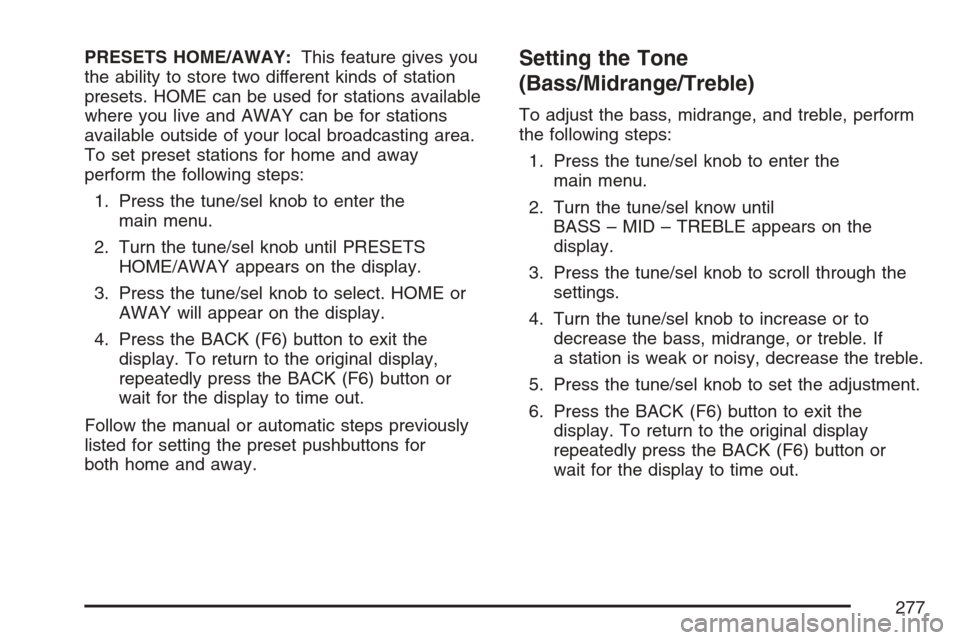

PRESETS HOME/AWAY:This feature gives you
the ability to store two different kinds of station
presets. HOME can be used for stations available
where you live and AWAY can be for stations
available outside of your local broadcasting area.
To set preset stations for home and away
perform the following steps:
1. Press the tune/sel knob to enter the
main menu.
2. Turn the tune/sel knob until PRESETS
HOME/AWAY appears on the display.
3. Press the tune/sel knob to select. HOME or
AWAY will appear on the display.
4. Press the BACK (F6) button to exit the
display. To return to the original display,
repeatedly press the BACK (F6) button or
wait for the display to time out.
Follow the manual or automatic steps previously
listed for setting the preset pushbuttons for
both home and away.Setting the Tone
(Bass/Midrange/Treble)
To adjust the bass, midrange, and treble, perform
the following steps:
1. Press the tune/sel knob to enter the
main menu.
2. Turn the tune/sel know until
BASS – MID – TREBLE appears on the
display.
3. Press the tune/sel knob to scroll through the
settings.
4. Turn the tune/sel knob to increase or to
decrease the bass, midrange, or treble. If
a station is weak or noisy, decrease the treble.
5. Press the tune/sel knob to set the adjustment.
6. Press the BACK (F6) button to exit the
display. To return to the original display
repeatedly press the BACK (F6) button or
wait for the display to time out.
277

AUDIO EQUALIZER:This feature allows you to
select customized equalization settings. To choose
an equalization setting (EQ0 through EQ5),
perform the following steps:
1. Press the tune/sel knob to enter the
main menu.
2. Turn the tune/sel knob until EQUALIZER
appears on the display.
3. Press the tune/sel knob to set the equalization
setting. The equalization setting will appear on
the display.
4. Press the BACK (F6) button to exit the
display. To return to the original display,
repeatedly press the BACK (F6) button or
wait for the display to time out.
The equalization settings are preset to
EQ0 (Normal), EQ1 (Pop), EQ2 (Rock),
EQ3 (Jazz), EQ4 (Talk), and EQ5 (Country).Adjusting the Speakers (Balance/Fade)
To adjust the balance or fade, perform the
following steps:
1. Press the tune/sel knob to enter the
main menu.
2. Turn the tune/sel knob until
BALANCE – FADER appears on the display.
3. Press the tune/sel knob to enter the tone
settings.
4. Press the tune/sel knob to scroll to BALANCE
or FADER.
5. Turn the tune/sel knob to adjust the BALANCE
to the right or the left speakers and the
FADER to the front or the rear speakers.
6. Press the tune/sel knob to set the adjustment.
7. Press the BACK (F6) button to exit the
display. To return to the original display,
repeatedly press the BACK (F6) button or
wait for the display to time out.
EQ0 will not appear on the display when in
this mode.
278

Digital Signal Processing (DSP):This feature is
used to provide a choice of different listening
experiences. To choose a DSP setting, perform
the following steps:
1. Press the tune/sel knob to enter the
main menu.
2. Turn the tune/sel knob until DSP appears on
the display.
3. Press the tune/sel knob to set the DSP
setting. The DSP setting will appear on
the display.
4. Press the BACK (F6) button to exit the
display. To return to the original display,
repeatedly press the BACK (F6) button or
wait for the display to time out.The DSP settings available are:
Normal: Select this setting for normal mode,
this provides the best sound quality for all
seating positions.
Centerpoint™: Select this setting to enable
Bose Centerpoint™. Centerpoint™ signal
processing gives surround sound listening for
a CD, MP3, or a DVD stereo audio source.
Centerpoint™ delivers ve independent audio
channels from conventional stereo recordings.
Rear: Select this setting to adjust the audio for
the rear seat passengers to receive the best
possible sound quality.
Driver: Select this setting to adjust the audio
for the driver to receive the best possible
sound quality.
5.1 Surround: Select this setting to turn
on true 5.1 surround sound processing,
available for DVD-A or DVD-V sources that
were recorded in 5.1 Surround.
5.1 Surround + Normal— this mode is
optimized for all seating positions.
5.1 Surround + Rear— this mode is
optimized for rear seat occupants.
279

XM™ Satellite Radio Service
XM™ is a satellite radio service that is based in
the 48 contiguous United States and Canada.
XM™ offers a large variety of coast-to-coast
channels including music, news, sports, talk,
traffic/weather (U.S. subscribers), and children’s
programming. XM™ provides digital quality
audio and text information that includes song title
and artist name. A service fee is required in
order to receive the XM™ service. For more
information, contact XM™; In the U.S. at
www.xmradio.com or call 1-800-852-XMXM (9696)
or in Canada at www.xmradio.ca or call
1-877-GET-XMSR (438-9677).
4(Information):Press this button while in XM™
mode to retrieve three different categories of
information related to the current song or channel:
Artist, Song Title, Category or PTY. To view
this information, perform the following:
1. Press the tune/sel knob to enter the
main menu.
2. Turn the tune/sel knob until INFO (information)
appears on the display.
3. Press the tune/sel knob to select INFO. The
display will change to show the additional
XM™ information.4. Press the BACK (F6) button to exit the
display. To return to the original display,
repeatedly press the BACK (F6) button or wait
for the display to time out.
Radio Data System (RDS)
The audio system has a Radio Data System
(RDS). RDS features are available for use only on
FM stations that broadcast RDS information.
With RDS, the radio can do the following:
Seek to stations broadcasting the selected
type of programming
Receive announcements concerning local and
national emergencies
Display messages from radio stations
Seek to stations with traffic announcements
This system relies upon receiving specic
information from these stations and will only work
when the information is available. In rare cases, a
radio station may broadcast incorrect information
that will cause the radio features to work
improperly. If this happens, contact the radio
station.
280

While the radio is tuned to an RDS station, the
station name or call letters will appear on the
display instead of the frequency. RDS stations may
also provide the time of day, a program type
(PTY) for current programming, and the name of
the program being broadcast.
RDS Messages
ALERT:Alert warns of local and national
emergencies. When, an alert announcement
comes on the current radio station or a related
network station, ALERT will appear on the display.
You will hear the announcement, even if the
volume is low or a CD or DVD is playing. If a CD
or DVD is playing, play will stop during the
announcement. Alert announcements cannot be
turned off. If the radio tunes to a related network
station for the announcement, it will return to
the original station when the announcement is
nished.
ALERT will not be affected by tests of the
emergency broadcast system. This feature is not
supported by all RDS stations.MSG (Message):If the current RDS station has a
message, MSG will appear on the display. The
message may display the artist, song title, call in
phone numbers, etc. If the entire message does not
appear on the display, parts of the message will
appear every three seconds until the message is
completed. Once the completed message has been
displayed, MSG will disappear from the display until
another new message is received.
To display the last message, perform the
following steps:
1. Press the tune/sel knob to enter the
main menu.
2. Turn the tune/sel knob until RECALL RDS
MESSAGE appears on the display.
3. Press the tune/sel knob. The message will
appear on the display.
Once the message has been displayed, MSG will
disappear from the display until another new
message is received.
281

TP (Traffic Program):TP will appear on the
display when the radio detects a signal from an
RDS station that has traffic announcement
broadcast capability.
TA (Traffic Announcement):If TA appears on
the display, the tuned radio station broadcasts
traffic announcements and when a traffic
announcement comes on the tuned station you
will hear it.
If the station does not broadcast traffic
announcements, when TA is turned on it will
seek to a station that does. When a station that
broadcasts traffic announcements is found,
the radio will stop seeking and TA will appear on
the display. If no station is found that broadcasts
traffic announcements, No Traffic will appear
on the display.The radio will play traffic announcements if the
volume is low. The radio will interrupt the play of a
CD or DVD if the last tuned station broadcasts
traffic announcements.
To turn TA on or off, perform the following steps:
1. Press the tune/sel knob to enter the
main menu.
2. Turn the tune/sel knob until TRAFFIC
ANNOUNCE appears on the display.
3. Press the tune/sel knob to select ON or OFF.
An X will appear in the box when TA is
selected on.
4. Press the BACK (F6) button to exit the
display. To return to the original display,
repeatedly press the BACK (F6) button or
wait for the display to time out.
282

Activating Program Type (PTY)
Stations (RDS and XM™)
PTY allows you to search for stations with specic
types of music. The selectable PTYs are POP,
EASY, TALK, CNTRY (Country), CLASS
(Classical), and JAZZ.
To activate program types, perform the
following steps:
1. Press the tune/sel knob to enter the
main menu.
2. Turn the tune/sel knob until PROGRAM TYPE
MODE appears on the display.
3. Press the tune/sel knob to select ON or OFF.
When PTY is selected, an X wil appear in the
ON box.
4. Press the BACK (F6) button to exit the
display. To return to the original display,
repeatedly press the BACK (F6) button or
wait for the display to time out.
Once program type is activated the PTYs will
appear on the display above the pushbuttons, in
place of the preset stations (if programmed).Press the pushbutton for the desired PTY. The
radio may not go to all of the stations with
that music type when pressing the pushbutton, as
not all stations support PTYs.
AF (Alternate Frequency):Alternate frequency
allows the radio to switch to a stronger station with
the same program type.
To turn AF on or off, perform the following steps:
1. Press the tune/sel knob to enter the
main menu.
2. Turn the tune/sel knob until ALTERNATE
FREQ. appear on the display.
3. Press the tune/sel knob to select AF OFF,
AF ON, or AF REG (regular). When AF is
selected an X will appear in that box.
4. Press the BACK (F6) button to exit the
display. To return to the original display,
repeatedly press the BACK (F6) button or
wait for the display to time out.
283
