2007 CADILLAC CTS V seat memory

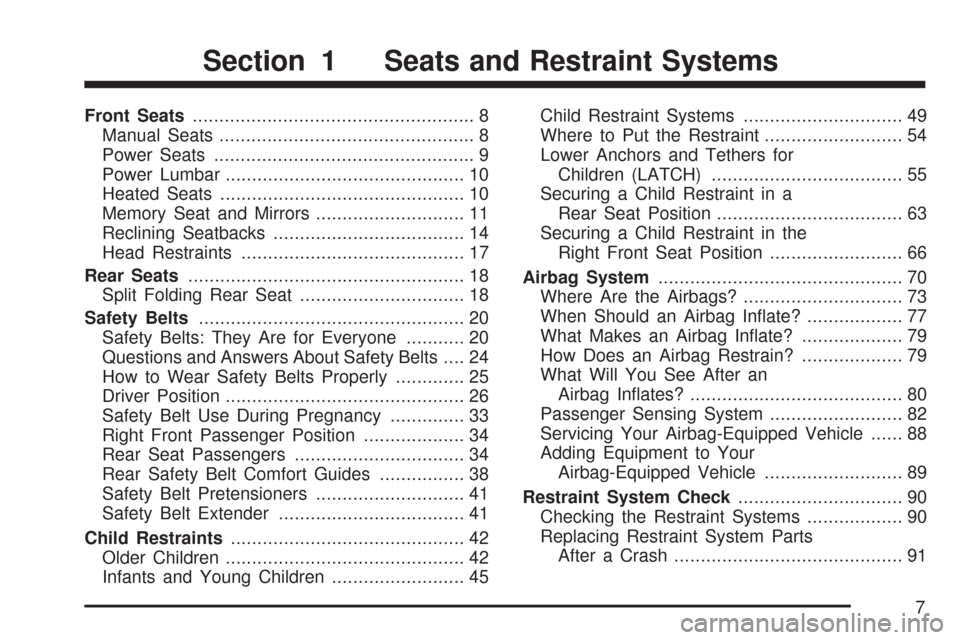

Front Seats..................................................... 8
Manual Seats................................................ 8
Power Seats................................................. 9
Power Lumbar............................................. 10
Heated Seats.............................................. 10
Memory Seat and Mirrors............................ 11
Reclining Seatbacks.................................... 14
Head Restraints.......................................... 17
Rear Seats.................................................... 18
Split Folding Rear Seat............................... 18
Safety Belts.................................................. 20
Safety Belts: They Are for Everyone........... 20
Questions and Answers About Safety Belts.... 24
How to Wear Safety Belts Properly............. 25
Driver Position............................................. 26
Safety Belt Use During Pregnancy.............. 33
Right Front Passenger Position................... 34
Rear Seat Passengers................................ 34
Rear Safety Belt Comfort Guides................ 38
Safety Belt Pretensioners............................ 41
Safety Belt Extender................................... 41
Child Restraints............................................ 42
Older Children............................................. 42
Infants and Young Children......................... 45Child Restraint Systems.............................. 49
Where to Put the Restraint.......................... 54
Lower Anchors and Tethers for
Children (LATCH).................................... 55
Securing a Child Restraint in a
Rear Seat Position................................... 63
Securing a Child Restraint in the
Right Front Seat Position......................... 66
Airbag System.............................................. 70
Where Are the Airbags?.............................. 73
When Should an Airbag Inate?.................. 77
What Makes an Airbag Inate?................... 79
How Does an Airbag Restrain?................... 79
What Will You See After an
Airbag Inates?........................................ 80
Passenger Sensing System......................... 82
Servicing Your Airbag-Equipped Vehicle...... 88
Adding Equipment to Your
Airbag-Equipped Vehicle.......................... 89
Restraint System Check............................... 90
Checking the Restraint Systems.................. 90
Replacing Restraint System Parts
After a Crash........................................... 91
Section 1 Seats and Restraint Systems
7

To turn on the heated seats, press the button
once. The seat will heat to the HI setting. Press the
button again to switch to the LO setting. Pressing
the button a third time turns the system off.
The heated seats can only be used when the
ignition is turned on. When the vehicle is turned
off, the heated seats automatically turn off.
If you wish to have the heated seats on once the
vehicle is restarted, press the button again.
Memory Seat and Mirrors
If your vehicle has the memory feature, you can
program and recall memory settings for the
driver’s seating and outside rearview mirror
driving positions. Different adjustments can be
programmed for two drivers.The buttons for this
feature are located
on the driver’s
door armrest.
Use the following steps to program the buttons:
1. Adjust the driver’s seat including the seatback
recliner and both outside mirrors.
2. Press and hold button 1 for at least
three seconds.
Two beeps will sound to conrm that the seat
and mirror positions have been saved.
3. Repeat the procedure for a second driver
using button 2.
11

If your vehicle has an automatic transmission,
the vehicle must be in PARK (P) to recall
the stored driving positions.
If your vehicle has a manual transmission and the
engine is running, the parking brake must be
set to recall the memory seat driving positions.
The stored driving positions can be recalled
without setting the parking brake if the vehicle
is off.
Press one of the numbered memory buttons to
recall the stored setting. Each time a memory
button is pressed, a single beep will sound.
Three chimes will sound and the setting will not
be recalled if you press button 1 or 2 when
the vehicle is not in PARK (P) on an automatic
transmission or the parking brake is not set on a
manual transmission.If you would like the stored driving positions to be
recalled when unlocking your vehicle with the
Remote Keyless Entry transmitter or after the
key is placed in the ignition, seeDIC Vehicle
Personalization on page 242.
To stop recall movement of the memory feature at
any time, press one of the power seat or mirror
controls.
Two personalized exit positions can also be
programmed. Use the following steps to program
exit positions:
1. Press memory seat button 1 or the unlock
button on the RKE transmitter, that has the
number 1 on the back of it, to recall the
driving position.
2. Adjust the driver’s seat to the desired exit
position.
12

3. Press and hold the exit button located above
buttons 1 and 2 on the driver’s door armrest
for at least three seconds.
Two beeps will sound to conrm that the exit
position has been saved.
4. Repeat the procedure for a second driver
using memory seat button 2 or the RKE
transmitter, that has the number 2 on the
back of it.
To recall the stored exit positions, press and
release the exit button. One beep will sound, and
the seat will move to the stored exit position
for that driver. If an exit position has not been
stored for this driver, the seat will move all the way
back. The position of the outside mirrors does
not change for the exit position.If your vehicle has an automatic transmission,
the vehicle must be in PARK (P) to recall the
exit positions. If your vehicle has a manual
transmission and the engine is running, the parking
brake must be set to recall the stored exit
positions.
Three chimes will sound and the exit setting will
not be recalled if you press the exit button when
the vehicle is not in PARK (P) on an automatic
transmission or the parking brake is not set on a
manual transmission.
If you would like your stored exit position to be
recalled when unlocking the vehicle with the
RKE transmitter, or when the ignition is turned
off and the driver’s door is opened, seeDIC
Vehicle Personalization on page 242.
13

W(Unlock):Press this symbol on the RKE
transmitter to unlock the driver’s door. This also
disarms the theft-deterrent system. Press the
button again to unlock the other doors.
You can program your vehicle so that the exterior
lamps will ash when you unlock the doors
with the RKE transmitter. SeeDIC Vehicle
Personalization on page 242for more information
on programming this feature.
L(Panic Alarm):The RKE transmitter has an
instant panic alarm. Press this button when the
ignition is turned off. The horn will sound and the
exterior lamps will ash for up to 30 seconds.
To stop the instant panic alarm, press this button
again or turn the ignition to ON.
V(Trunk):Press and hold this button for
approximately one second to open the trunk.
The RKE transmitter can be used to recall the
memory settings for up to two drivers. For more
information, seeDIC Vehicle Personalization on
page 242andMemory Seat and Mirrors on
page 11.
Matching Transmitter(s) to
Your Vehicle
Each RKE transmitter is coded to prevent
another transmitter from unlocking your vehicle.
If a transmitter is lost or stolen, a replacement can
be purchased through your dealer. Remember
to bring any remaining transmitters with you when
you go to your dealer. When the dealer matches
the replacement transmitter to your vehicle,
any remaining transmitters must also be matched.
Once your dealer has coded the new transmitter,
the lost transmitter will not unlock your vehicle.
Each vehicle can have a maximum of four
transmitters matched to it.
98

Outside Power Mirrors
The control on the
driver’s door armrest
operates both outside
rearview mirrors.
Press the left or right mirror symbol on the
selector switch to choose the driver’s side or
passenger’s side mirror. The center position turns
the control off so that the mirrors will not move
if the control pad is touched.Once a mirror is selected, use the arrows on the
control pad to move the mirror to the correct
direction. Adjust each mirror so you can see the
side of your vehicle and the area behind your
vehicle.
The mirrors can be manually folded inward to
prevent damage when going through an automatic
car wash. To fold, push the mirror toward the
vehicle. To return the mirror to its original position,
push outward. Be sure to return both mirrors to
their original unfolded position before driving.
If the vehicle has the memory package, the mirrors
can be programmed for personalization and
curb view assist. For more information, see
Memory Seat and Mirrors on page 11andDIC
Vehicle Personalization on page 242.
140

Outside Curb View Assist Mirror
If the vehicle has the memory seat and mirrors,
the passenger’s mirror can be tilted to a
preselected position when the vehicle is shifted into
REVERSE (R). Use this outside curb view assist
feature to view the curb when parallel parking.
When the vehicle is shifted out of REVERSE (R)
and after a ve-second delay, the passenger’s
mirror will return to its original position.
If further adjustment is needed after the mirror is
in a tilted position, the mirror controls can be used.
SeeOutside Power Mirrors on page 140for more
information.
The outside curb view assist can be turned on or
off through the Driver Information Center (DIC).
SeeDIC Vehicle Personalization on page 242for
more information.
Outside Convex Mirror
{CAUTION:
A convex mirror can make things (like
other vehicles) look farther away than they
really are. If you cut too sharply into the
right lane, you could hit a vehicle on your
right. Check your inside mirror or glance
over your shoulder before changing lanes.
The passenger’s side mirror is convex. A convex
mirror’s surface is curved so that more can be
seen from the driver’s seat. The mirror does not
have a dimming feature.
Outside Heated Mirrors
When the rear window defogger is turned on,
it also warms both outside rearview mirrors to help
clear them of fog or ice. See “Rear Window
Defogger” underDual Climate Control System on
page 189for more information.
141

On all vehicles, features such as climate control
settings, radio preset settings, exterior lighting
at unlock, remote lock and unlock conrmation,
and automatic door locks have already been
programmed for your convenience.
Some vehicles have additional features that can
be programmed including the seat and outside
rearview mirror position.
If your vehicle has the ability to program additional
personalization features, the driver’s preferences
are recalled by pressing the unlock button on
the Remote Keyless Entry (RKE) transmitter,
1 or 2, or by pressing the appropriate memory
button, 1 or 2, located on the driver’s door. Certain
features can be programmed not to recall until
the key is placed in the ignition. To change feature
preferences, see “Entering the Personalization
Menu” following.Entering the Personalization Menu
To enter the feature programming mode, use the
following procedure:
1. Turn the ignition to ON, but do not start the
engine. Make sure an automatic transmission
is in PARK (P) or a manual transmission
has the parking brake set.
To avoid excessive drain on the battery, it is
recommended that the headlamps are
turned off.
2. If your vehicle has memory settings, press the
appropriate memory button, 1 or 2, located on
the driver’s door armrest. The DIC display
will show either Driver 1 or 2 depending
on which button was selected.
3. Press the PWR/VOL knob to turn the radio on.
4. Press the TUNE/SEL knob once to access the
main menu of the DIC.
5. Turn the TUNE/SEL knob until SETUP is
highlighted.
243
