2007 BMW Z4 COUPE 3.0SI seats

Adjustments
30
Adjustments
Safe seating position
For relaxed driving with as little fatigue as pos-
sible, you should select a seating position that
reflects your personal requirements. In combi-
nation with the safety belts, the head restraints
and the airbags, the seating position has a
major influence on your safety in the event of an
accident. To ensure that the vehicle's safety
systems provide you with optimal protection,
we request that you direct your careful attention
to the following section.
For supplementary information on transporting
children refer to page36.
Airbags
Always maintain an adequate distance
between yourself and the airbags. Always
grip the steering wheel on the rim, with your
hands in the 3 o'clock and 9 o'clock positions,
to minimize the risk of injury to the hands or
arms in the event of the airbag being triggered
off.
Never allow any objects, individuals or animals
to obstruct the areas between passengers and
airbags.
Never use the front airbag's cover as a storage
tray or support for objects of any kind. Ensure
that the passenger is correctly seated, e.g. does
not prop feet or legs against the dashboard.
Otherwise, leg injury could result if the knee air-
bag and front airbag suddenly deployed.
Make sure that the passenger does not lean his
or her head against the side airbag, otherwise
serious injuries could result if the airbags sud-
denly deployed.<
Even when all these guidelines are observed,
the risk of injury as a result of contact with the
airbags cannot entirely be ruled out in some sit-
uations. In sensitive individuals, the ignition and
inflation noise may induce a mild hearing loss
that is temporary in most cases.
For airbag locations and additional information
on airbags, refer to page56.
Head restraint
A correctly adjusted head restraint reduces the
risk of neck injury in the event of an accident.
Adjust the head restraint in such a way
that its center is at approx. ear level. Oth-
erwise, there is an increased risk of injury in the
event of an accident.<
Head restraints, refer to page32.
Safety belt
Make sure every occupant fastens his or her
safety belt. As supplemental restraint devices,
the airbags are designed to enhance the effec-
tiveness of the safety belts, and not to replace
them.
Your vehicle offers two sitting positions, each of
which is equipped with a safety belt.
Never allow more than one person to
wear a single safety belt. Never allow
infants or small children to ride in a passenger's
lap. Make sure that the belt in the lap area sits
low against the hips and does not press against
the abdomen. The safety belt must never rest
against the throat, rub against sharp edges,
pass over hard or fragile objects or be pinched.
Fasten the safety belt around your body snugly,
ma king sure tha t it is pulled taut across your lap
and shoulder and that it is not twisted; other-
wise, the belt can slide over the hips in the event
of a frontal collision and injure your abdomen.
Avoid wearing bulky clothing and regularly pull
the belt in the upper-body area taut, otherwise
its restraining effect could be impaired.<
Safety belts, refer to page33.
Seats
Before adjusting your seat, always
observe the following precautions
Never try to adjust your seat while driving.
Otherwise, the seat could respond with
unexpected movement, and the ensuing loss of

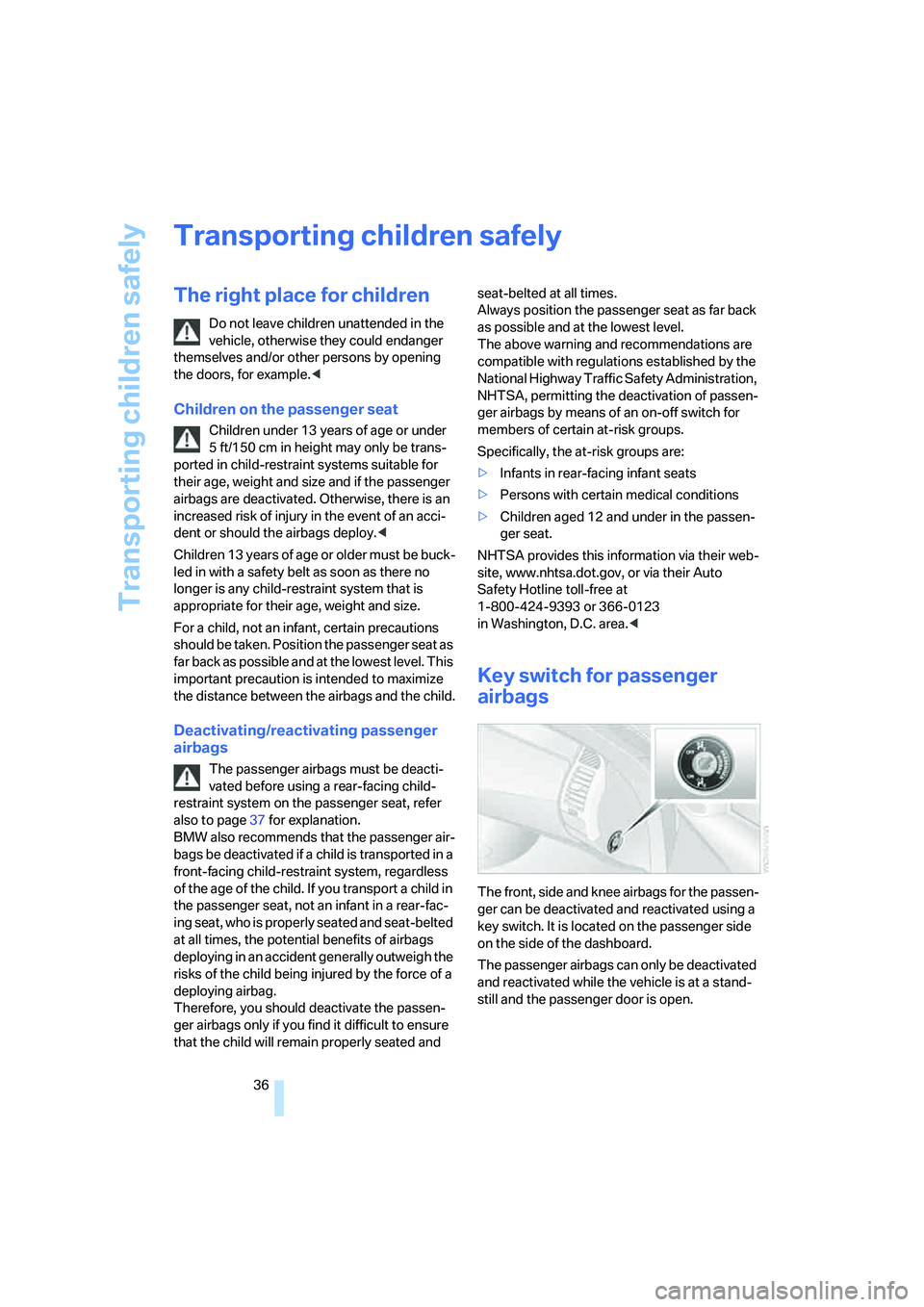

Transporting children safely
36
Transporting children safely
The right place for children
Do not leave children unattended in the
vehicle, otherwise they could endanger
themselves and/or other persons by opening
the doors, for example.<
Children on the passenger seat
Children under 13 years of age or under
5 ft/150 cm in height may only be trans-
ported in child-restraint systems suitable for
their age, weight and size and if the passenger
airbags are deactivated. Otherwise, there is an
increased risk of injury in the event of an acci-
dent or should the airbags deploy.<
Children 13 years of age or older must be buck-
led in with a safety belt as soon as there no
longer is any child-restraint system that is
appropriate for their age, weight and size.
For a child, not an infant, certain precautions
should be taken. Position the passenger seat as
far back as possible and at the lowest level. This
important precaution is intended to maximize
the distance between the airbags and the child.
Deactivating/reactivating passenger
airbags
The passenger airbags must be deacti-
vated before using a rear-facing child-
restraint system on the passenger seat, refer
also to page37 for explanation.
BMW also recommends that the passenger air-
bags be deactivated if a child is transported in a
front-facing child-restraint system, regardless
of the age of the child. If you transport a child in
the passenger seat, not an infant in a rear-fac-
ing seat, who is properly seated and seat-belted
at all times, the potential benefits of airbags
deploying in an accident generally outweigh the
risks of the child being injured by the force of a
deploying airbag.
Therefore, you should deactivate the passen-
ger airbags only if you find it difficult to ensure
that the child will remain properly seated and seat-belted at all times.
Always position the passenger seat as far back
as possible and at the lowest level.
The above warning and recommendations are
compatible with regulations established by the
National Highway Traffic Safety Administration,
NHTSA, permitting the deactivation of passen-
ger airbags by means of an on-off switch for
members of certain at-risk groups.
Specifically, the at-risk groups are:
>Infants in rear-facing infant seats
>Persons with certain medical conditions
>Children aged 12 and under in the passen-
ger seat.
NHTSA provides this information via their web-
site, www.nhtsa.dot.gov, or via their Auto
Safety Hotline toll-free at
1-800-424-9393 or 366-0123
in Washington, D.C. area.<
Key switch for passenger
airbags
The front, side and knee airbags for the passen-
ger can be deactivated and reactivated using a
key switch. It is located on the passenger side
on the side of the dashboard.
The passenger airbags can only be deactivated
and reactivated while the vehicle is at a stand-
still and the passenger door is open.

Reference
At a glance
Controls
Driving tips
Mobility
69
Locking/unlocking
The storage compartment between the back-
rests is automatically locked and unlocked with
the central locking system.
Other compartments and nets*
Other compartments can be found on the
doors, in the center console and behind the
seats, depending on your vehicle's equipment.
Nets
* are located on the passenger side of the
center console and on the rear of the backrests.
Coupe: eyeglasses compartment
To open
Press the strip on the eyeglasses compartment.
Beverage holders
Use light and shatterproof containers,
otherwise there is an increased risk of
injury in the event of an accident. Do not press
unsuitable containers into the beverage holder
with force as this may result in damage.<
A beverage holder is located on either side
beneath the air outlets.1.Press the trim piece beneath the air outlets;
see arrow1.
2.Place the beverage into the holder.
3.Adjust the holder to fit the size of the bever-
age container; see arrow2.
Ashtray*
To empty
1.Open cover.
2.Pull out ashtray1.
Cigarette lighter
Press in lighter2. As soon as the lighter springs
back out, it can be removed.
Hold or touch the hot cigarette lighter by
the knob only. Holding or touching it in
other areas could result in burns.
The cigarette lighter remains operational even
when the key has been removed. For this rea-
son, children should never be left in the vehicle
unattended.<

Reference
At a glance
Controls
Driving tips
Mobility
77
Load
The permissible load is the sum of the occu-
pants' weights and the weight of the cargo. The
greater the weight of the occupants, the less
cargo can be transported.
Stowing cargo
>Load heavy cargo as far forward as possi-
ble, directly behind the cargo bay partition,
and as low as possible.
>Cover sharp edges and corners.
To avoid damaging the rear of the back-
rests or the rear interior trim panel, do not
stow heavy cargo or cargo with sharp edges
and corners behind the seats.
In addition, large and bulky cargo stowed
behind a seat may prevent the backrest from
engaging properly. Therefore, check the back-
rest to see if it is properly engaged, and move
the seat forward if necessary; refer to page31.
Always position and secure the load as
described above. If you do not, it can endanger
the occupants during braking or evasive
maneuvers.
Never exceed either the approved gross vehicle
weight or either of the approved axle loads, refer
to page113, as excessive loads can pose a
safety hazard, and may also place you in viola-tion of traffic safety laws.
Heavy or hard objects should not be carried
loose inside the car, since they could be thrown
around, for example as a result of heavy braking,
sudden swerves, etc., and endanger the occu-
pants.<
Roadster: convertible top
compartment
The cargo bay can be enlarged when the
convertible top is closed, refer to page23.
I t i s r e c o m m e n d ed t h a t y o u a lw a y s f o l d t h e c o n -
vertible top compartment panel down as soon
as you have taken your cargo out of the cargo
bay. This way, you can be sure that you can
always operate the convertible top at any time.
When the convertible top is closed, fold the
convertible top compartment panel up before
stowing your cargo in the cargo bay, to avoid
any damage to the convertible top compart-
ment or your load.
Do not stow any items on the convertible top
compartment panel, otherwise the convertible
top could be damaged while it is opening.<
If you stow cargo behind the seats of your
BMW:
>Only stow light objects such as clothing,
etc.
>Do not pile objects higher than the top edge
of the backrests.
Roadster: hardtop
preparation*
Pull covers off, see arrow1.
The brackets for attaching the hardtop
are located underneath the covers; see arrow2.

Everything from A to Z
116
Everything from A to Z
Index
A
ABS Antilock Brake
System51
– indicator lamp12
Accident, refer to Emergency
call103
Acknowledgment signal for
locking/unlocking vehicle19
Activated-charcoal filter for
automatic climate control67
Additives
– coolant94
– engine oil94
Adjusting
– seats30
Adjusting the thigh support32
Airbags56
– deactivating37
– indicator/warning lamp13
– passenger airbags indicator
lamp37
– reactivation37
– safe seating position30
Airbag switch, refer to Key
switch for passenger
airbags36
Air conditioning62
Air-conditioning operation,
refer to Cooling
function63,66
Air distribution
– air conditioning63
– automatic66
– automatic climate control66
– individual63,66
– manual66
Air flow rate
– air conditioning63
– automatic climate control66
Airing out, refer to
Ventilation63,67Air outlets, refer to
Ventilation63,67
Air pressure, refer to Tire
inflation pressure84
Air recirculation, refer to
Recirculated-air
mode63,67
AKI, refer to Fuel
specifications83
Alarm system23
– avoiding unintentional
alarms24
– interior motion sensor24
– switching off an alarm24
– tilt alarm sensor24
All-season tires, refer to
Winter tires87,89
Ambient air, refer to
Recirculated-air
mode63,67
Ambient temperature
display48
Antenna, refer to the Caring
for your vehicle brochure
Antifreeze46,94
– coolant94
– washer fluids46
Antilock Brake System
ABS51
– indicator/warning lamp12
– indicator lamp13
Anti-theft alarm system, refer
to Alarm system23
Anti-theft protection19,23
Approved engine oils94
Artificial leather, refer to the
Caring for your vehicle
brochure
Ashtray69
Assistance systems, refer to
Driving stability control
systems51AUC Automatic recirculated-
air control67
Audio device, external68
Automatic
– air distribution66
– air flow rate66
– cruise control46
– headlamp control59
– luggage compartment lid
operation22
– recirculated-air control
AUC67
– tailgate operation21
Automatic car wash, refer to
the Caring for your vehicle
brochure
Automatic climate control65
Automatic convertible top27
Automatic lamps59
Automatic transmission with
Steptronic42
– indicator lamp13
– interlock40,42
– selector lever43
– selector lever lock42
– shiftlock42
– shift paddles on steering
wheel43
– towing the vehicle106
– tow-starting106
AUTO program for automatic
climate control66
AUX-In jack68
Average fuel consumption50
– setting unit of measure50
Average speed50
– setting unit of measure50
Avoiding unintentional
alarms24
Axle loads, refer to
Weights113

Reference
At a glance
Controls
Driving tips
Mobility
121
Head restraints32
– removing32
– safe seating position30
Heated
– mirrors34
– rear window63,67
– seats33
Heating
– mirrors34
– rear window63,67
– seats33
Heavy loads, refer to Cargo
loading76
Height, refer to
Dimensions111,112
Height adjustment
– seats31
– steering wheel35
High beams60
– bulb replacement99
– headlamp flasher44
– indicator lamp12
High temperatures74
Holders for beverages69
Homepage of BMW4
Hood91
Horn10
Hot exhaust system74
Hydraulic Brake Assistant,
refer to Dynamic Brake
Control DBC51
Hydraulics, brake95
Hydroplaning75
I
Ice warning, refer to Outside
temperature warning48
Identification mark
– Run-Flat Tires88
– tire coding86
– tires88,89
Ignition, refer to Ignition
switched on40
Ignition key positions, refer to
Ignition lock40
Ignition keys, refer to The key
set18
Ignition lock40Imprint2
Inclines75
Indicator/warning lamp12
– airbags57
– alarm system24
– automatic transmission with
Steptronic43
– brakes13
– coolant temperature49
– DSC51
– DTC52
– engine oil level92
– engine oil pressure92
– engine temperature49
– fasten safety belts33
– Flat Tire Monitor53
– passenger airbags37
– reserve48
– Tire Pressure Monitor55
Indicator and warning lamps,
overview12
Individual vehicle
– equipment, refer to Your
individual vehicle5
Inflation pressure, refer to Tire
inflation pressure84
Inflation pressure monitoring,
refer to
– Flat Tire Monitor53
– Tire Pressure Monitor54
Initializing
– after power supply
interruption102
– Flat Tire Monitor FTM53
– windows25
Inspection49
Instrument cluster12
Instrument lighting60
Instrument panel, refer to
Cockpit10
Instrument panel, refer to
Instrument cluster12
Interior lamps61
– remote control19
Interior motion sensor
24
Interior rearview mirror34
– automatic dimming
feature34Interior temperature
adjusting63,66
Interlock, refer to Steering
locked40,42
Intermittent
– operation of the wipers45
Interval
– display, service49
J
Jack101
Jacking points102
Jets, refer to
Ventilation63,67
Jump-starting104
K
Key Memory18
Keys18
Keys, refer to The key set18
Key switch for passenger
airbags36
Kickdown43
Knee airbags56
Knock control83
L
Lamps59
Lamps and bulbs98
LATCH, child-restraint
mounting system38
Leather care, refer to the
Caring for your vehicle
brochure
LEDs Light-emitting
diodes98
Length, refer to
Dimensions111,112
License plate lamps, bulb
replacement101
Light-alloy wheels, care, refer
to the Caring for your vehicle
brochure
Light-emitting diodes
LEDs98

Reference
At a glance
Controls
Driving tips
Mobility
123
Oil, refer to Engine oil92
Oil level92
– checking93
Oil service49
Onboard computer, refer to
Computer50
Onboard tool kit98
On-call services, refer to
Roadside Assistance103
Opening
– from inside21
Opening and closing the
vehicle
– at the door lock20
– from inside21
– from outside19
– with the remote control19
Outlets, refer to
Ventilation63,67
Outside temperature display
– changing units of
measure50
– in the onboard computer50
Outside temperature
warning48
Overheated engine, refer to
Coolant temperature49
P
Paintwork, refer to the Caring
for your vehicle brochure
Parking brake41
– indicator lamp13,41
Parking lamps, refer to
Parking lamps/Low
beams59
Parking lamps/Low beams59
– bulb replacement99
Parking lock, refer to P
Parking42
Passenger airbags
– deactivation37
– reactivation37
Passenger-side mirror tilt
function34
Pathway lighting60
Permissible axle load, refer to
Weights113Permissible gross weight,
refer to Weights113
Pinch protection system
– windows25
Placing the vehicle in storage,
refer to the Caring for your
vehicle brochure
Plastic, refer to the Caring for
your vehicle brochure
Pollen
– refer to Microfilter64
– refer to Microfilter/activated-
charcoal filter67
Power
– windows, refer to
Windows24
Power convertible top27
Power failure102
Power output, refer to Engine
data110
Power steering, electric56
Power windows
– initializing25
Pressure, tires84
Pressure monitoring, tires,
refer to
– Flat Tire Monitor53
– Tire Pressure Monitor
TPM54
Protective function, refer to
Pinch protection system25
R
Radio, refer to the separate
Owner's Manual
Radio navigation, refer to the
separate Owner's Manual
Radio remote control key,
refer to Master keys with
remote control18
Rain sensor45
Reading lamps61
Rear lamps
– bulb replacement101
– indicator lamp, defective
bulb13
Rearview mirror, refer to
Mirrors34Rear window defroster
– air conditioning63
– automatic climate control67
Recirculated-air mode
– air conditioning63
– automatic climate control67
Recirculating the air, refer to
Recirculated-air
mode63,67
Reclining seat, refer to
Seats30
Refueling82
Releasing
– hood91
Remaining distance, refer to
Cruising range50
Remote control19
– luggage compartment lid19
– malfunction20
– tailgate19
Repairs
– refer to Maintenance
system96
Replacement key, refer to
New keys18
Replacement of tires88
Replacing lamps, refer to
Lamps and bulbs98
Replacing tires, refer to Wheel
and tire replacement88
Reserve
– indicator lamp, refer to Fuel
gauge48
Restraint systems
– for children37,38
– refer to Safety belts33
Reverse gear
– automatic transmission with
Steptronic43
– manual transmission42
Roadside Assistance103
Roadside parking lamps60
Rod antenna, refer to the
Caring for your vehicle
brochure
Roller-blind cover70
Rope, refer to Towing
methods106

Everything from A to Z
124 RSC Runflat System
Component, refer to Run-
Flat Tires88
Rubber parts, refer to the
Caring for your vehicle
brochure
Runflat System Component
RSC, refer to Run-Flat
Tires88
Run-Flat Tires88
– changing a tire87,89
– changing a wheel101
– flat tire53,55
– Flat Tire Monitor53
– tire inflation pressure84
– Tire Pressure Monitor54
– winter tires89
Runflat Tyres, refer to Run-
Flat Tires88
S
Safe seating position30
– with airbags30
– with head restraints30
– with safety belts30
Safety belts33
– care, refer to the Caring for
your vehicle brochure
– damage34
– indicator/warning lamp33
– reminder33
– safe seating position30
Safety knobs, doors, refer to
Locking the doors from
inside21
Safety systems
– airbags56
– Antilock Brake System
ABS51
– driving stability control
systems51
Safety tires, refer to Run-Flat
Tires88
Screw thread, tow fitting106
Seat Belt Reminder, refer to
'Fasten safety belts'
reminder33
Seat heating33Seat memory32
Seats30
– adjusting mechanically31
– adjusting the sports seat31
– heating33
– memory, refer to Seat
memory32
– power adjustment31
– safe seating position30
– saving positions, refer to
Seat memory32
Securing, locking the vehicle
– from inside21
– from outside19
Selector lever42
– automatic transmission with
Steptronic42
– lock, refer to Range
selection, shiftlock42
Selector lever positions
– automatic transmission with
Steptronic42
Service, refer to Roadside
Assistance103
Service, refer to Service and
Warranty Information
Booklet for US models,
Warranty and Service Guide
Booklet for Canadian
models96
Service and warranty6
Service interval display49,96
Sheet ice, refer to Outside
temperature warning48
Shifting gears
– automatic transmission with
Steptronic42
– manual transmission42
Shiftlock, refer to Range
selection42
Shift paddles on the steering
wheel43
Side airbags56
Side marker lamps, front
– bulb replacement100
Side marker lamps, rear101
Side turn signal indicators,
bulb replacement100Side windows, refer to
Windows24
Signal horn, refer to Horn10
Slipstream deflector, refer to
Wind deflector70
Smokers' package, refer to
Ashtray69
Snow chains90
Socket, On-Board Diagnosis
OBD96
Socket, refer to Connecting
electrical appliances71
SOS, refer to Emergency
call103
Spare
– fuses102
– key18
– wheel, refer to Run-Flat
Tires89
Spare fuses, refer to
Fuses102
Special oils, refer to Approved
engine oils94
Special wash program, refer to
the Caring for your vehicle
brochure
Specified engine oils, refer to
Approved engine oils94
Speed
– Run-Flat Tires53,55
– winter tires89
Speedometer12
Sport program
– automatic transmission with
Steptronic43
– Dynamic Driving Control44
Sports seat31
Spray nozzles, refer to
Cleaning windshield46
Stability control, refer to
Driving stability control
systems51
Starting, refer to Starting the
engine40
Starting difficulties
– jump-starting104
– temperature41
Starting with a flat battery,
refer to Jump-starting104
