2007 BMW MOTORRAD K 1200 GT technical data

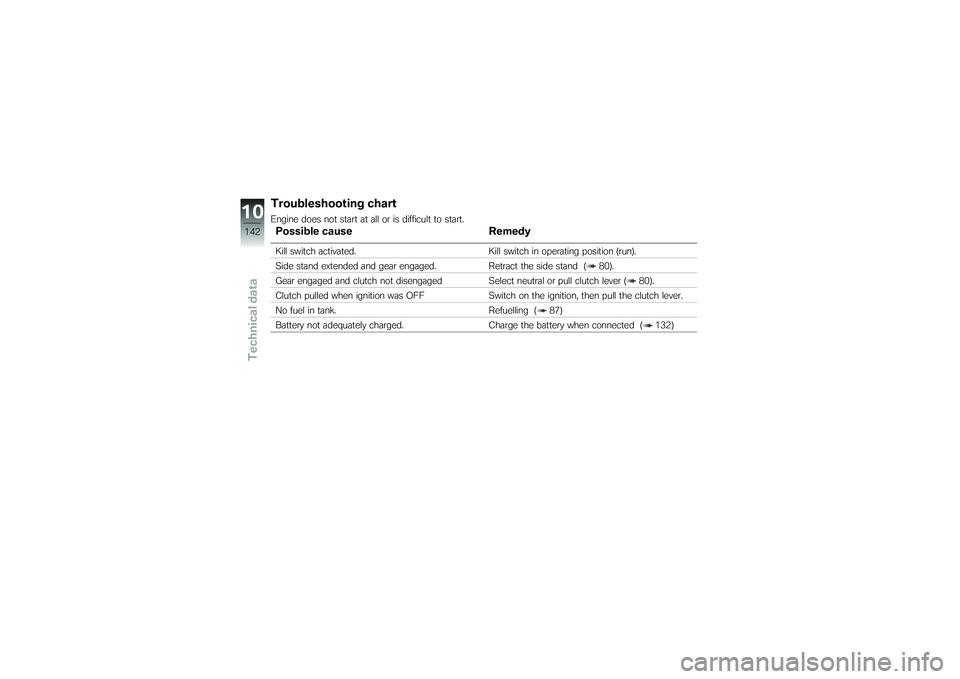

Troubleshooting chartEngine does not start at all or is difficult to start.Possible causeRemedyKill switch activated. Kill switch in operating position (run).
Side stand extended and gear engaged. Retract the side stand ( 80).
Gear engaged and clutch not disengaged Select neutral or pull clutch lever ( 80).
Clutch pulled when ignition was OFF Switch on the ignition, then pull the clutch lever.
No fuel in tank. Refuelling ( 87)
Battery not adequately charged. Charge the battery when connected ( 132)
10142zTechnical data

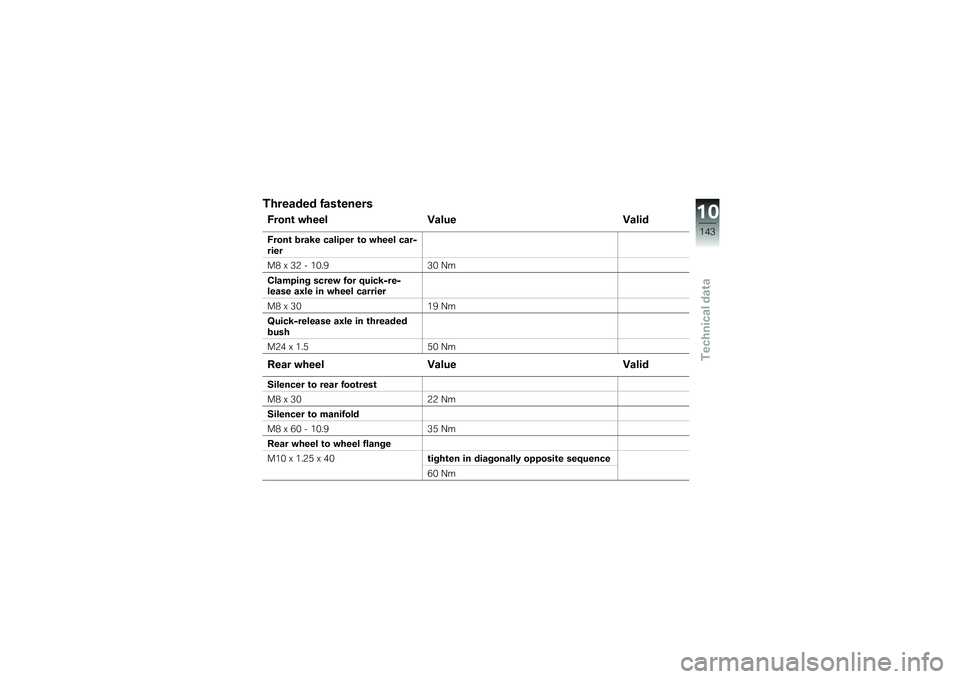

Threaded fastenersFront wheelValue ValidFront brake caliper to wheel car-
rier
M8 x 32 - 10.930 Nm
Clamping screw for quick-re-
lease axle in wheel carrier
M8 x 30 19 Nm
Quick-release axle in threaded
bush
M24 x 1.5 50 NmRear wheel Value ValidSilencer to rear footrest
M8 x 3022 Nm
Silencer to manifold
M8 x 60 - 10.9 35 Nm
Rear wheel to wheel flange
M10 x 1.25 x 40 tighten in diagonally opposite sequence
60 Nm
10143zTechnical data

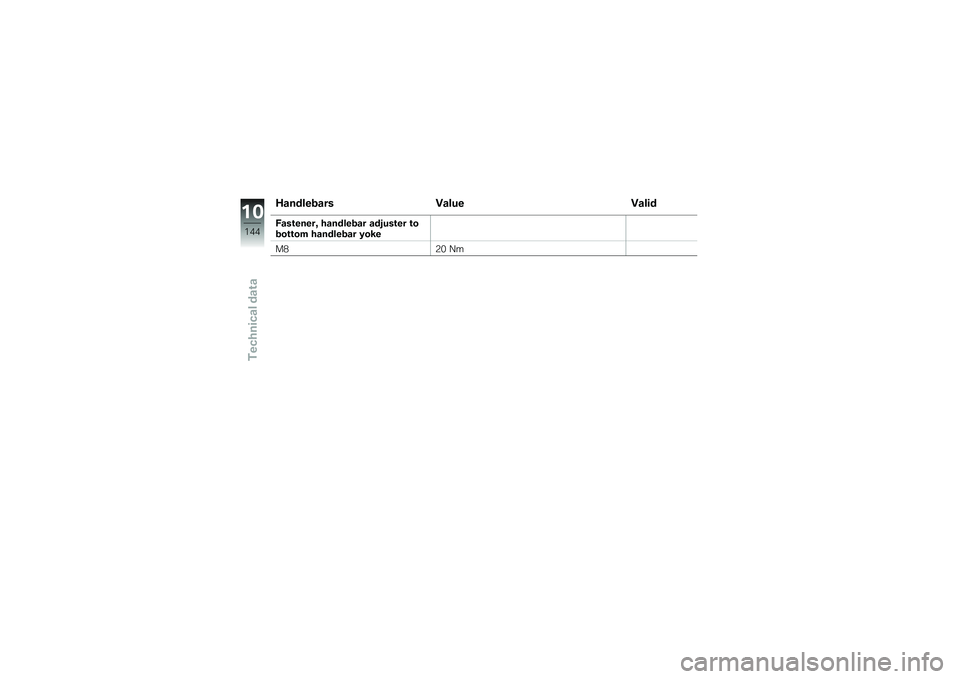

HandlebarsValue ValidFastener, handlebar adjuster to
bottom handlebar yoke
M820 Nm
10144zTechnical data

EngineEngine designTransversely mounted, four-cylinder four-stroke
in-line engine tilted 55° forward, DOHC with
chain-and-sprocket drive, four valves per cylinder
with cam followers, liquid cooled cylinders and
heads, integrated coolant pump, electronic fuel
injection, integrated six-speed cassette gearbox,
dry-sump lubrication.
Displacement 1157 cm
3
Cylinder bore79 mm
Piston stroke 59 mm
Compression ratio 13:1
Nominal output 112 kW, - at engine speed: 9500 min
-1
with OE Reduced power output, 79 kW: 79 kW, - at engine speed: 8500 min
-1
Torque130 Nm, - at engine speed: 7750 min
-1
with OE Reduced power output, 79 kW: 111 Nm, - at engine speed: 5000 min
-1
Maximum engine speed max 10000 min
-1
Idle speed1050
±50
min
-1
10145zTechnical data

FuelRecommended fuel grade98 ROZ/RON, Premium plus unleaded
95 ROZ/RON, Premium unleaded (fuel grade, us-
able with power- and consumption-related restric-
tions)
Usable fuel capacity 24 l
Reserve fuel 4 lEngine oilEngine oil capacity, total3.5 l, with filter change
0.5 l, Difference between MIN / MAX marks
Lubricant Castrol GPS 10W-40 (SAE 10W40; API SG;
JASO MA)
Oil grades Mineral oils of API classification SF through SH.
BMW Motorrad recommends not using oil addit-
ives, because they can have a detrimental effect
on clutch operation. Please do not hesitate to
contact your authorised BMW Motorrad dealer
if you have any questions relating the choice of a
suitable engine oil for your motorcycle.
10146zTechnical data

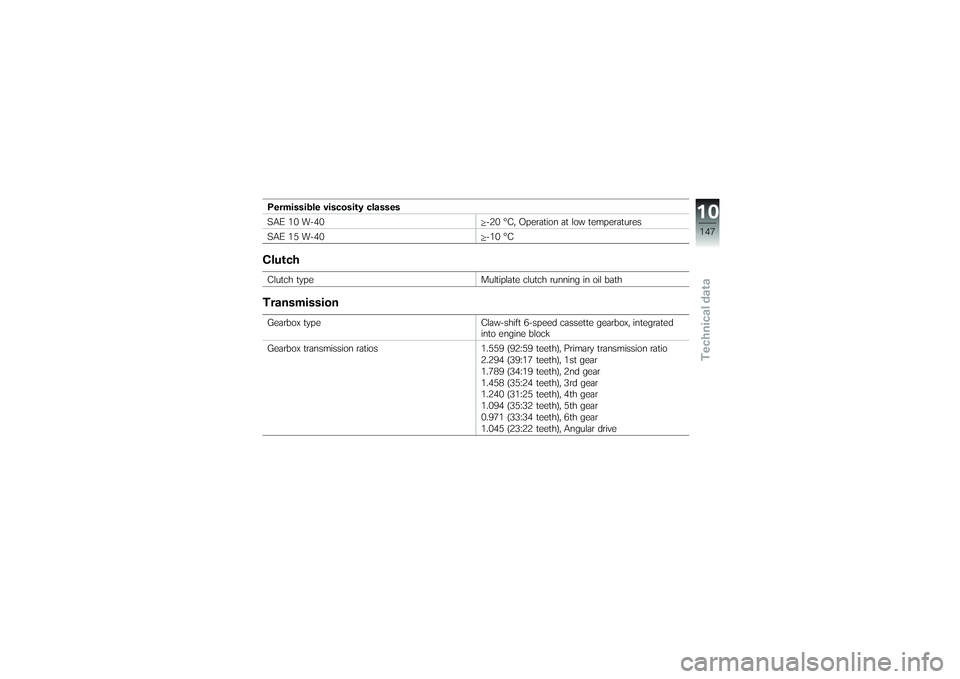

Permissible viscosity classes
SAE 10 W-40-20 °C, Operation at low temperatures
SAE 15 W-40 -10 °CClutchClutch typeMultiplate clutch running in oil bathTransmissionGearbox typeClaw-shift 6-speed cassette gearbox, integrated
into engine block
Gearbox transmission ratios 1.559 (92:59 teeth), Primary transmission ratio
2.294 (39:17 teeth), 1st gear
1.789 (34:19 teeth), 2nd gear
1.458 (35:24 teeth), 3rd gear
1.240 (31:25 teeth), 4th gear
1.094 (35:32 teeth), 5th gear
0.971 (33:34 teeth), 6th gear
1.045 (23:22 teeth), Angular drive
10147zTechnical data

Rear-wheel driveType of final driveShaft drive with bevel gears
Type of rear suspension BMW EVO Paralever; cast light-alloy single
swinging arm with two joints and torque reaction
link
Gear ratio of final drive 2.82Running gearType of front suspension Double leading link
Spring travel, front 125 mm, At wheel
Type of rear suspension Central spring strut pivoted to lever system with
coil spring and single-tube gas-filled shock ab-
sorber. Spring preload steplessly hydraulically ad-
justable, rebound stage damping steplessly ad-
justable.
with OE Electronic Suspension Adjustment
(ESA): Central spring strut pivoted to lever system with
coil spring and single-tube gas-filled shock ab-
sorber. Spring basic setting three-way adjustable,
compression and rebound stages each three-way
adjustable
Spring travel, rear 135 mm, At wheel
10148zTechnical data

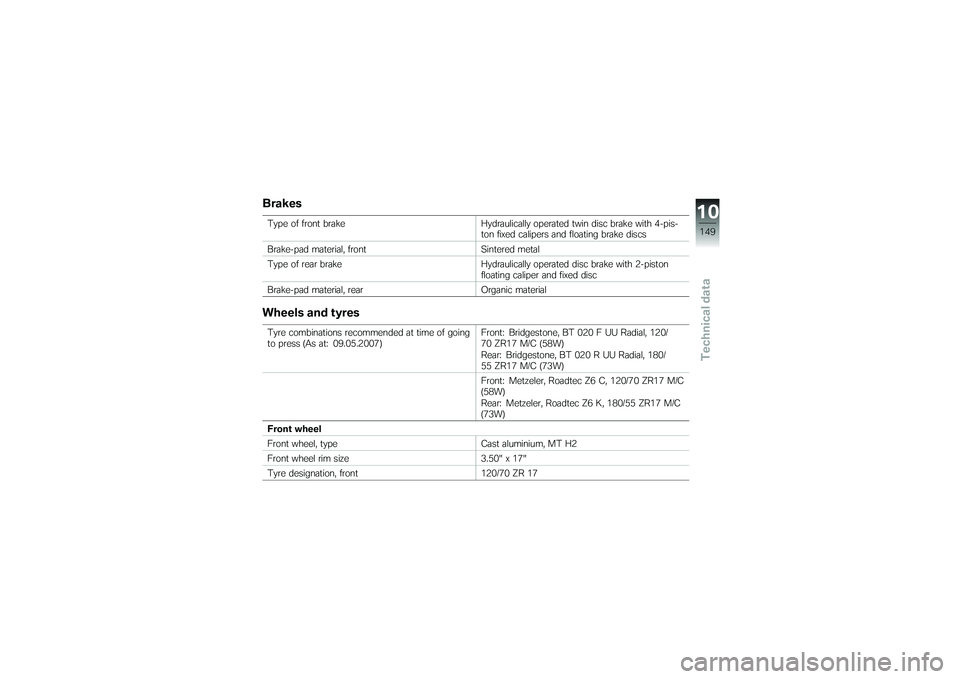

BrakesType of front brakeHydraulically operated twin disc brake with 4-pis-
ton fixed calipers and floating brake discs
Brake-pad material, front Sintered metal
Type of rear brake Hydraulically operated disc brake with 2-piston
floating caliper and fixed disc
Brake-pad material, rear Organic materialWheels and tyresTyre combinations recommended at time of going
to press (As at: 09.05.2007)Front: Bridgestone, BT 020 F UU Radial, 120/
70 ZR17 M/C (58W)
Rear: Bridgestone, BT 020 R UU Radial, 180/
55 ZR17 M/C (73W)
Front: Metzeler, Roadtec Z6 C, 120/70 ZR17 M/C
(58W)
Rear: Metzeler, Roadtec Z6 K, 180/55 ZR17 M/C
(73W)
Front wheel
Front wheel, type Cast aluminium, MT H2
Front wheel rim size 3.50" x 17"
Tyre designation, front 120/70 ZR 17
10149zTechnical data
