At a glance
17Reference
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
Menu overview
Communication
>Telephone*
>BMW Assist* or TeleService*
Navigation or onboard information
>Navigation system*
>Onboard information, e.g. for displaying
the average fuel consumption
Entertainment
>Radio
>CD player and CD changer
*
>AUX-In connection
>USB/audio interface
*
Climate
>Vent settings
>Automatic programs
>Seat heater distribution
*
>Parked car operation
menu
>Switching off Control Display
>Tone and display settings
>Settings for your vehicle, e.g. for MDrive, or
for the central locking system
>Display of maintenance intervals and dead-
lines for legally mandated inspections
>Settings for telephone
Operating principle
From radio readiness, refer to page55, the fol-
lowing message is shown on the Control Dis-
play:
To hide the message:
Press the controller.
This displays the start menu.
The message is automatically hidden after
approx. 10 seconds.
Start menu
You can call up all the functions of iDrive using
five menu items.
Opening start menu
Press the button.
To open the start menu from the menu:
Press the button twice.
ba8_m5us.book Seite 17 Montag, 5. Februar 2007 12:03 12

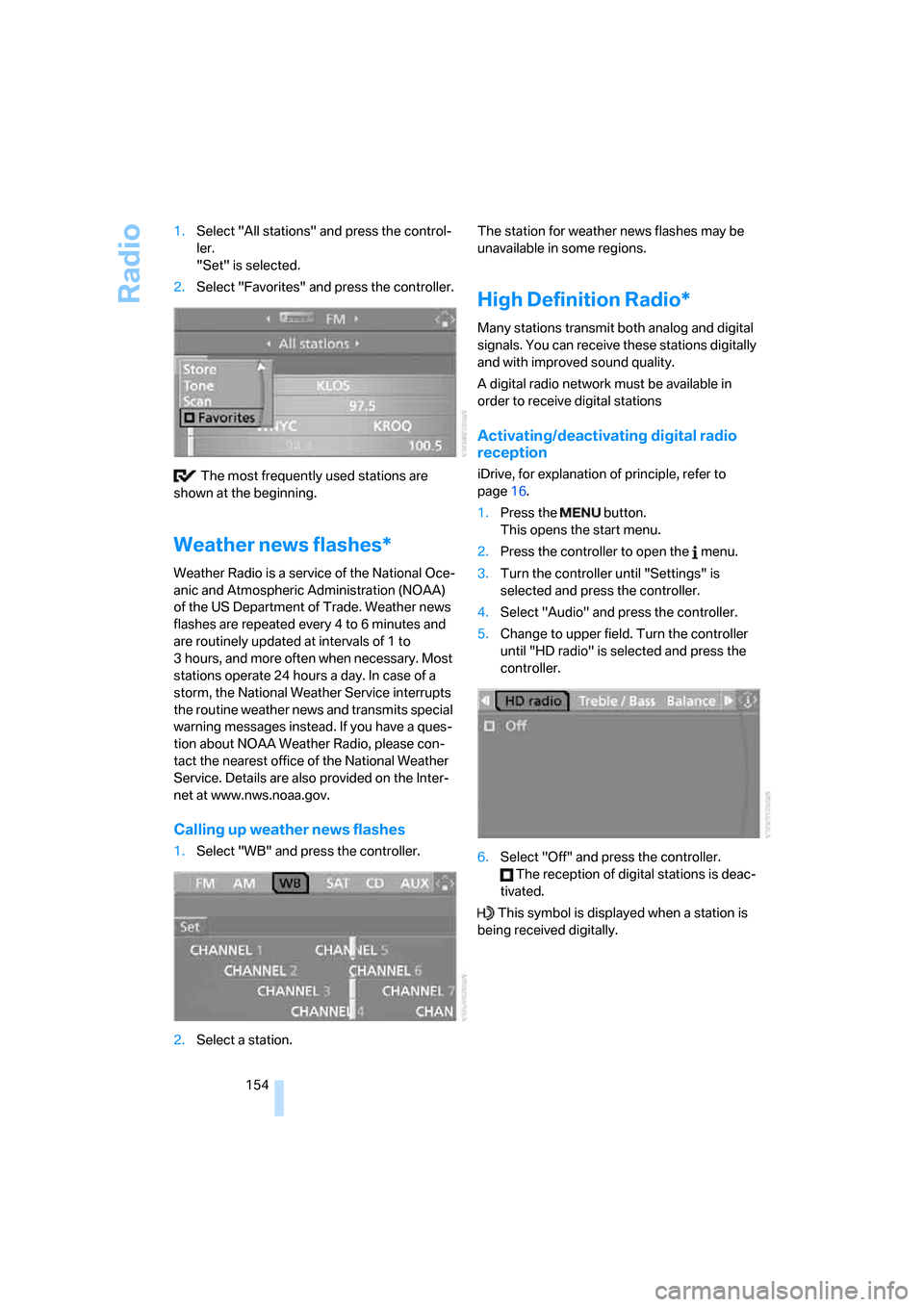

Radio
154 1.Select "All stations" and press the control-
ler.
"Set" is selected.
2.Select "Favorites" and press the controller.
The most frequently used stations are
shown at the beginning.
Weather news flashes*
Weather Radio is a service of the National Oce-
anic and Atmospheric Administration (NOAA)
of the US Department of Trade. Weather news
flashes are repeated every 4 to 6 minutes and
are routinely updated at intervals of 1 to
3 hours, and more often when necessary. Most
stations operate 24 hours a day. In case of a
storm, the National Weather Service interrupts
the routine weather news and transmits special
warning messages instead. If you have a ques-
tion about NOAA Weather Radio, please con-
tact the nearest office of the National Weather
Service. Details are also provided on the Inter-
net at www.nws.noaa.gov.
Calling up weather news flashes
1.Select "WB" and press the controller.
2.Select a station.The station for weather news flashes may be
unavailable in some regions.
High Definition Radio*
Many stations transmit both analog and digital
signals. You can receive these stations digitally
and with improved sound quality.
A digital radio network must be available in
order to receive digital stations
Activating/deactivating digital radio
reception
iDrive, for explanation of principle, refer to
page16.
1.Press the button.
This opens the start menu.
2.Press the controller to open the menu.
3.Turn the controller until "Settings" is
selected and press the controller.
4.Select "Audio" and press the controller.
5.Change to upper field. Turn the controller
until "HD radio" is selected and press the
controller.
6.Select "Off" and press the controller.
The reception of digital stations is deac-
tivated.
This symbol is displayed when a station is
being received digitally.
ba8_m5us.book Seite 154 Montag, 5. Februar 2007 12:03 12

Maintenance
208
Maintenance
BMW maintenance system
The BMW maintenance system supports the
preservation of the traffic and operating safety
of your BMW. The service schedule also
includes operations related to the vehicle's
comfort and convenience features, such as
replacement of the filters for the inside air.
The ultimate objective is to ensure economical
maintenance by providing the ideal service for
your vehicle.
Should the day come when you decide to sell
your BMW, a complete dealer service history
will prove to be an asset of inestimable value.
CBS Condition Based Service
Sensors and special algorithms take the differ-
ent driving conditions of your BMW into
account. Condition Based Service uses this to
determine the current and future service
requirements. By letting you define a service
and maintenance regimen that reflects your
own individual requirements, the system builds
the basis for trouble-free driving.
You can set the Control Display to show
remaining distances and times of selected
maintenance intervals and legally mandated
deadlines, refer to page68:
>Engine oil
>Brake pads, front and rear separately
>Brake fluid
>Vehicle check>Legally mandated inspections depending
on local regulations
Service data in remote control
Your vehicle stores the information required
maintenance continuously in the remote con-
trol during driving. After accessing the data
stored in the remote control, your BMW Service
Advisor can suggest precisely the right array of
service procedures for your own individual vehi-
cle. You should therefore hand over the remote
control you last used to drive to the BMW Ser-
vice Advisor when you take your vehicle in for
service.
Make sure the date is set correctly, refer
to page75, otherwise the effectiveness
of CBS Condition Based Service is not
ensured.<
Service and Warranty Information
Booklet for US models and
Warranty and Service Guide Booklet
for Canadian models
Please consult your Service and Warranty Infor-
mation Booklet for US models and Warranty
and Service Guide Booklet for Canadian models
for additional information on service require-
ments.
BMW recommends that you have service
and repair operations performed at your
BMW center.
Take the time to ensure that these service pro-
cedures are confirmed by entries in your vehi-
cle's Service and Warranty Information Booklet
for US models and Warranty and Service Guide
Booklet for Canadian models. These entries
verify that your vehicle has received the speci-
fied regular maintenance.<
ba8_m5us.book Seite 208 Montag, 5. Februar 2007 12:03 12

Reference 239
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
DOT Quality Grades200
Draft-free ventilation99
Drinks holder, refer to Cup
holders105
Drivelogic60
Drive mode59
"Driver's door only"31
Driving lamps, refer to Parking
lamps/low beams91
Driving programs, refer to
Drivelogic60
Driving route, refer to
Displaying route135
Driving stability control
systems78
Driving through water113
Driving tips, refer to General
driving notes112
Dry air, refer to Cooling
function98
Drying the air, refer to Cooling
function98
"DSC"51,79
DSC Dynamic Stability
Control79
– indicator lamp13,79
– malfunction80
DVD for navigation120
"Dynamic route" for
navigation133
Dynamic Stability Control
DSC79
– M Dynamic Mode MDM79
E
Easy entry/exit49
– backrest width43
"EDC"51
EDC Electronic Damping
Control81
– "Comfort"81
– "Normal"81
– "Sport"81
Eject button, refer to Buttons
in area of CD player146Electrical malfunction
– door lock32
– driver's door32
– fuel filler door196
– glass sunroof, electric39
– luggage compartment lid34
Electric steering wheel
adjustment49
Electronic brake-force
distribution78
Electronic Damping Control
EDC81
Emergency call219
Emergency operation, refer to
Manual operation
– door lock32
– driver's door32
– fuel filler door196
– luggage compartment lid34
Emergency operation of glass
sunroof, refer to Moving
manually39
Emergency release for
luggage compartment lid in
cargo bay34
Emergency services, refer to
Roadside Assistance220
"Enable services"193
"End call"180
Engaging driving position,
refer to Selector lever
positions59
Engaging forward position,
refer to Selector lever
positions59
Engine
– breaking-in112
– data226
– M Engine Dynamic
Control58
– overheated, refer to Coolant
temperature65
– speed226
– starting56
– starting, with comfort
access36
– switching off56Engine compartment204
Engine coolant206
Engine oil
– adding205
– additives, refer to Approved
engine oils206
– approved engine oil206
– checking oil level204
– exact measurement205
– fast measurement205
– interval between changes,
refer to Service
requirements68
– oil change206
– oil grades, refer to Approved
engine oils206
– possible displays205
– temperature66
– temperature gauge66
Engine output, refer to Engine
data226
Engine overheating, refer to
Coolant temperature65
Engine speed, refer to Engine
data226
Engine starting, refer to
Starting engine56
"Enter address"122,130
Entering destination via town/
city name123
Entering intersection,
navigation124
Entering the
address122,125
Entering town/city for
navigation123
Entering zip code for
navigation123
"Entertainment"146
Entertainment sound output
on/off147
Entry map for destination127
"Equalizer", refer to Tone
control149
Equalizer, refer to Tone
control149
"ESN"157
ba8_m5us.book Seite 239 Montag, 5. Februar 2007 12:03 12

Everything from A to Z
244 Mobility System213
Monitor, refer to iDrive16
Monitoring pressure of tires,
refer to Flat Tire Monitor81
"Monitor on / off"50
Most recent mobile phone
numbers181
MP3
– compressed audio files159
– USB/audio interface166
Multi-function steering wheel,
refer to Buttons on steering
wheel11
Multifunction switch
– refer to Turn signals/
headlamp flasher61
– refer to Wiper system62
Music tracks
– finding161
– random play sequence162
– sampling, scan161
"Mute on / off"50
"M View"88
M view89
MW, waveband150
N
"Navigation"67,122
Navigation destination
– entering manually122
– home address132
– selecting via map127
Navigation drive, installation
location120
Navigation DVD120
Navigation instructions, refer
to Switching voice
instructions on/off137Navigation system120
– address book130
– bypassing route
sections138
– destination entry122
– destination guidance in
assistance window120
– destination list129
– displaying current
position142
– displaying route135
– entering a destination
manually122
– entering destination via
voice125
– last destinations129
– navigation DVD120
– route list137
– searching for a special
destination128
– selecting destination using
information128
– selecting destination via
map127
– selecting route criteria132
– starting destination
guidance134
– terminating/continuing
destination guidance134
– voice instructions137
– volume adjustment138
"Navigation voice
instructions"50,121,137
Neck support, refer to Head
restraints44
"New address" for navigation
system130
"New destination"122,127
New remote control28
"New route"138
New wheels and tires201
"Next entertainment
source"50
"Normal" with EDC81
Nozzles, refer to Windshield
washer nozzles
63
Nylon rope, refer to Tow-
starting and towing221
O
OBD socket, refer to Socket
for Onboard Diagnostics
interface209
Octane ratings, refer to Fuel
specifications197
Odometer65
Oil, refer to Engine oil204
Oil change intervals, refer to
Service requirements68
Oil temperature66
"On a new destination" for
navigation system128
Onboard computer, refer to
iDrive16
"Onboard info"67
Onboard toolkit210
"On destination"128
"On location"128
Opening and closing
– comfort access36
– from inside32
– from outside30
– using remote control30
– using the door lock32
Operating principle, iDrive17
Operation by voice for mobile
phone183
– adjusting volume184
– canceling183
– commands183
– correcting phone
number184
– dialing phone number184
– placing a call184
– redialing185
– voice phone book184
"Options"191
Orientation menu, refer to
Start menu17
Output, refer to Engine
data226
Outside air, refer to AUC
Automatic recirculated-air
control98
ba8_m5us.book Seite 244 Montag, 5. Februar 2007 12:03 12

Reference 247
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
S
Safety5
Safety belts45
– damage46
– refer to Caring for your
vehicle brochure
– sitting safely41
– warning lamp46
Safety belt tensioners
– refer to Airbags86
– refer to Safety belts45
Safety systems
– ABS Antilock Brake
System78
– airbags86
– driving stability control
systems78
– safety belts45
Satellite radio156
– enabling channel156
– selecting channel157
– storing channel157
"SAT" with radio146,156
"Save current
destination"132
"Scan"
– music tracks on CD161
– stations with radio151
Scan
– CD changer161
– CD player161
– radio151
"Scan all" in audio mode161
"Scan directory" in audio
mode161
Screen, refer to iDrive16
Screw thread for tow
fitting221
SDARS, refer to Satellite
radio156
"Seat heater distribution"47Seats42
– active backrest width
adjustment43
– adjusting backrest width42
– adjusting height42
– adjusting shoulder
support42
– adjusting the seats42
– adjusting thigh support42
– easy entry/exit43
– heating46
– lumbar support42
– memory, refer to Seat, mirror
and steering wheel
memory43
– shoulder support42
– sitting safely41
– storing the setting43
– ventilation, refer to Active
seat ventilation47
Securing load
– refer to Securing cargo116
– with ski bag, refer to
Securing cargo109
"Select as
destination"128,191
"Select current speed"73
Selecting audio sources, refer
to Operation via iDrive146
Selecting frequency
manually151
Selecting menu items19
Selecting route132
Selection options with
navigation system132
Selector lever, Sequential
Manual Transmission59
Selector lever positions,
Sequential Manual
Transmission59Sequential Manual
Transmission with
Drivelogic58
– Drivelogic driving
programs60
– idle59
– initializing system, refer to
After changing wheels/
tires202
– reverse gear59
– Sequential mode59
– shift lights61
– shiftlock59
– towing222
– tow-starting223
Sequential mode59
"Service"69,189
Service, refer to Roadside
Assistance220
Service and Warranty
Information Booklet for
US models208
Service Interval Display
– refer to CBS Condition
Based Service208
– refer to Service
requirements68
"Service notification"189
"Service Request"182,189
"Service
requirements"69,189
Service requirements68
– refer to CBS Condition
Based Service208
"Service Status"193
"Set"
– in audio mode146
– on trip computer68
"Set date"75
"Set service date"70
"Set time"74
Setting button, refer to
Controls, controller16
"Settings"193
– for BMW Assist191
– for MDrive51
– for unlocking30
ba8_m5us.book Seite 247 Montag, 5. Februar 2007 12:03 12
