2007 BMW M5 SEDAN jacking

Replacing components

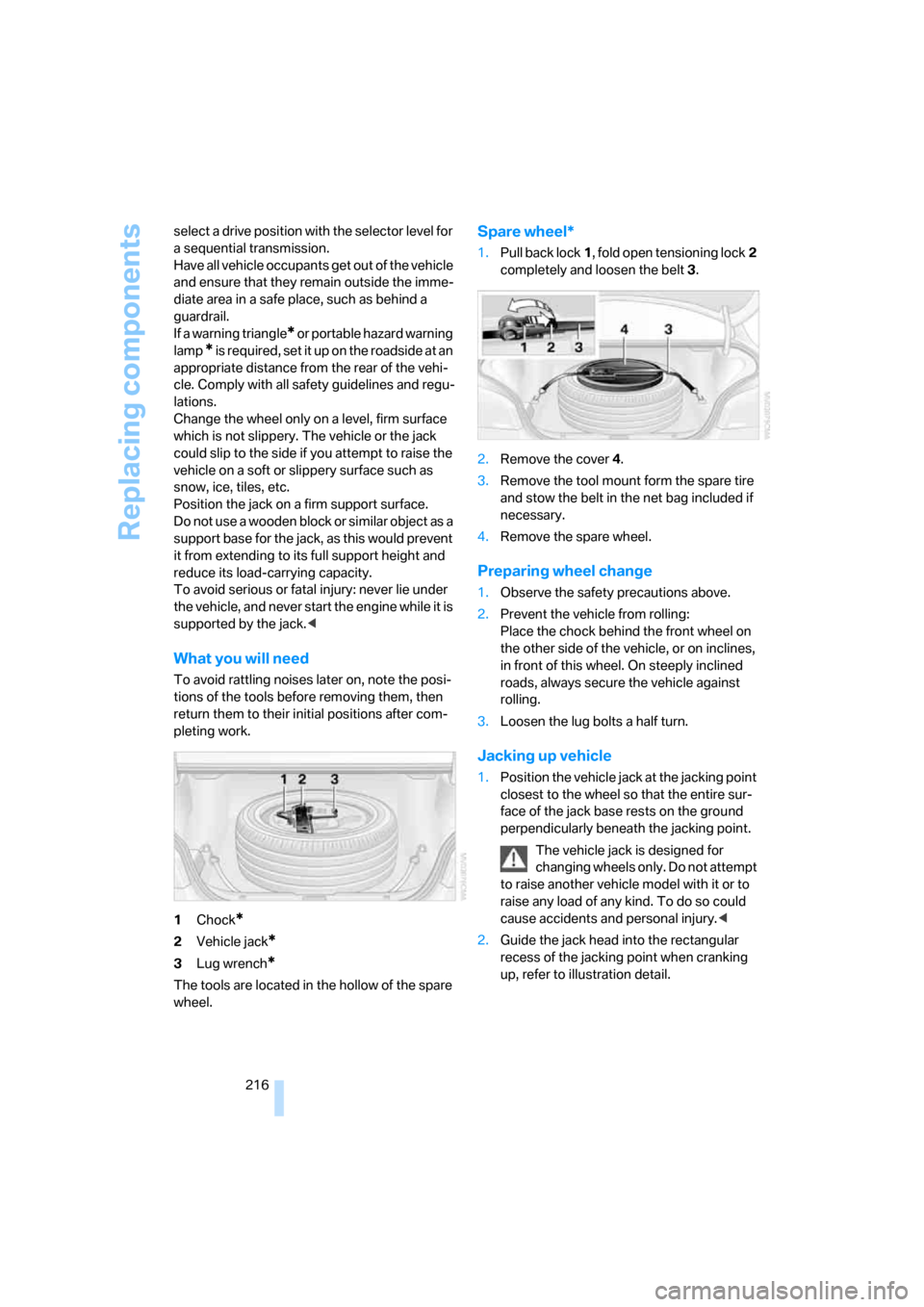

216 select a drive position with the selector level for
a sequential transmission.
Have all vehicle occupants get out of the vehicle
and ensure that they remain outside the imme-
diate area in a safe place, such as behind a
guardrail.
If a warning triangle
* or portable hazard warning
lamp
* is required, set it up on the roadside at an
appropriate distance from the rear of the vehi-
cle. Comply with all safety guidelines and regu-
lations.
Change the wheel only on a level, firm surface
which is not slippery. The vehicle or the jack
could slip to the side if you attempt to raise the
vehicle on a soft or slippery surface such as
snow, ice, tiles, etc.
Position the jack on a firm support surface.
Do not use a wooden block or similar object as a
support base for the jack, as this would prevent
it from extending to its full support height and
reduce its load-carrying capacity.
To avoid serious or fatal injury: never lie under
the vehicle, and never start the engine while it is
supported by the jack.<
What you will need
To avoid rattling noises later on, note the posi-
tions of the tools before removing them, then
return them to their initial positions after com-
pleting work.
1Chock
*
2Vehicle jack*
3Lug wrench*
The tools are located in the hollow of the spare
wheel.
Spare wheel*
1.Pull back lock1, fold open tensioning lock2
completely and loosen the belt3.
2.Remove the cover4.
3.Remove the tool mount form the spare tire
and stow the belt in the net bag included if
necessary.
4.Remove the spare wheel.
Preparing wheel change
1.Observe the safety precautions above.
2.Prevent the vehicle from rolling:
Place the chock behind the front wheel on
the other side of the vehicle, or on inclines,
in front of this wheel. On steeply inclined
roads, always secure the vehicle against
rolling.
3.Loosen the lug bolts a half turn.
Jacking up vehicle
1.Position the vehicle jack at the jacking point
closest to the wheel so that the entire sur-
face of the jack base rests on the ground
perpendicularly beneath the jacking point.
The vehicle jack is designed for
changing wheels only. Do not attempt
to raise another vehicle model with it or to
raise any load of any kind. To do so could
cause accidents and personal injury.<
2.Guide the jack head into the rectangular
recess of the jacking point when cranking
up, refer to illustration detail.
ba8_m5us.book Seite 216 Montag, 5. Februar 2007 12:03 12

Everything from A to Z
242 Ignition lock55
– starting engine with comfort
access37
i menu17
Imprint2
Indicator/warning lamps
– ABS Antilock Brake
System80
– airbags87
– brake system80
– DSC13,79
– Flat Tire Monitor83
– high beams13
– MDrive13,51
– M Dynamic Mode13,79
– parking lamps/low beams13
– safety belt warning46
– TPM Tire Pressure
Monitor84
Indicator and warning
lamps13
Inflation pressure, refer to Tire
inflation pressure198
Inflation pressure monitoring
– refer to Flat Tire Monitor81
– refer to TPM Tire Pressure
Monitor83
Info menu17
Information
– on another location128
– on current position128
– on destination location128
"Information" for navigation
system128
Information menu, refer to
imenu17
"Information on
destination"129
Information service190
"Info sources"69
Initializing
– Flat Tire Monitor82
– radio, refer to Storing
stations152
– refer to Power failure218
– refer to Setting time and
date74
– seat, mirror and steering
wheel memory43"Input map"127
Installation location
– CD changer163
– drive for navigation DVD120
– mobile phone104
Instructions for navigation
system, refer to Voice
instructions137
Instrument cluster12
Instrument illumination, refer
to Instrument lighting94
Instrument lighting94
Instrument panel, refer to
Cockpit10
Instrument panel, refer to
Instrument cluster12
Integrated key28
Integrated universal remote
control102
Interesting destination for
navigation128
"Interim time"73
Interior lamps94
– switching on with remote
control31
Interior motion sensor35
– switching off36
Interior rearview mirror49
– automatic dimming
feature49
Intermittent mode of the
wipers62
J
Jacking points216
Joystick, refer to iDrive16
Jump starting220
K
Keyless-Go, refer to Comfort
access36
Keyless opening and closing,
refer to Comfort access36
Key Memory, refer to Personal
Profile29
"Keypad"182
Keys28
– key-related settings, refer to
Personal Profile29
– spare key28
Knock control197
L
Lamps, refer to Parking lamps/
low beams91
Lamps and bulbs210
"Language / Units"75,76
– for navigation
system121,137
"Languages"76
– for navigation
system121,137
Lashing eyes, refer to
Securing cargo116
Last destinations, refer to
Destination list129
"Last seat pos."44
LATCH child restraint fixing
system53
LEDs light-emitting
diodes210
Length, refer to
Dimensions227
License plate lamp, replacing
bulbs213
Light-emitting diodes
LEDs210
Lighter106
"Lighting"62
Lighting
– instruments94
– lamps and bulbs210
– of the vehicle, refer to
Lamps91
ba8_m5us.book Seite 242 Montag, 5. Februar 2007 12:03 12

Reference 251
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
V
Valve screw caps, refer to
After mounting217
Vehicle
– battery218
– breaking-in112
– care209
– care, refer to Caring for your
vehicle brochure
– loading114
– measurements, refer to
Dimensions227
– parking56
– washing, refer to Caring for
your vehicle brochure
– weights228
"Vehicle / Tires" for
unlocking30
Vehicle jack216
– jacking points216
Vehicle position, refer to
Displaying current
position142
Ventilation99
– draft-free99
– in rear99
– while stationary99
Venting, refer to Ventilation99
Vent outlets95
– automatic climate control95
– refer to Ventilation99
"Vent settings"97
Viscosity206
Voice, refer to Destination
guidance with voice
instructions137
Voice command system
– overview23
– short commands229
Voice instructions for
navigation system137
– muting50
– repeating50,138
– switching on/off50,137
– volume138
Voice phone book184Volume146
– audio sources146
– cargo bay228
– fuel tank, refer to
Capacities228
– mobile phone178
– setting speed-
dependent148
– voice instructions138
– windshield cleaning system,
refer to Capacities228
W
Warning lamps, refer to
Indicator and warning
lamps13
Warning messages, refer to
Check Control70
Warning triangle219
Warranty and Service Guide
Booklet for Canadian
models208
Washer fluid63
– capacity of the reservoir63
Washing the vehicle, also refer
to Caring for your vehicle
brochure
Waste container, refer to
Ashtray106
Water on roads, refer to
Driving through water113
Waveband for radio150
"WB"146,154
Wear indicators in tires, refer
to Minimum tread depth200
Weather news flashes154
Website BMW4
Weights228
Welcome lamps91
"Welcome light"92
Wheel/tire combination, refer
to New wheels and tires201
Wheel/tire damage201
Wheelbase, refer to
Dimensions227
Wheels and tires198
Width, refer to
Dimensions227Windows37
– comfort operation31
– comfort operation from
outside32
– comfort operation with
comfort access36
– safety switch38
Windshield
– cleaning, refer to Wiper
system62
– defrosting, refer to
Defrosting windows97
– displays, refer to Head-Up
Display88
Windshield wash
– automatic, refer to Rain
sensor62
– capacities, reservoir228
– filler neck for washer
fluid204
– washer fluid63
– windshield washer
nozzles63
– wiper system62
Windshield wipers, refer to
Wiper system62
– care, refer to Caring for your
vehicle brochure
– wiper blade
replacement210
Winter tires202
– setting speed limit72
– storage202
Wiper blades
– care, refer to Caring for your
vehicle brochure
– replacement210
Wiper system62
– rain sensor62
– washer fluid63
– windshield washer
nozzles63
"With highways" for
navigation system132
Wood decoration, refer to
Caring for your vehicle
brochure
Word matching principle for
navigation133
ba8_m5us.book Seite 251 Montag, 5. Februar 2007 12:03 12
