Activating rain sensor
Press the button, arrow3. The LED in the but-
ton lights up.
Adjusting rain sensor sensitivity level
Turn the knurled wheel5.
Deactivating rain sensor
Press the button again, arrow3. The LED goes
out.
Deactivate the rain sensor when passing
through an automatic car wash. Failure to
do so could result in damage caused by undes-
ired wiper activation.<
Cleaning windshield and headlamps
Pull the lever, arrow4.
The system sprays washer fluid against the
windshield and activates the wipers for a brief
period.
When the vehicle lighting is switched on, the
headlamps are simultaneously washed at
appropriate intervals.
Do not use the washing mechanisms if
there is any danger that the fluid will
freeze on the windshield. If you do so, your
vision could be obscured. To avoid freezing,
use a washer fluid antifreeze, refer to Washer
fluid. Do not use washing mechanisms when
the washer fluid reservoir is empty, otherwise
you will damage the washer pump.<
Windshield washer nozzles
Both windshield washer nozzles are automati-
cally heated with the engine running or the igni-
tion switched on.
Washer fluid
Washer fluid antifreeze is flammable.
Always keep it well away from sparks and
open flames, and store it in tightly closed con-
tainers well out of the reach of children. Always
observe the instructions for use provided on the
containers.<
Filler neck for washer fluid
Only add washer fluid with the engine
cooled down to exclude contact with hot
engine components. Otherwise there is a dan-
ger of fire and to personal safety if the fluid is
spilled.<
All washer nozzles are supplied from one reser-
voir.
Fill with water and – if required – with a washer
antifreeze, according to manufacturer's recom-
mendations.
In order to maintain the mixture ratio, mix
the washer fluid before filling.<
Capacity
Approx. 5.3 US quarts/5 liters.
Cruise control
The concept
The cruise control is available for use at speeds
of approx. 20 mph/30 km/h and higher. The
vehicle stores and maintains the speed that you
set using the lever mounted on the steering col-
umn. To maintain the specified speed, the sys-
tem brakes if the engine braking effect is not
sufficient on a downhill grade. Speed can drop
ba8_m5us.book Seite 63 Montag, 5. Februar 2007 12:03 12

Technology for comfort, convenience and safety
78

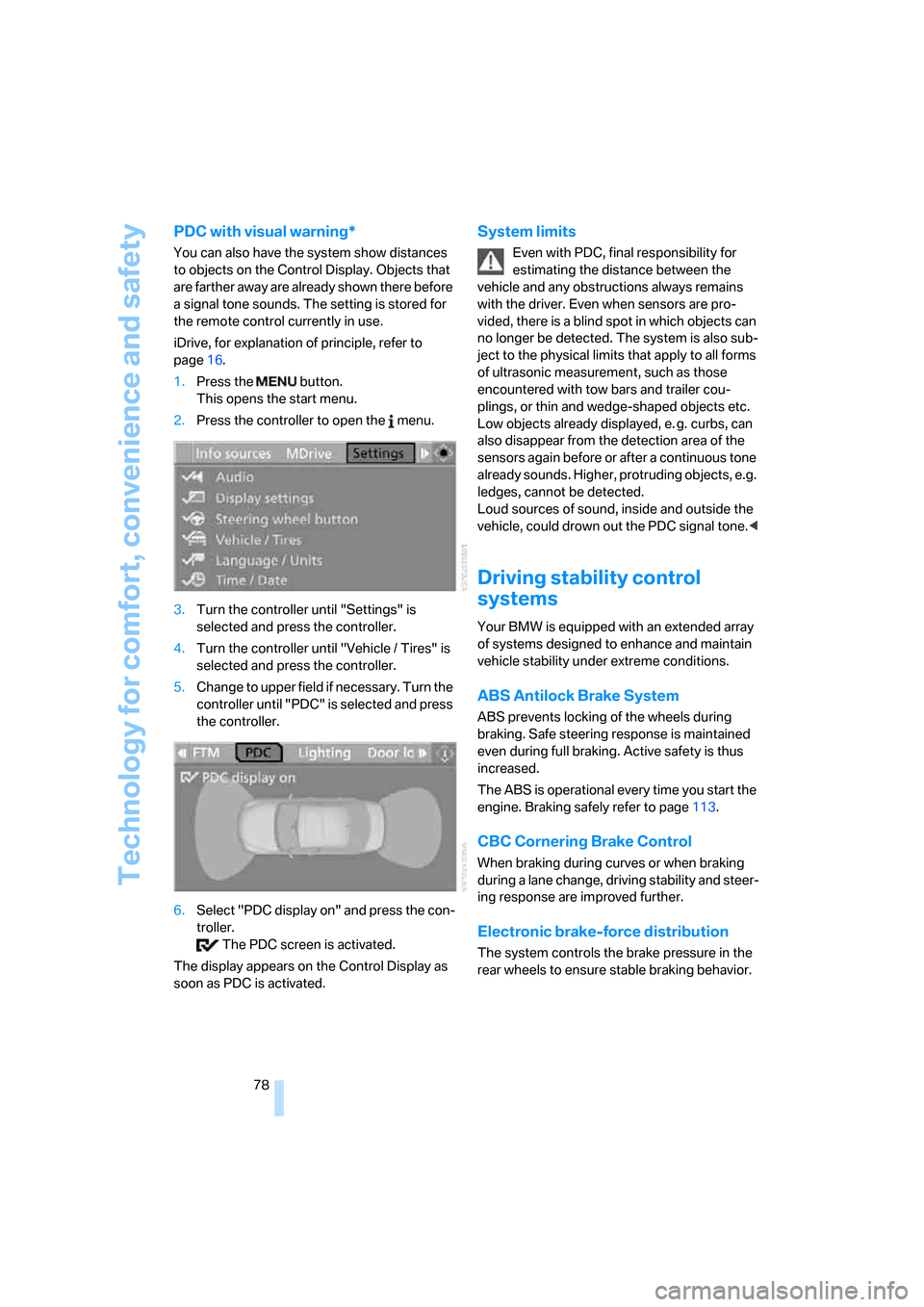

PDC with visual warning*
You can also have the system show distances
to objects on the Control Display. Objects that
are farther away are already shown there before
a signal tone sounds. The setting is stored for
the remote control currently in use.
iDrive, for explanation of principle, refer to
page16.
1.Press the button.
This opens the start menu.
2.Press the controller to open the menu.
3.Turn the controller until "Settings" is
selected and press the controller.
4.Turn the controller until "Vehicle / Tires" is
selected and press the controller.
5.Change to upper field if necessary. Turn the
controller until "PDC" is selected and press
the controller.
6.Select "PDC display on" and press the con-
troller.
The PDC screen is activated.
The display appears on the Control Display as
soon as PDC is activated.
System limits
Even with PDC, final responsibility for
estimating the distance between the
vehicle and any obstructions always remains
with the driver. Even when sensors are pro-
vided, there is a blind spot in which objects can
no longer be detected. The system is also sub-
ject to the physical limits that apply to all forms
of ultrasonic measurement, such as those
encountered with tow bars and trailer cou-
plings, or thin and wedge-shaped objects etc.
Low objects already displayed, e. g. curbs, can
also disappear from the detection area of the
sensors again before or after a continuous tone
already sounds. Higher, protruding objects, e.g.
ledges, cannot be detected.
Loud sources of sound, inside and outside the
vehicle, could drown out the PDC signal tone.<
Driving stability control
systems
Your BMW is equipped with an extended array
of systems designed to enhance and maintain
vehicle stability under extreme conditions.
ABS Antilock Brake System
ABS prevents locking of the wheels during
braking. Safe steering response is maintained
even during full braking. Active safety is thus
increased.
The ABS is operational every time you start the
engine. Braking safely refer to page113.
CBC Cornering Brake Control
When braking during curves or when braking
during a lane change, driving stability and steer-
ing response are improved further.
Electronic brake-force distribution
The system controls the brake pressure in the
rear wheels to ensure stable braking behavior.
ba8_m5us.book Seite 78 Montag, 5. Februar 2007 12:03 12

Maintenance
208
Maintenance
BMW maintenance system
The BMW maintenance system supports the
preservation of the traffic and operating safety
of your BMW. The service schedule also
includes operations related to the vehicle's
comfort and convenience features, such as
replacement of the filters for the inside air.
The ultimate objective is to ensure economical
maintenance by providing the ideal service for
your vehicle.
Should the day come when you decide to sell
your BMW, a complete dealer service history
will prove to be an asset of inestimable value.
CBS Condition Based Service
Sensors and special algorithms take the differ-
ent driving conditions of your BMW into
account. Condition Based Service uses this to
determine the current and future service
requirements. By letting you define a service
and maintenance regimen that reflects your
own individual requirements, the system builds
the basis for trouble-free driving.
You can set the Control Display to show
remaining distances and times of selected
maintenance intervals and legally mandated
deadlines, refer to page68:
>Engine oil
>Brake pads, front and rear separately
>Brake fluid
>Vehicle check>Legally mandated inspections depending
on local regulations
Service data in remote control
Your vehicle stores the information required
maintenance continuously in the remote con-
trol during driving. After accessing the data
stored in the remote control, your BMW Service
Advisor can suggest precisely the right array of
service procedures for your own individual vehi-
cle. You should therefore hand over the remote
control you last used to drive to the BMW Ser-
vice Advisor when you take your vehicle in for
service.
Make sure the date is set correctly, refer
to page75, otherwise the effectiveness
of CBS Condition Based Service is not
ensured.<
Service and Warranty Information
Booklet for US models and
Warranty and Service Guide Booklet
for Canadian models
Please consult your Service and Warranty Infor-
mation Booklet for US models and Warranty
and Service Guide Booklet for Canadian models
for additional information on service require-
ments.
BMW recommends that you have service
and repair operations performed at your
BMW center.
Take the time to ensure that these service pro-
cedures are confirmed by entries in your vehi-
cle's Service and Warranty Information Booklet
for US models and Warranty and Service Guide
Booklet for Canadian models. These entries
verify that your vehicle has received the speci-
fied regular maintenance.<
ba8_m5us.book Seite 208 Montag, 5. Februar 2007 12:03 12

Everything from A to Z
234
Everything from A to Z
Index
"..." Identifies Control Display
texts used to select
individual functions, and
indicates where to find them
in the text.
A
ABS Antilock Brake
System78
– indicator/warning lamp80
Accepted calls180
Accessories6
Accident, refer to Emergency
call219
Acoustic signal, refer to Check
Control70
Activated-charcoal filter for
automatic climate control99
"Activation time" for parked-
car ventilation100
Active seat ventilation47
Adapter for spare key28
Adaptive brake lamps, refer to
Brake force display85
Adaptive Head Light93
"Add digits" for mobile
phone180
Additives
– coolant206
– engine oil, refer to Approved
engine oils206
"Address book" for navigation
system130
Address for navigation
– deleting131
– entering122,125
– selecting130
– storing130
– storing current position130
"Add to address book"129"Add to destination
list"125,127
Adjusting active backrest
width43
Adjusting interior
temperature96
Adjusting the tone during
audio operation, refer to
Tone control147
Adjusting thigh support42
Adjustment in audio mode
– front/rear balance148
– right/left balance148
"After door opened"44
"After unlocking"44
Airbags86
– indicator/warning lamp87
– indicator lamp for front
passenger airbags87
– sitting safely41
Air distribution
– automatic96
– manual97
Airing, refer to Ventilation99
Air recirculation
– AUC Automatic
recirculated-air control
98
– recirculated-air mode98
"Air recirculation on / off"50
Air supply, automatic climate
control95
Air volume97
AKI, refer to Fuel quality197
Alarm system35
– avoiding unintentional
alarms35
– interior motion sensor35
– switching off alarm35
– switching off tilt alarm
sensor and interior motion
sensor36
– tilt alarm sensor35"All channels"157
"All doors"31
All-season tires, refer to
Winter tires202
"All stations", calling up with
radio150,154
Alterations, technical, refer to
For your own safety5
Altering stretch of road138
"AM", reception
range146,150
Antenna, refer to Caring for
your vehicle brochure
Antenna for mobile phone172
Antifreeze
– coolant206
– washer fluid63
Antilock Brake System
ABS78
– indicator/warning lamp80
Anti-theft alarm system, refer
to Alarm system35
Anti-theft system, refer to
Central locking system30
Approved axle loads, refer to
Weights228
Approved engine oils206
Approved gross vehicle
weight, refer to Weights228
Armrest, refer to Center
armrest, rear107
Around the center console14
Around the steering wheel10
Arrival time
– refer to Computer67
– refer to Starting destination
guidance134
"Arrow display" for navigation
system135
Artificial leather, refer to
Caring for your vehicle
brochure
ba8_m5us.book Seite 234 Montag, 5. Februar 2007 12:03 12

Everything from A to Z
242 Ignition lock55
– starting engine with comfort
access37
i menu17
Imprint2
Indicator/warning lamps
– ABS Antilock Brake
System80
– airbags87
– brake system80
– DSC13,79
– Flat Tire Monitor83
– high beams13
– MDrive13,51
– M Dynamic Mode13,79
– parking lamps/low beams13
– safety belt warning46
– TPM Tire Pressure
Monitor84
Indicator and warning
lamps13
Inflation pressure, refer to Tire
inflation pressure198
Inflation pressure monitoring
– refer to Flat Tire Monitor81
– refer to TPM Tire Pressure
Monitor83
Info menu17
Information
– on another location128
– on current position128
– on destination location128
"Information" for navigation
system128
Information menu, refer to
imenu17
"Information on
destination"129
Information service190
"Info sources"69
Initializing
– Flat Tire Monitor82
– radio, refer to Storing
stations152
– refer to Power failure218
– refer to Setting time and
date74
– seat, mirror and steering
wheel memory43"Input map"127
Installation location
– CD changer163
– drive for navigation DVD120
– mobile phone104
Instructions for navigation
system, refer to Voice
instructions137
Instrument cluster12
Instrument illumination, refer
to Instrument lighting94
Instrument lighting94
Instrument panel, refer to
Cockpit10
Instrument panel, refer to
Instrument cluster12
Integrated key28
Integrated universal remote
control102
Interesting destination for
navigation128
"Interim time"73
Interior lamps94
– switching on with remote
control31
Interior motion sensor35
– switching off36
Interior rearview mirror49
– automatic dimming
feature49
Intermittent mode of the
wipers62
J
Jacking points216
Joystick, refer to iDrive16
Jump starting220
K
Keyless-Go, refer to Comfort
access36
Keyless opening and closing,
refer to Comfort access36
Key Memory, refer to Personal
Profile29
"Keypad"182
Keys28
– key-related settings, refer to
Personal Profile29
– spare key28
Knock control197
L
Lamps, refer to Parking lamps/
low beams91
Lamps and bulbs210
"Language / Units"75,76
– for navigation
system121,137
"Languages"76
– for navigation
system121,137
Lashing eyes, refer to
Securing cargo116
Last destinations, refer to
Destination list129
"Last seat pos."44
LATCH child restraint fixing
system53
LEDs light-emitting
diodes210
Length, refer to
Dimensions227
License plate lamp, replacing
bulbs213
Light-emitting diodes
LEDs210
Lighter106
"Lighting"62
Lighting
– instruments94
– lamps and bulbs210
– of the vehicle, refer to
Lamps91
ba8_m5us.book Seite 242 Montag, 5. Februar 2007 12:03 12

Reference 249
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
Steering-wheel shift buttons,
refer to Shift paddles60
"Stop" for stopwatch73
"Stopwatch"73
Stopwatch73
Storage compartments105
"Store in address book" for
navigation system130
"Store" on the radio152,158
Storing current position130
Storing radio stations152
Storing sitting position, refer
to Seat, mirror and steering
wheel memory43
Storing tires202
"Street" for destination
entry124
Summer tires, refer to Wheels
and tires198
Sun blinds103
"Surround Settings", refer to
Tone control148,149
SW, waveband150
Switches, refer to Cockpit10
Switching off engine56
Switching on
– audio146
– CD changer146
– CD player146
– radio146
Switching on hour signal74
Swiveling headlamps, refer to
Adaptive Head Light93
Symbols4
– indicator/warning lamps13
– navigation system141
– status information20
– traffic information with
navigation system138
T
Tachometer65
Tail lamps212
– replacing bulbs212
Tank contents, refer to
Capacities228
Target cursor for
navigation127Technical alterations, refer to
For your own safety5
Technical data226
– capacities228
– dimensions227
Telematics, refer to
BMW Assist187
Telephone
– installation location, refer to
Center armrest104
– refer to Mobile phone172
"Telephone list"50
TeleService189
Temperature
– adjusting in upper body
region96
– adjusting with automatic
climate control96
– changing units of
measure75
– refer to Coolant
temperature65
Temperature display
– changing units of
measure75
– outside temperature65
– outside temperature
warning66
Temperature gauge, engine
oil66
Tempomat, refer to Cruise
control63
"Terminate services"192
"Text language"76
"Theater", refer to Tone
control149
The individual vehicle5
Third brake lamp, refer to
Center brake lamp212
Through-loading system108
Tightening torque of the lug
bolts, refer to After
mounting217
Tilt alarm sensor35
– switching off36
Tilting down passenger-side
exterior mirror48
"Time"74
"Time format"74Timer, refer to Preselecting
activation times100
"Timer 1" for parked-car
ventilation100
"Timer 2" for parked-car
ventilation100
Tire inflation pressures198
Tire pressure
– loss83
Tire pressure loss83
Tire Pressure Monitor
TPM83
Tire Quality Grading199
Tire replacement, new wheels
and tires201
Tires
– age199
– air loss83,84
– breaking-in112
– changing201
– condition200
– damage201
– flat tire, refer to Changing
wheels215
– inflation pressure198
– M Mobility System213
– new wheels and tires201
– pressure monitoring, refer to
Flat Tire Monitor81
– pressure monitoring, refer to
TPM Tire Pressure
Monitor83
– replacing215
– retreaded tires201
– size199
– tread200
– wear indicators200
– wheel/tire combination201
– winter tires202
Tire trouble, changing
wheels215
TMC station, refer to Traffic
information138
"Tone"147
Tone dialing method182
Tone in audio mode
– adjusting147
– middle setting149
Tone on locking/unlocking31
ba8_m5us.book Seite 249 Montag, 5. Februar 2007 12:03 12
