2007 BMW 525I tailgate

Mobility
227Reference
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment

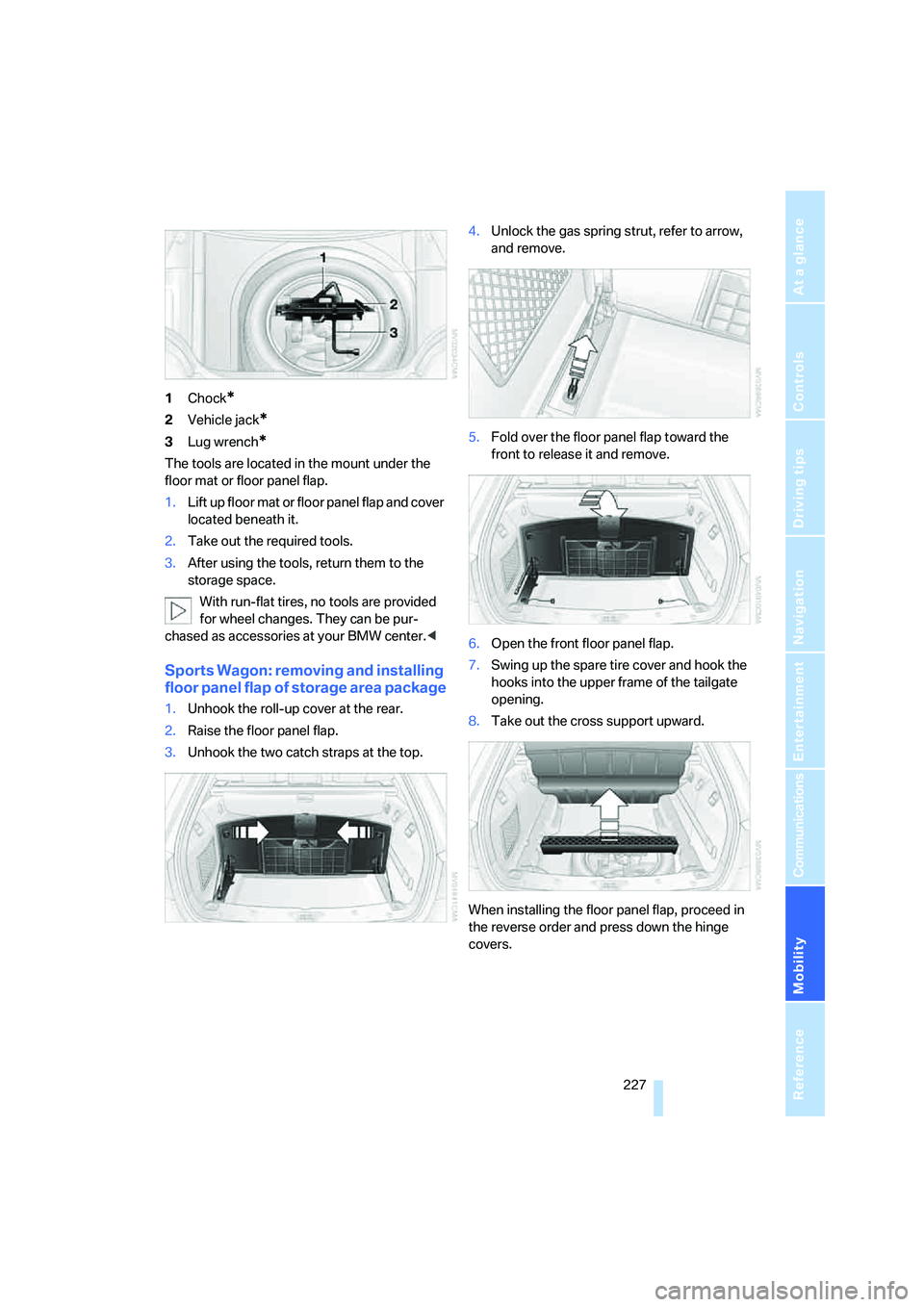

1Chock*
2Vehicle jack*
3Lug wrench*
The tools are located in the mount under the
floor mat or floor panel flap.
1.Lift up floor mat or floor panel flap and cover
located beneath it.
2.Take out the required tools.
3.After using the tools, return them to the
storage space.
With run-flat tires, no tools are provided
for wheel changes. They can be pur-
chased as accessories at your BMW center.<
Sports Wagon: removing and installing
floor panel flap of storage area package
1.Unhook the roll-up cover at the rear.
2.Raise the floor panel flap.
3.Unhook the two catch straps at the top.4.Unlock the gas spring strut, refer to arrow,
and remove.
5.Fold over the floor panel flap toward the
front to release it and remove.
6.Open the front floor panel flap.
7.Swing up the spare tire cover and hook the
hooks into the upper frame of the tailgate
opening.
8.Take out the cross support upward.
When installing the floor panel flap, proceed in
the reverse order and press down the hinge
covers.

Mobility
231Reference
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Giving and receiving assistance
Emergency call
Conditions for an emergency call:
>Full preparation package mobile phone.
With this equipment, an emergency call is
still possible when no mobile phone is
logged on in the vehicle.
>BMW Assist is activated. Activating
BMW Assist, refer to page201.
>Radio readiness is activated.
>The BMW Assist system is logged on to a
mobile phone network.
>The emergency call system is operable.
Once your service contract for BMW Assist
expires, the BMW Assist system can be deacti-
vated by a BMW center without you having to
visit a workshop. Once the BMW Assist system
has been deactivated, emergency calls are not
possible. The BMW Assist system be reacti-
vated by a BMW center after signing a new con-
tract.
Initiating an emergency call
1.Briefly press protective cover to open.
Depending on the vehicle's equipment, the
arrangement of the switches and indicator
lamps may differ somewhat.
2.Press the button for at least 2 seconds.
The LED in the button lights up. As soon as the
voice connection to the BMW Assist Response
Center has been established, the LED flashes.
Once the BMW Assist Response Center has
received your emergency call, the BMW Assist Response Center contacts you and takes fur-
ther steps to help you.
If conditions allow, remain in the vehicle until
the connection has been established. You will
then be able to provide a detailed description of
the situation.
If the current position of your vehicle can be
determined, it will be transmitted to the BMW
Assist Response Center.
If the LED is flashing but the BMW Assist
Response Center cannot be heard over the
hands-free system, it is possible that the
hands-free system is malfunctioning. You may
still be heard by the BMW Assist Response
Center, however.
Under certain conditions, an emergency call is
automatically initiated immediately after a
severe accident. The automatic emergency call
is not affected by the button being pressed.
For technical reasons, the emergency call
cannot be guaranteed under unfavorable
conditions.<
You can also use other services of
BMW Assist with this button, refer to
page196.<
Warning triangle*
The warning triangle is located in the luggage
compartment lid/tailgate.
Sedan
Loosen the wing nut to open.

Reference 249
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
Anti-theft system, refer to
Central locking system30
Approved axle loads, refer to
Weights241
Approved engine oils218
Approved gross vehicle
weight, refer to Weights241
Armrest, refer to Center
armrest, rear118
Around the center console14
Around the steering wheel10
Arrival time
– refer to Computer77
– refer to Starting destination
guidance147
"Arrow display" for
navigation148
Artificial leather, refer to
Caring for your vehicle
brochure
Ashtray
– front117
– rear117
Assist, refer to
BMW Assist196
Assistance systems, refer to
Driving stability control
systems87
Assistance window20
"Assist. window off"21
AUC Automatic recirculated-
air control110
"Audio"161,163,168
Audio160
– controls160
– switching on/off160
– tone control161
– volume161
Audio device, external116
Automatic
– air distribution108
– air volume108
– garage door opener113
– headlamp control103
– service notification198
– steering wheel
adjustment47
– storing stations165
– tailgate operation36Automatic car washes128
– also refer to Caring for your
vehicle brochure
Automatic climate control107
– automatic air
distribution108
– parked car ventilation111
– switching on and off110
– ventilation in rear111
Automatic closing of doors,
refer to Automatic soft
closing33
Automatic curb monitor52
Automatic lighting
– refer to Automatic headlamp
control103
– refer to Daytime running
lamps104
– refer to Interior lamps105
– refer to Pathway lighting103
"Automatic programs"108
Automatic roll-up cover,
Sports Wagon119
Automatic soft closing33
Automatic speed reduction for
descents, refer to HDC Hill
Descent Control89
Automatic station search165
Automatic transmission with
Steptronic64
– deactivating selector lever
interlock65
– interlock64
– kick-down65
– selector lever interlock64
– shiftlock64
– sport program65
– tow-starting234,235
– with comfort access40
"Automatic ventilation"111
AUTO program for automatic
climate control108
"Autostore" on the
radio164,166
"AUX"161
AUX-In
– connection116
– refer to External audio
device179"AUX" with external audio
device179
Average fuel consumption77
– setting units85
Average speed, refer to
Computer76
"Avoid ferries" for
navigation145
"Avoid highways" for
navigation145
Avoiding freeways for
navigation145
Avoiding unintentional
alarms38
"Avoid tollroads" for
navigation145
Axle loads, refer to
Weights241
"A - Z"188,189
B
Backrest contour, refer to
Lumbar support47
Backrests, refer to Seats46
Backrest width adjustment46
Back seats, refer to Rear seats
Backup lamps, replacing
bulbs225
"Balance", refer to Tone
control162
Band-aids, refer to First-aid
kit232
"Bass", refer to Tone
control162
Bass, refer to Tone
control161,162
Battery, refer to Vehicle
battery229
– jump starting232
Battery replacement
– remote control for comfort
access40
BC button, refer to
Computer76
Being towed234
Belts, refer to Safety belts50

Reference 251
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
Cargo bay
– capacity241
– emergency operation, refer
to Opening manually, Sports
Wagon36
– emergency release35
– expanding, Sports
Wagon120
– floor panel flap, refer to
Compartment in floor,
Sports Wagon121
– locking separately34
– opening/closing, refer to
Luggage compartment lid/
tailgate34
– opening from inside34
– opening from inside, Sports
Wagon35
– opening from outside34
– opening from outside,
Sports Wagon35
– opening with remote
control31
Cargo bay cover, refer to Roll-
up cover119
Caring for artificial leather,
refer to Caring for your
vehicle brochure
Caring for leather, refer to
Caring for your vehicle
brochure
Caring for light-alloy wheels,
refer to Caring for your
vehicle brochure
Caring for plastic, refer to the
Caring for your vehicle
brochure
Caring for the carpet, refer to
Caring for your vehicle
brochure
Caring for the vehicle finish,
refer to Caring for your
vehicle brochure
Car key, refer to Keys/remote
control28Car phone182
– installation location, refer to
Center armrest115
– refer to Mobile phone182
– refer to separate operating
instructions
Car radio, refer to Radio164
Car wash128
– also refer to Caring for your
vehicle brochure
– with comfort access40
Catalytic converter, refer to
Hot exhaust system126
"Categories"170
CBC Cornering Brake
Control87
CBS Condition Based
Service220
"CD"161,173
CD changer173
– controls160
– fast forward/reverse177
– installation location177
– random order176
– repeating a track
176
– sampling tracks175
– selecting a CD173
– selecting a track174
– switching on/off160
– tone control161
– volume161
CD player173
– controls160
– fast forward/reverse177
– random order176
– repeating a track176
– sampling a track175
– selecting a track174
– switching on/off160
– tone control161
– volume161
Center armrest
– front115
– rear118
Center brake lamp225
Center console14
"Central locking"30Central locking
– from inside33
– from outside30
Central locking system30
– comfort access38
Change "Route
preference"145
Changes, technical, refer to
For your own safety5
Changes, technical, refer to
Parts and accessories6
Changing language on
Control Display85
Changing scale for
navigation149
Changing units of measure on
Control Display85
Changing wheels214,226
CHECK button80
Check Control80
"Check Control
messages"81
Check Gas Cap207
Checking the air pressure,
refer to Tire inflation
pressure208
Child restraint fixing system
LATCH57
Child restraints55
Child restraint systems55
Child-safety lock58
Child seats, refer to
Transporting children
safely55
Chime, refer to Check
Control80
Chock226
Chrome parts, refer to Caring
for your vehicle brochure
Cigarette lighter117
Cigarette lighter socket, refer
to Connecting electrical
devices117
Cleaning, refer to Caring for
your vehicle brochure
"Climate"51,108

Reference 253
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
Decommissioning the vehicle
– refer to Caring for your
vehicle brochure
Decommissioning the vehicle,
refer to Caring for your
vehicle brochure
Defect
– door lock32
– fuel filler door206
– glass sunroof43
– luggage compartment lid34
– panorama glass roof44
– tailgate36
Defrosting windows109
Defrosting windows and
removing condensation109
Defrosting windshield, refer to
Defrosting windows109
Defrost position, refer to
Defrosting windows109
"Delete address book" for
navigation144
"Delete all numbers" on the
mobile phone190
"Delete data" for
navigation144
"Delete" for mobile
phone190
Destination address
– deleting144
– entering135,138
Destination for navigation
– destination list141
– entering via voice138
– entry135
– selecting from address
book143
– selecting using
information141
– storing142Destination guidance147
– bypassing route
sections151
– canceling voice
instructions54
– changing specified
route145
– displaying route148
– distance and arrival147
– interrupting147
– starting147
– terminating/continuing147
– voice instructions150
– volume of voice
instructions150
Destination list for
navigation141
Destinations recently driven
to141
"Details" in audio mode175
"Detour" for navigation154
"Dial" for mobile phone187
"Dial number"188
"Diamond button"54
Diamond button53
Digital clock75
Digital radio, refer to High
Definition Radio168
Dimensions239
Directional indicators, refer to
Turn signals65
Direction announcements,
refer to Voice
instructions150
Direction instructions, refer to
Voice instructions150
Directory, refer to Phone
book188
Directory for navigation, refer
to Address book142
Displacement, refer to Engine
data238
"Display"85
Display, refer to iDrive
controls16
Display elements, refer to
Instrument cluster12
Displaying vehicle data202Display lighting, refer to
Instrument lighting105
"Display off"21
Displays
– on Control Display, refer to
iDrive16
– refer to Instrument
cluster12
"Display settings"84,99
Displays on the windshield,
refer to Head-Up Display98
Disposal
– battery of remote control
with comfort access40
– coolant219
– vehicle battery229
Distance, refer to
Computer77
Distance cruise control, refer
to Active cruise control69
"Distance to dest."77
Distance to destination, refer
to Computer77
Distance warning, refer to
PDC Park Distance
Control86
Divided rear backrest, refer to
Through-loading
system119
Door entry lighting105
Door key, refer to Keys/
remote control28
Door lock32
Door locking, confirmation
signals31
"Door locks"30
Doors
– manual operation
32
– remote control30
DOT Quality Grades212
Draft-free ventilation110
Drinks holder, refer to Cup
holders116
Drive mode63
"Driver's door only"30
Driving lamps, refer to Parking
lamps/low beams103
Driving route, refer to
Displaying route148

Everything from A to Z
254 Driving stability control
systems87
Driving through water127
Driving tips, refer to General
driving notes126
Dry air, refer to Cooling
function109
Drying the air, refer to Cooling
function109
DSC Dynamic Stability
Control88
– indicator lamp13,88
– malfunction90
DTC Dynamic Traction
Control88
– activating88
– indicator lamp13,88
DVD for navigation134
Dynamic Brake Control
DBC87
Dynamic Drive90
Dynamic Driving Control63
"Dynamic route" for
navigation145
Dynamic Stability Control
DSC88
Dynamic Traction Control
DTC88
E
Easy entry/exit53
– backrest width47
Eject button, refer to Buttons
on CD player160
Electrical malfunction
– door lock32
– driver's door32
– fuel filler door206
– glass sunroof, electric43
– luggage compartment lid34
– panorama glass sunroof44
– tailgate36
Electric steering wheel
adjustment53
Electronic brake-force
distribution87
Electronic oil level check217
Emergency call231Emergency operation, refer to
Manual operation
– door lock32
– driver's door32
– fuel filler door206
– luggage compartment lid34
– selector lever interlock,
automatic transmission65
– tailgate36
Emergency operation, refer to
Moving manually
– glass sunroof43
– panorama glass roof44
Emergency release for
luggage compartment lid in
cargo bay35
Emergency services, refer to
Roadside Assistance232
"Enable services"202
"End call"188
Energy-conscious driving,
refer to Energy Control76
Energy Control76
Engine
– breaking-in126
– data238
– overheated, refer to Coolant
temperature75
– speed238
– starting60
– starting, with comfort
access38
– starting difficulties60
– switching off61
Engine compartment217
Engine coolant219
Engine oil
– adding218
– additives, refer to Approved
engine oils218
– approved engine oil218
– checking oil level
217
– electronic oil level check217
– interval between changes,
refer to Service
requirements78
– oil change218
– oil grades, refer to Approved
engine oils218"Engine oil level"218
Engine output, refer to Engine
data238
Engine overheating, refer to
Coolant temperature75
Engine speed, refer to Engine
data238
Engine starting, refer to
Starting engine60
"Enter address"136,142
Entering destination via town/
city name136
Entering intersection,
navigation137
Entering the
address135,138
Entering town/city for
navigation136
Entering zip code for
navigation137
"Entertainment"160
Entertainment sound output
on/off161
Entry map for destination140
Environmentally friendly
driving, refer to Energy
Control76
"Equalizer", refer to Tone
control163
Equalizer, refer to Tone
control163
"ESN"170
ESP Electronic Stability
Program, refer to DSC
Dynamic Stability
Control88
Event Data Recorders221
Exhaust system, refer to Hot
exhaust system126
Exterior mirrors52
– adjusting52
– automatic dimming
feature53
– automatic heating52
– folding in and out52
– tilting down passenger-side
exterior mirror52

Everything from A to Z
258
L
Lamps, refer to Parking lamps/
low beams103
Lamps and bulbs223
"Language / Units"85
"Language / Units" for
navigation150
"Languages"85
"Languages" for
navigation150
Lashing eyes, refer to
Securing cargo130
Last destinations, refer to
Destination list141
"Last seat pos."48
LATCH child restraint fixing
system57
LEDs light-emitting
diodes223
Length, refer to
Dimensions239
License plate lamp, replacing
bulbs226
Light-emitting diodes
LEDs223
Lighter117
"Lighting"66,104
Lighting
– instruments105
– lamps and bulbs223
– of the vehicle, refer to
Lamps103
Light switch103
"Limit"82
Loading
– securing cargo130
– stowing cargo129
– vehicle128
Load securing equipment,
refer to Securing cargo130
"Lock after driving"33
Lock buttons in the doors,
refer to Locking33Locking31
– confirmation signals31
– from inside33
– from outside31
– without key, refer to Comfort
access38
Locking and unlocking doors
– confirmation signals31
– from inside33
– from outside30
LOGIC 7162
Low beams103
– automatic103
– replacing bulbs223
Lower back support, refer to
Lumbar support47
Lug bolts228
– tightening torque, refer to
After mounting228
– wrench226
Luggage compartment, refer
to Cargo bay
Luggage compartment lid34
– emergency operation, refer
to Manual operation34
– emergency release35
– locking separately34
– opening from inside34
– opening from outside34
– unlocking and locking from
inside33
– unlocking manually34
Luggage compartment lid/
tailgate
– comfort access39
Luggage net, refer to
Separation net120
Luggage rack, refer to Roof-
mounted luggage rack130
Lumbar support47
LW, waveband164
M
M+S tires, refer to Winter
tires214
Maintenance220
– refer to Service and
Warranty Information
Booklet for US models220
– refer to Service
requirements78
– refer to Warranty and
Service Guide Booklet for
Canadian models220
Maintenance system220
Malfunction warnings, refer to
Check Control80
Manual air distribution109
Manual mode
– automatic transmission with
Steptronic65
– SMG Sequential Manual
Transmission63
Manual operation
– door lock32
– driver's door32
– fuel filler door206
– glass sunroof43
– luggage compartment lid34
– panorama glass sunroof44
– selector lever interlock,
automatic transmission65
Manual transmission62
"Manual" with radio165
"Map direction of travel"149
Map display148
"Map facing north"149
Map for navigation
– changing scale149
– destination entry140
Map view facing north148
Master key, refer to Keys/
remote control28
Maximum cooling109
Maximum speed
– with compact wheel229
Maximum speed with winter
tires215

Reference 261
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
Pollen, refer to Microfilter/
activated charcoal filter111
Position
– displaying154
– storing143
Power failure229
Power windows, refer to
Windows40
Preselecting activation times
of the parked car
ventilation111
"Presets" on the
radio164,170
Pressure, tires208
Pressure monitoring of tires,
refer to TPM Tire Pressure
Monitor92
"Profile"202
Programmable buttons on
steering wheel53
Protective function, refer to
Pinch protection system
– glass sunroof, electric42
– panorama glass sunroof44
– windows41
R
Radio
– Autostore165
– controls160
– High Definition Radio168
– sampling stations165
– satellite radio169
– selecting frequency
manually165
– selecting
waveband160,164
– station search165
– station selection164
– station with the best
reception165
– storing stations166
– switching on/off160
– tone control161
– volume161
– Weather Band, refer to
Weather news flashes167Radio key, refer to Keys/
remote control28
Radio position, refer to Radio
readiness59
Radio readiness59
– switched off60
– switched on59
– with comfort access40
Rain sensor66
"Random", random play
sequence176
"Random all" in audio
mode176
"Random directory" in audio
mode176
"RDS"167
Reading lamps106
Rear armrest, refer to Center
armrest, rear118
Rear lamps, refer to Tail
lamps225
– replacing bulbs225
Rear seats
– adjusting head restraints49
– folding over backrest119
– heating51
– removing head restraints50
Rear socket118
Rear ventilation111
Rearview mirror52
Rear window
– changing wiper blade222
– heating109
– opening and closing on
Sports Wagon35
– roller sun blind, refer to Sun
blinds114
– window wiper on Sports
Wagon
67,128
Rear window safety switch41
"Received calls"188
Reception
– quality167
– radio stations167
– regional station165
Reception level of mobile
phone, refer to Status
information20Rechargeable flashlight115
Recirculated-air mode110
– air recirculation110
– AUC Automatic
recirculated-air control110
Reclining seat, refer to
Seats46
Recording times, refer to
Stopwatch82
"Redial" for mobile phone188
Redialing with mobile
phone194
Reflectors, refer to Tail
lamps225
Refueling206
Releasing, hood216
Releasing the locks, refer to
Unlocking39
"Relock door if not
opened"33
Remaining distance, refer to
Cruising range76
Remaining distance to
destination, refer to
Computer77
Remote control28
– comfort access38
– garage door opener113
– luggage compartment lid31
– malfunction32,40
– replacing battery40
– tailgate31
Removing condensation on
the windows109
"Repeat directory" in audio
mode176
"Repeat" in audio mode176
"Repeat track" in audio
mode176
Replacement fuses229
Replacement of tires, refer to
Changing wheels226
Replacement remote control,
refer to New remote
controls28
Replacing bulbs, refer to
Lamps and bulbs223
Replacing tires214
